Home >> Mazda >> 2004 >> B4000 Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting [Engine] >> Symptom Troubleshooting Chart - Engine Cooling >> Cooling System Pinpoint Test 3: Engine Does Not Reach Normal Operating Temperature

Cooling System Pinpoint Test 3: Engine Does Not Reach Normal Operating Temperature

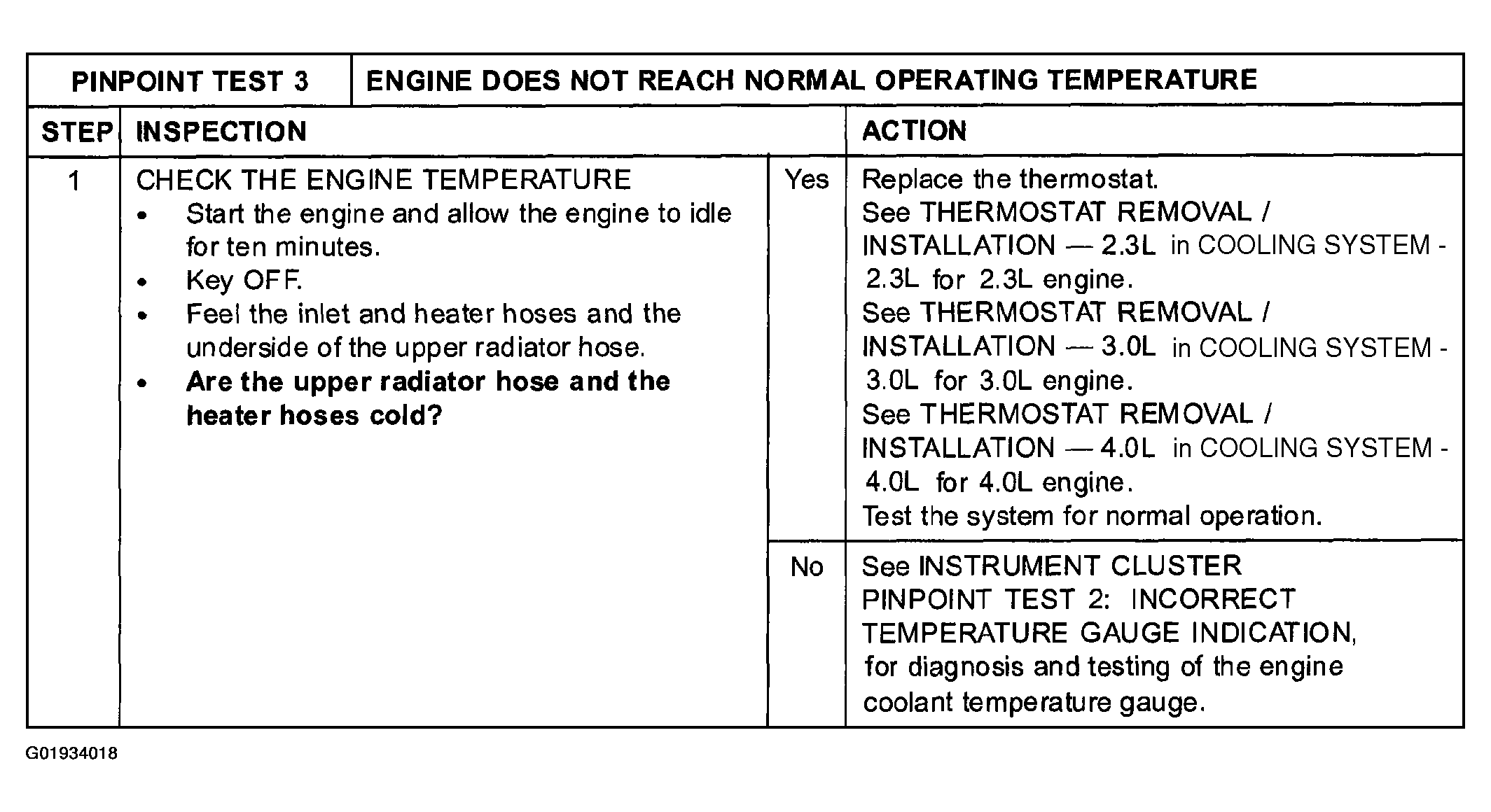

Fig 1: Cooling System Pinpoint Test 3: Engine Does Not Reach Normal Operating Temperature
G01934018Courtesy of MAZDA MOTORS CORP.
