B4000 Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Symptom Troubleshooting [Engine]
>>
Symptom Troubleshooting Chart - Drive Belt
Symptom Troubleshooting Chart - Drive Belt

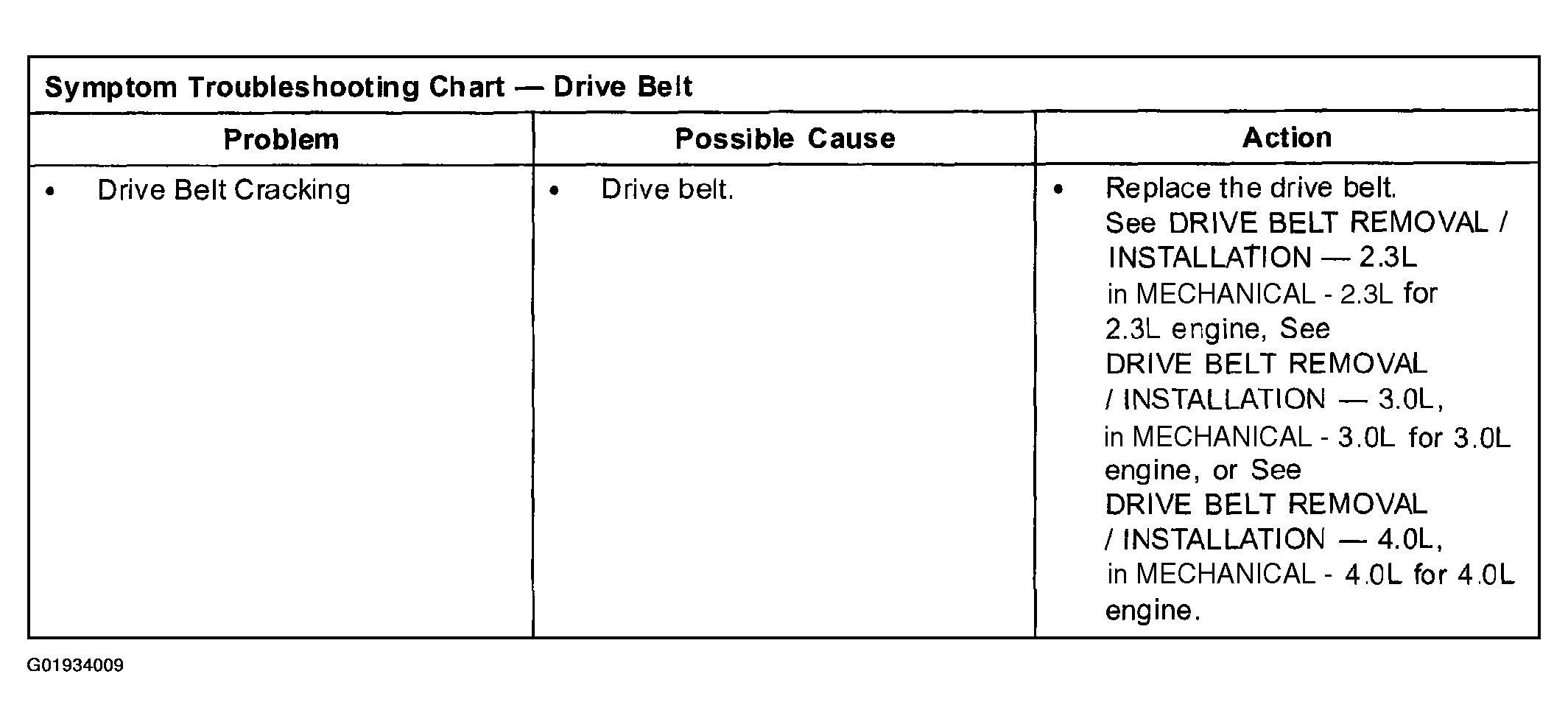

Fig 1: Symptom Troubleshooting Chart - Drive Belt (1 of 3)
Courtesy of MAZDA MOTORS CORP.

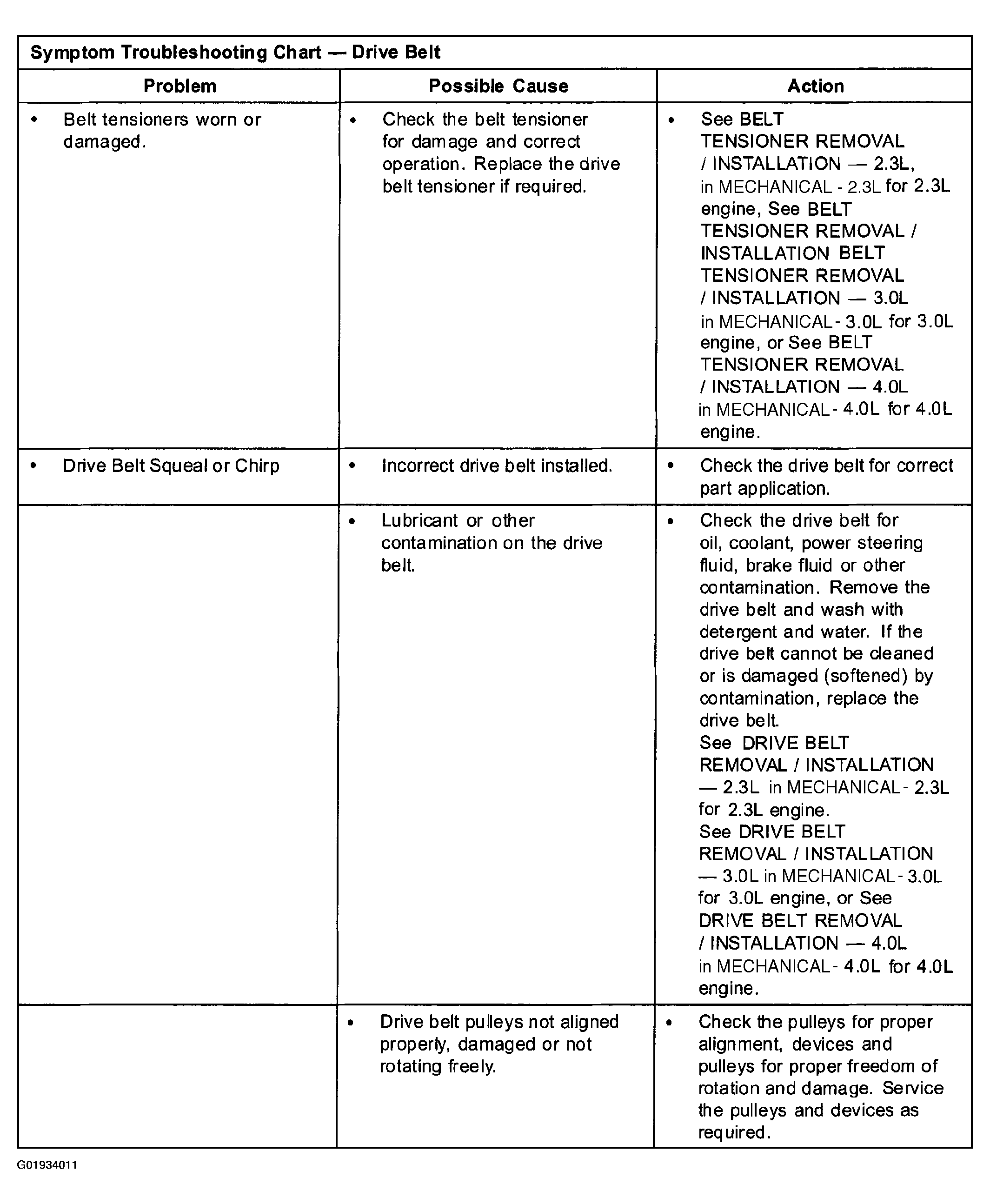

Fig 2: Symptom Troubleshooting Chart - Drive Belt (2 of 3)
Courtesy of MAZDA MOTORS CORP.

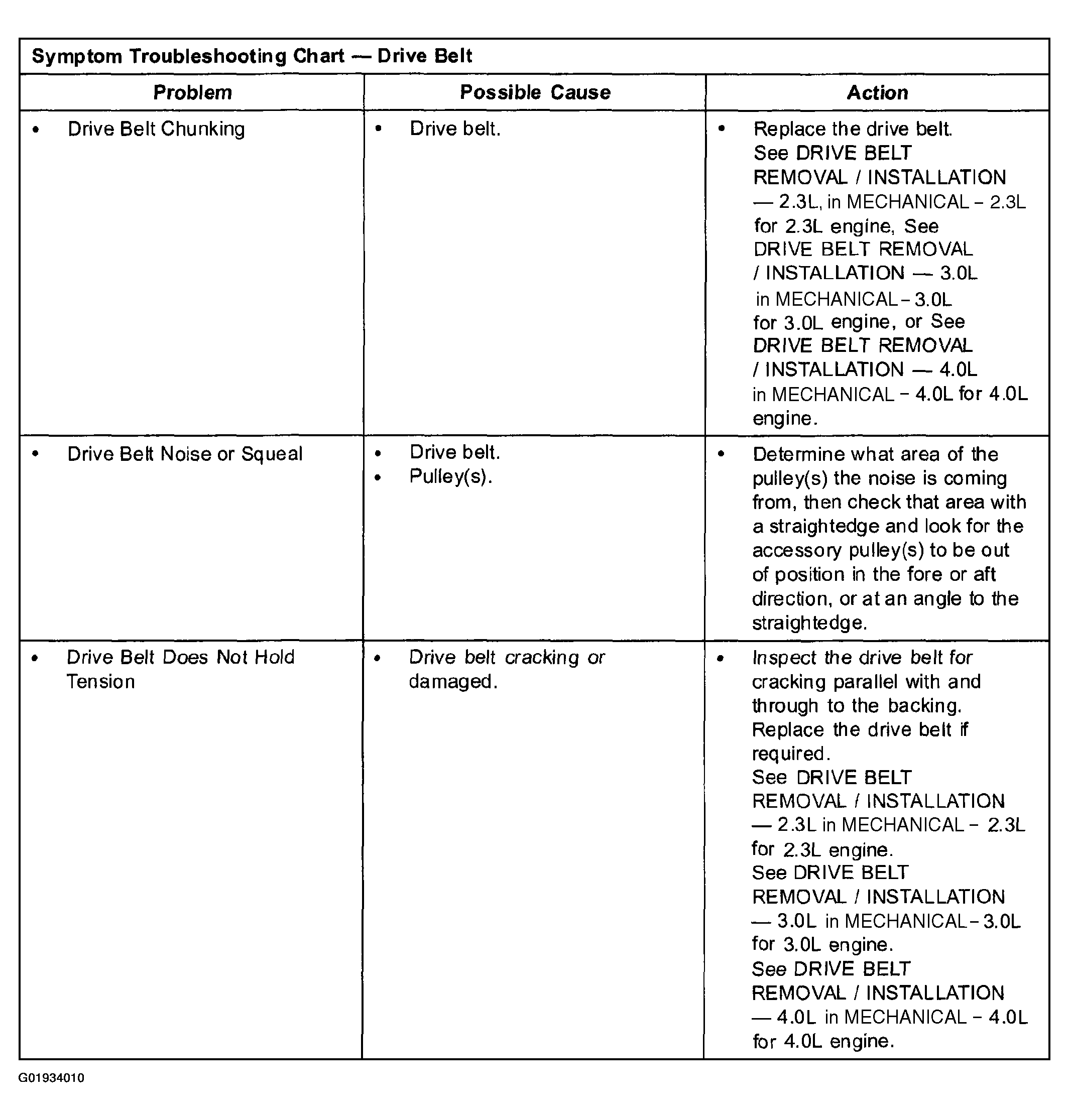

Fig 3: Symptom Troubleshooting Chart - Drive Belt (3 of 3)
Courtesy of MAZDA MOTORS CORP.
