DTC P1464: A/C Control Signal (ACCS) Malfunction

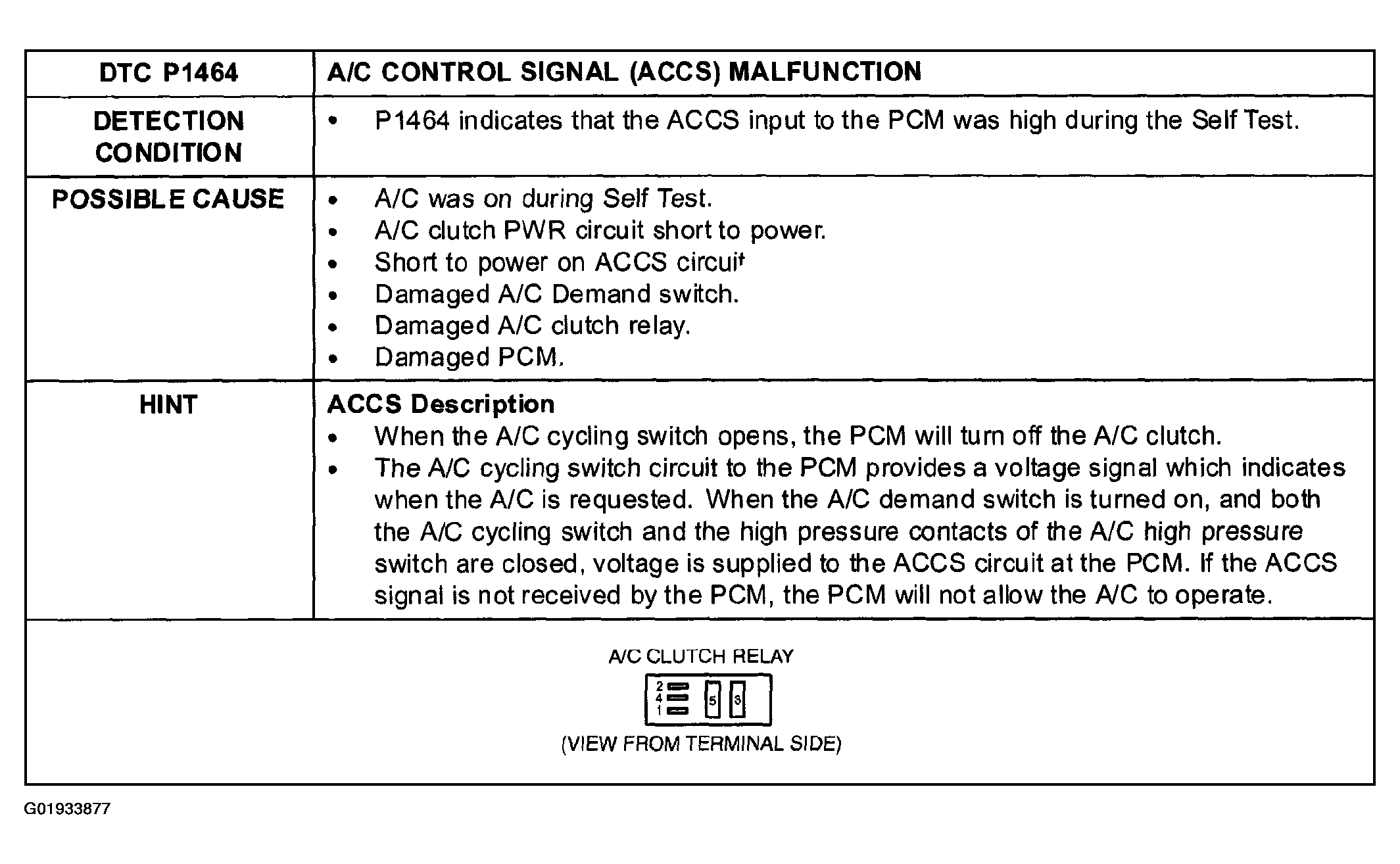

Fig 1: A/C Control Signal (ACCS) Malfunction Detection Condition

Courtesy of MAZDA MOTORS CORP.

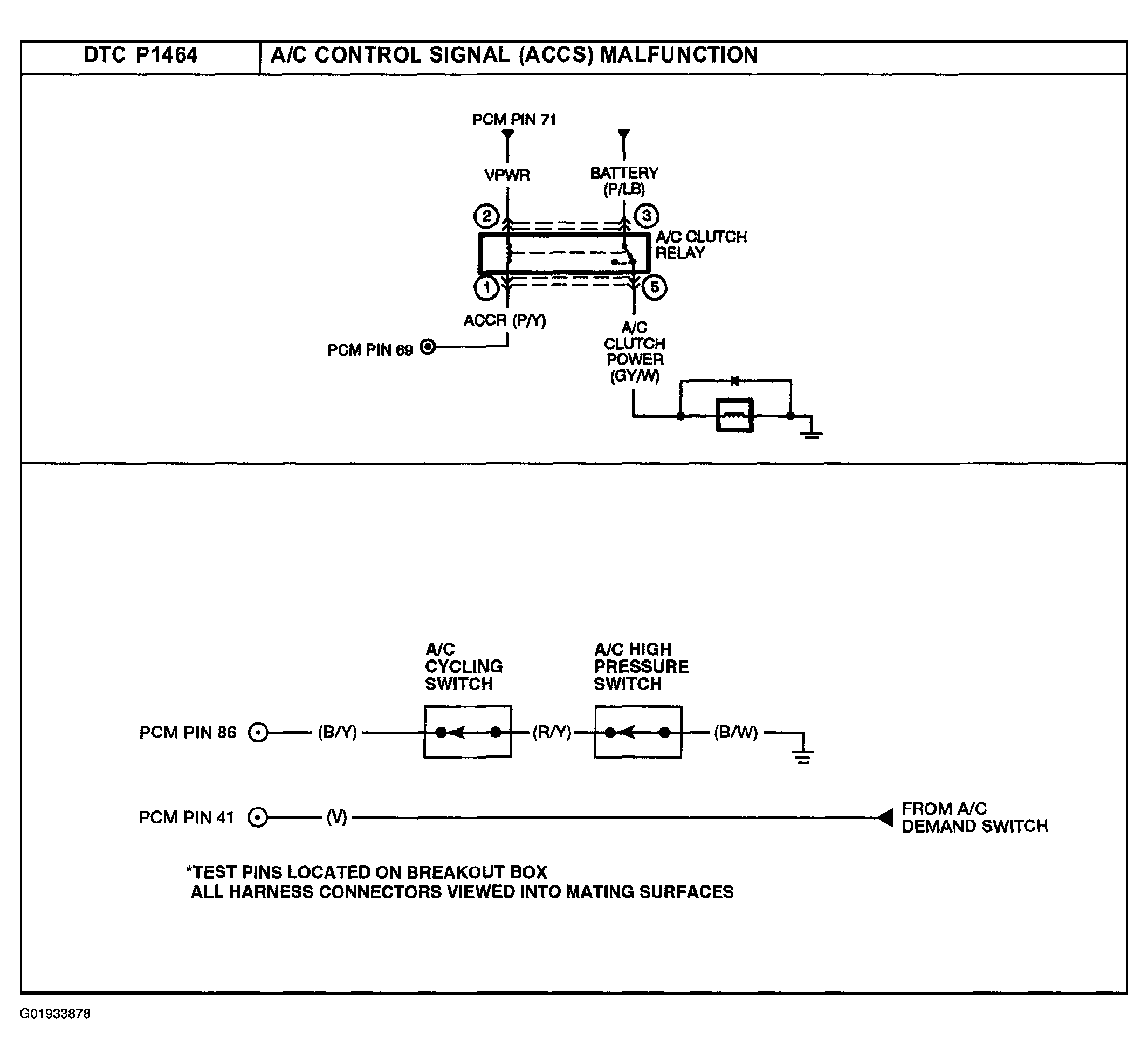

Fig 2: Identifying A/C Clutch Relay

Courtesy of MAZDA MOTORS CORP.

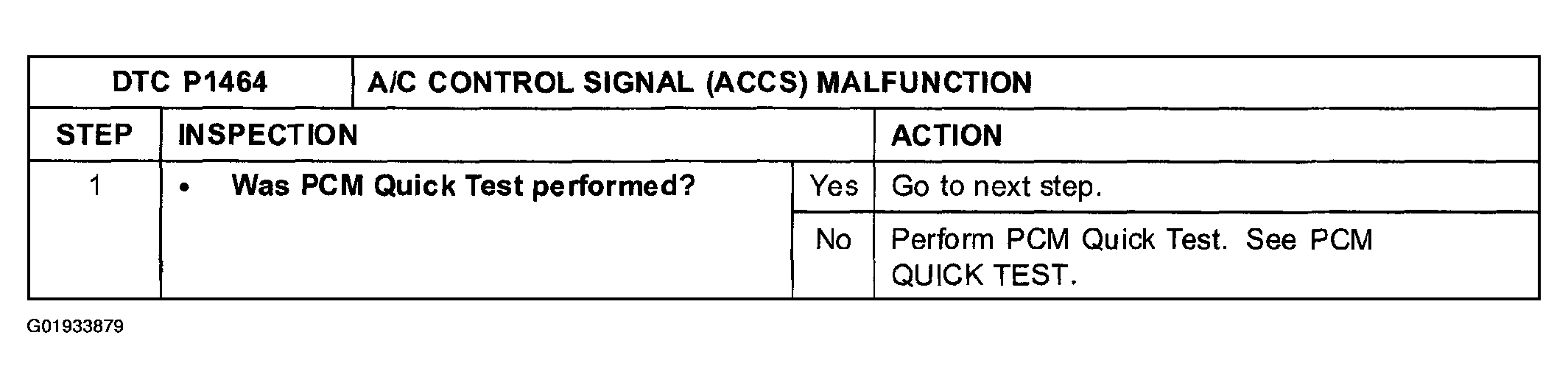

Fig 3: Diagnostic Procedure (DTC P1464) (Step 1)

Courtesy of MAZDA MOTORS CORP.

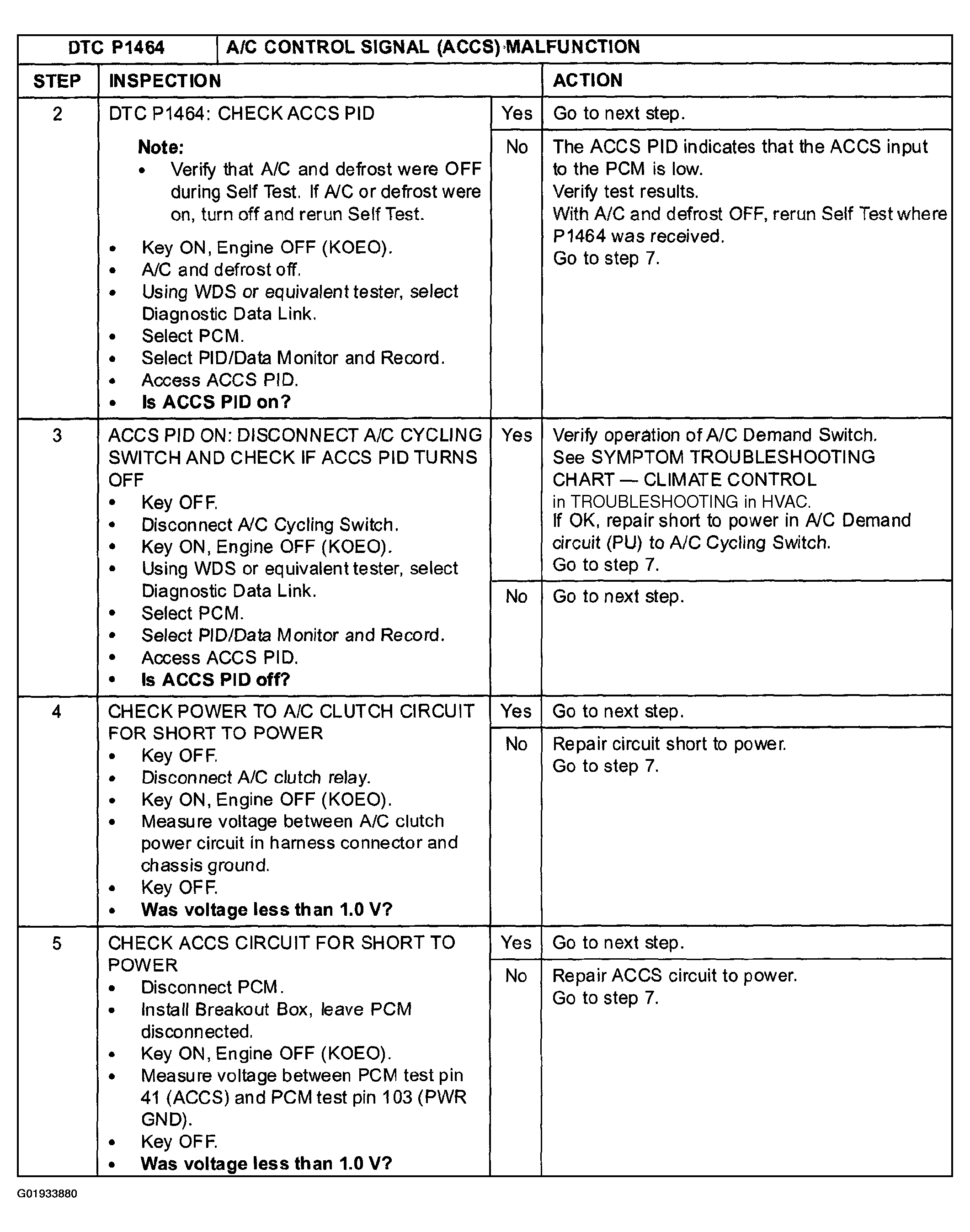

Fig 4: Diagnostic Procedure (DTC P1464) (Steps 2-5)

Courtesy of MAZDA MOTORS CORP.

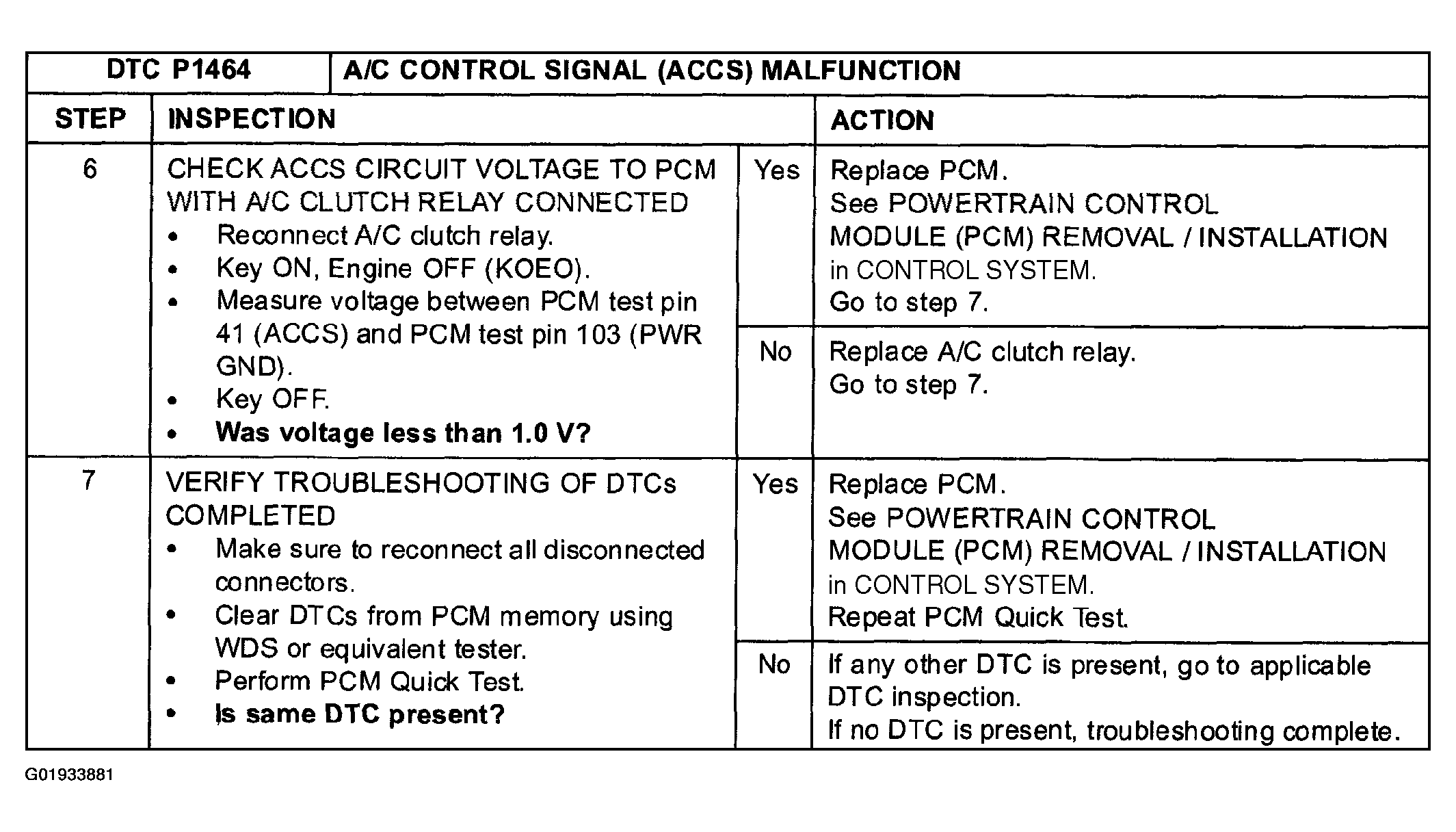

Fig 5: Diagnostic Procedure (DTC P1464) (Steps 6-7)

Courtesy of MAZDA MOTORS CORP.
