General Pinpoint Test 9: Fuel Pump Inspection

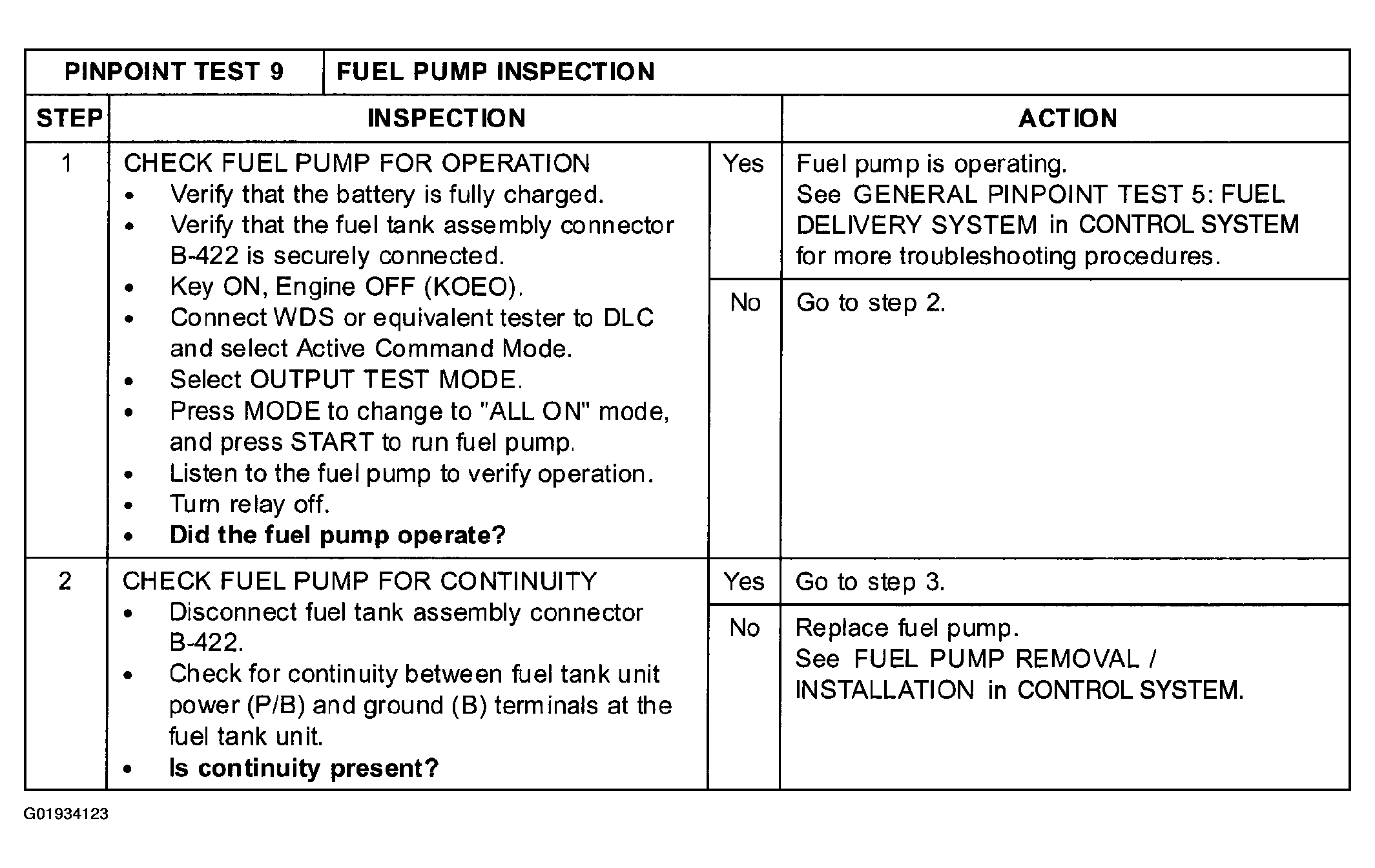

Fig 1: General Pinpoint Test 9: Fuel Pump Inspection (Steps 1-2)
G01934123Courtesy of MAZDA MOTORS CORP.

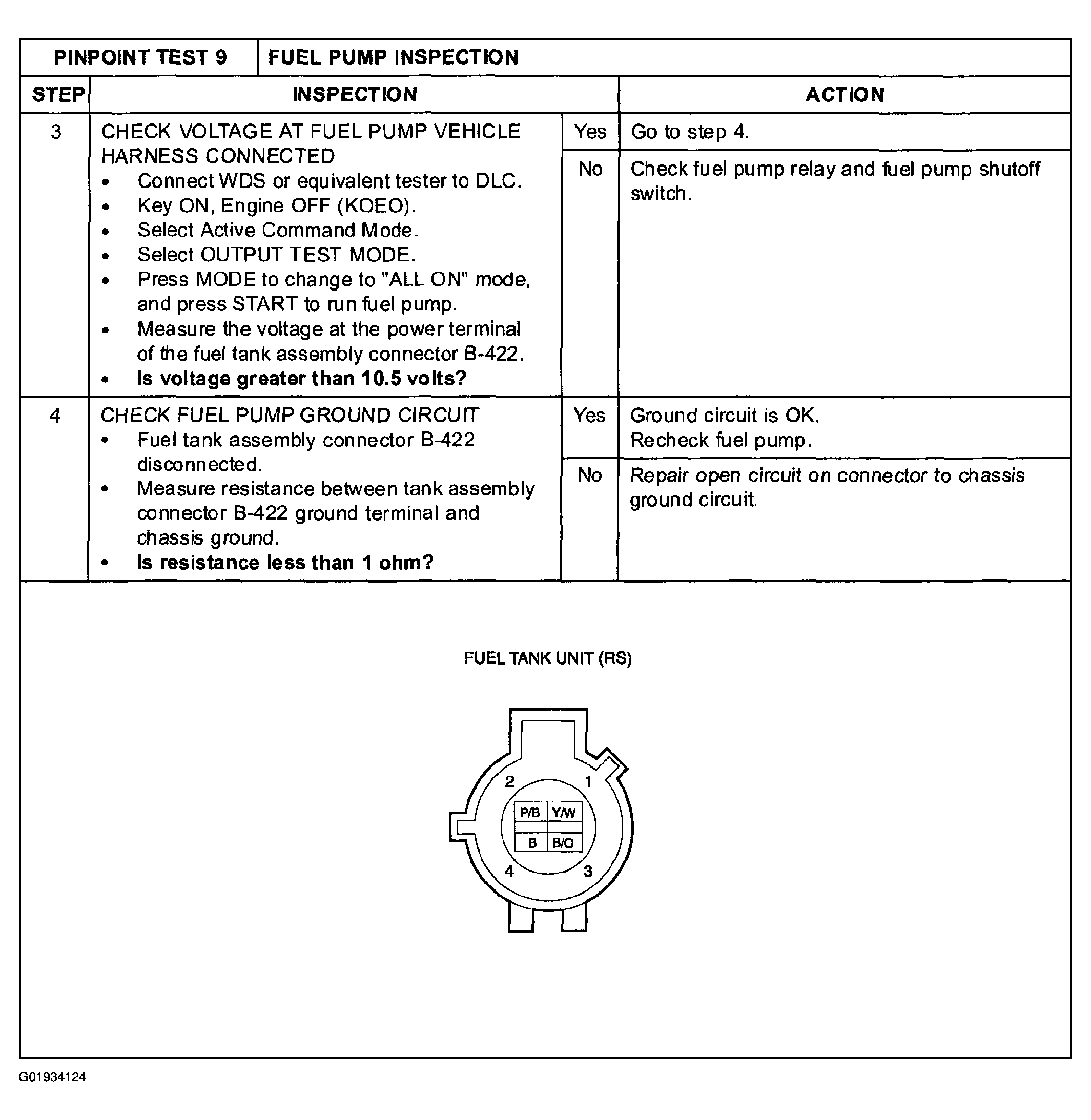

Fig 2: General Pinpoint Test 9: Fuel Pump Inspection (Steps 3-4)
G01934124Courtesy of MAZDA MOTORS CORP.
