General Pinpoint Test 11: Fuel Injector Inspection

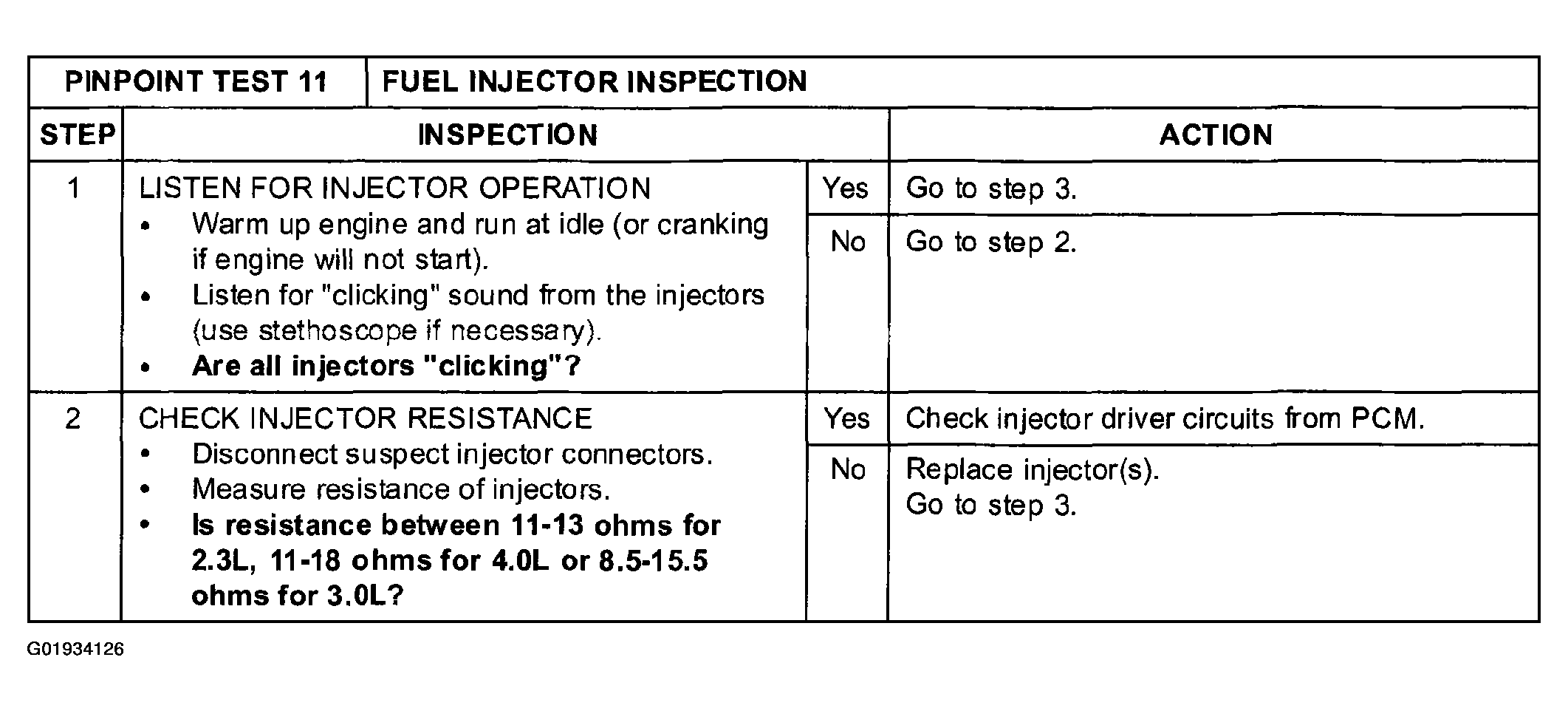

Fig 1: General Pinpoint Test 11: Fuel Injector Inspection (Steps 1-2)
G01934126Courtesy of MAZDA MOTORS CORP.

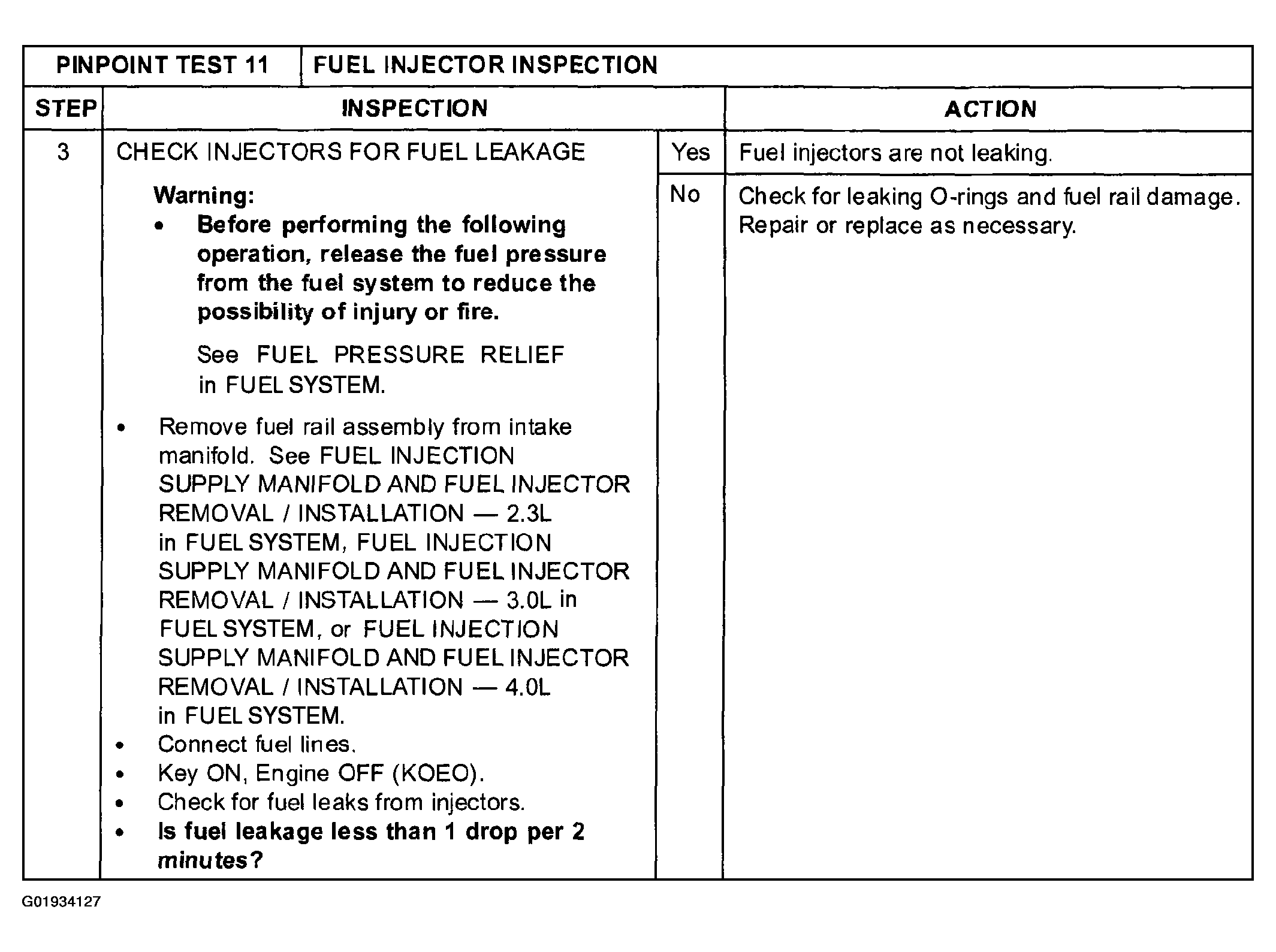

Fig 2: General Pinpoint Test 11: Fuel Injector Inspection (Step 3)
G01934127Courtesy of MAZDA MOTORS CORP.
