Home >> Mazda >> 2004 >> B4000 Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting [Engine] >> Evaporative Emission Symptom Chart >> Notes

Evaporative Emission Symptom Chart: Notes

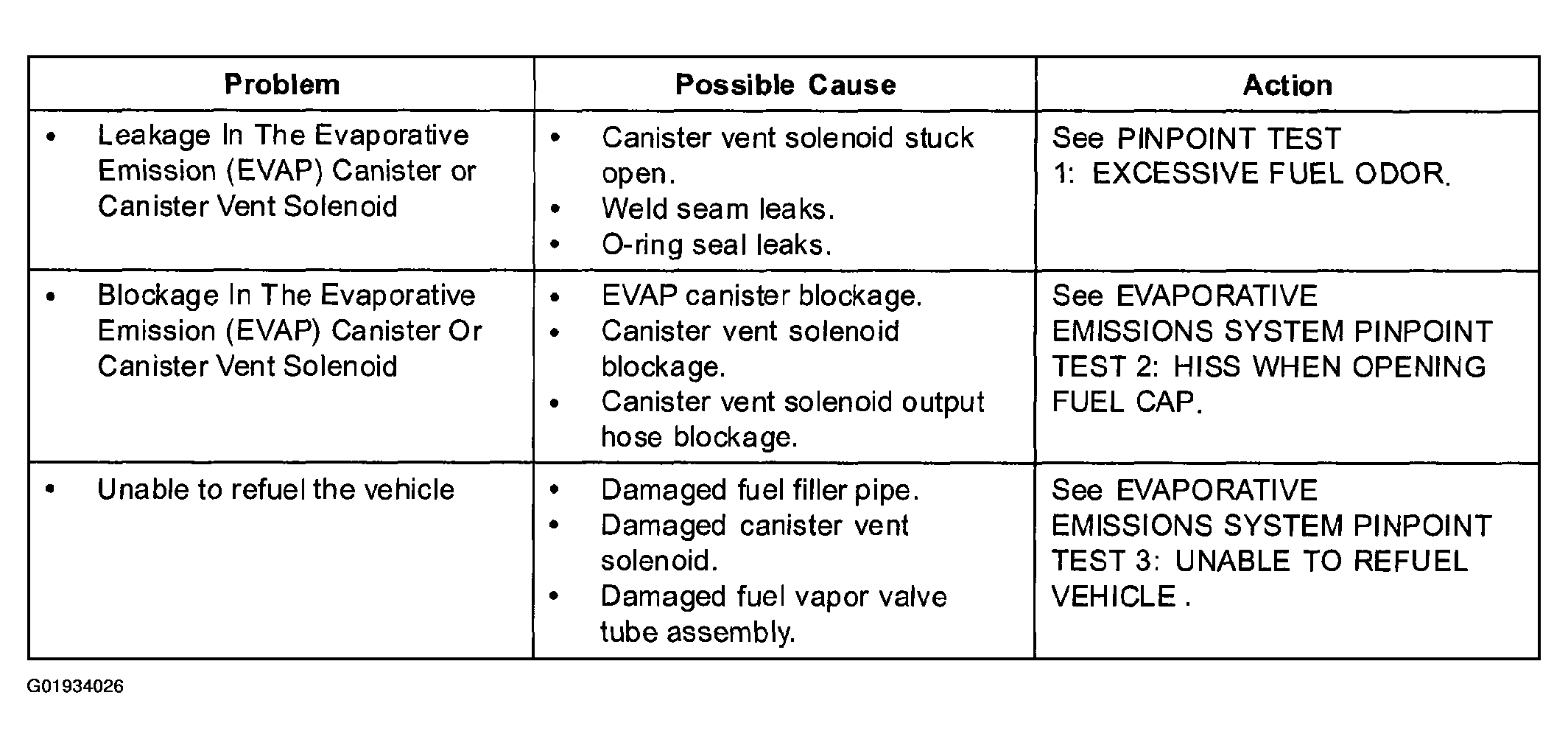

Fig 1: Symptom Troubleshooting Chart- Evaporative Emission Symptom

G01934026

Courtesy of MAZDA MOTORS CORP.
