Symptom Troubleshooting Chart-Power Outside Mirror

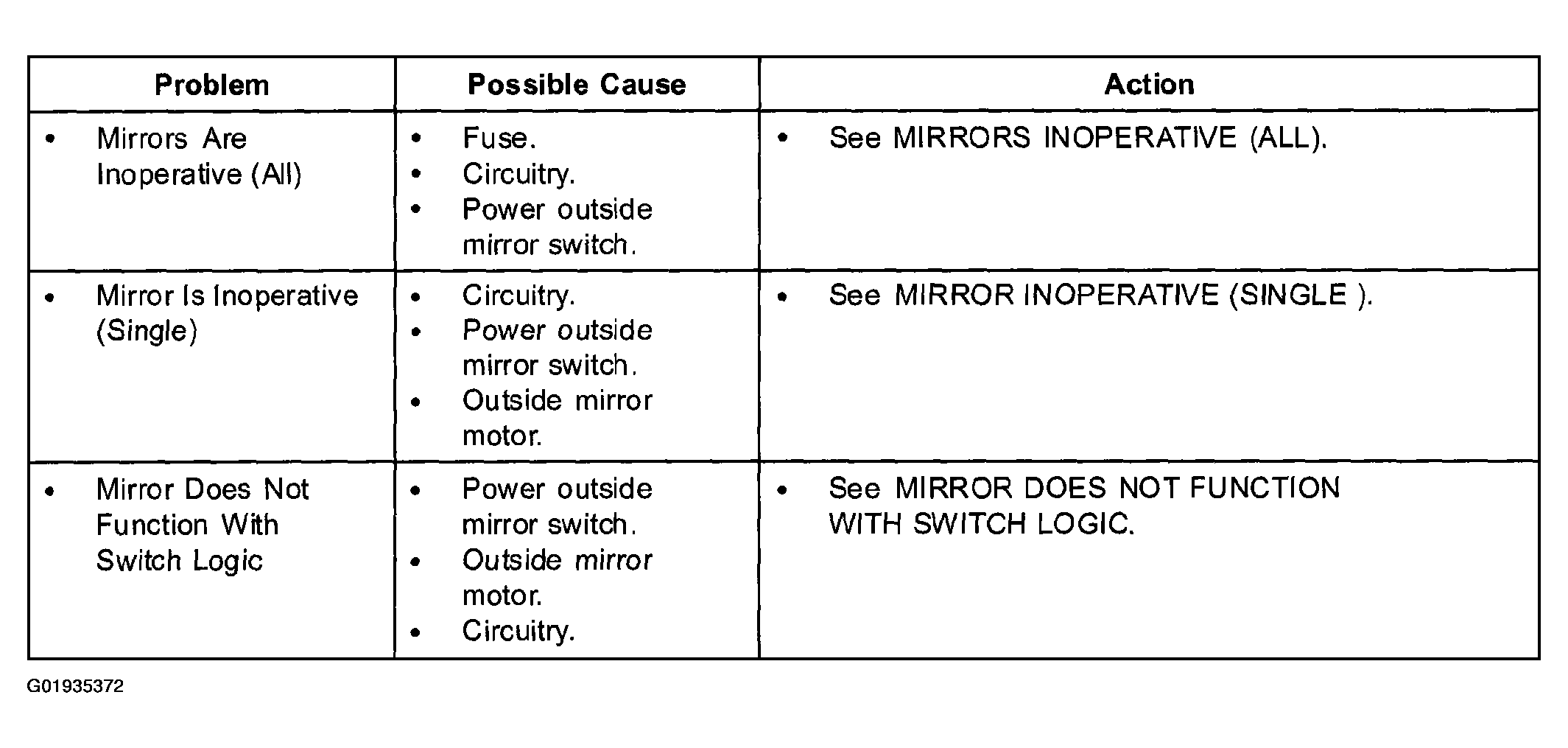

Fig 1: Power Outside Mirror Symptom Troubleshooting Chart

G01935372

Courtesy of MAZDA MOTORS CORP.
