Windows
>>
Symptom Troubleshooting [Windows/Mirrors)
>>
Power Windows Inoperative (All)
Power Windows Inoperative (All)

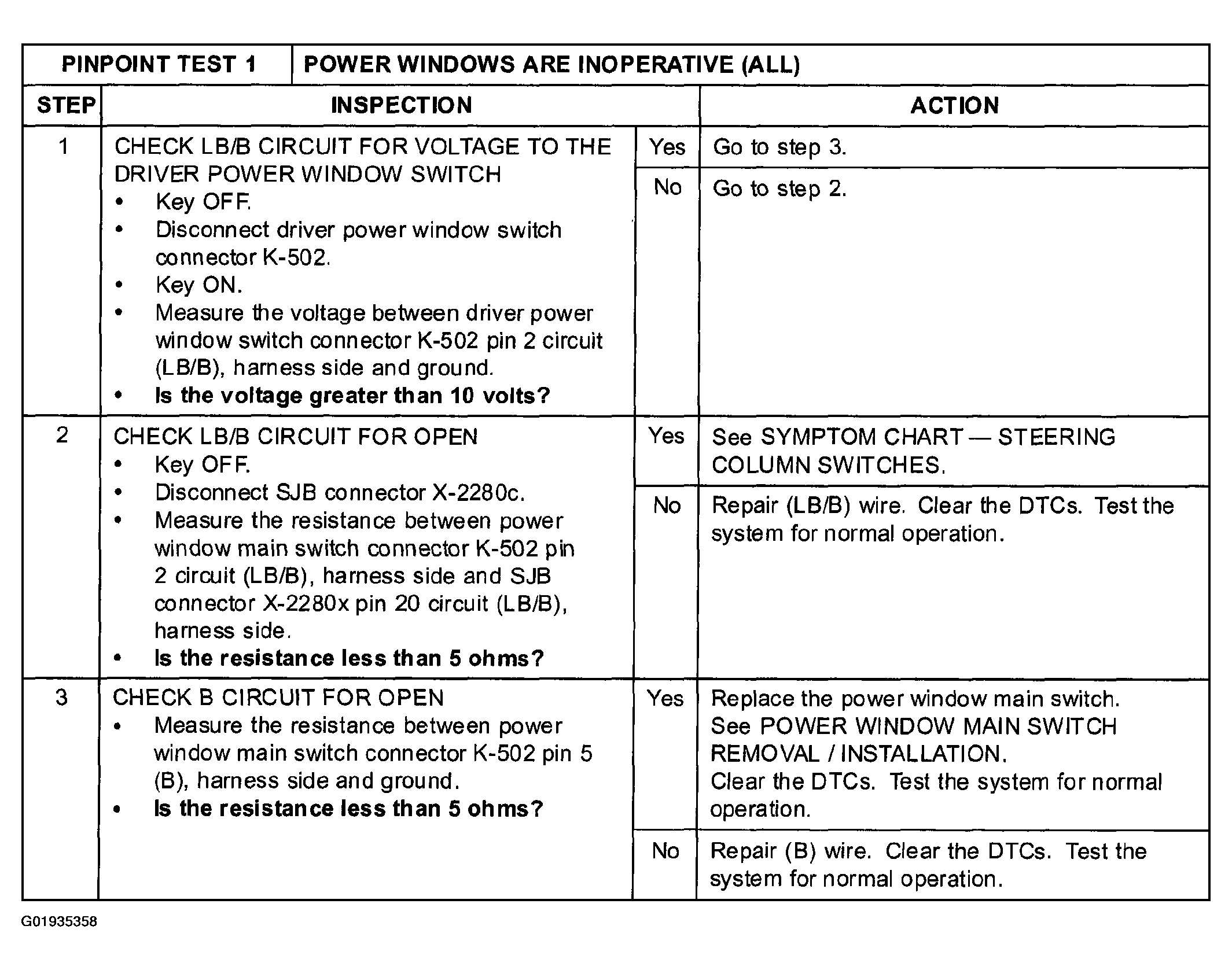

Fig 1: Pinpoint Test 1 - Power Windows Inoperative (All) Inspection Table
Courtesy of MAZDA MOTORS CORP.

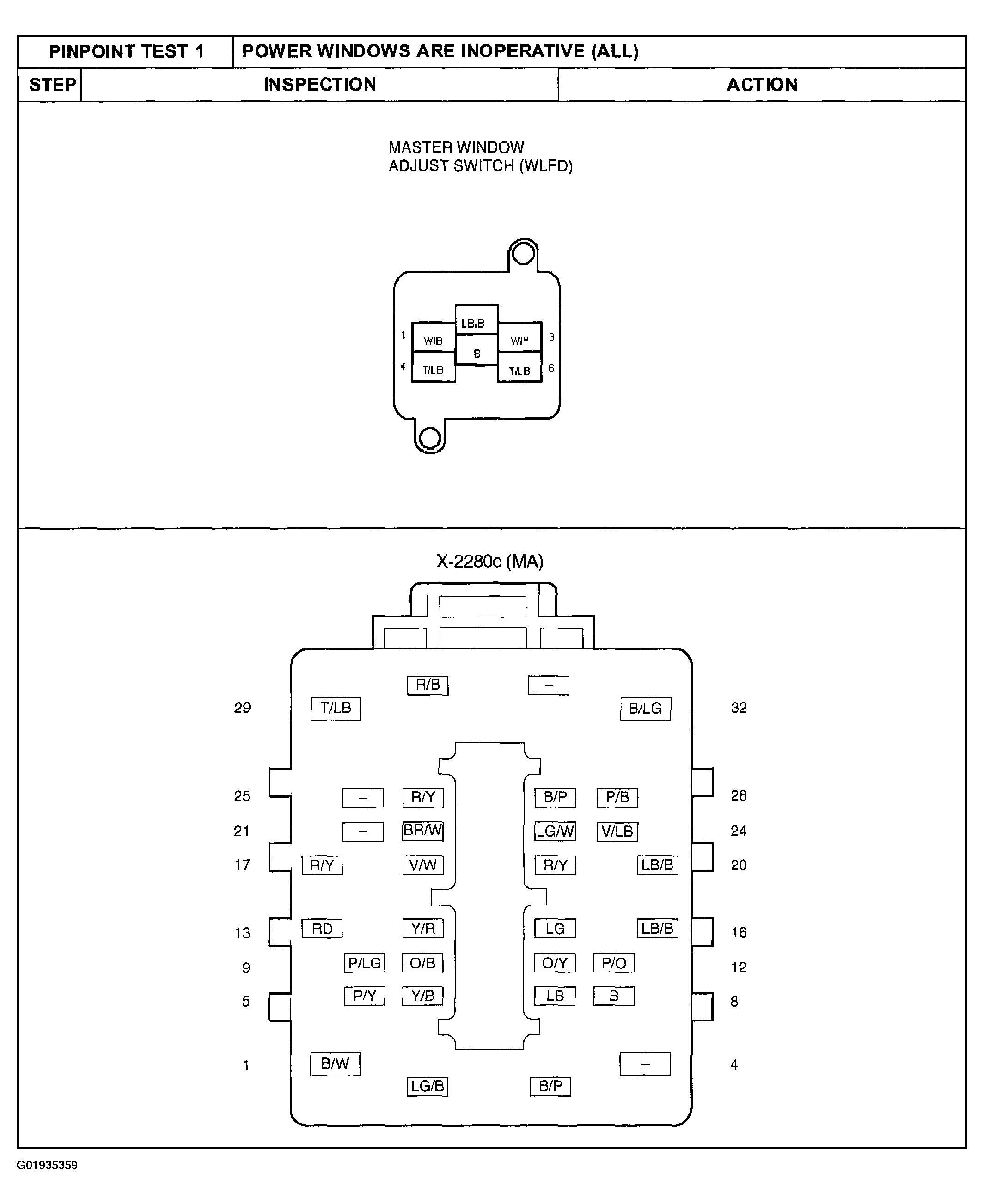

Fig 2: Identifying Master Window Adjust Switch And X-2280c Connector Terminal Wire Color
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
