Installation Note:

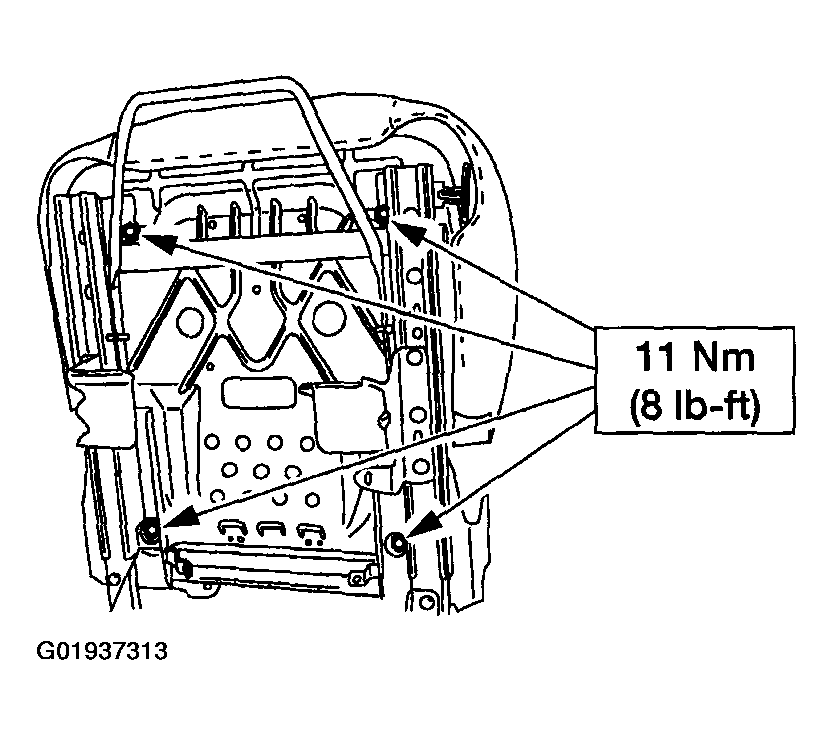

Fig 1: Installing Seat Cushion Assembly Bolts
G01937313Courtesy of MAZDA MOTORS CORP.
  1. Install the seat cushion assembly and install the four bolts.
  2. Install the affected seat backrest assembly. See SEAT BACKREST FRONT - BUCKET AND 40 PERCENT BENCH REMOVAL/INSTALLATION  .
  3. Install the affected seat. See SEAT BUCKET FRONT REMOVAL/INSTALLATION  .
  4. Repower the SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM . .
