Seat Bucket Front Removal/Installation: Installation

All seats

1. Position the seat in the vehicle.

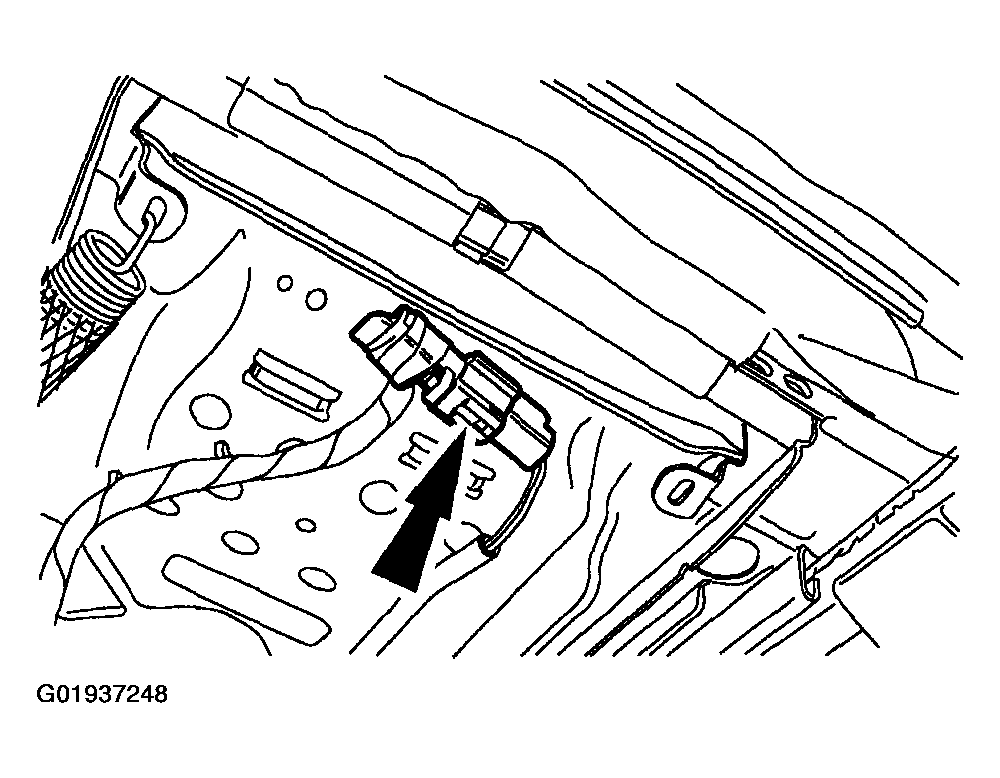

   Fig 1: Connecting Safety Belt Pretensioner Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
2. Connect the safety belt pretensioner electrical connector.

   Vehicles with 60 percent seat

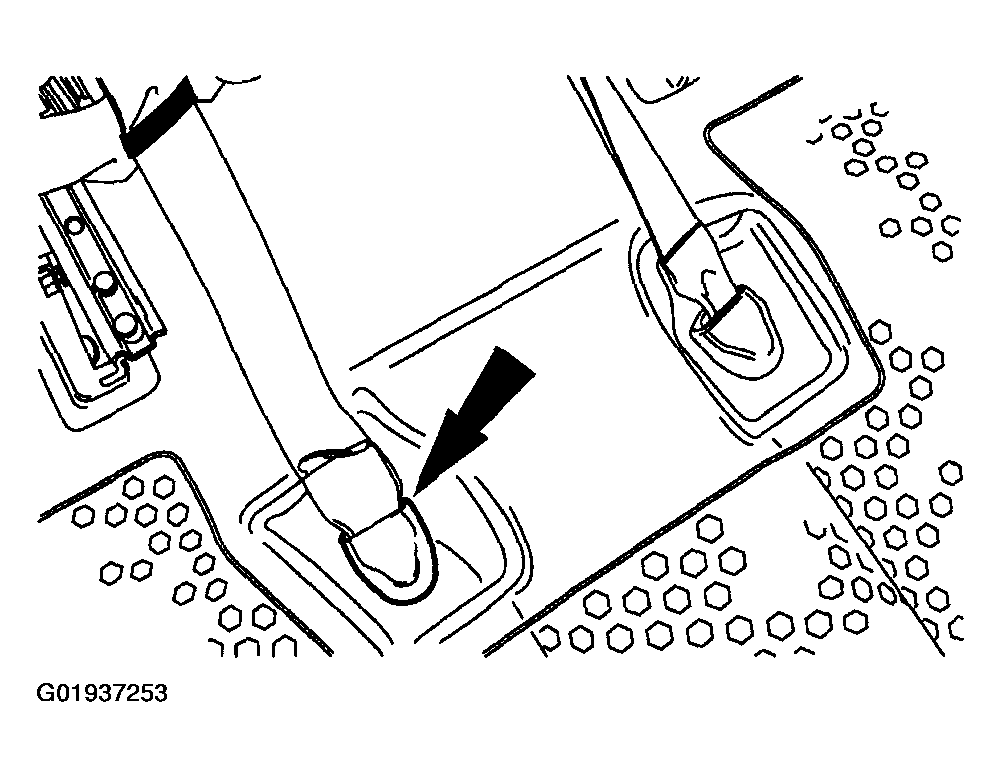

   Fig 2: Routing Center Safety Belt Buckle Through Locating Strap

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • The SuperCab and Regular Cab safety belts route differently. Note belt position for correct installation.
3. Route the center safety belt buckle through the locating strap on the side of the seat.

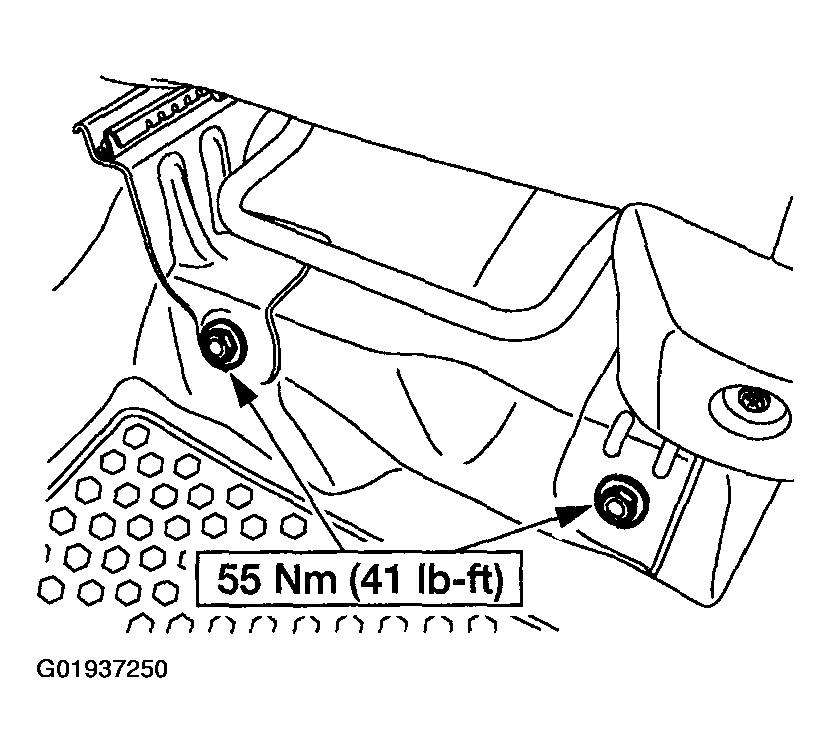

   Fig 3: Install Seat Front Bolts

   Courtesy of MAZDA MOTORS CORP.
4. Install the front bolts.
5. Move seat to forward most position.

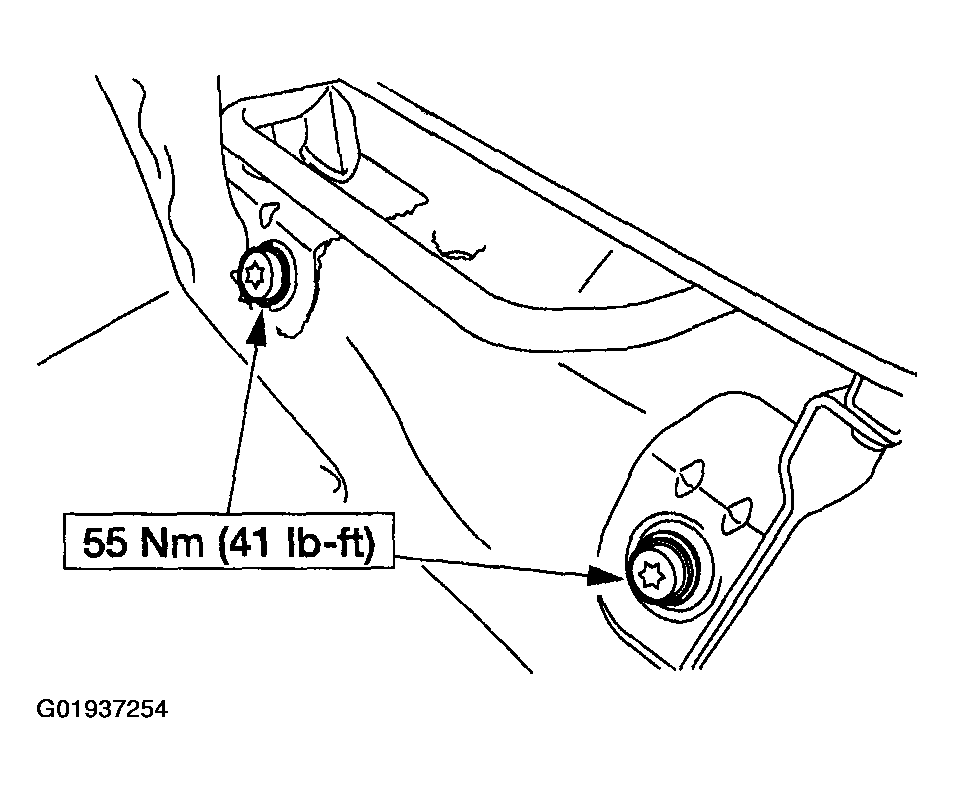

   Fig 4: Installing Seat Rear Bolts

   Courtesy of MAZDA MOTORS CORP.
6. Install the rear bolts.

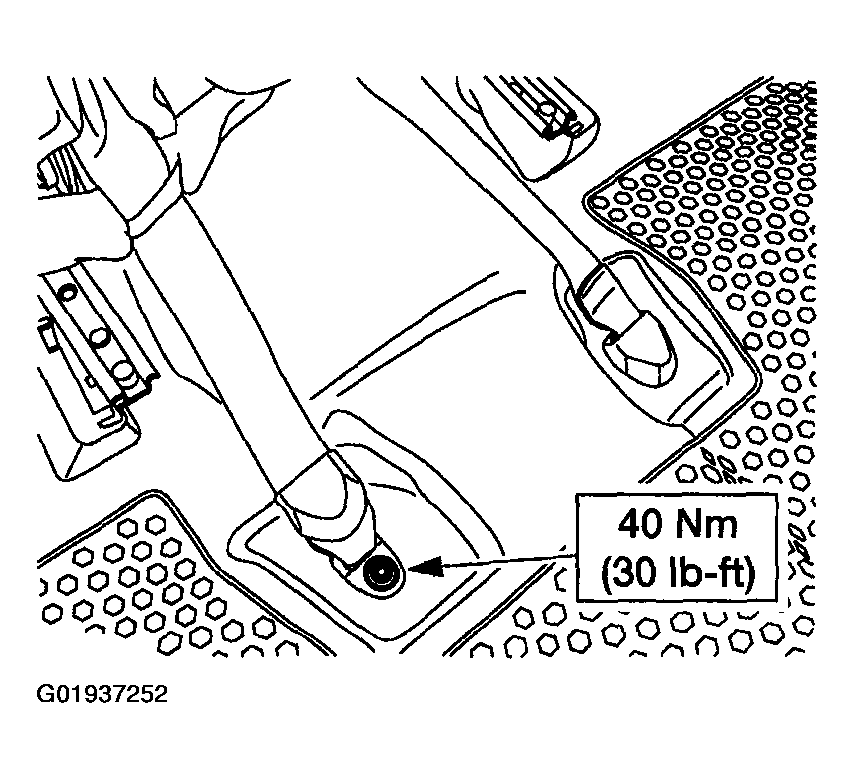

   Fig 5: Installing Safety Belt Buckles Bolt

   Courtesy of MAZDA MOTORS CORP.
7. Using the special tool 501-010, install the safety belt buckle bolt.
   Fig 6: Sliding Safety Belt Buckle Bolt Covers On Safety Belt And Position In Place

   Courtesy of MAZDA MOTORS CORP.
8. Slide the safety belt buckle bolt covers on the safety belt and position in place.

   Vehicles with 40 percent seat

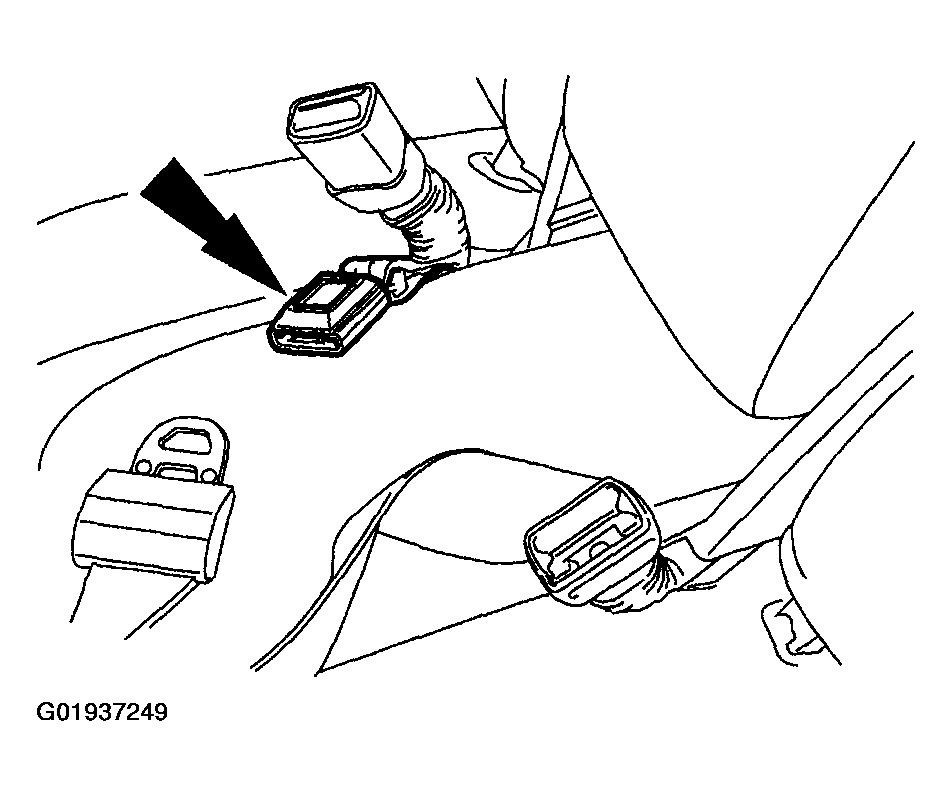

   Fig 7: Installing Seat Front Bolts - 40 Percent Seat

   Courtesy of MAZDA MOTORS CORP.
9. Install the front bolts.
10. Position he seat to its forward most position.
    Fig 8: Installing Seat Rear Bolts - 40 Percent Seat

    Courtesy of MAZDA MOTORS CORP.
11. Install the rear bolts.

    All seats

12. Repower the SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM .
13. Check the active restraint system for correct operation. See SYSTEM OPERATION CHECK .
