Ignition Switch Is Inoperative

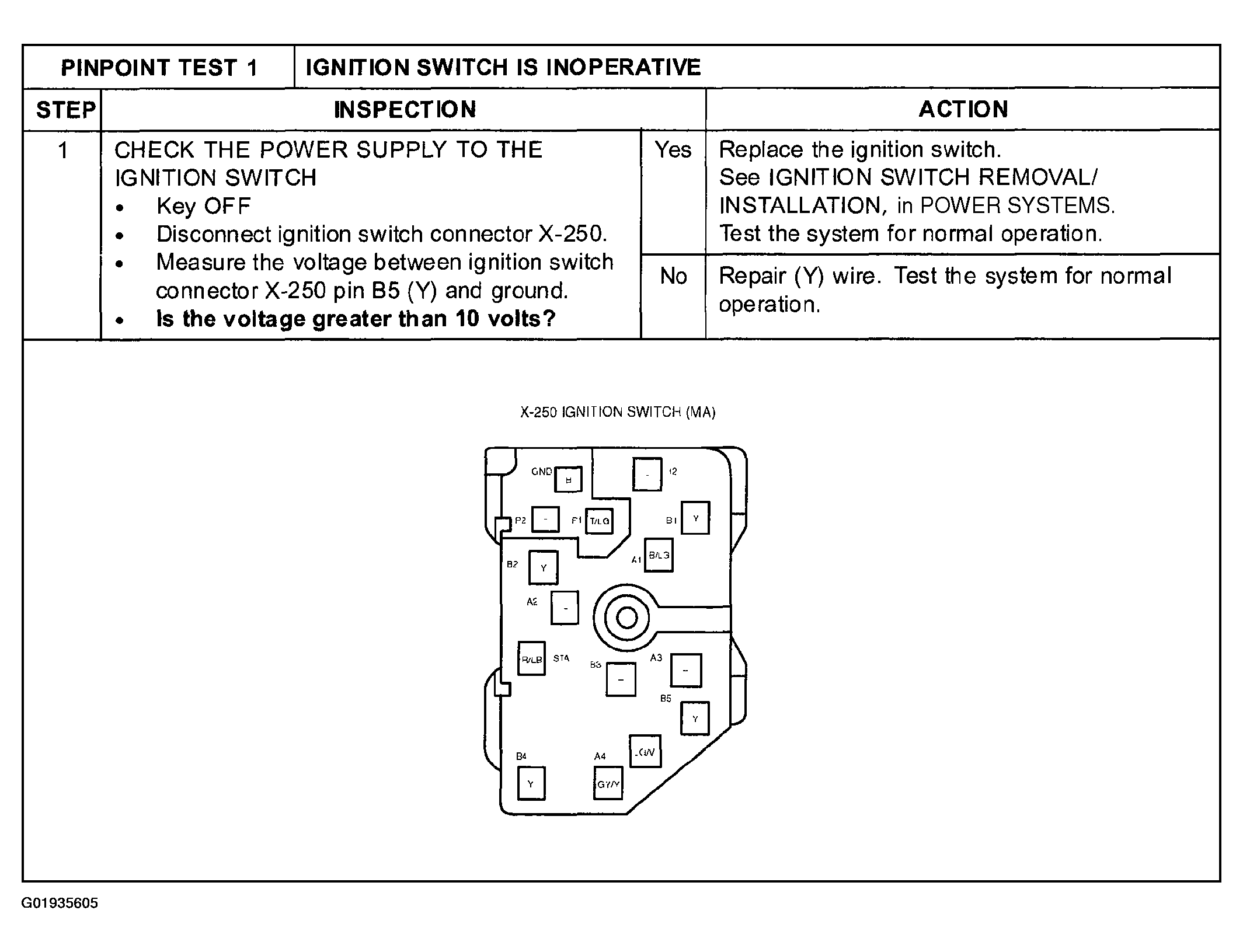

Fig 1: Pinpoint Test 1 - Ignition Switch Inoperative Inspection Table

G01935605

Courtesy of MAZDA MOTORS CORP.
