Underbody Misalignment Inspection

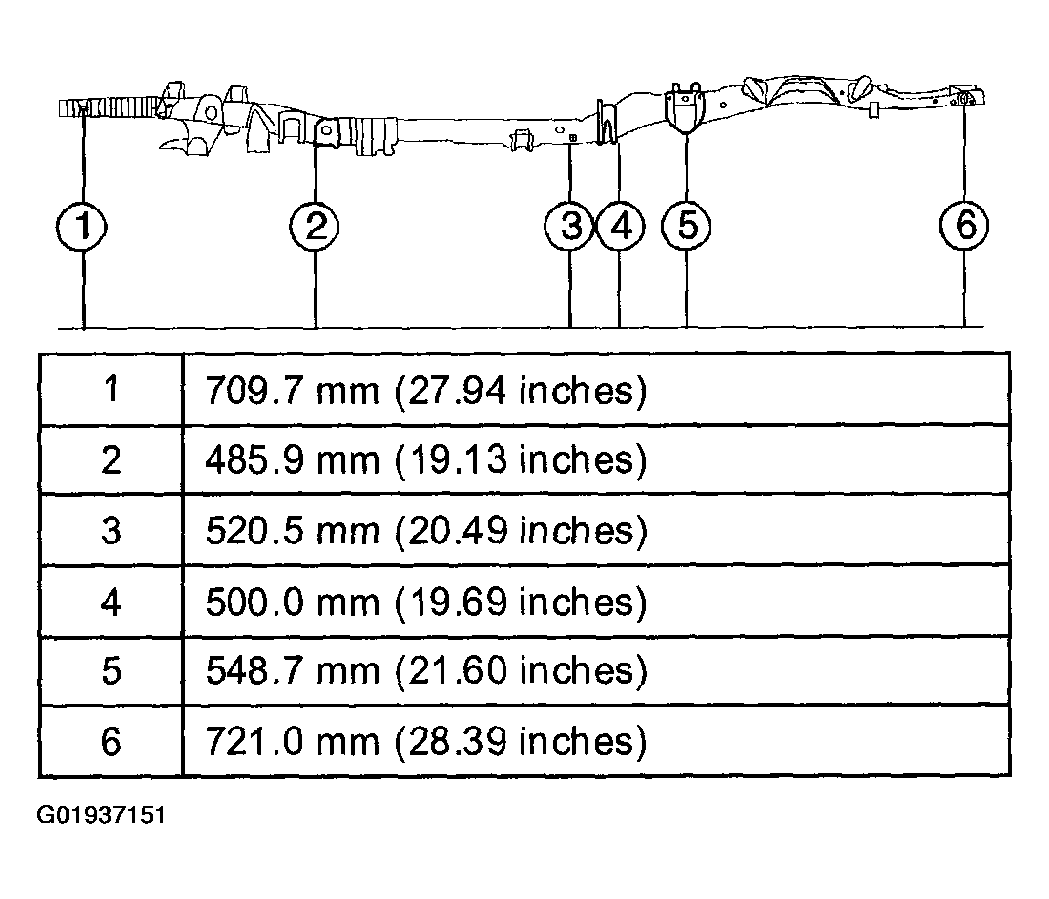

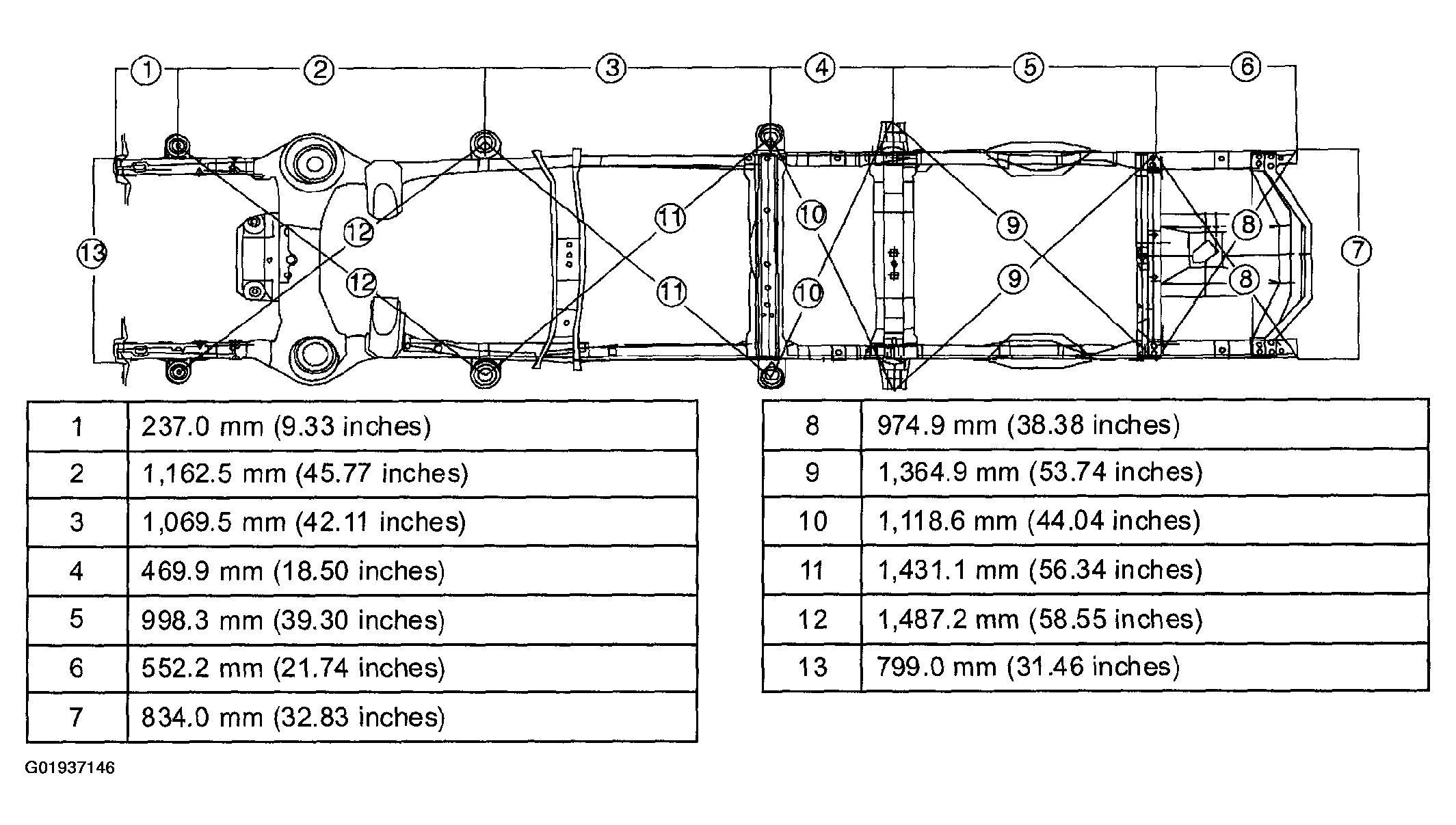

Fig 1: Inspecting Underbody Misalignment-Frame Dimensions - Short Wheel Base (4X4)

Courtesy of MAZDA MOTORS CORP.

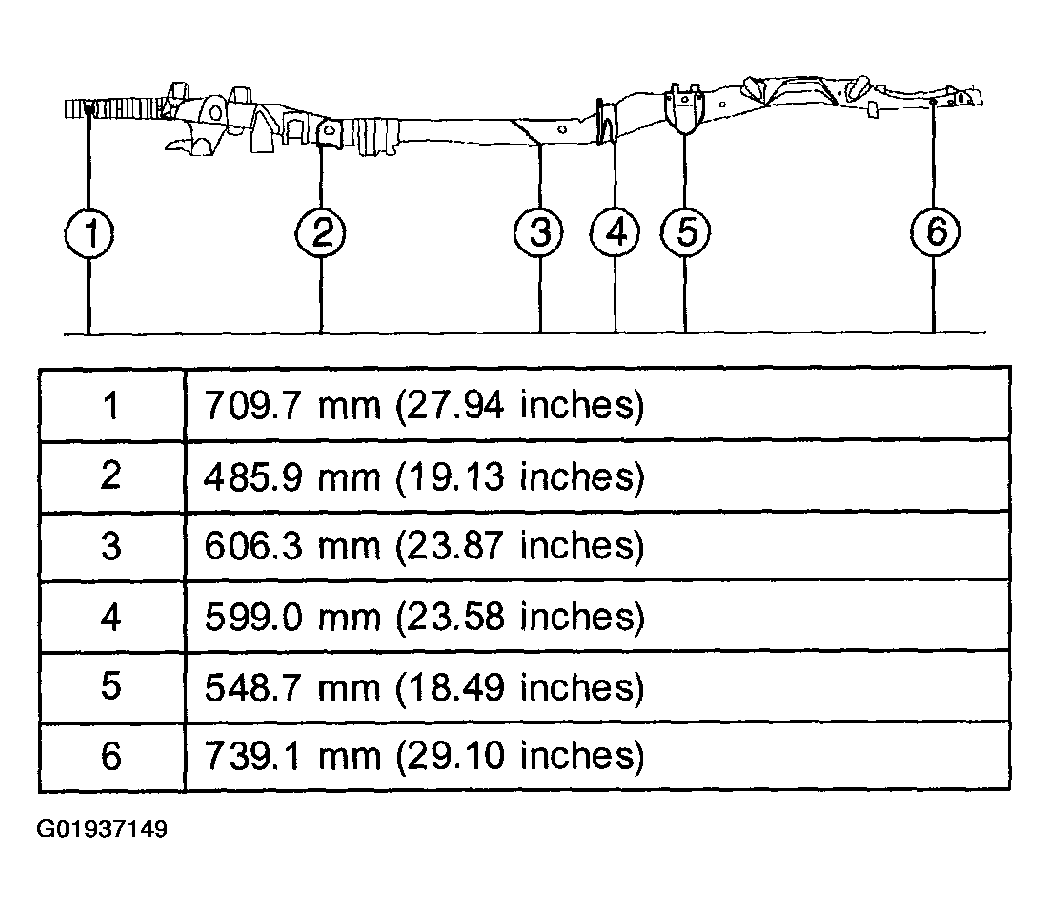

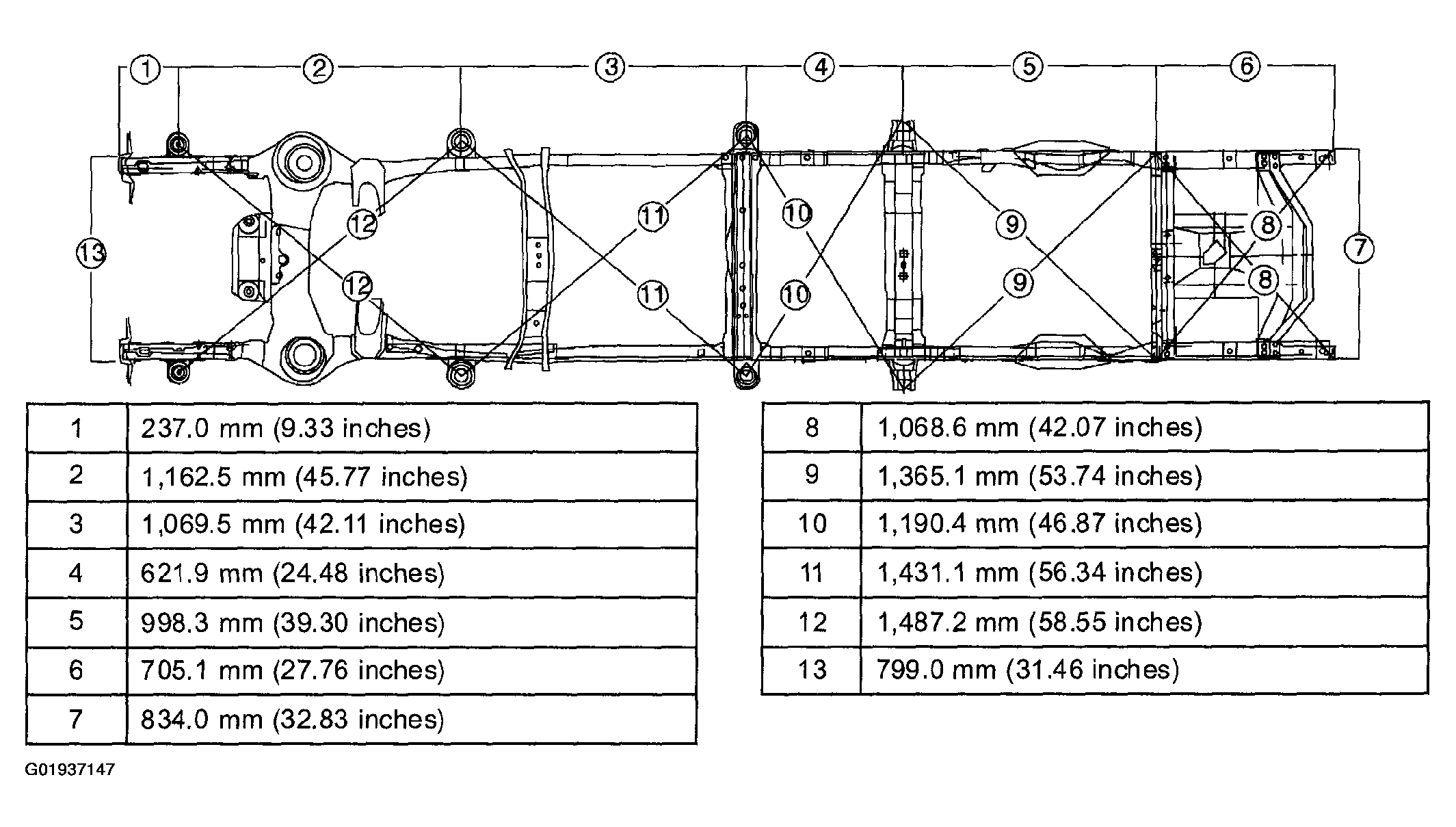

Fig 2: Inspecting Underbody Misalignment-Frame Dimensions - Long Wheel Base (4X4)

Courtesy of MAZDA MOTORS CORP.

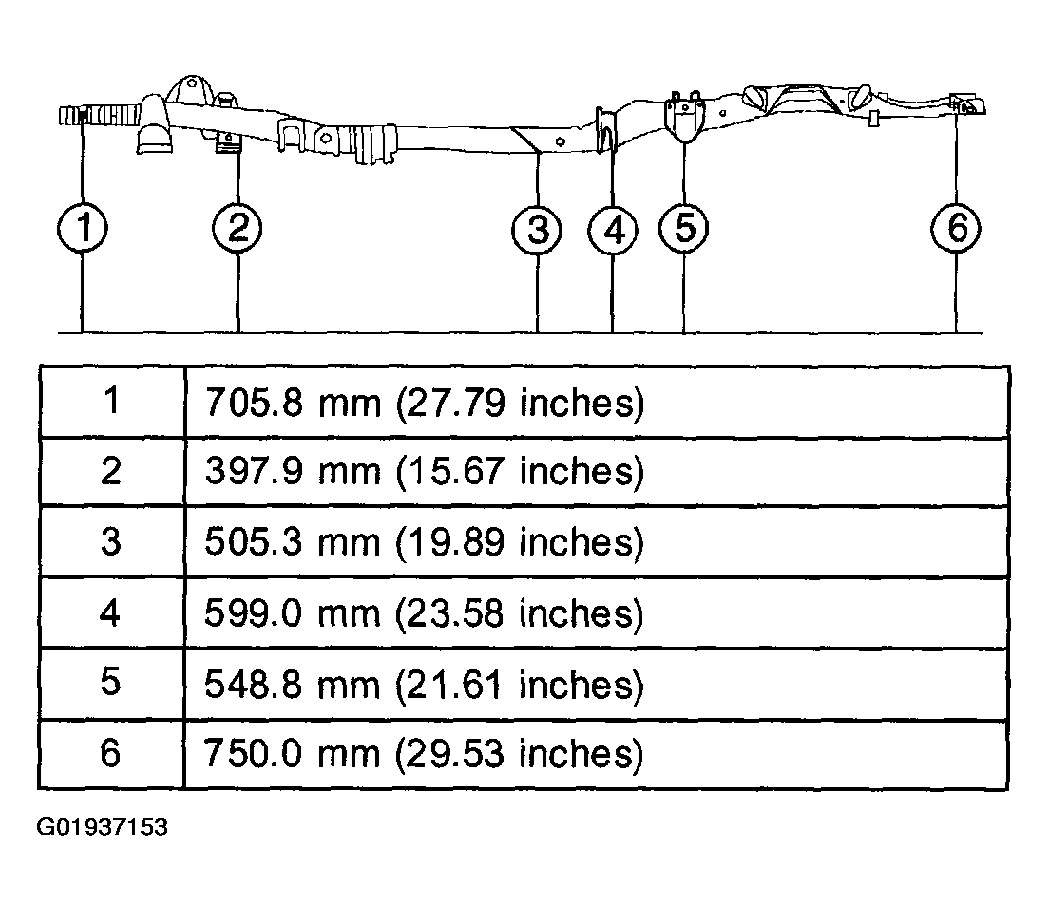

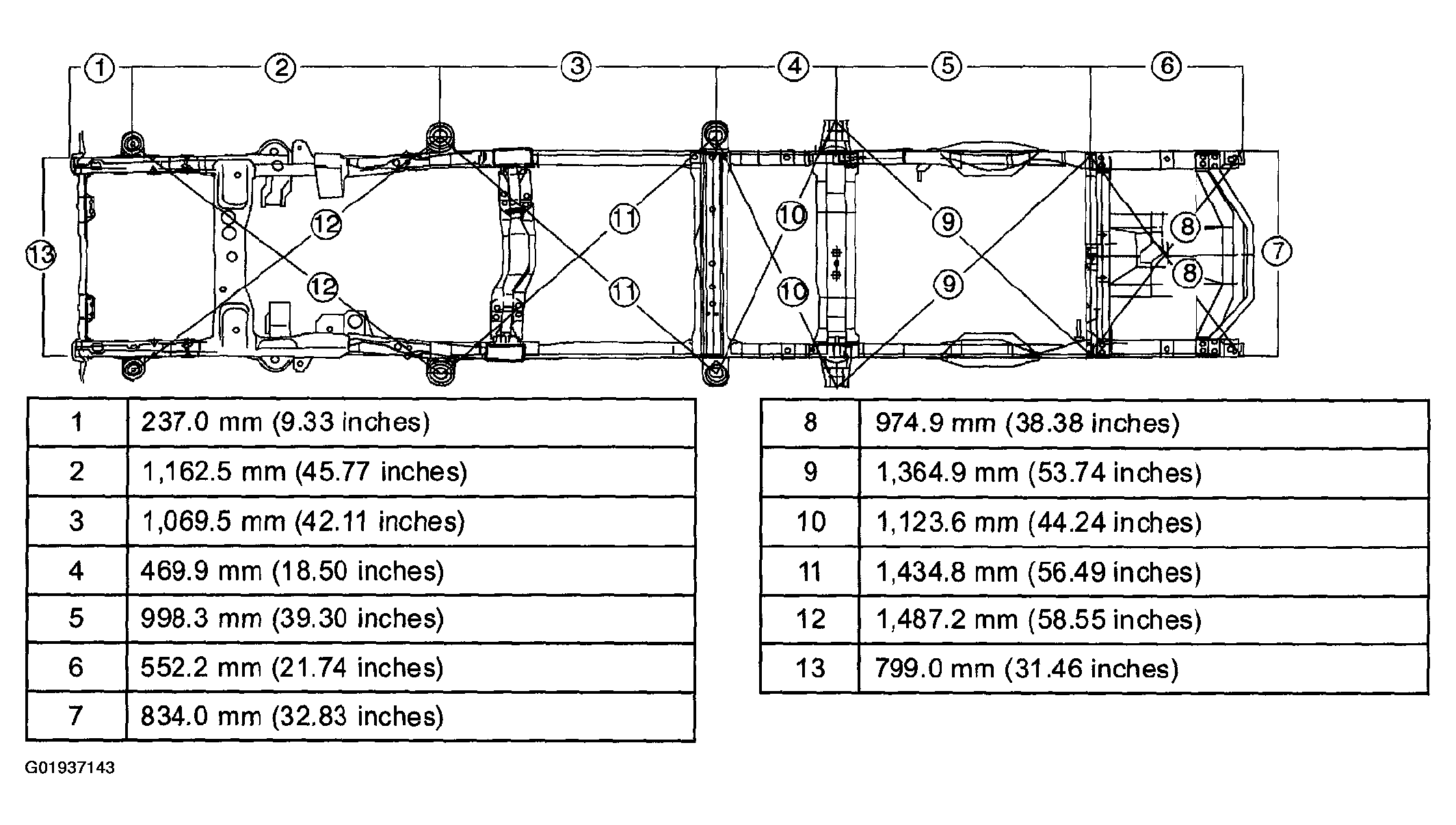

Fig 3: Inspecting Underbody Misalignment-Frame Dimensions - Cab Plus (4X4)

Courtesy of MAZDA MOTORS CORP.

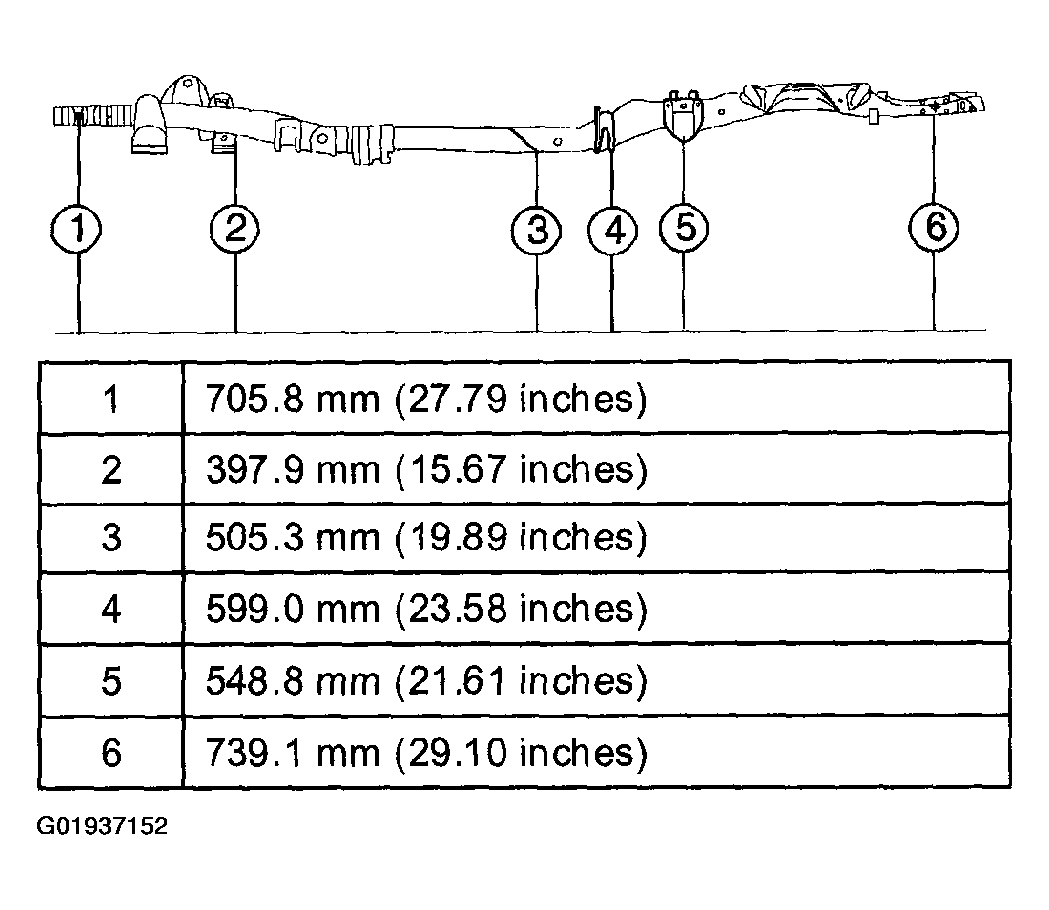

Fig 4: Inspecting Underbody Misalignment-Frame Dimensions - Short Wheel Base (4X2)

Courtesy of MAZDA MOTORS CORP.

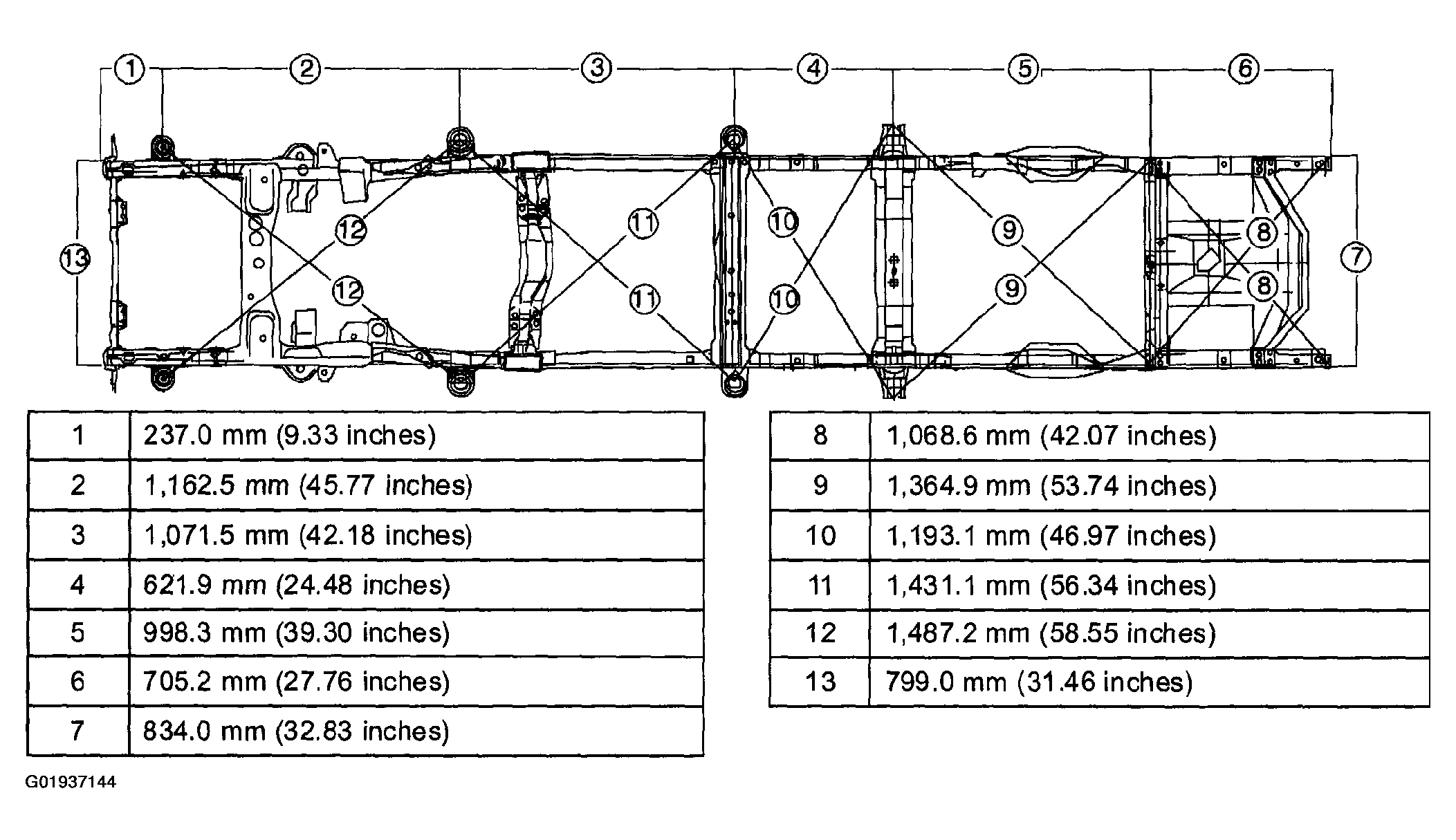

Fig 5: Inspecting Underbody Misalignment-Frame Dimensions - Long Wheel Base (4X2)

Courtesy of MAZDA MOTORS CORP.

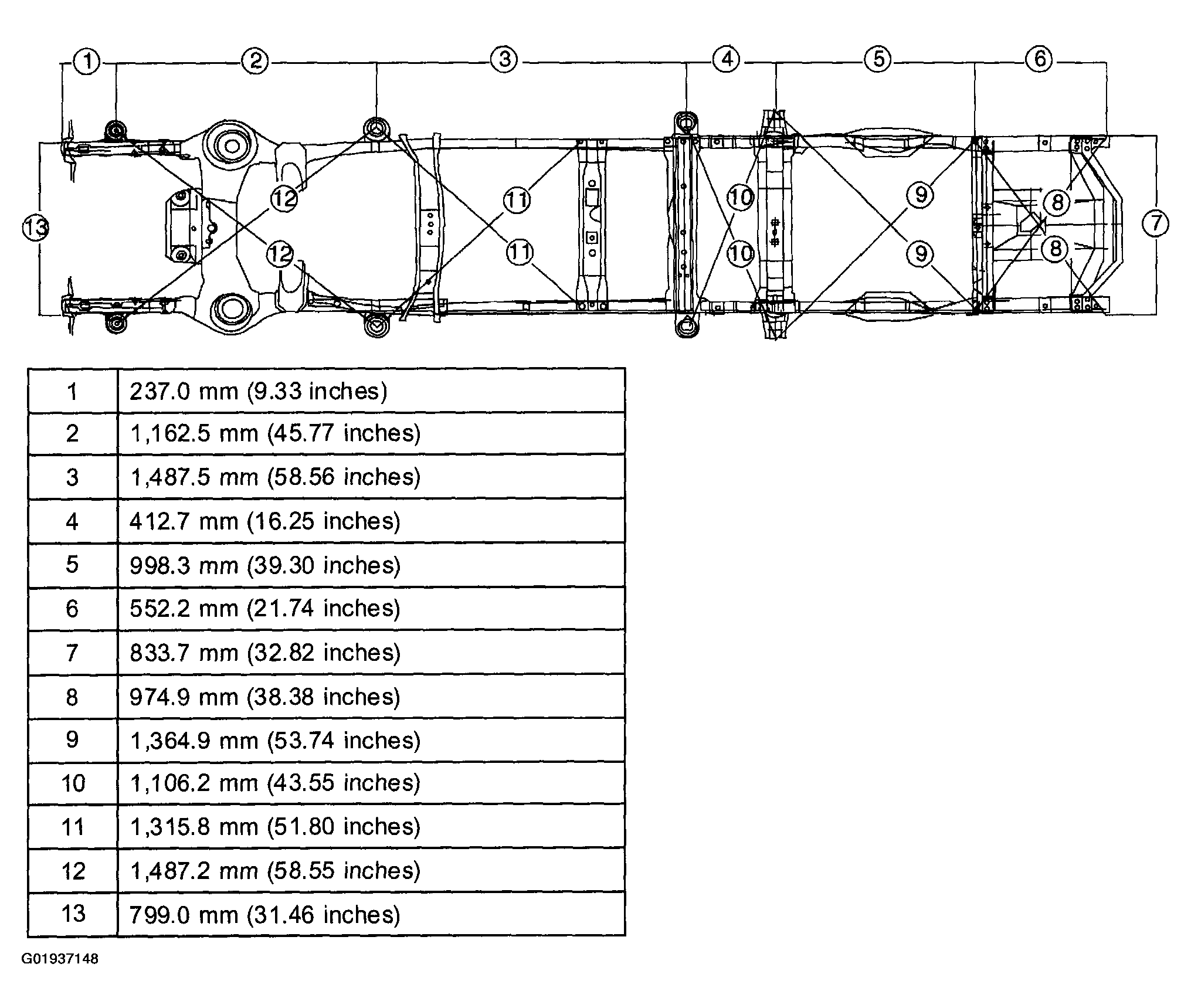

Fig 6: Inspecting Underbody Misalignment-Frame Dimensions - Cab Plus (4X2)

Courtesy of MAZDA MOTORS CORP.

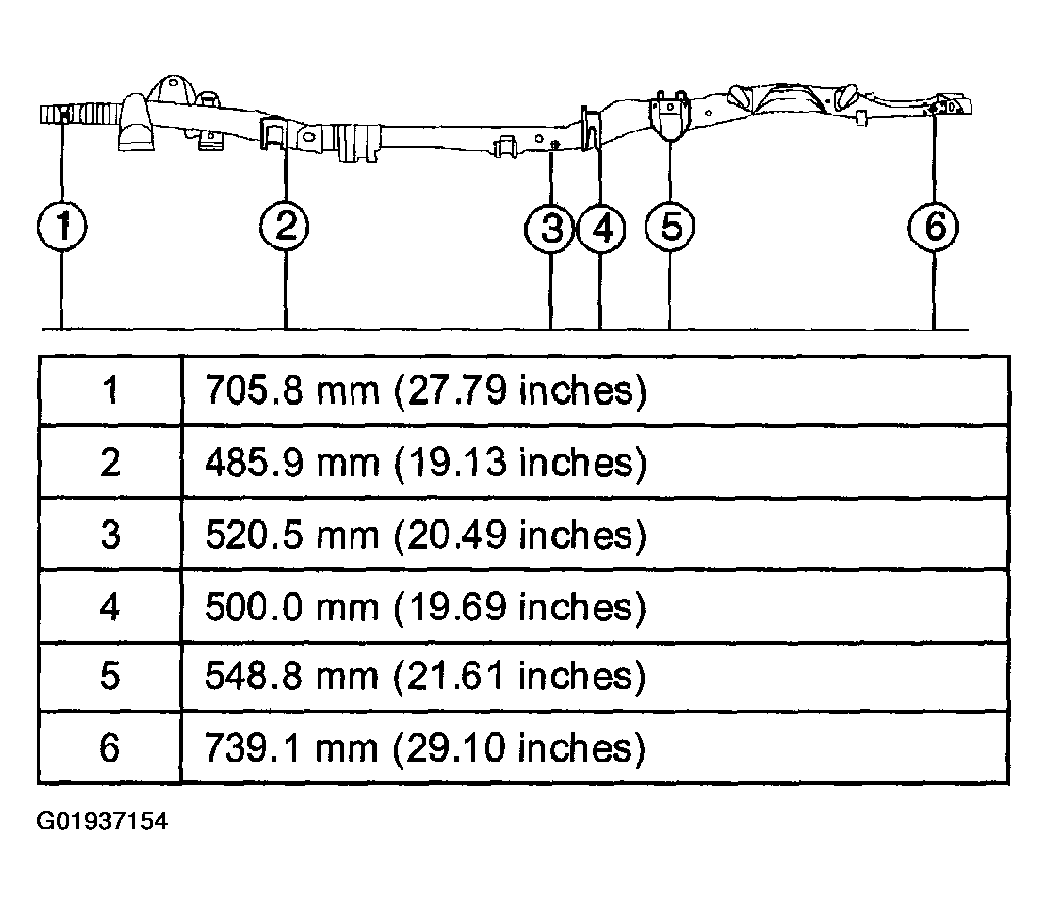

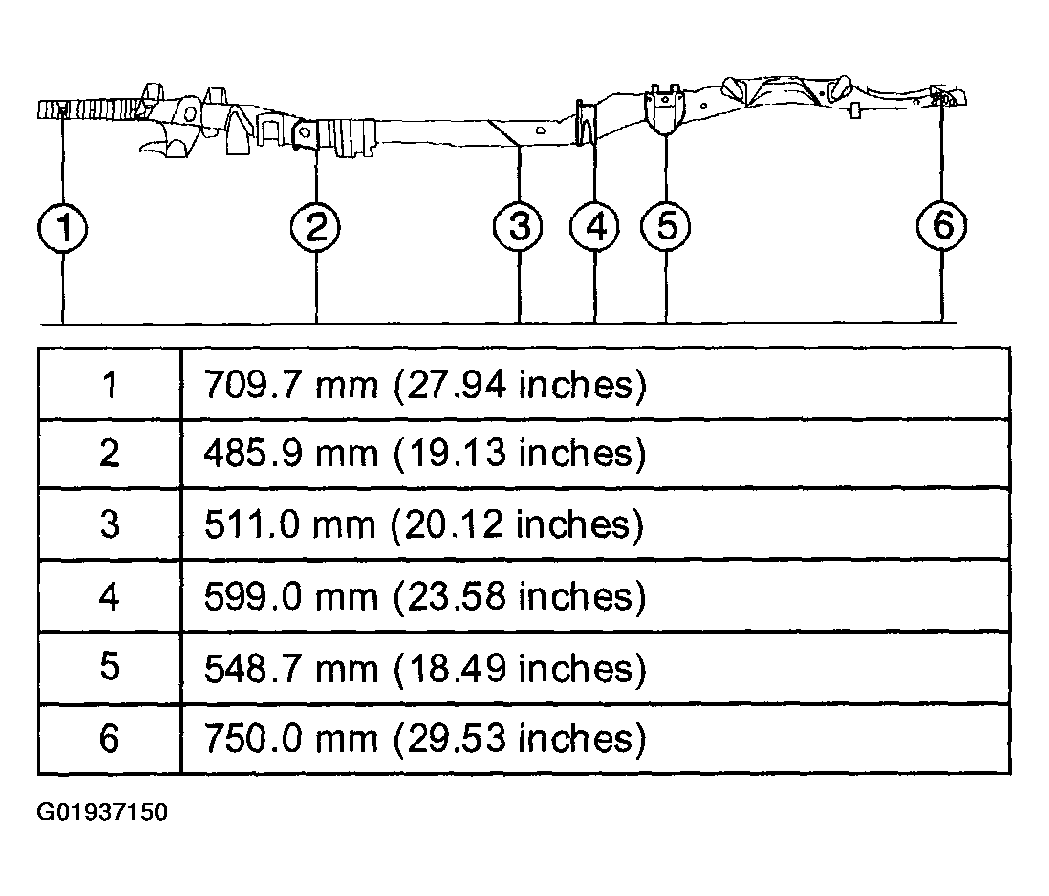

Fig 7: Inspecting Underbody Misalignment-Frame - Short Wheel Base (4X2)

Courtesy of MAZDA MOTORS CORP.

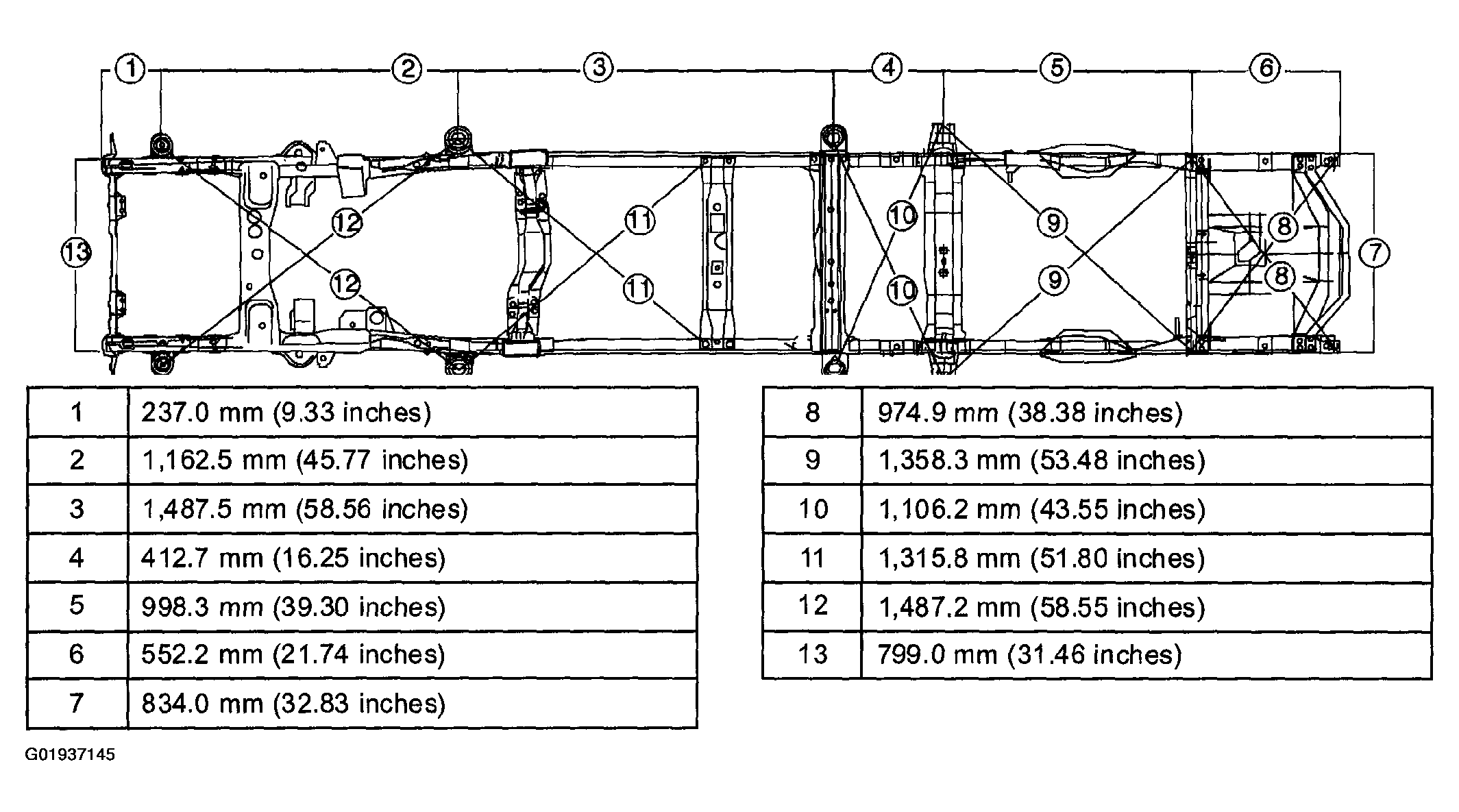

Fig 8: Inspecting Underbody Misalignment-Frame - Long Wheel Base (4X2)

Courtesy of MAZDA MOTORS CORP.

Fig 9: Inspecting Underbody Misalignment-Frame - Cab Plus (4X2)

Courtesy of MAZDA MOTORS CORP.

Fig 10: Inspecting Underbody Misalignment-Frame - Short Wheel Base (4X4)

Courtesy of MAZDA MOTORS CORP.

Fig 11: Inspecting Underbody Misalignment-Frame - Long Wheel Base (4X4)

Courtesy of MAZDA MOTORS CORP.

Fig 12: Inspecting Underbody Misalignment-Frame - Cab Plus (4X4)

Courtesy of MAZDA MOTORS CORP.

NOTE:

On a known level surface, verify that the vehicle ride height is within specifications before proceeding with the frame height measurements. See SPECIFICATIONS - SUSPENSION .

The dimensions of the underbody must be restored if repairing major body damage to provide correct front and rear wheel geometry. Once the frame and suspension members are aligned, other operations can be performed.
