Pickup Bed Alignment

  1. Loosen the pickup bed bolts.
  2. Center the pickup bed on the rear of the cab.
  3. Set the gap between leading edge of the pickup bed and the back of the cab.
  4. Tighten the bolts.
    1. Tightening torque
      1. 53-72 N.m (5.4-7.3 kgf.m, 40-53 ft.lbf)

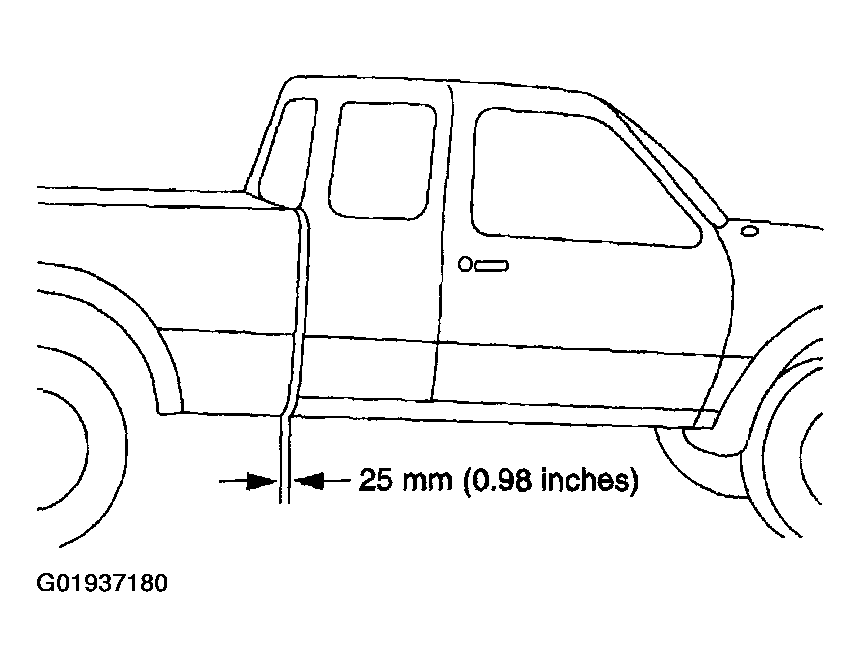

    Fig 1: Setting Gap Between Leading Edge Of Pickup Bed And Back Of Cab
    G01937180Courtesy of MAZDA MOTORS CORP.
