Axle Shimming

NOTE:

A side to side lean may be adjusted by 6 mm (0.25 in) by placing a shim between the rear spring and the axle on the low side of the vehicle.

Determine the need for shimming. See PICKUP BED LEAN .
Without removing the tires from the ground, raise the vehicle enough to take the weight off of the rear springs.
Loosen the spring U-bolt nuts.
- Separate the spring and the axle approximately 13 mm (0.5 in).

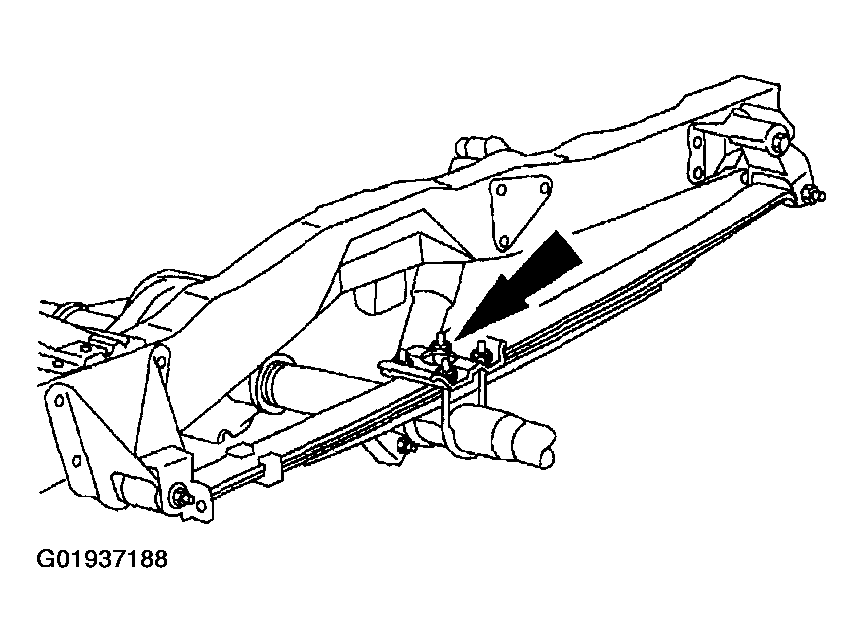

Fig 1: Locating Spring U-Bolt Nuts
Courtesy of MAZDA MOTORS CORP.
NOTE:
- On 4x4 vehicles, place the shim between the rear spring and the axle spacer.
Install the shim.
Tighten the U-bolt nuts.
1. Tightening torque
  1. 88-118 N.m (9-12 kgf.m, 65-87 ft.lbf)
Lower the vehicle.
Recheck the vehicle lean. See PICKUP BED LEAN .
