Instrument Panel Removal/Installation: Notes

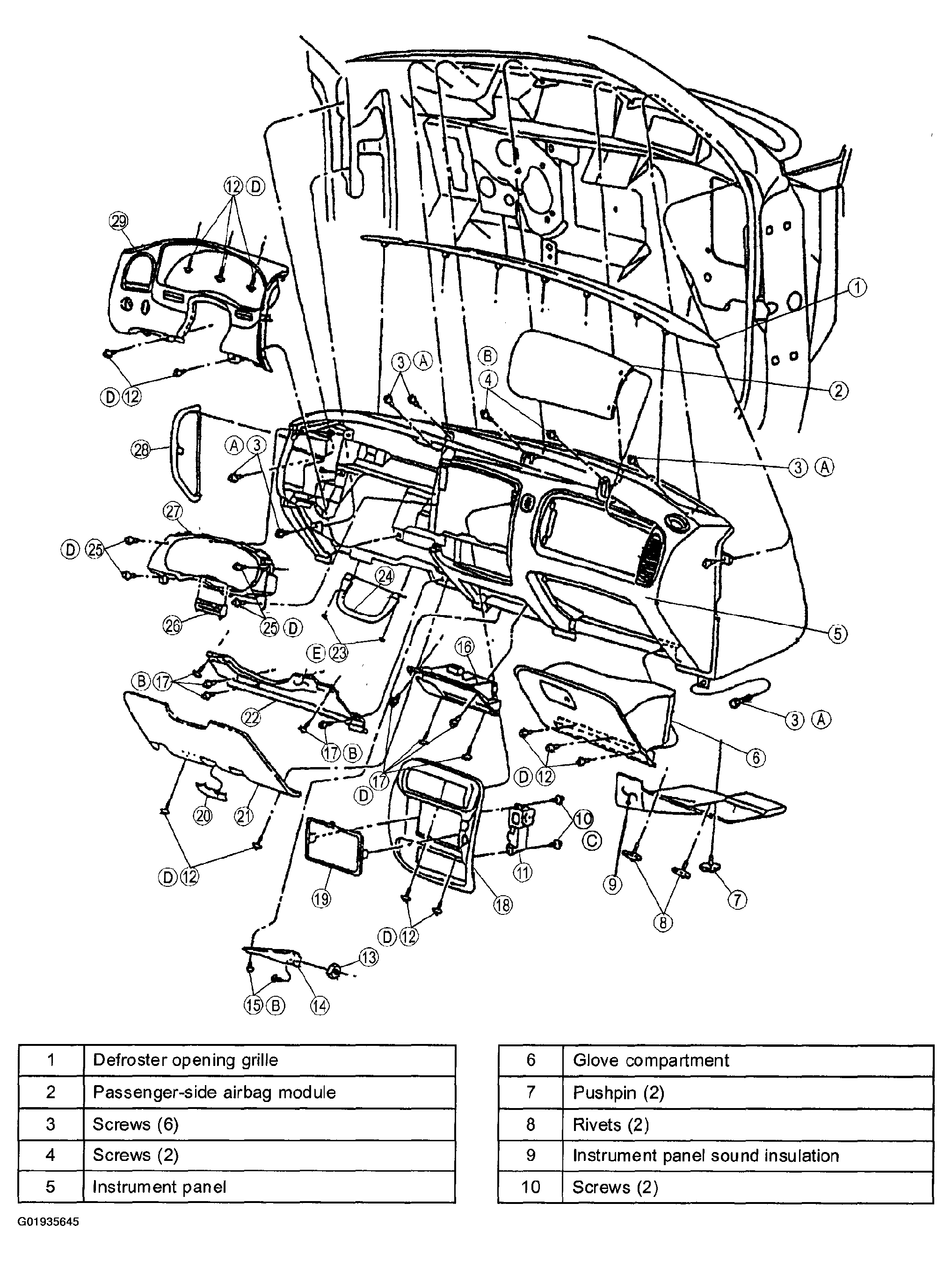

Fig 1: Removing/Installing Instrument Panel

G01935645

Courtesy of MAZDA MOTORS CORP.

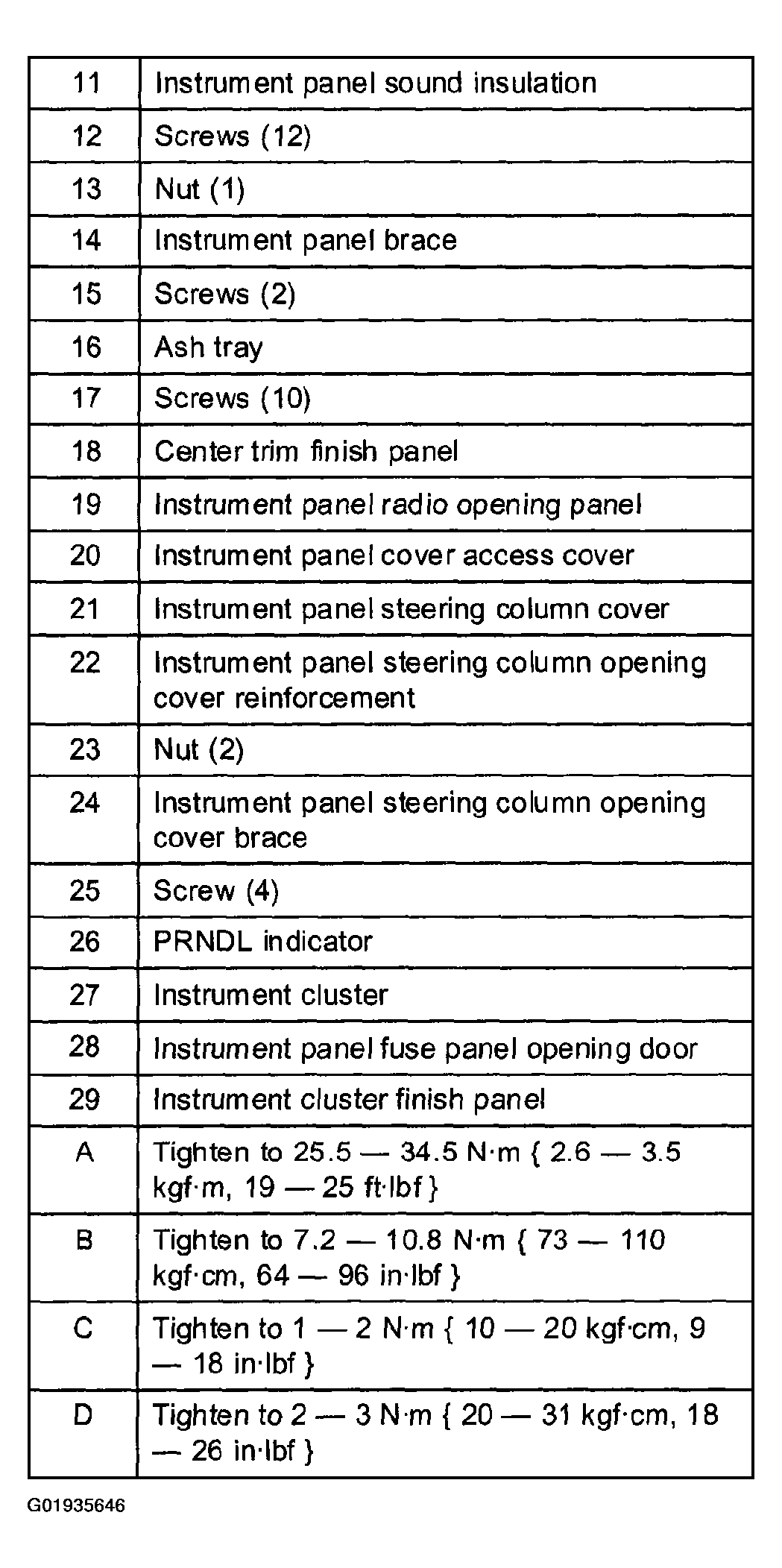

Fig 2: Instrument Panel Components (Continued)

G01935646

Courtesy of MAZDA MOTORS CORP.
