Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
Ignition System
>>
Technical Data (Engine Mechanical)
>>
Cooling System Specifications
Cooling System Specifications

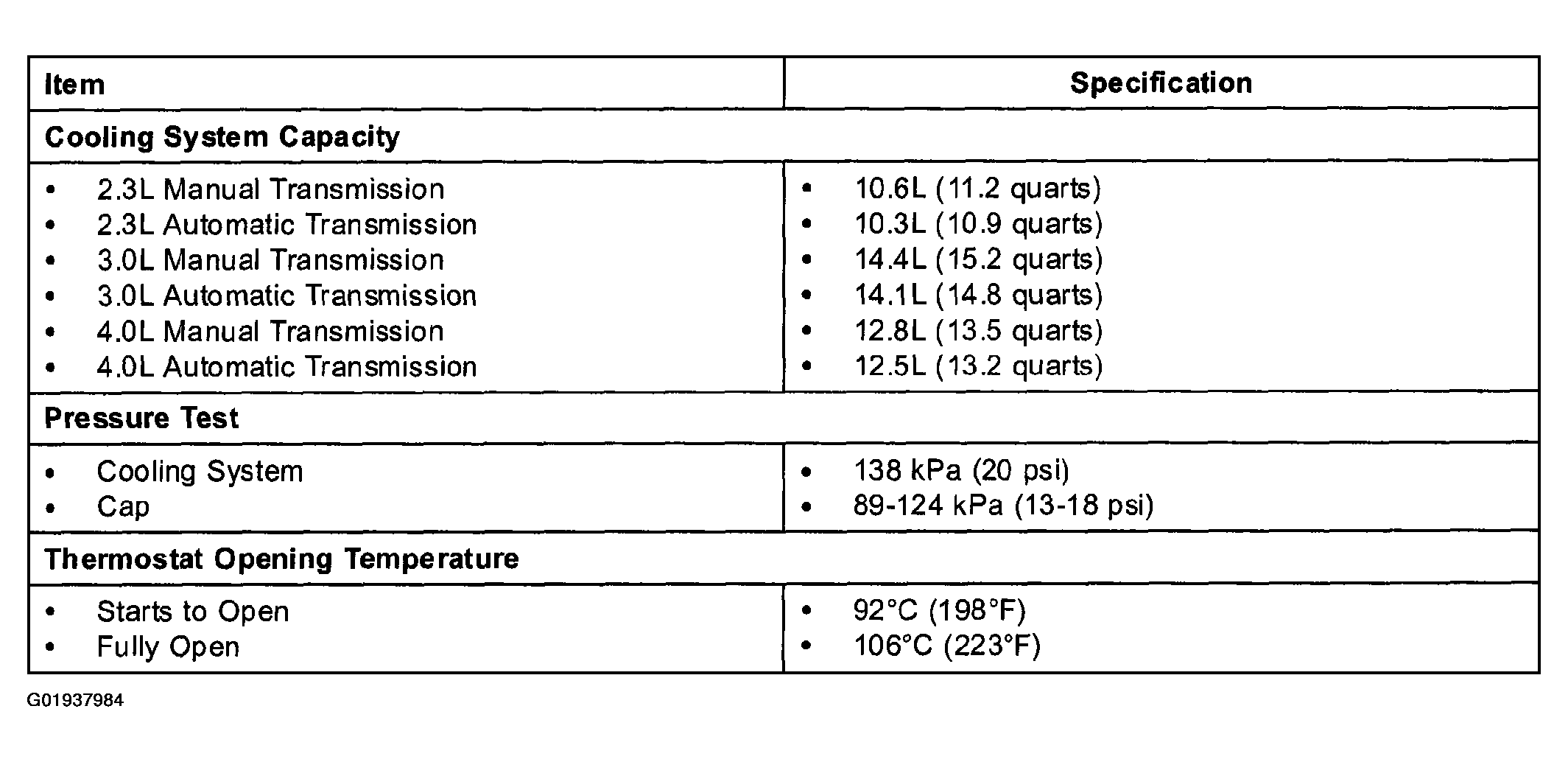

Fig 1: Cooling System Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
