Engine Performance
>>
Fuel Delivery
>>
Technical Data (Engine Mechanical)
>>
Starting System Specifications
Starting System Specifications

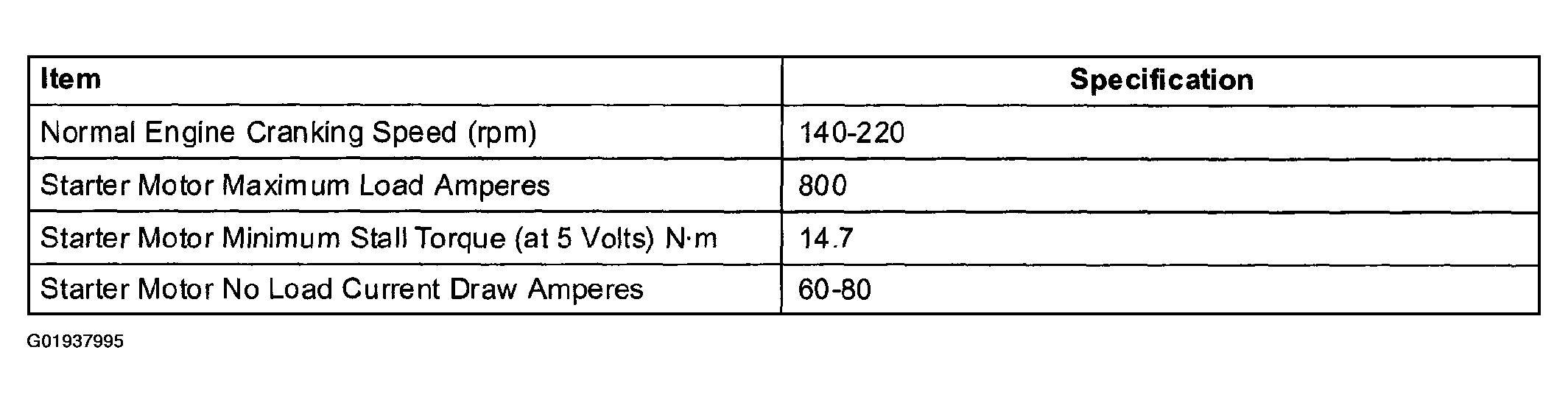

Fig 1: Starting System Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
