Connector Identification

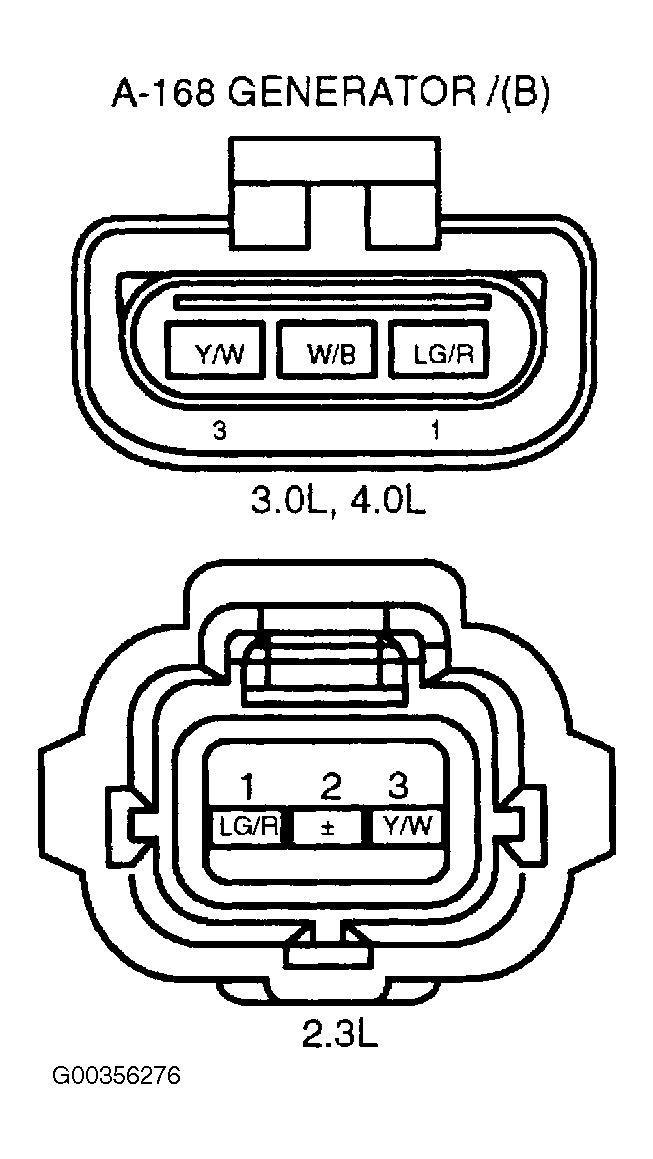

Fig 1: Identifying Generator Electrical Connector A-168 Terminals
G00356276Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying Generator Connectors A-172 & A-169
G00356277Courtesy of MAZDA MOTORS CORP.
Fig 3: Identifying Generator & Regulator Terminals
G98A01877Courtesy of MAZDA MOTORS CORP.
