Installation Note

  1. Install the new solenoid(s).
    1. TCC
    2. SS4/CCS
    3. SS2
    4. EPC
    5. SS3
    6. SS1

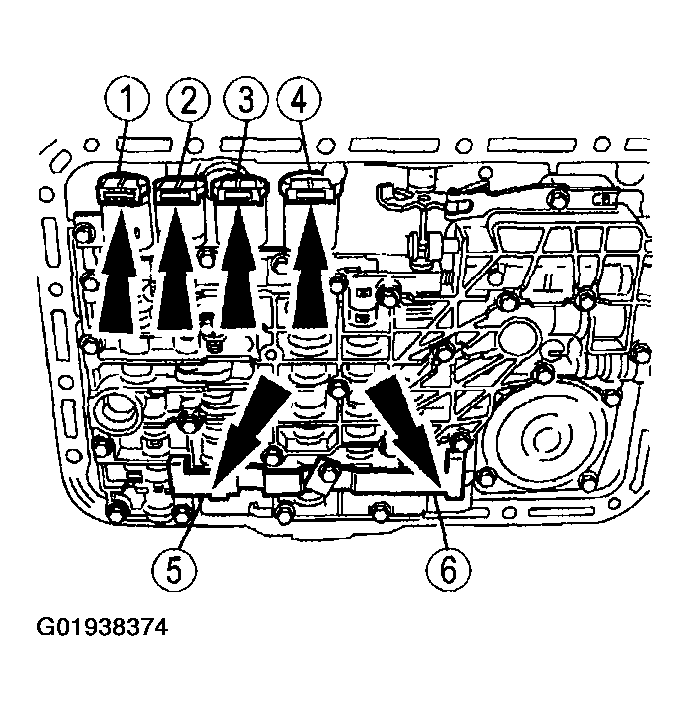

    Fig 1: Installing New Solenoid(s)
    G01938374Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • The solenoid clamp must be installed in the TCC and EPC solenoid grooves, shift solenoid pockets and the No. 204 plug.
  2. Install the solenoid clamp.
    1. Position the solenoid clamp on the main control valve body.
    2. Install the solenoid clamp bolts.

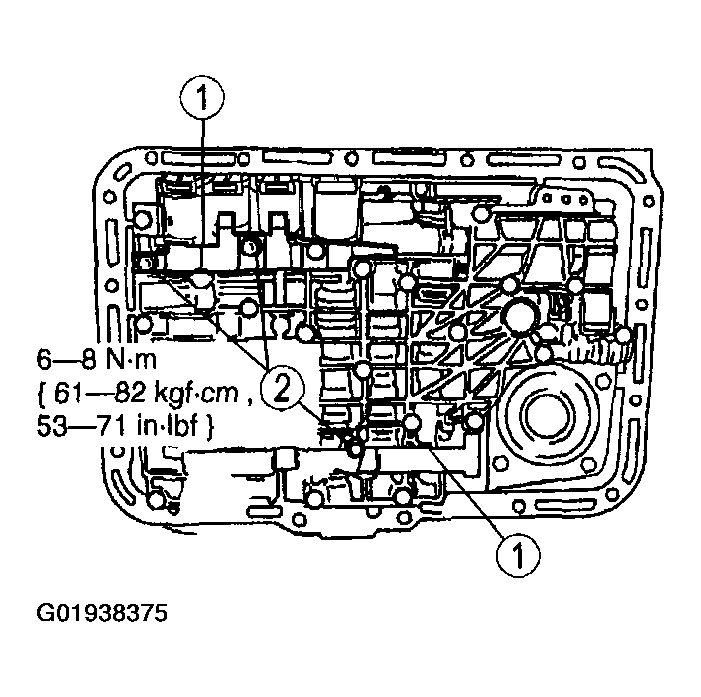

    Fig 2: Installing Solenoid Clamp
    G01938375Courtesy of MAZDA MOTORS CORP.
  3. Connect the six solenoid electrical connectors.
    1. Connect shift solenoid electrical connectors.
    2. Connect the TCC solenoid electrical connector.
    3. Connect the EPC solenoid electrical connector.

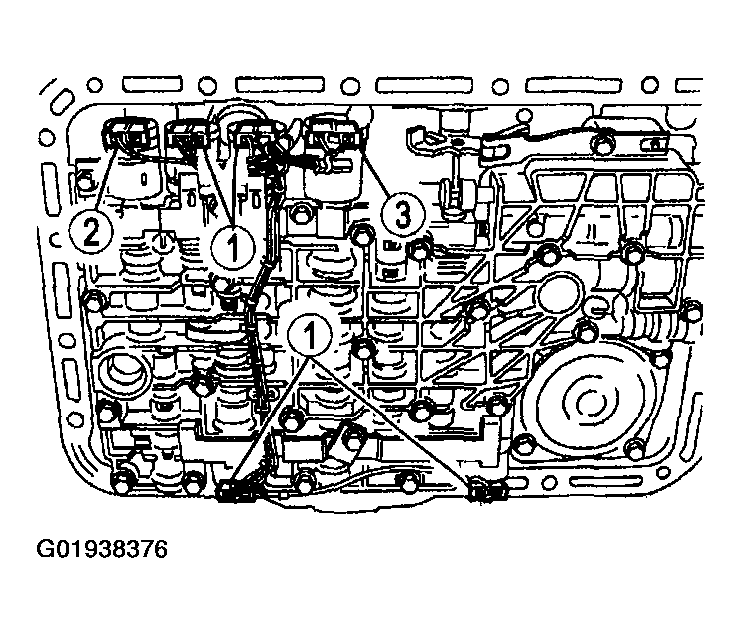

    Fig 3: Connecting Six Solenoid Electrical Connectors
    G01938376Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Excessive pressure may break the retaining pins.
  4. Install the main control valve body wire loom.
    1. Align the retaining pins to the holes in the solenoid clamps and gently press in the main control valve body wire loom guide and protector.

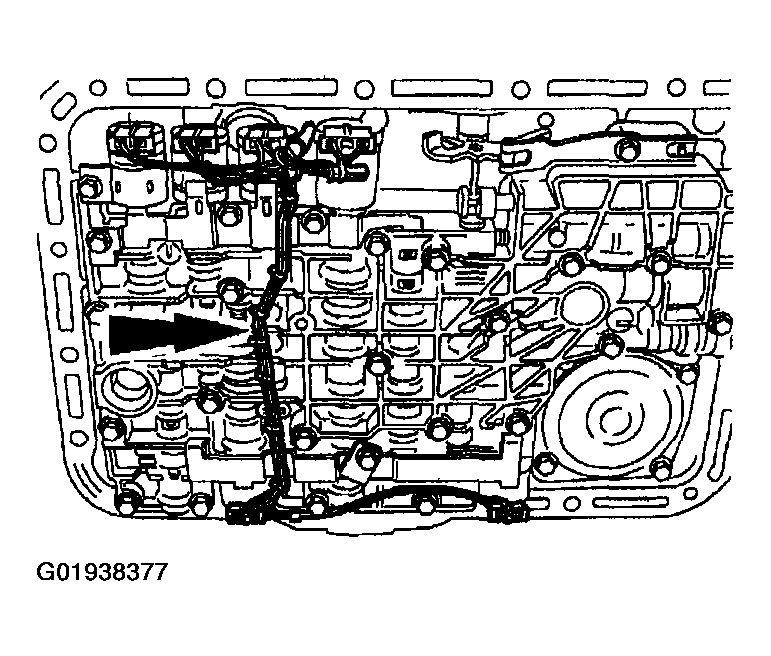

    Fig 4: Installing Main Control Valve Body Wire Loom
    G01938377Courtesy of MAZDA MOTORS CORP.
  5. Install the oil strainer.
    1. Install the oil strainer.
    2. Install the bolt.

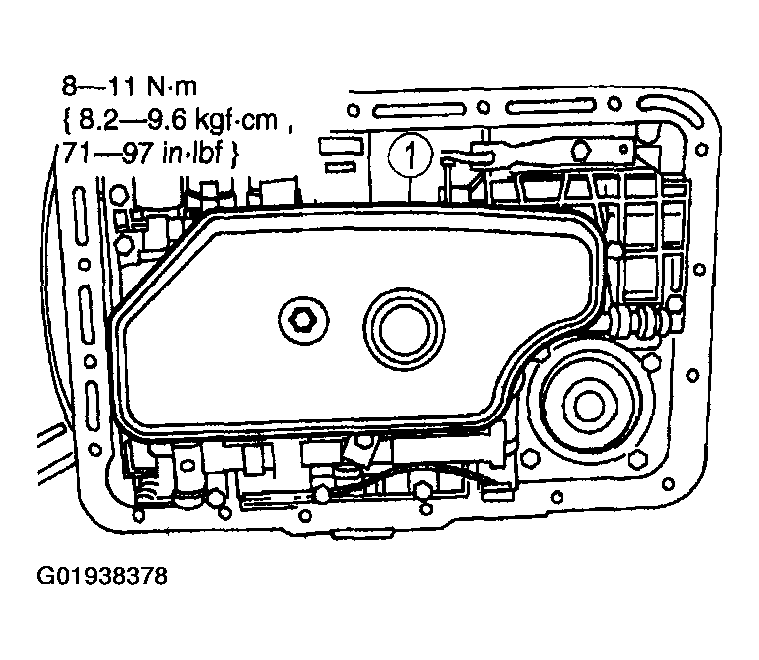

    Fig 5: Installing Oil Strainer
    G01938378Courtesy of MAZDA MOTORS CORP.
  6. Position a new gasket on the oil pan.

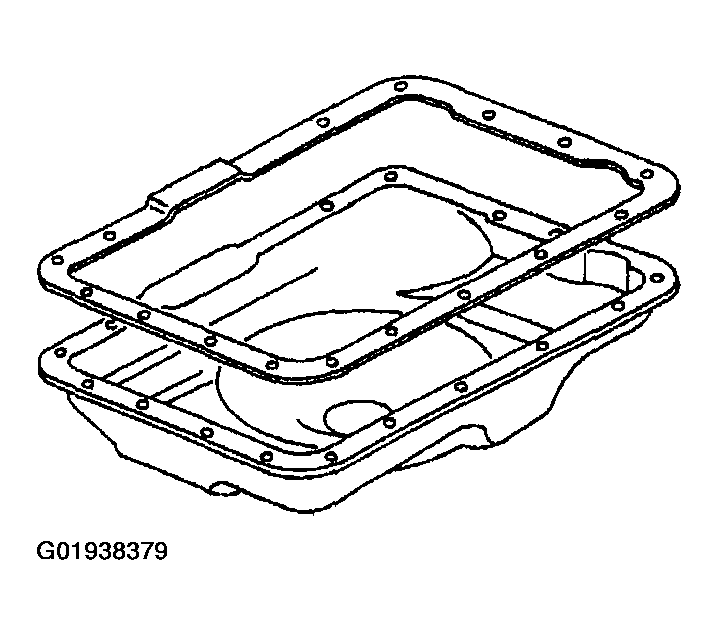

    Fig 6: Positioning A New Gasket On Oil Pan
    G01938379Courtesy of MAZDA MOTORS CORP.
  7. Align and install the oil pan.
    1. Loosely install the 18 oil pan bolts.

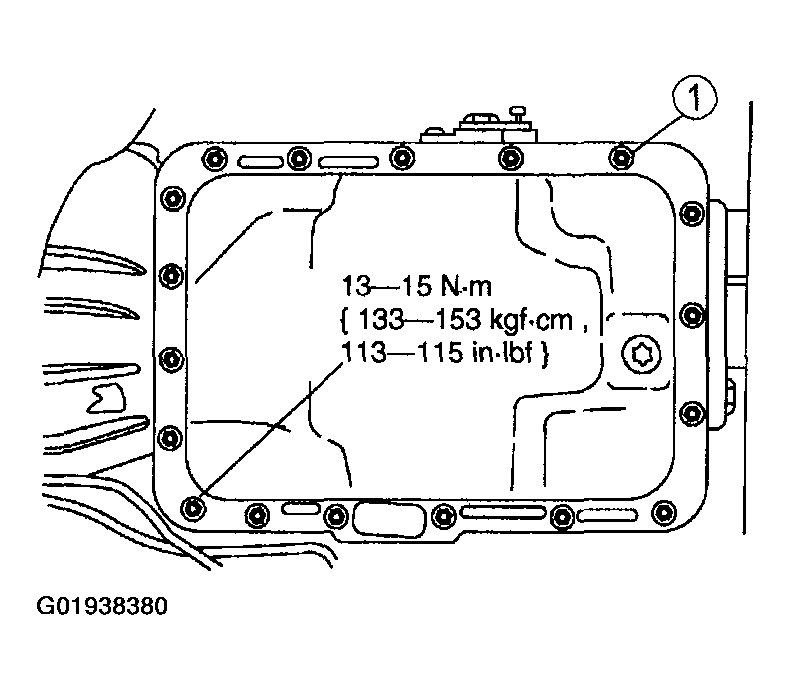

    Fig 7: Aligning & Installing Oil Pan
    G01938380Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Use a crisscross sequence to tighten the transmission oil pan bolts.
  8. Tighten the bolts.
  9. Lower the vehicle.
    NOTE:
    • When the battery has been disconnected and reconnected, some abnormal drive symptoms can occur while the vehicle relearns its adaptive strategy. The customer needs to be notified that they may experience slightly different upshifts either soft or firm and this is a temporary condition and will eventually return to normal operating condition.
  10. Connect the negative battery cable.
  11. Fill the transmission to the proper fluid level and check for proper transmission operation.
    • Use equivalent.
