Removal Note

NOTE:

When the battery has been disconnected and reconnected, some abnormal drive symptoms can occur while the vehicle re-learns its adaptive strategy. The customer needs to be notified that they may experience slightly different upshifts either soft or firm and this is a temporary condition and will eventually return to normal operating condition.

Disconnect the negative battery cable.
Raise and support the vehicle; see JACKING , .
Disconnect the shift cable from the manual control outer lever.

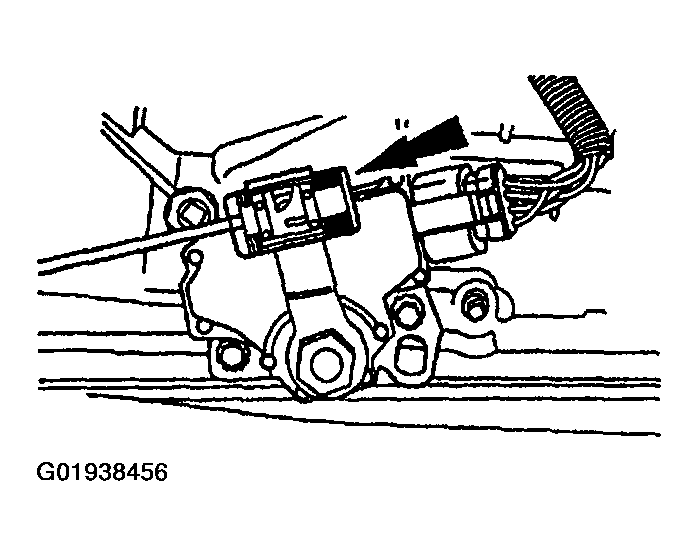

Fig 1: Disconnecting Shift Cable
Courtesy of MAZDA MOTORS CORP.
Disconnect the digital transmission range (TR) sensor electrical connector.

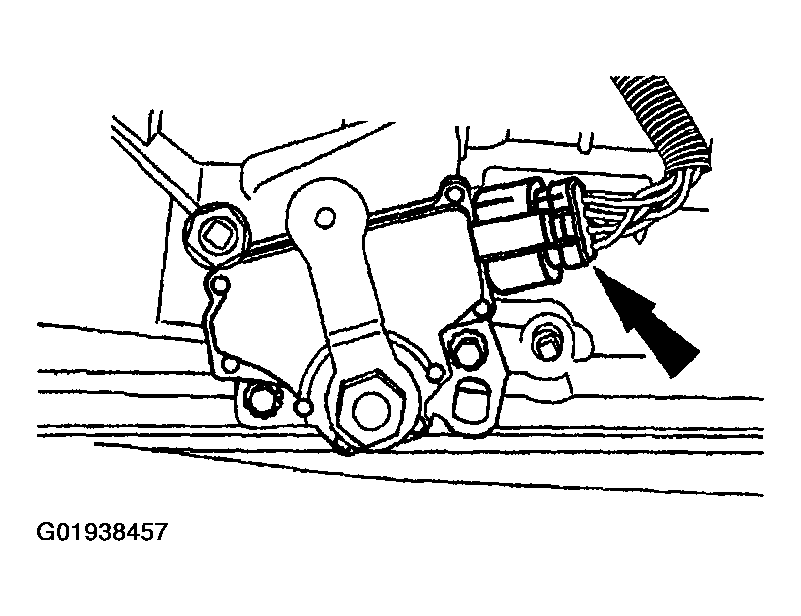

Fig 2: Disconnecting Digital Transmission Range (TR) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Remove the manual control outer lever nut and manual control outer lever.

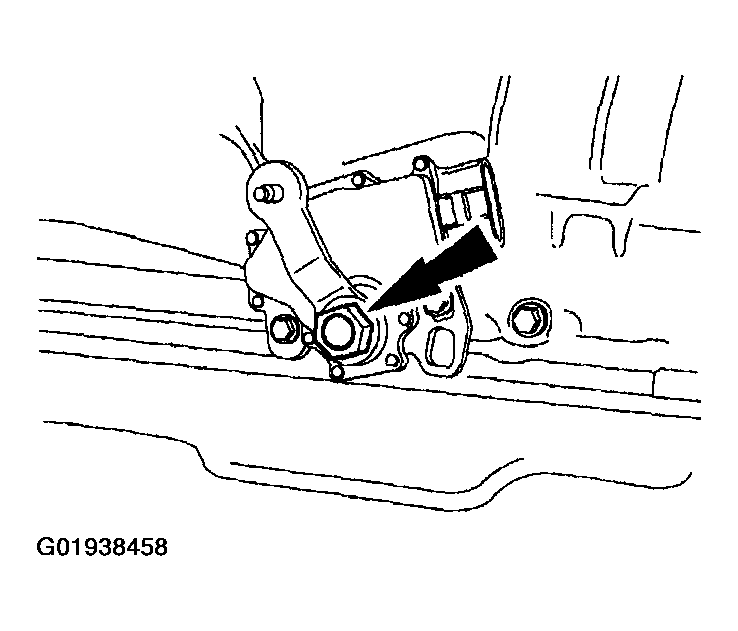

Fig 3: Removing Manual Control Outer Lever Nut & Manual Control Outer Lever
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the digital TR sensor.

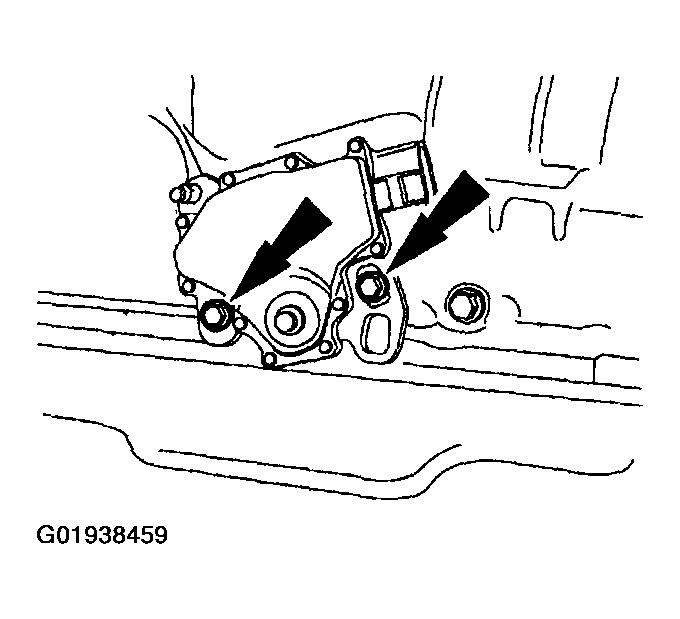

Fig 4: Removing Bolts & Digital TR Sensor
Courtesy of MAZDA MOTORS CORP.
