Removal Note

Raise and support the vehicle.
NOTE:
- To maintain initial propeller shaft balance, mark the rear propeller shaft yoke and axle flange so they may be installed in their original positions.
Mark the rear propeller shaft.

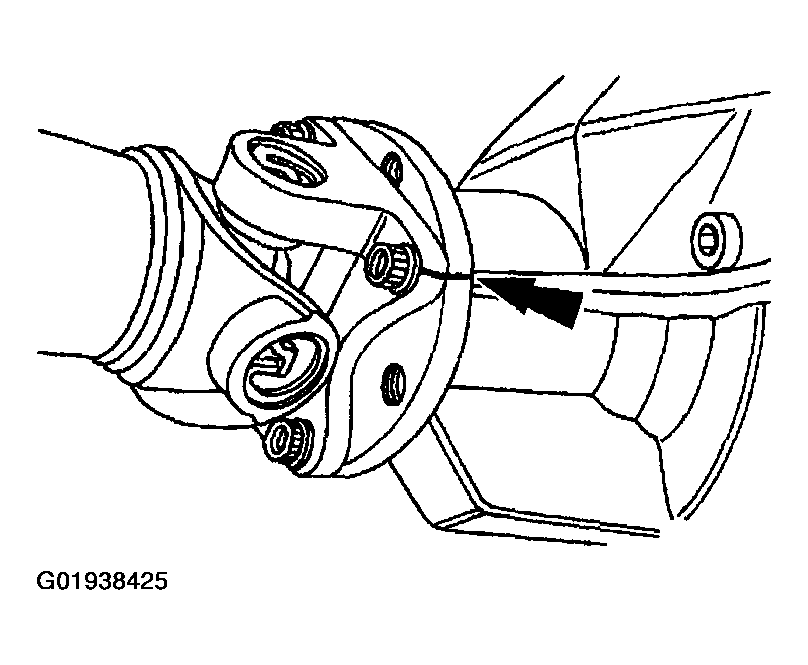

Fig 1: Marking Rear Propeller Shaft
Courtesy of MAZDA MOTORS CORP.
Remove the rear propeller shaft; see PROPELLER SHAFT REAR (4X2) REMOVAL/INSTALLATION or PROPELLER SHAFT REAR (4X4) REMOVAL/INSTALLATION .
Remove the transmission mount nuts.

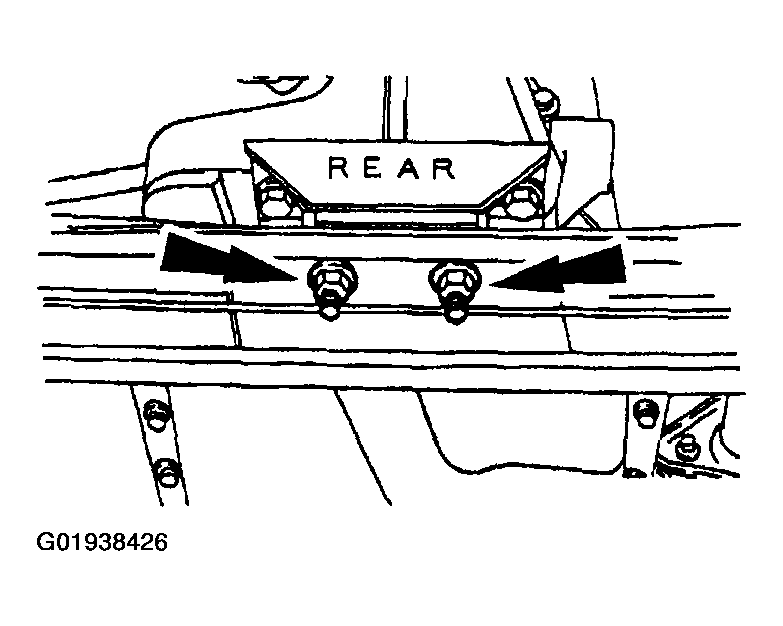

Fig 2: Removing Transmission Mount Nuts
Courtesy of MAZDA MOTORS CORP.
Raise and support the transmission.

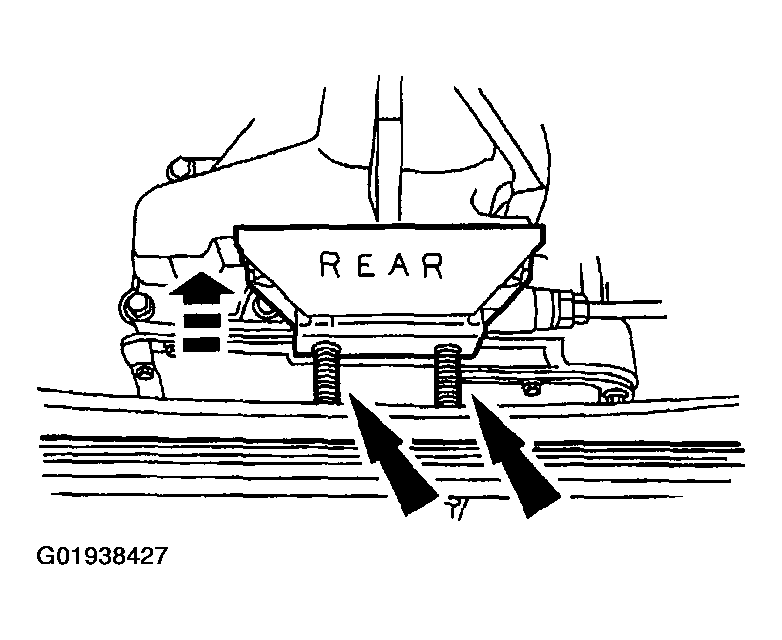

Fig 3: Raising & Supporting Transmission
Courtesy of MAZDA MOTORS CORP.
Remove the transmission mount.
1. Remove the transmission mount-to-extension housing bolts.
2. Remove the transmission mount.

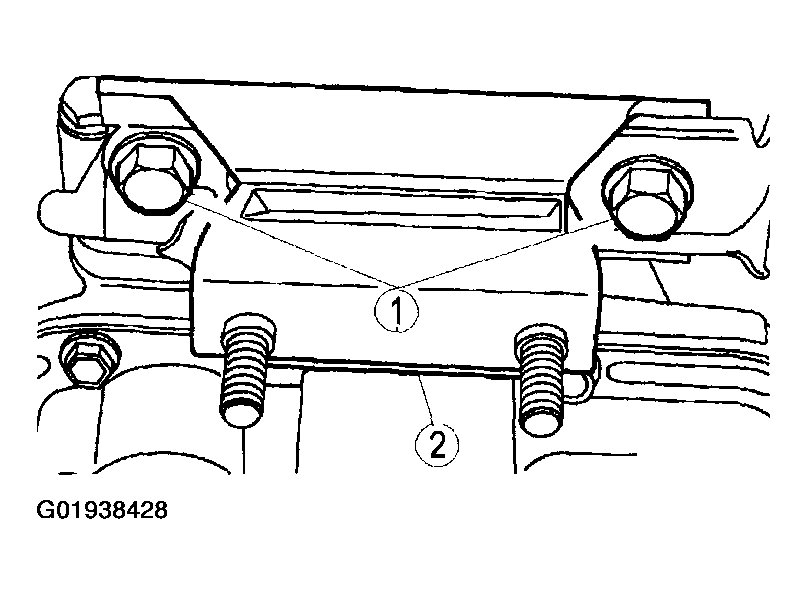

Fig 4: Removing Transmission Mount
Courtesy of MAZDA MOTORS CORP.
