Installation Note

Install the transmission mount.
1. Position the transmission mount on the extension housing.
2. Install the transmission mount-to-extension housing bolts.

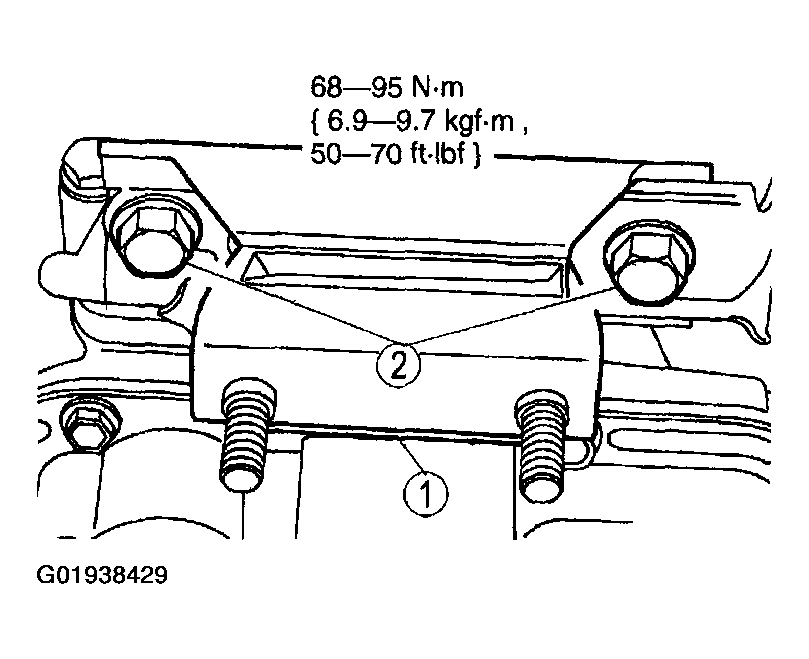

Fig 1: Installing Transmission Mount
Courtesy of MAZDA MOTORS CORP.
Install the transmission mount into the crossmember and tighten the transmission mount nuts.

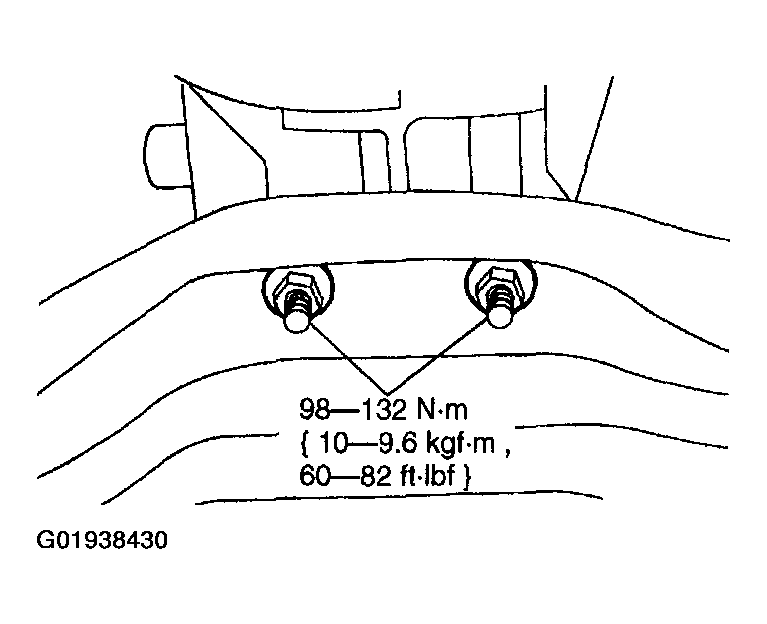

Fig 2: Installing Transmission Mount Into Crossmember & Tighten Transmission Mount Nuts
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Align the propeller shaft with the marks made during removal to ensure correct balance.
Align and install the rear propeller shaft; see PROPELLER SHAFT REAR (4X2) REMOVAL/INSTALLATION or PROPELLER SHAFT REAR (4X4) REMOVAL/INSTALLATION .

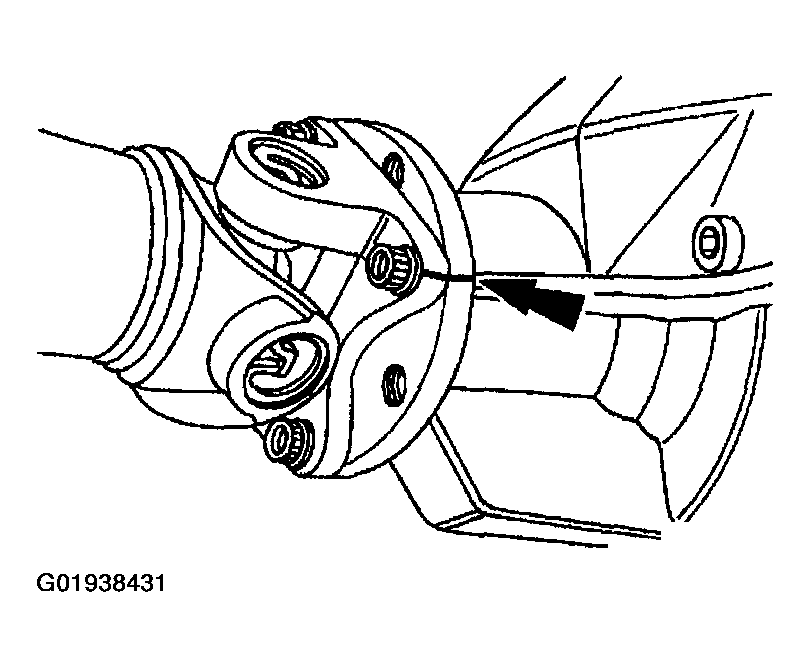

Fig 3: Aligning & Installing Rear Propeller Shaft
Courtesy of MAZDA MOTORS CORP.
Install the rear propeller shaft bolts.

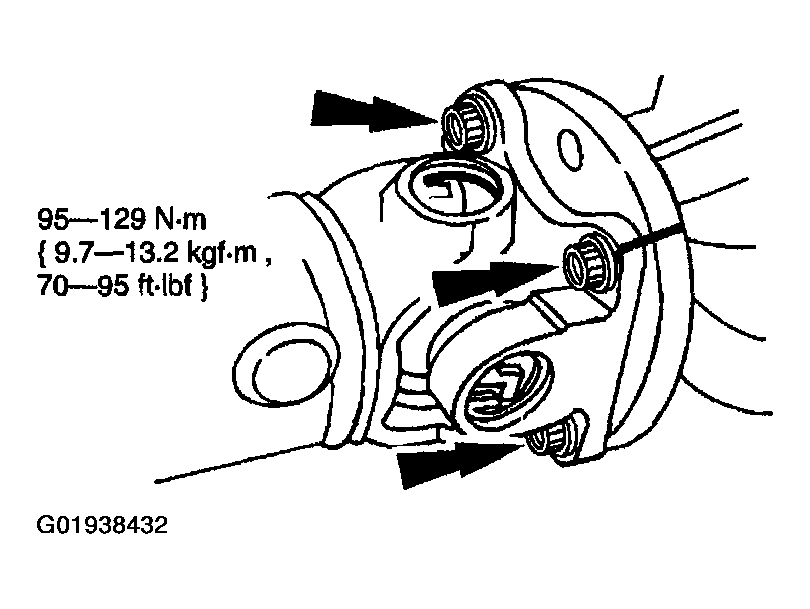

Fig 4: Installing Rear Propeller Shaft Bolts
Courtesy of MAZDA MOTORS CORP.
Lower the vehicle.
Fill the transmission to proper fluid level. Check for proper transmission operation.
- Use equivalent.
