Automatic Transmission [Service, Removal & Installation]
>>
Automatic Transmission Electronic Control System
>>
Electronic Control Components
Electronic Control Components

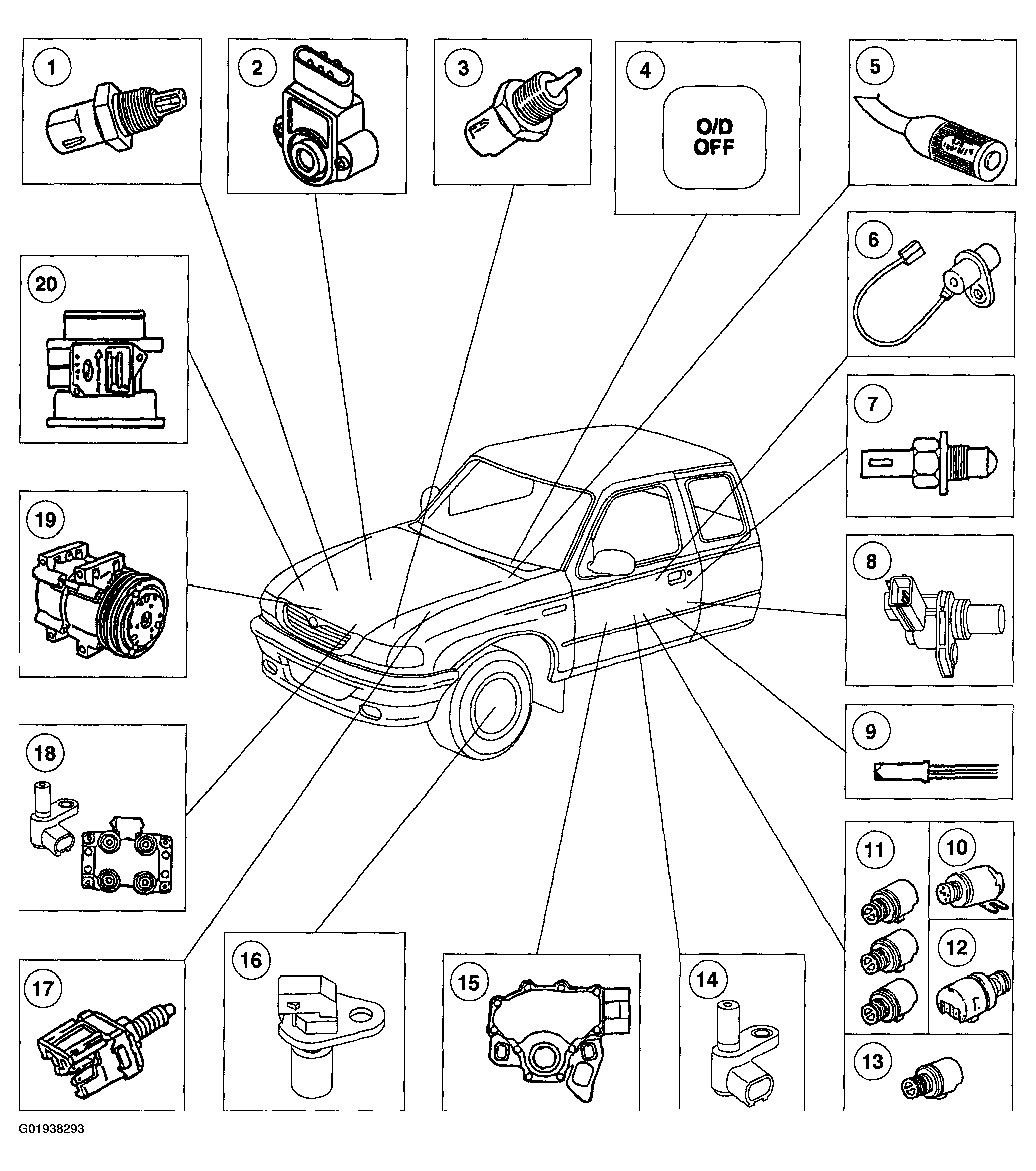

Fig 1: Electronic Control Components (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

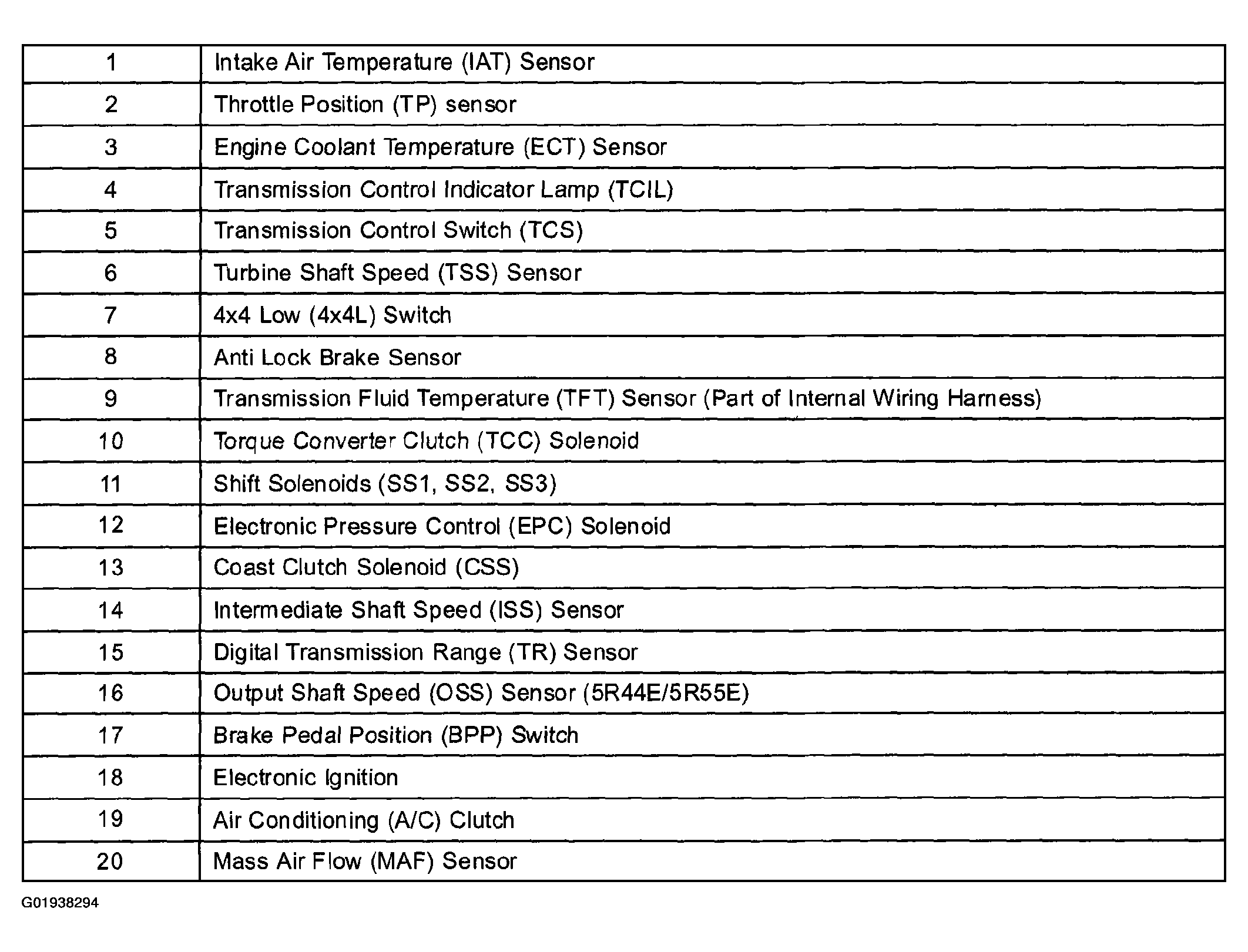

Fig 2: Electronic Control Components (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
