Automatic Transmission Cooling Components View
Automatic Transmission Cooling Components View

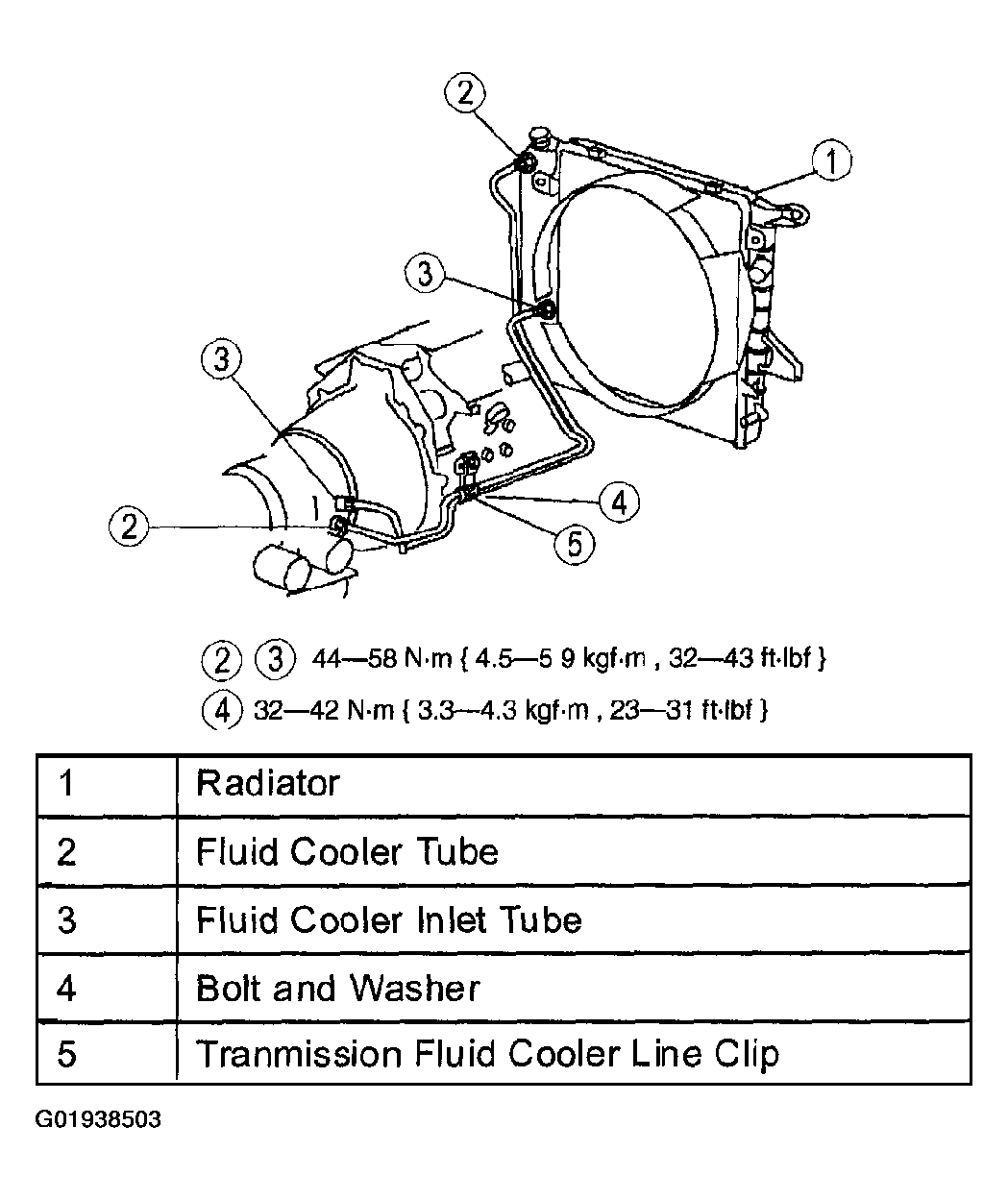

Fig 1: Locating Parts Of Automatic Transmission Cooling System (2.3L & 3.0L)
Courtesy of MAZDA MOTORS CORP.

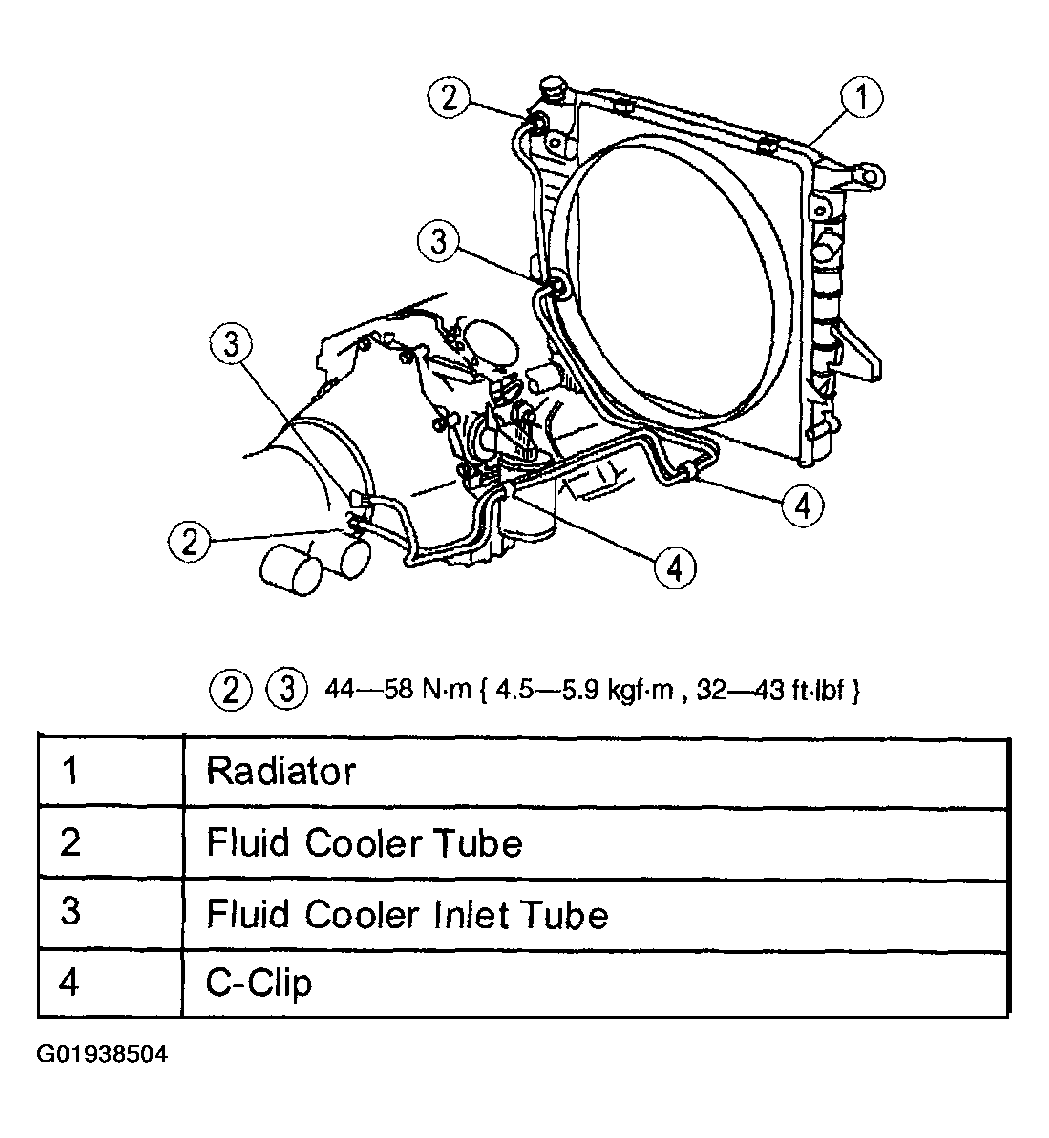

Fig 2: Locating Parts Of Automatic Transmission Cooling System (4.0L)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
