Automatic Transmission [Service, Removal & Installation]
>>
Automatic Transmission Components
>>
Disassembled View
Disassembled View

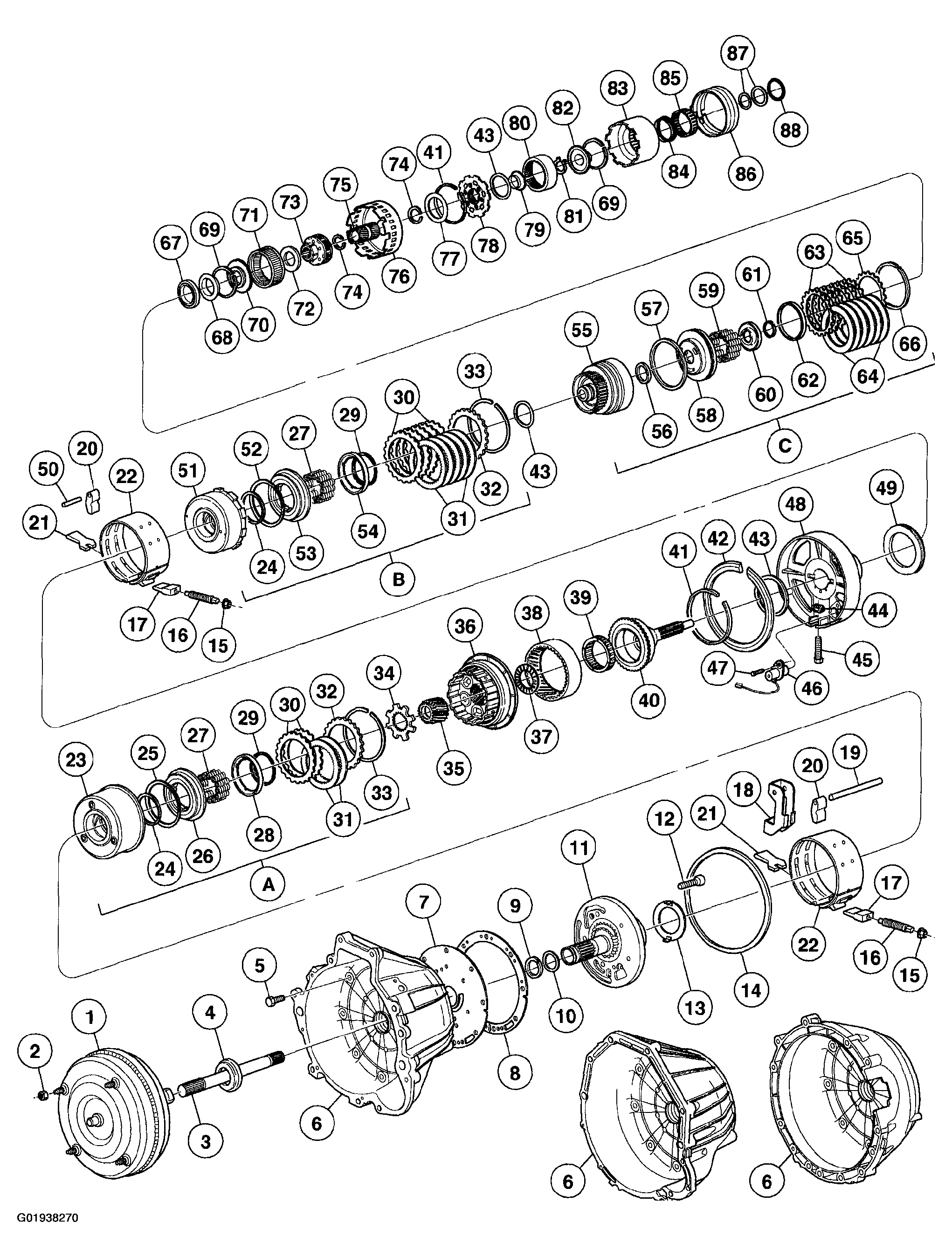

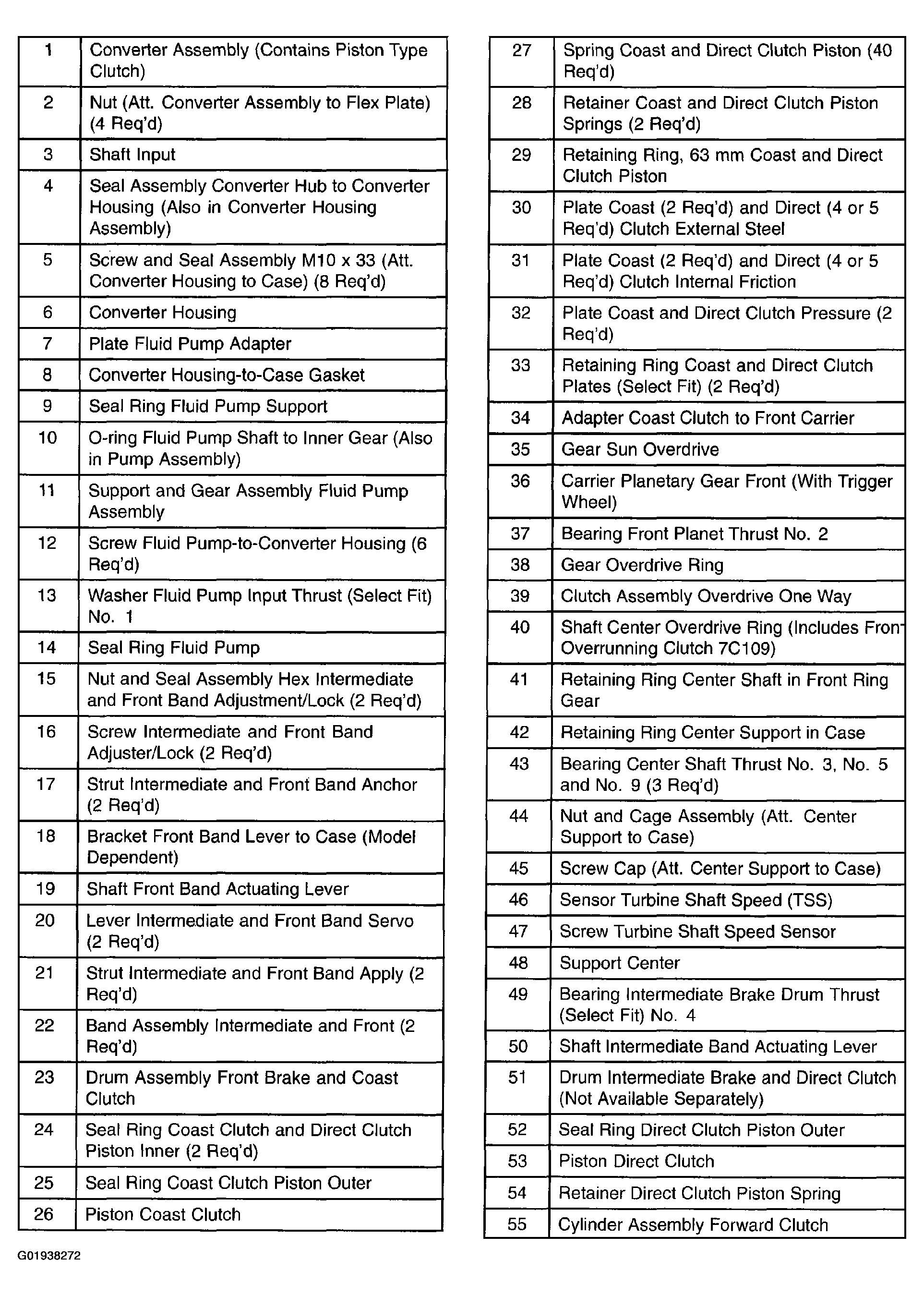

Fig 1: Disassembled View Of Automatic Transmission Components (1 Of 5)
Courtesy of MAZDA MOTORS CORP.

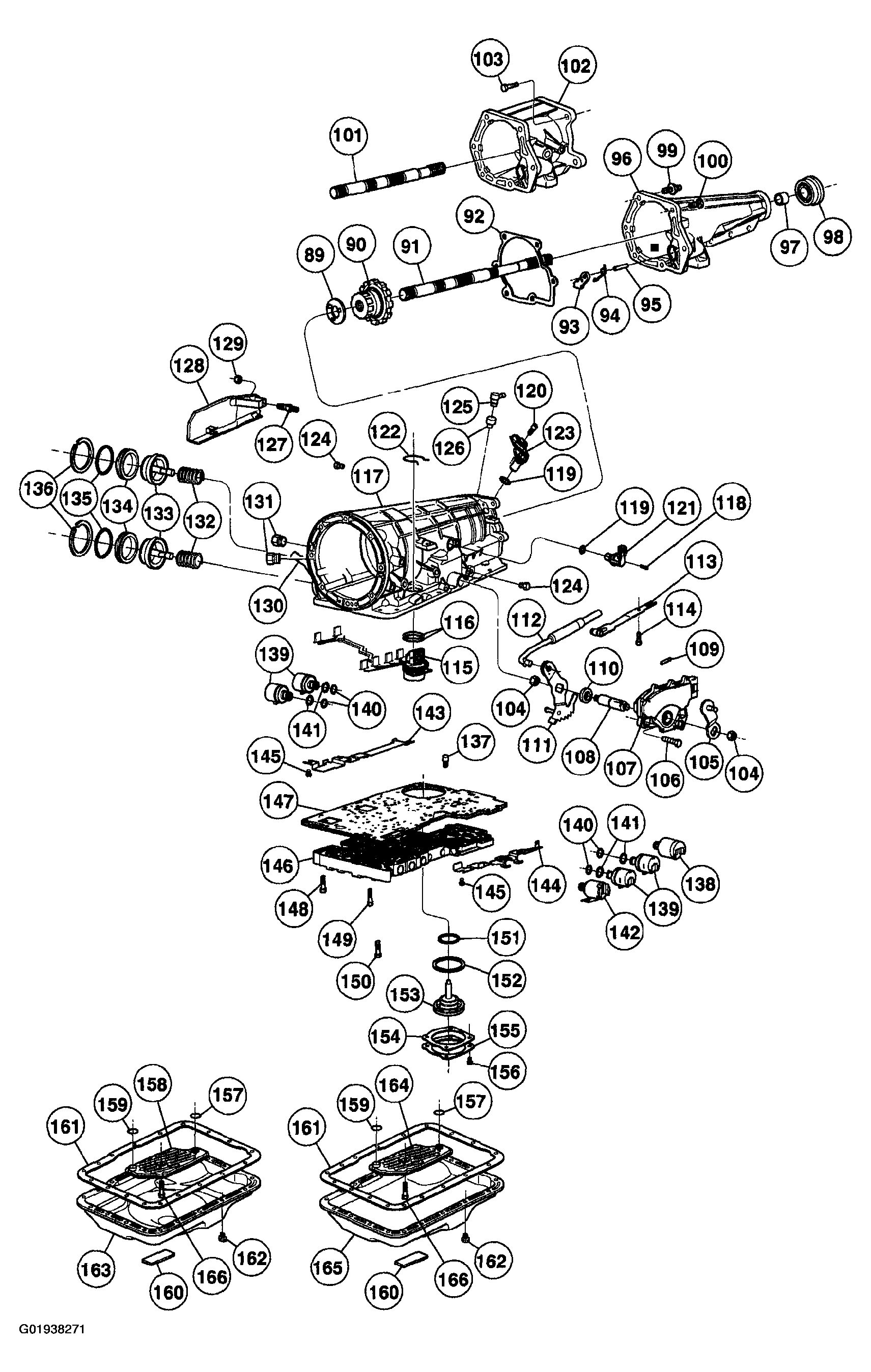

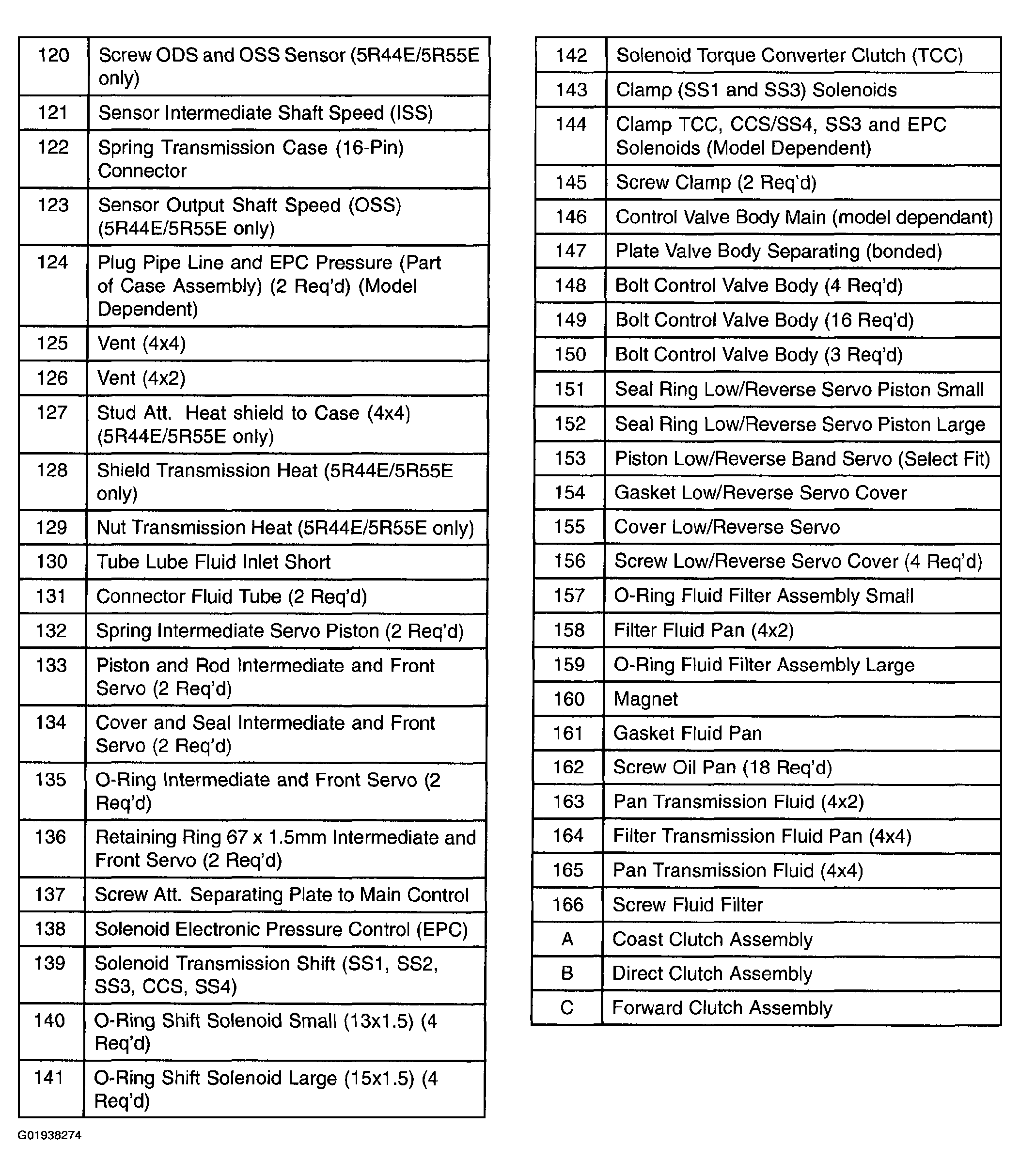

Fig 2: Disassembled View Of Automatic Transmission Components (2 Of 5)
Courtesy of MAZDA MOTORS CORP.

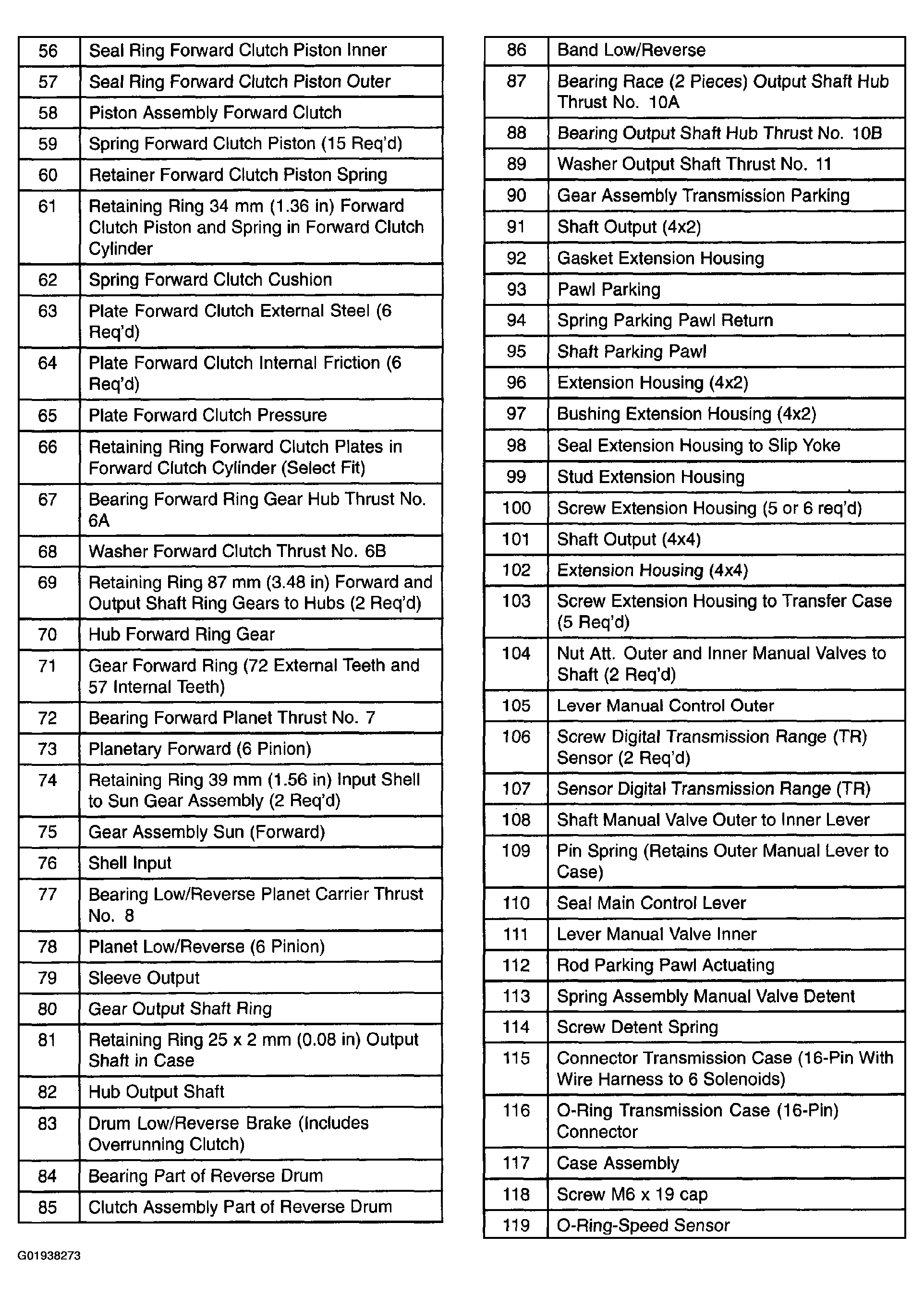

Fig 3: Disassembled View Of Automatic Transmission Components (3 Of 5)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Disassembled View Of Automatic Transmission Components (4 Of 5)
Courtesy of MAZDA MOTORS CORP.
Fig 5: Disassembled View Of Automatic Transmission Components (5 Of 5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
