Front Band

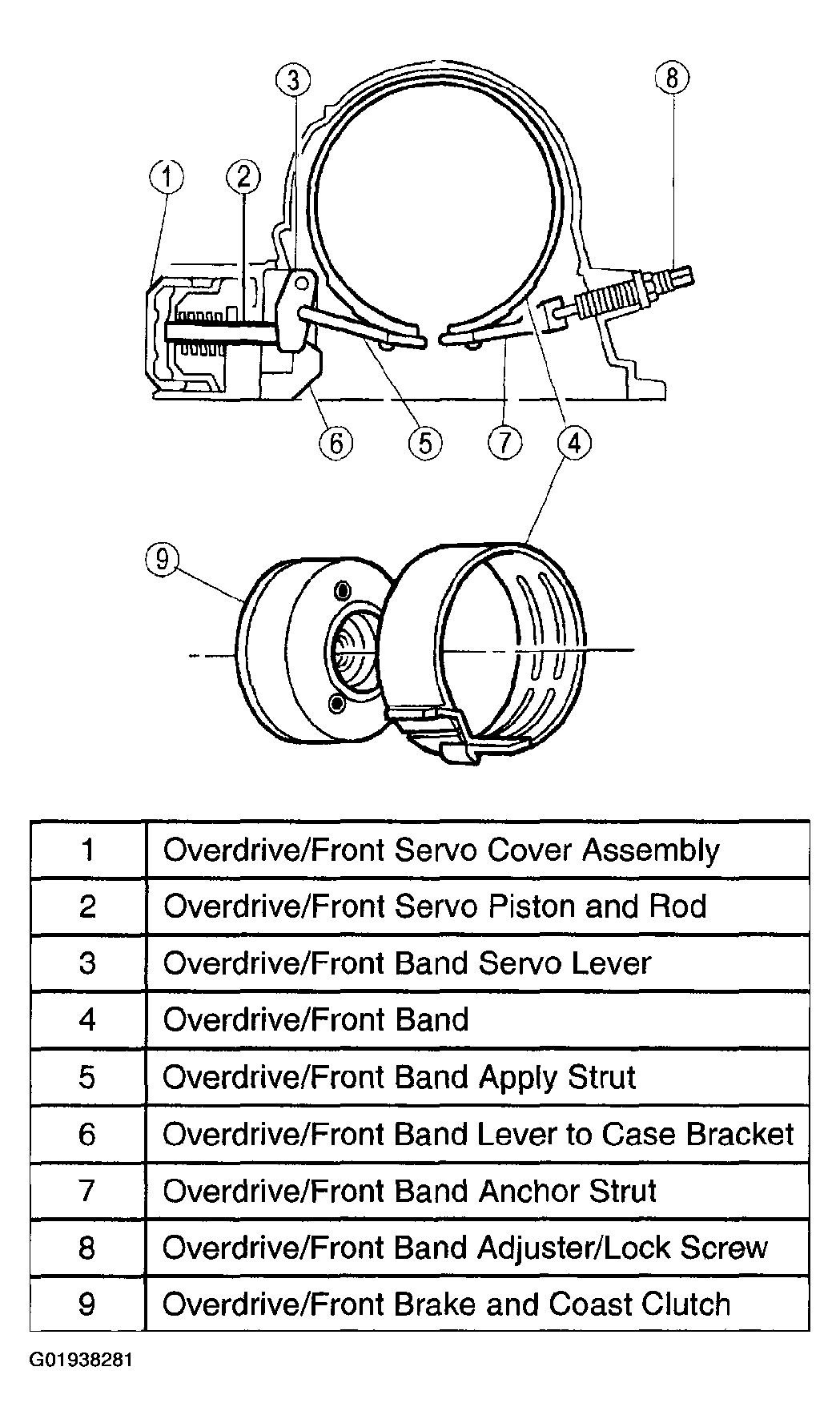

Fig 1: Disassembled View Of Front Band

Courtesy of MAZDA MOTORS CORP.

Hydraulic pressure is applied to the front side of the front servo.

• This pressure causes the servo to stroke and apply force to the band.
• This action causes the front brake and coast clutch drum to be held.
• The front band holds the front brake and coast clutch drum to the case in 2th and 5th gears.
• This causes the front sun gear to be held stationary through the coast clutch adapter and the front brake and coast clutch drum.
