Seat Belt Description

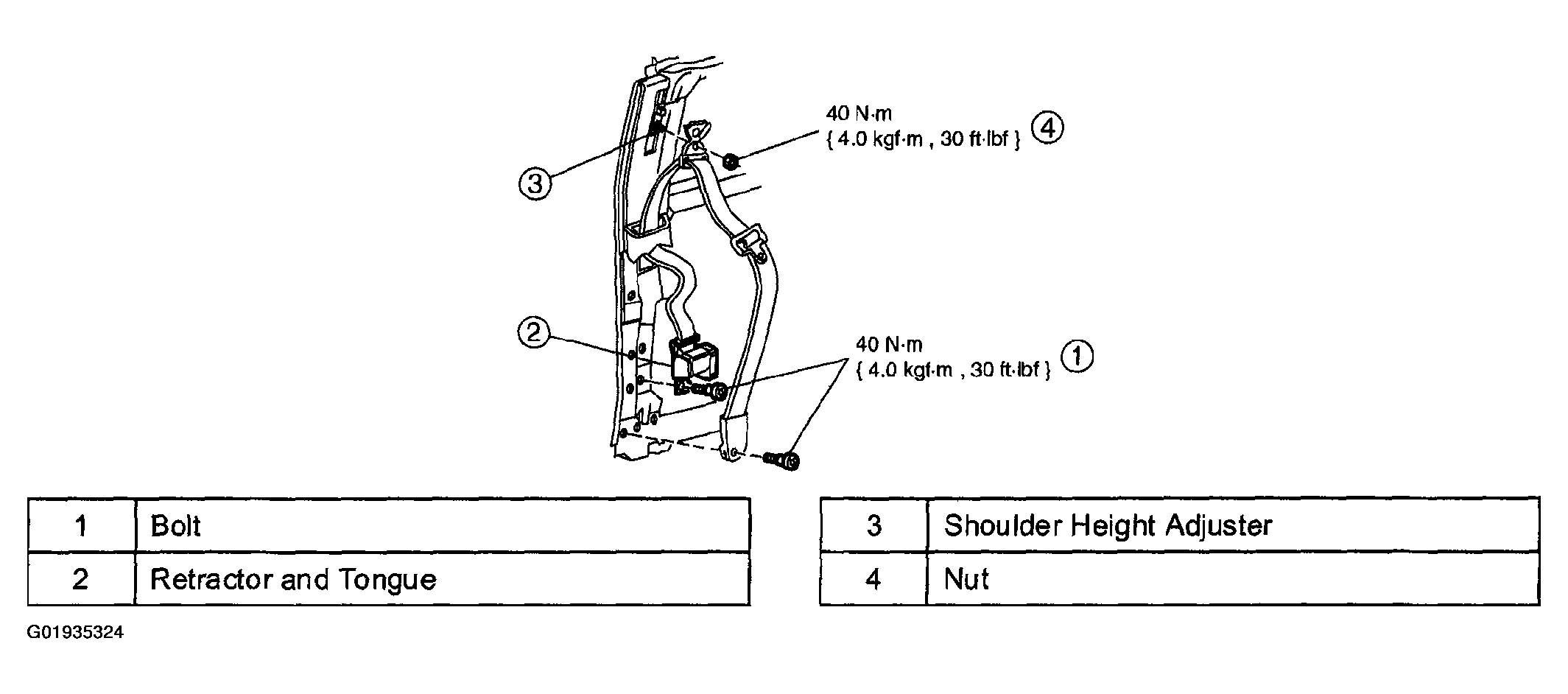

Fig 1: Seat Belt System/Regular Cab

Courtesy of MAZDA MOTORS CORP.

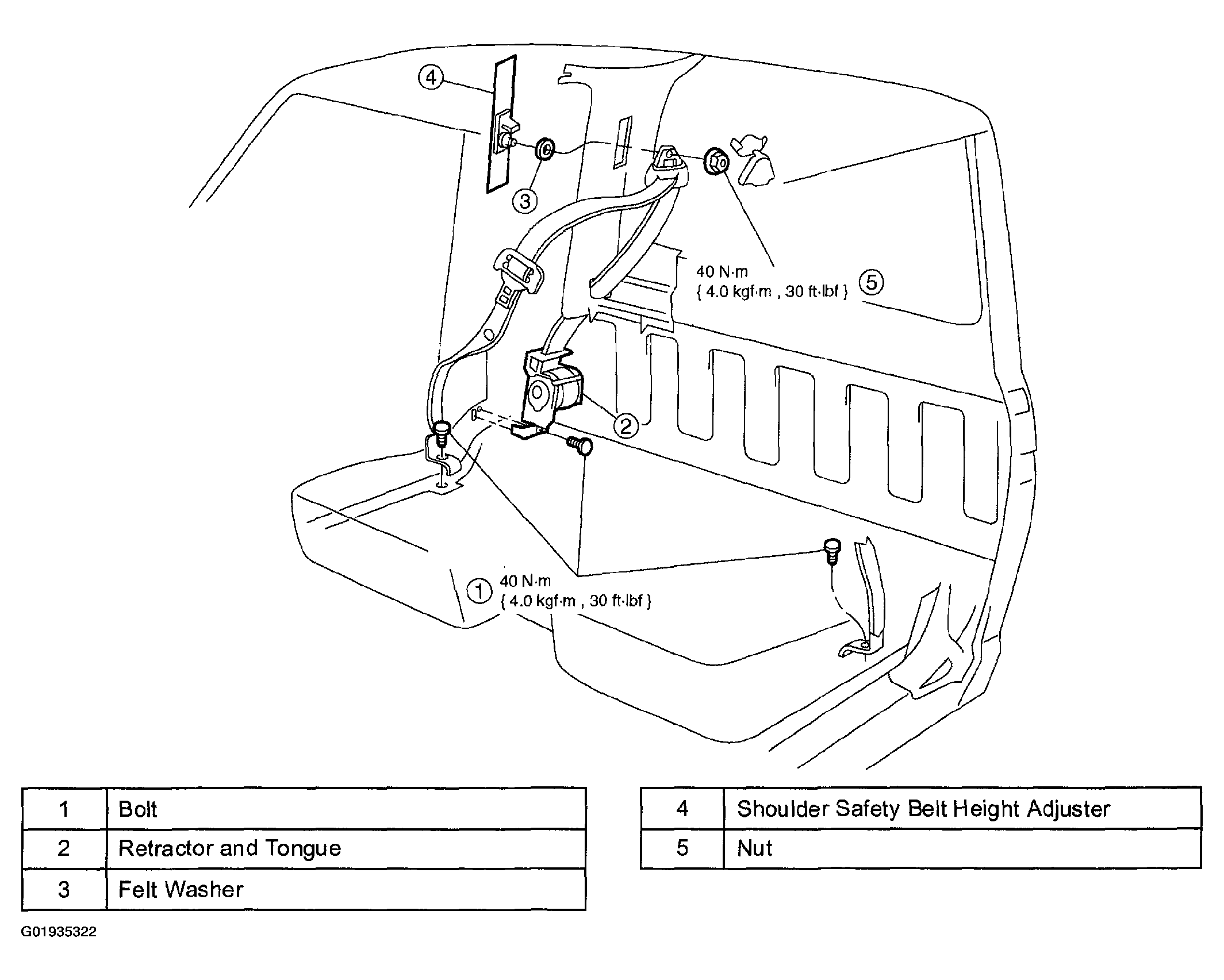

Fig 2: Seat Belt System - Cab Plus (2-Door)

Courtesy of MAZDA MOTORS CORP.

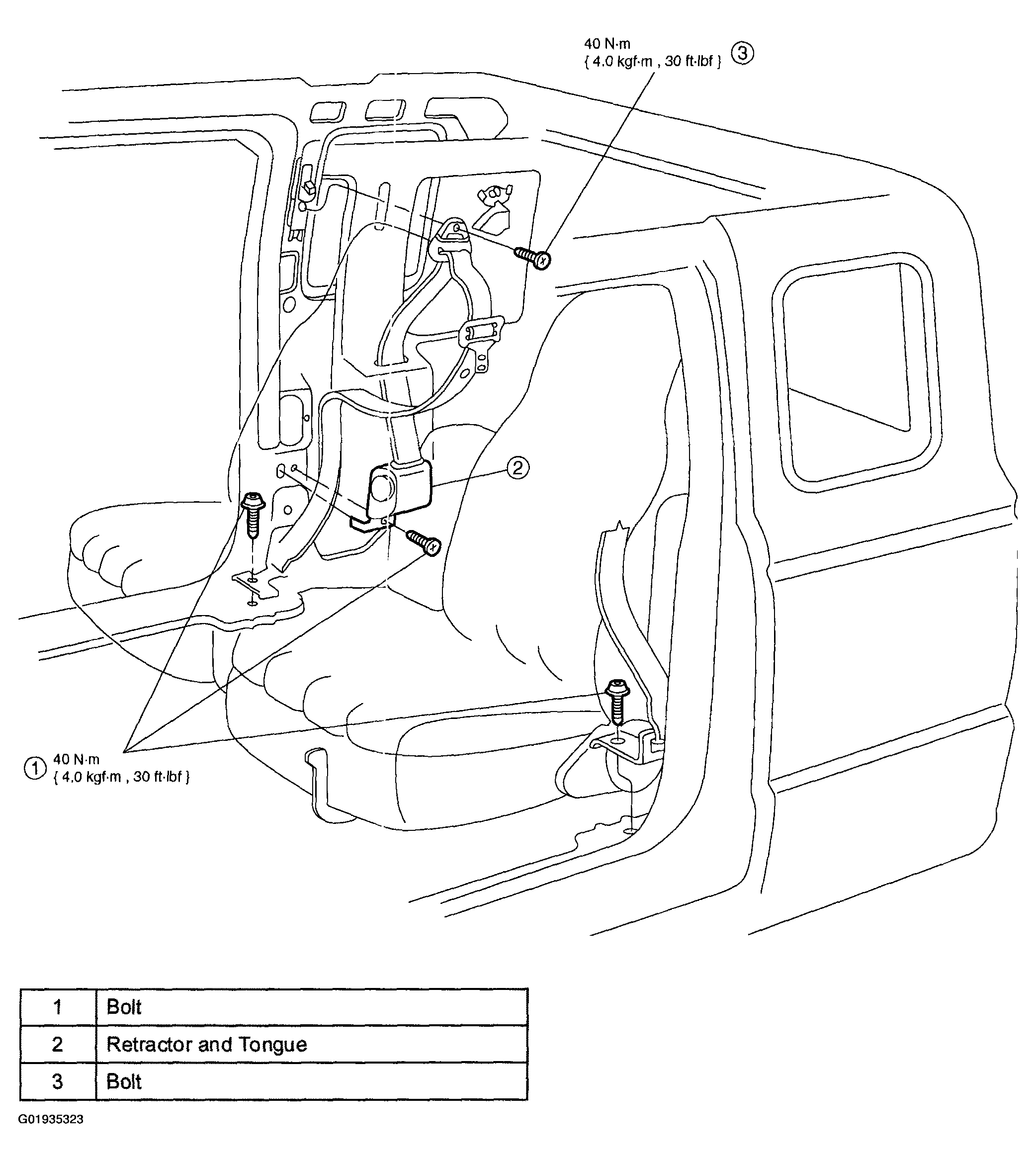

Fig 3: Seat Belt System

Courtesy of MAZDA MOTORS CORP.

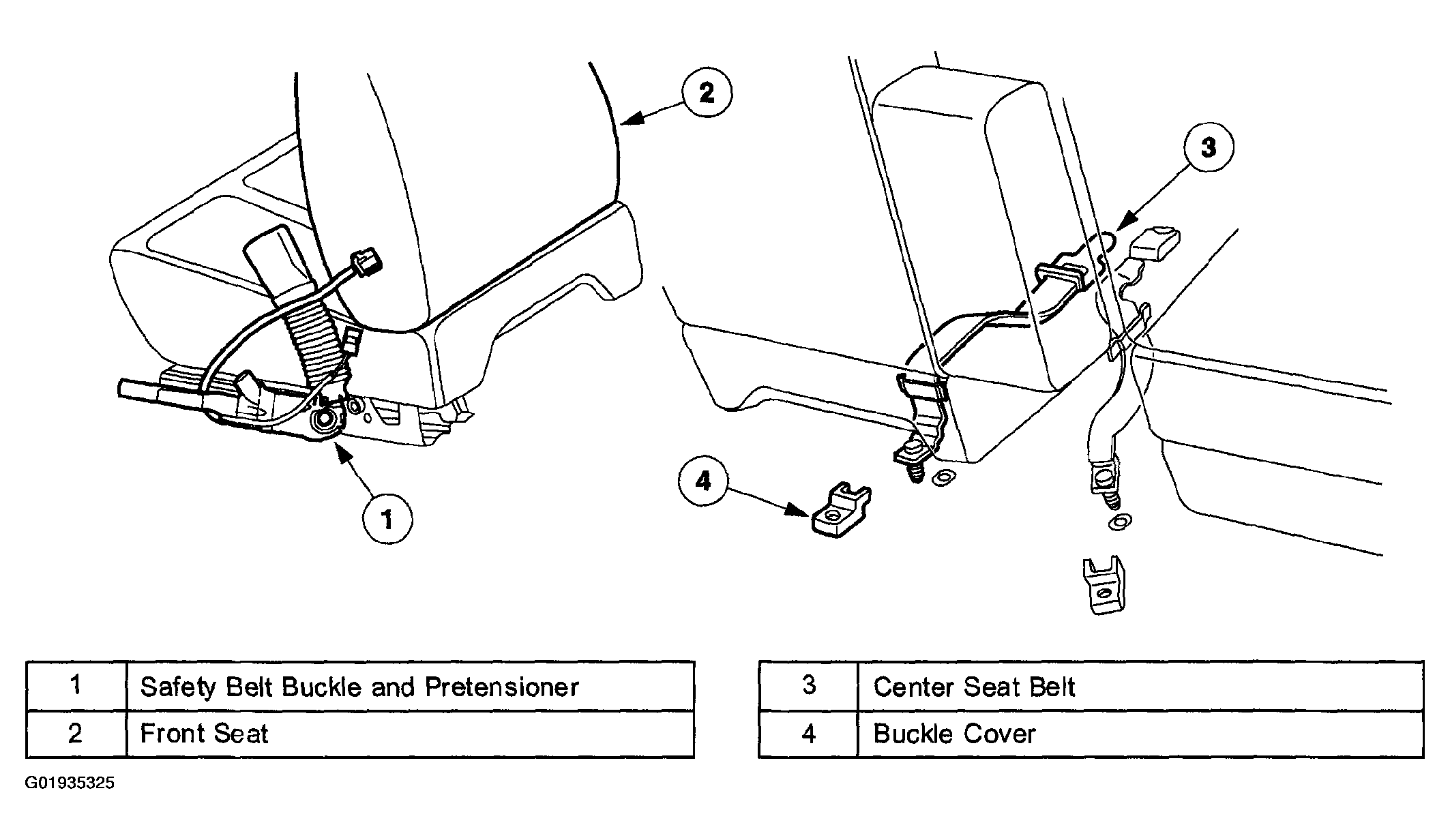

Fig 4: Locating Seat Belts - Front Seats

Courtesy of MAZDA MOTORS CORP.

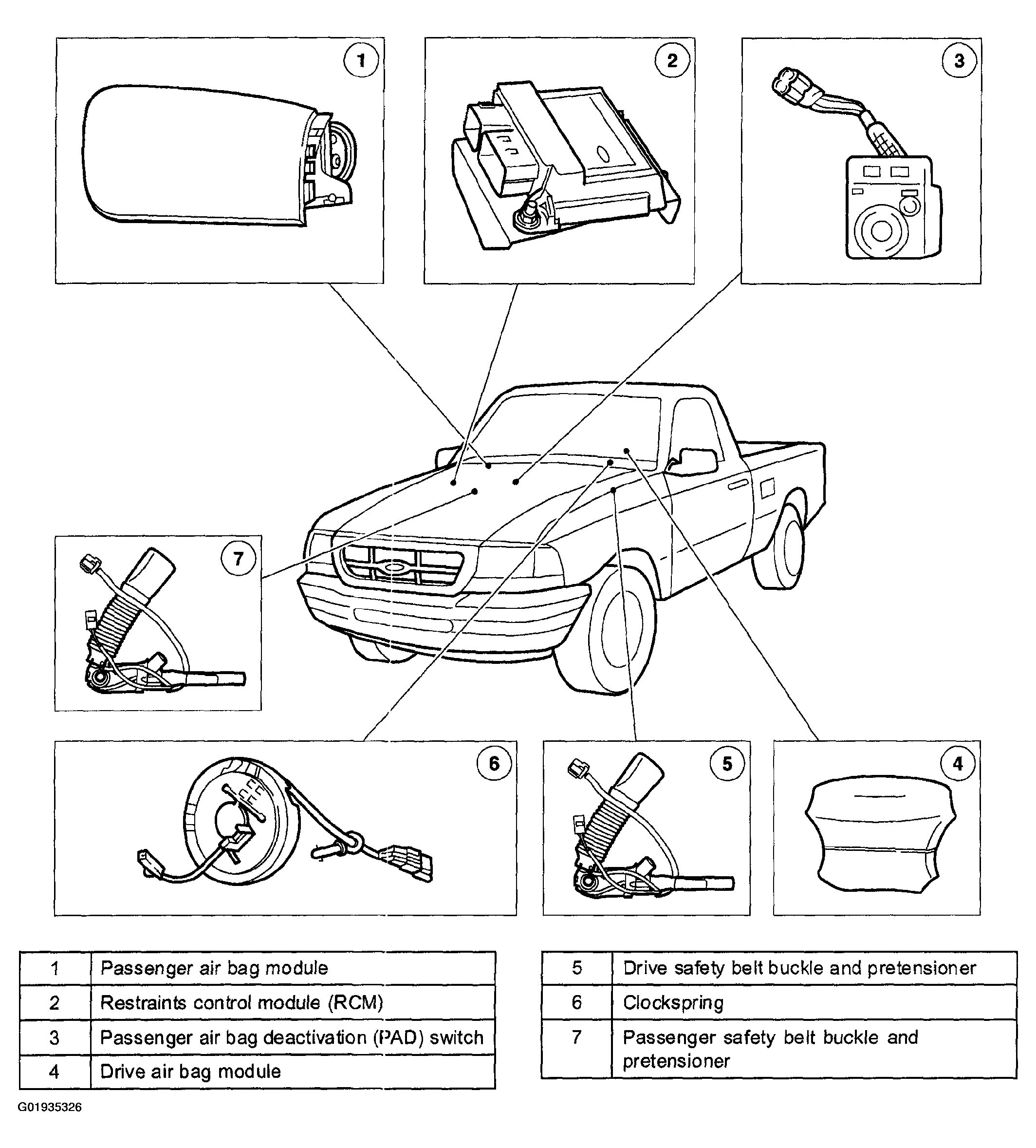

Fig 5: Locating Restraints Components

Courtesy of MAZDA MOTORS CORP.

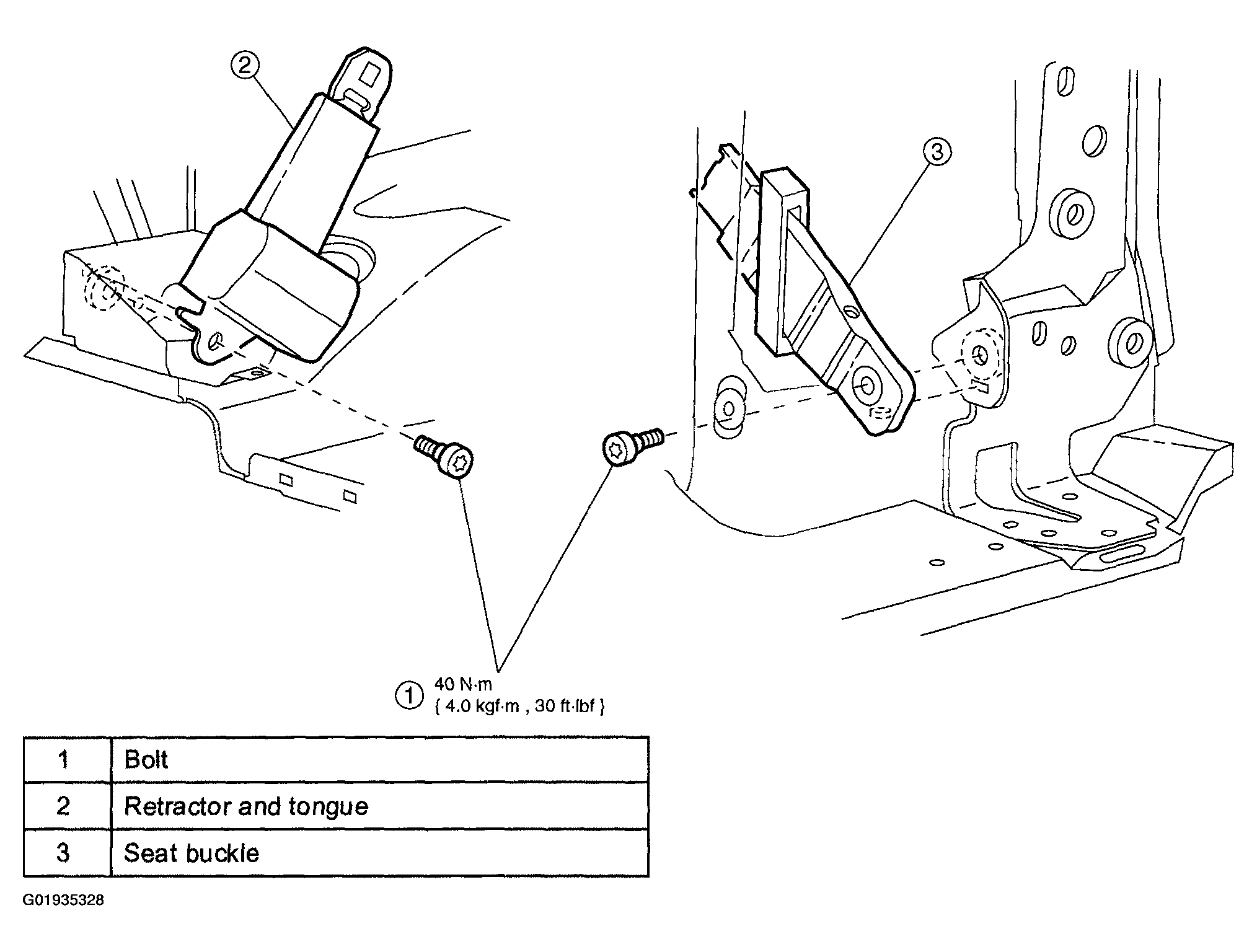

Fig 6: Seat Belt System - Rear Seats (Cab Plus)

Courtesy of MAZDA MOTORS CORP.

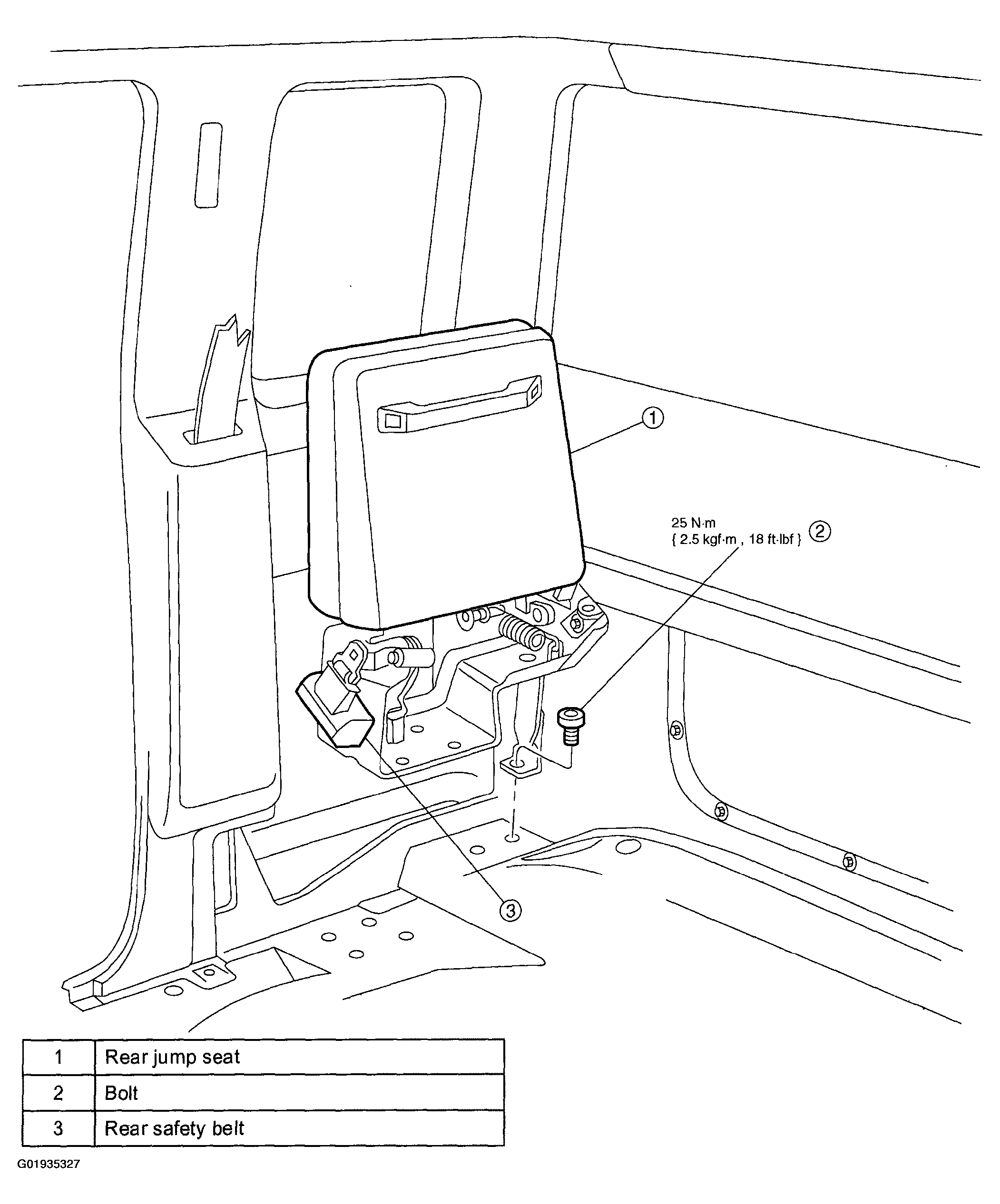

Fig 7: Removing Seat Belts - Rear Seats (Cab Plus 4)

Courtesy of MAZDA MOTORS CORP.

The lower anchors and tethers for children (LATCH) system is a standardized and uniform attachment system for installing child safety seats in passenger vehicles. LATCH-equipped child safety seats have two lower attachments that connect to the vehicle portion of the LATCH system.

The vehicle portion of the system consists of two attachment points (6mm wires) welded to the front outboard passenger seat cushion frame. The attachment points protrude from the bite line between the seat cushion and seat backrest.

If a child safety seat was in use during a collision, inspect the vehicle portion of the system for damage. If any of the attachment points (6mm wires) are damaged, install a new seat cushion frame.
