Child Safety Seat Tether Anchor

  1. Deactivate the supplemental restraint system (SRS); see DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the affected seat.
  3. On vehicles equipped with a bucket seat or 40 percent bench, remove the bolts and the child safety seat tether anchor.

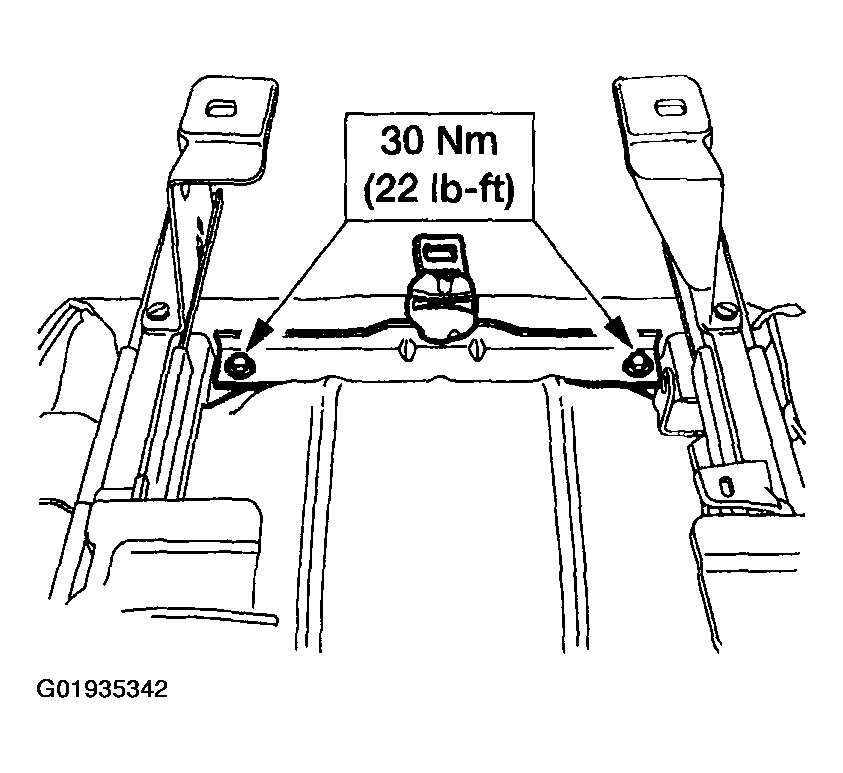

    Fig 1: Removing Child Safety Seat Tether Anchor Equipped With Bucket Seat
    G01935342Courtesy of MAZDA MOTORS CORP.
  4. On vehicles equipped with a 60 percent bench, remove the 60 percent bench seat; see SEAT BACKREST FRONT-60 PERCENT BENCH REMOVAL/INSTALLATION .
  5. Remove the bolts and the child safely seat tether anchor.

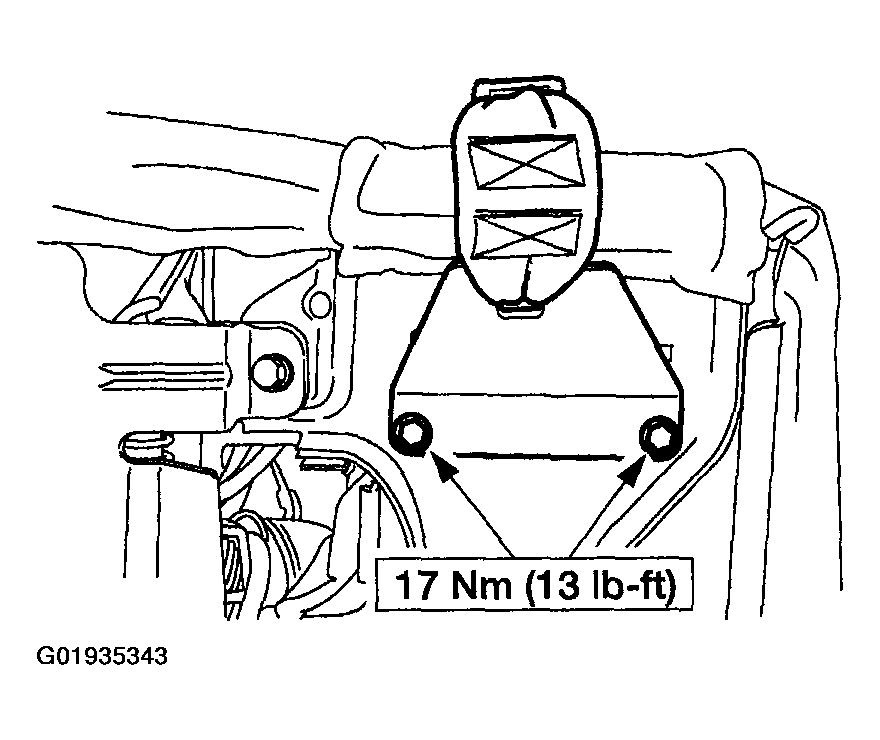

    Fig 2: Removing Child Safely Seat Tether Anchor Equipped With 60 Percent Bench
    G01935343Courtesy of MAZDA MOTORS CORP.
  6. Install in reverse order of removal.
