DTC P1309: Misfire Detection Monitor Disabled

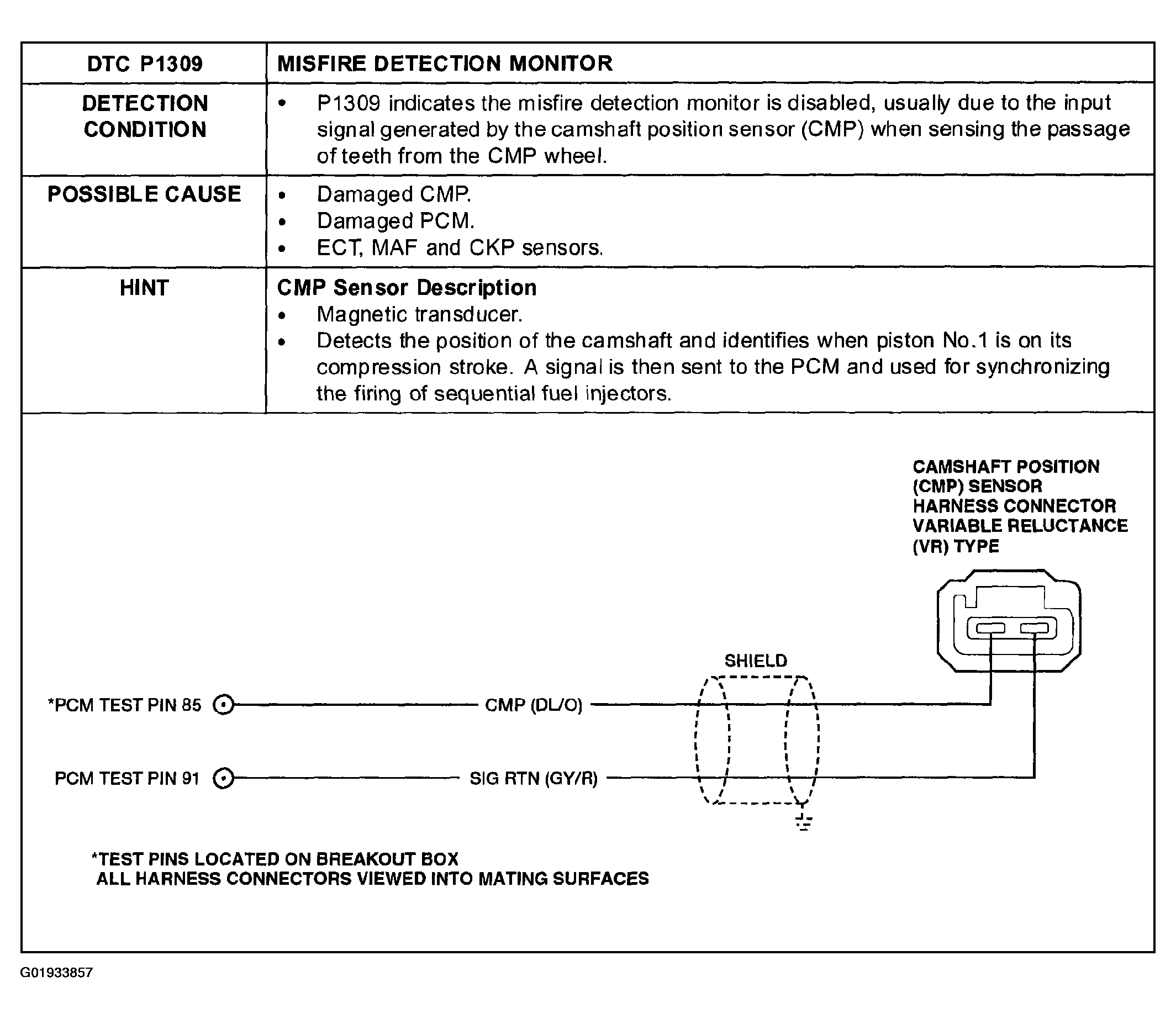

Fig 1: Misfire Detection Monitor Disabled Detection Condition

Courtesy of MAZDA MOTORS CORP.

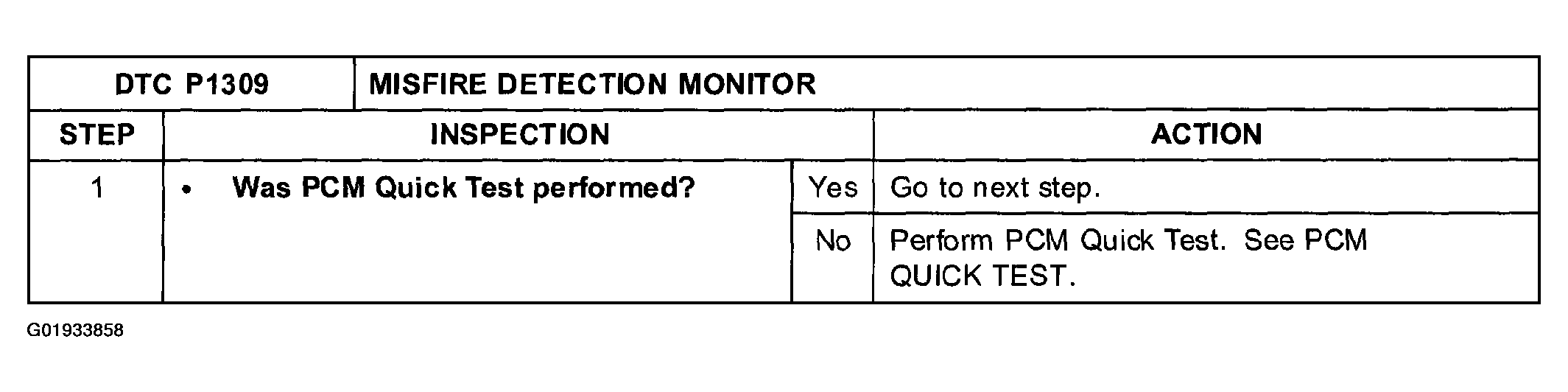

Fig 2: Diagnostic Procedure (DTC P1309) (Step 1)

Courtesy of MAZDA MOTORS CORP.

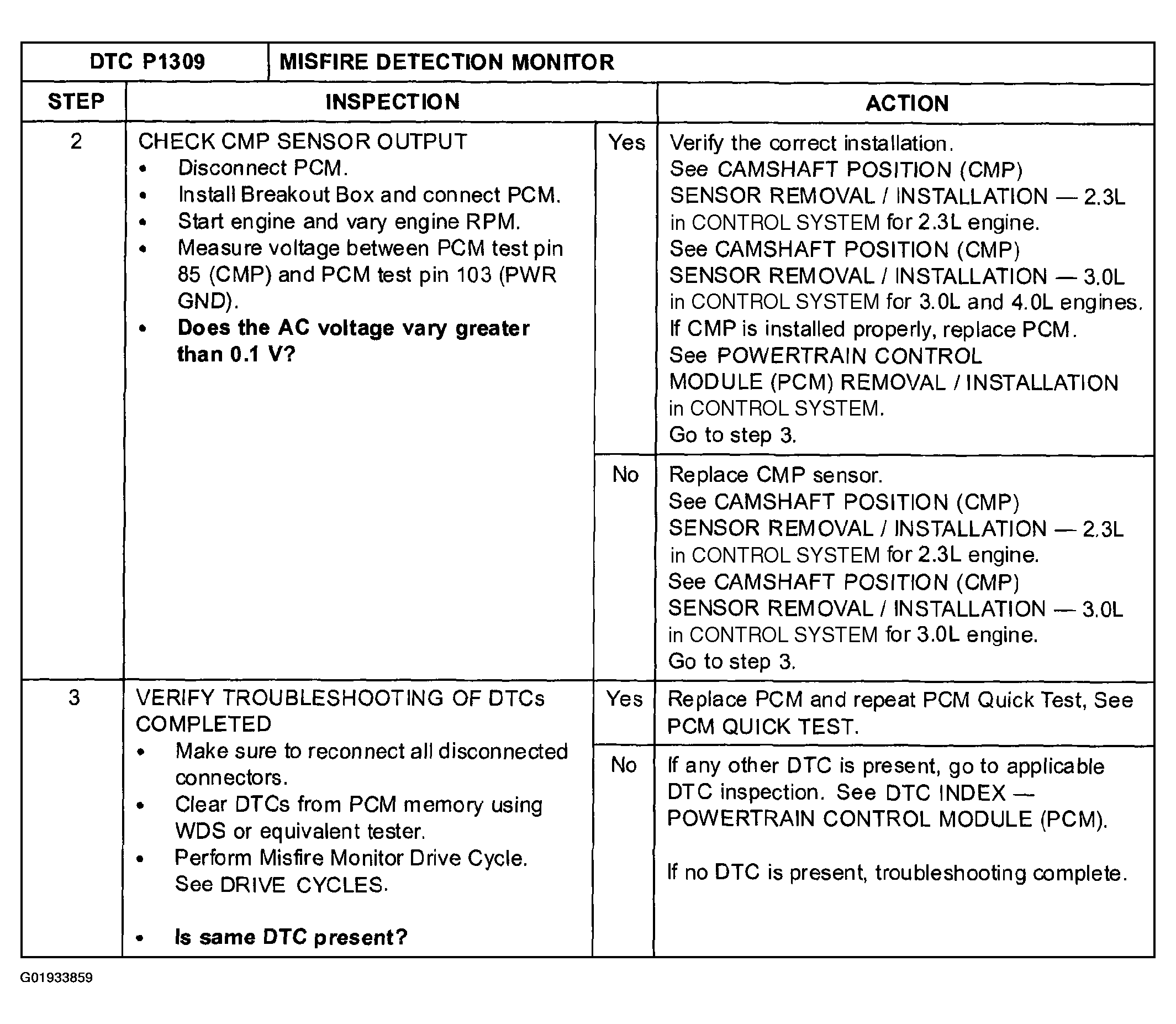

Fig 3: Diagnostic Procedure (DTC P1270) (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.
