DTC P0171 & P0174: Adaptive Fuel Control

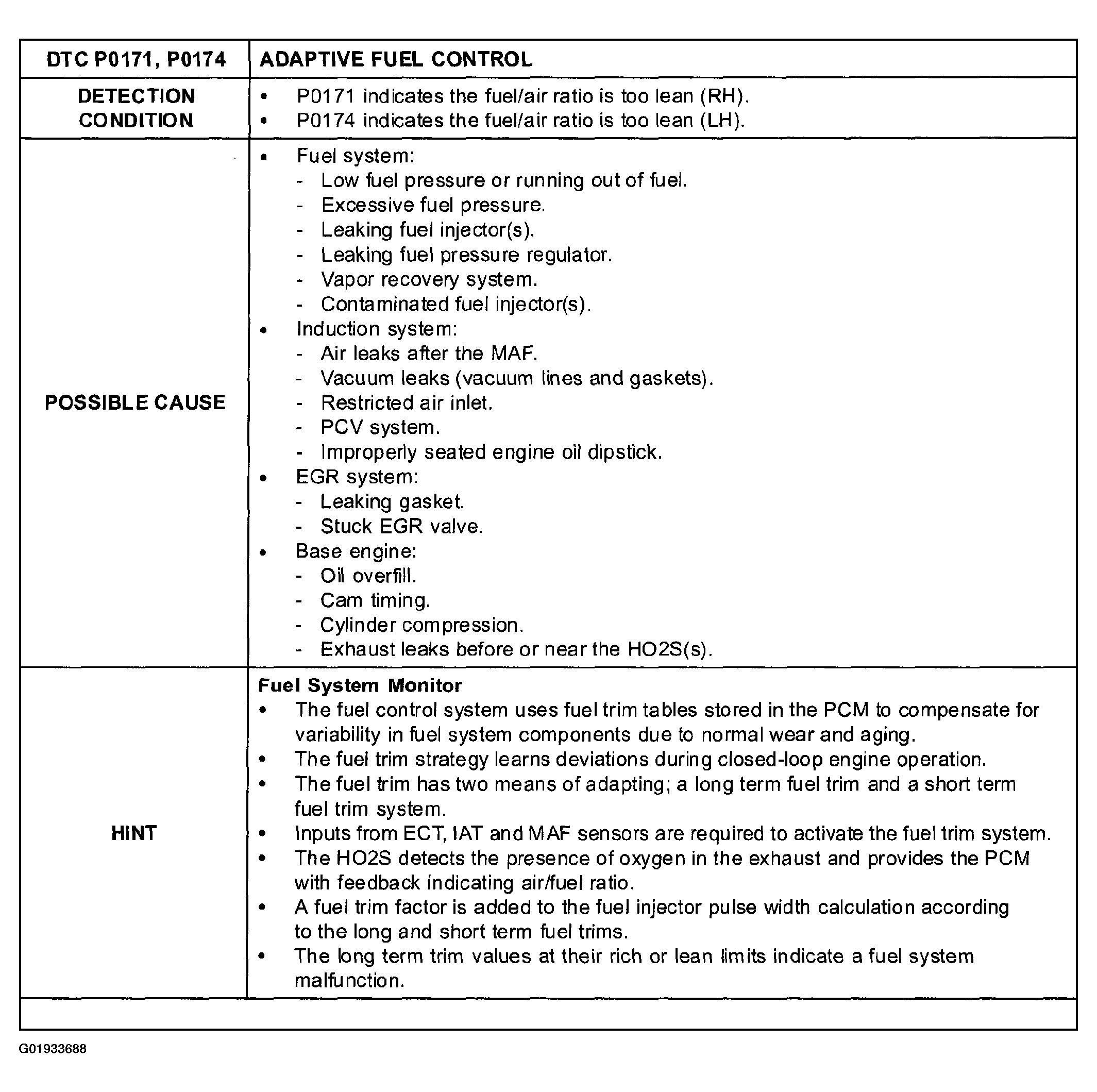

Fig 1: Adaptive Fuel Control Detection Condition

Courtesy of MAZDA MOTORS CORP.

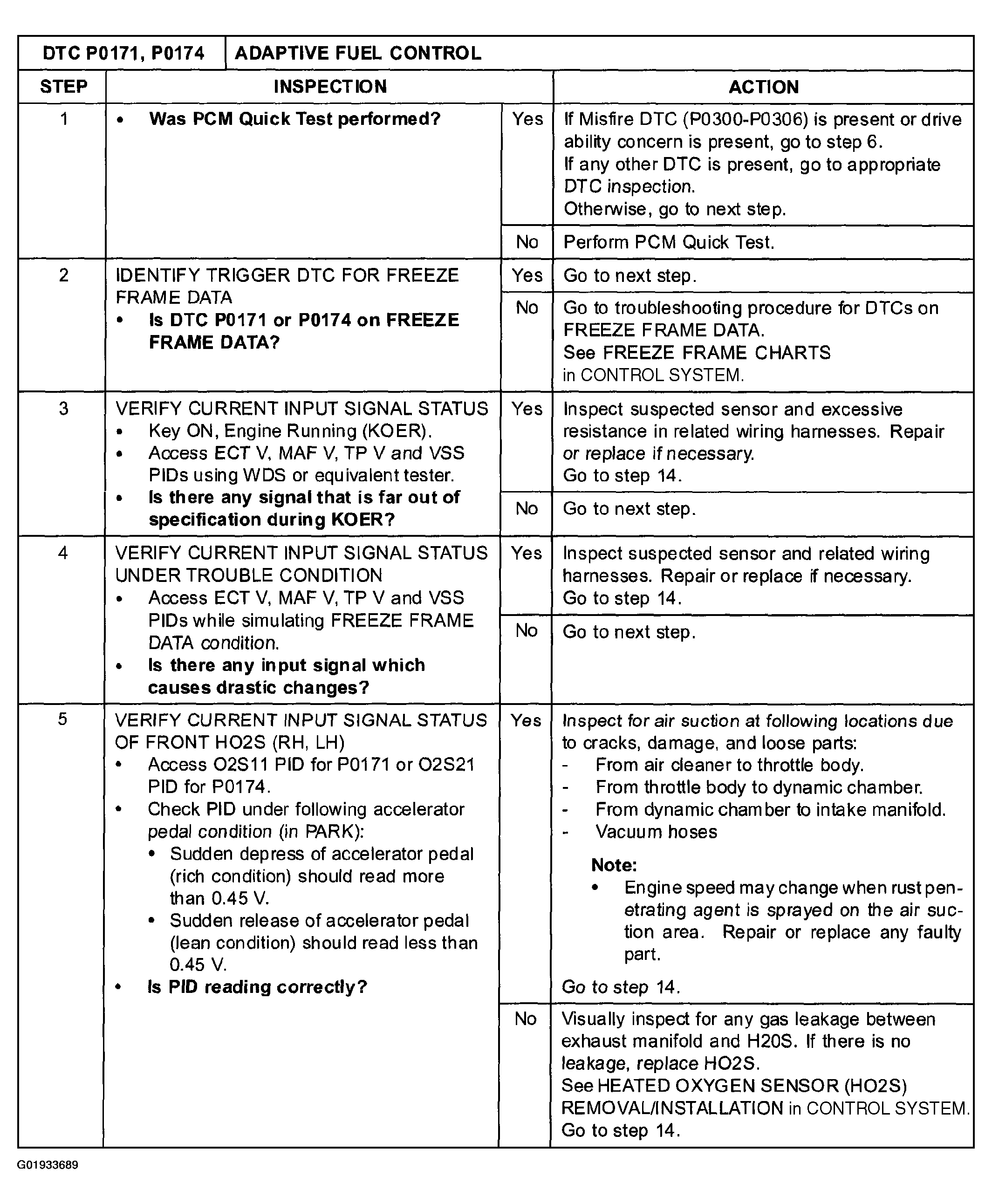

Fig 2: Diagnostic Procedure (DTC P0171 & P0174) (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

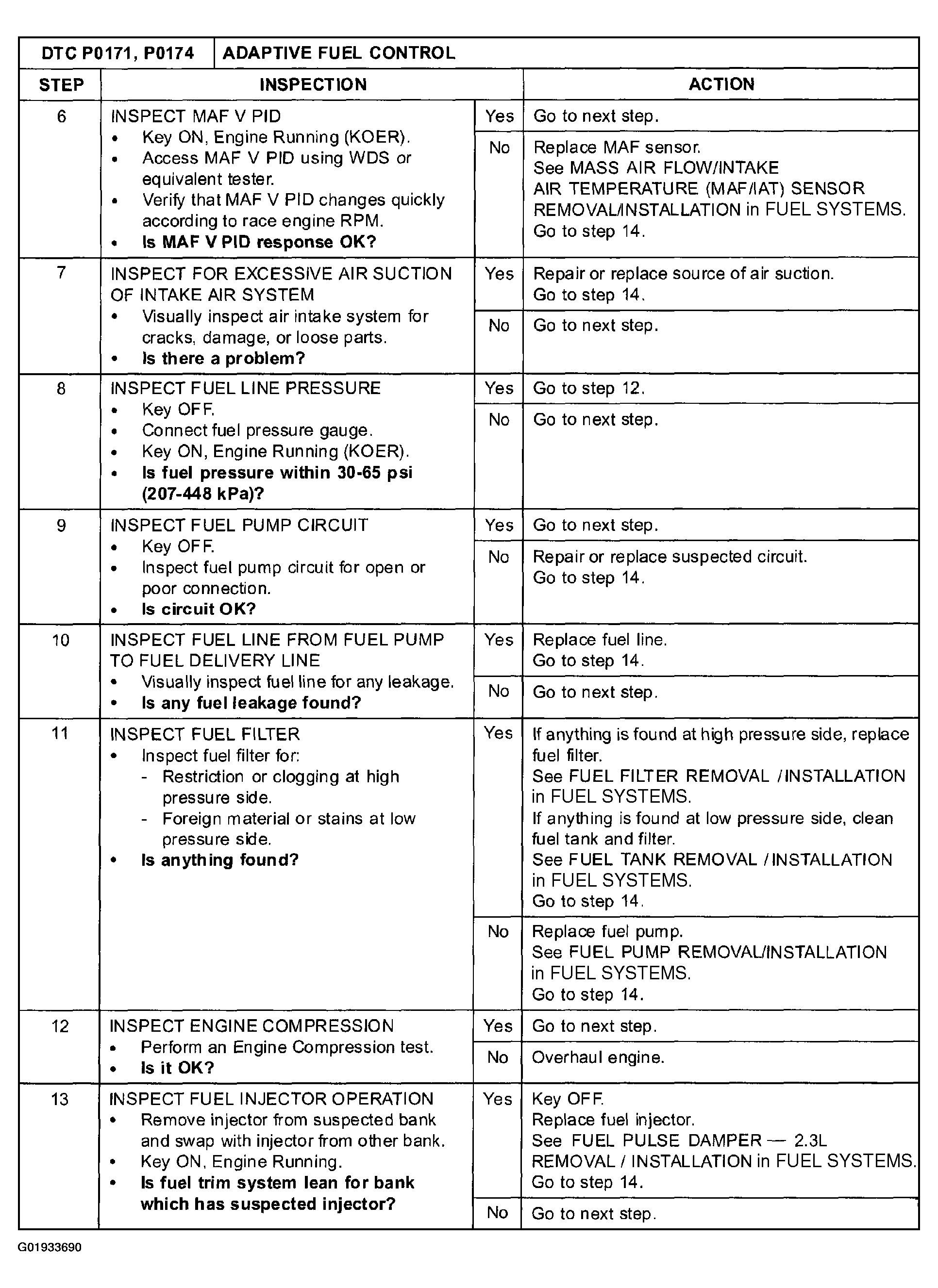

Fig 3: Diagnostic Procedure (DTC P0171 & P0174) (Steps 6-13)

Courtesy of MAZDA MOTORS CORP.

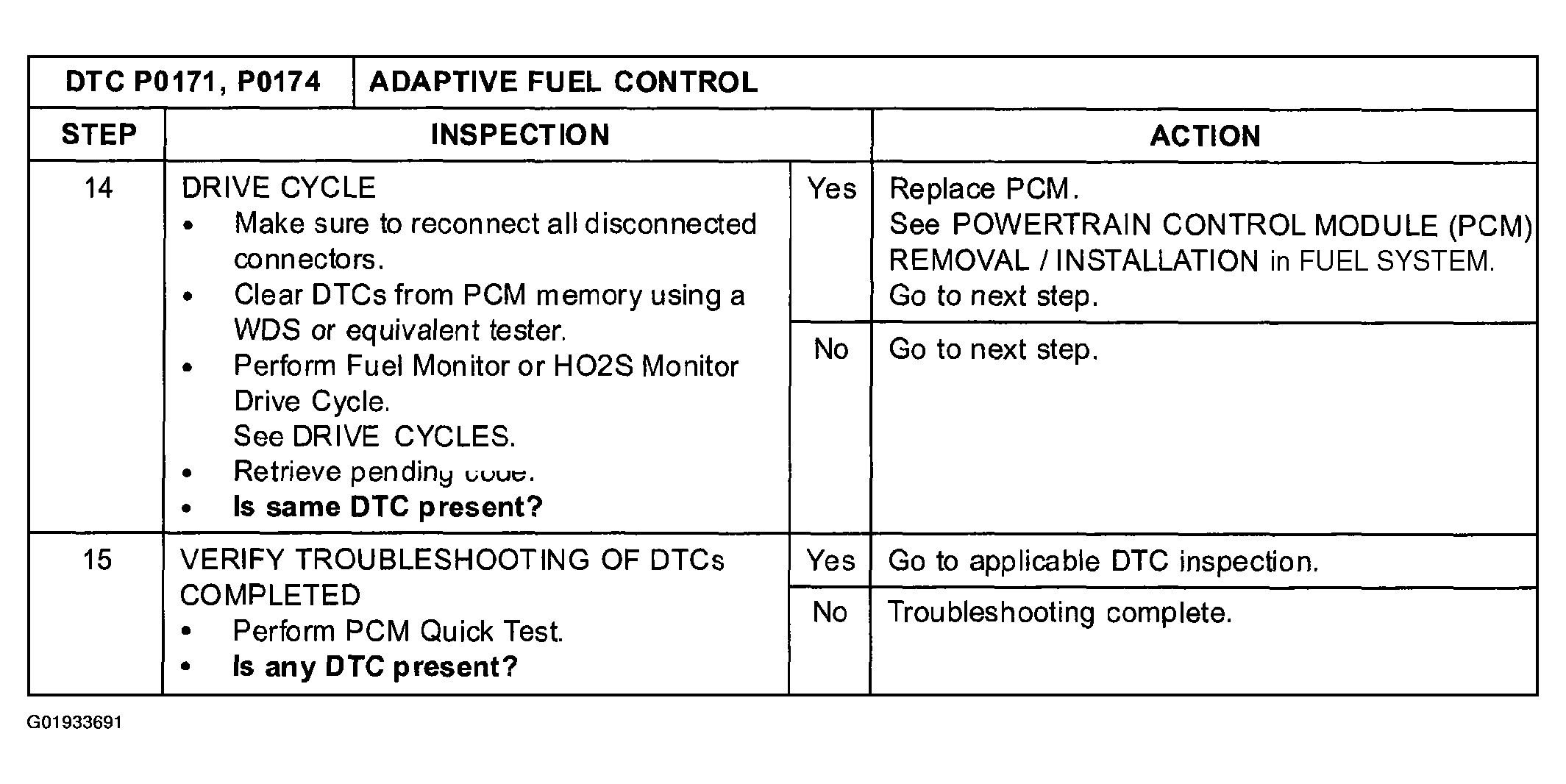

Fig 4: Diagnostic Procedure (DTC P0171 & P0174) (Steps 14-15)

Courtesy of MAZDA MOTORS CORP.
