The Key-In-Ignition Chime Does Not Operate Correctly

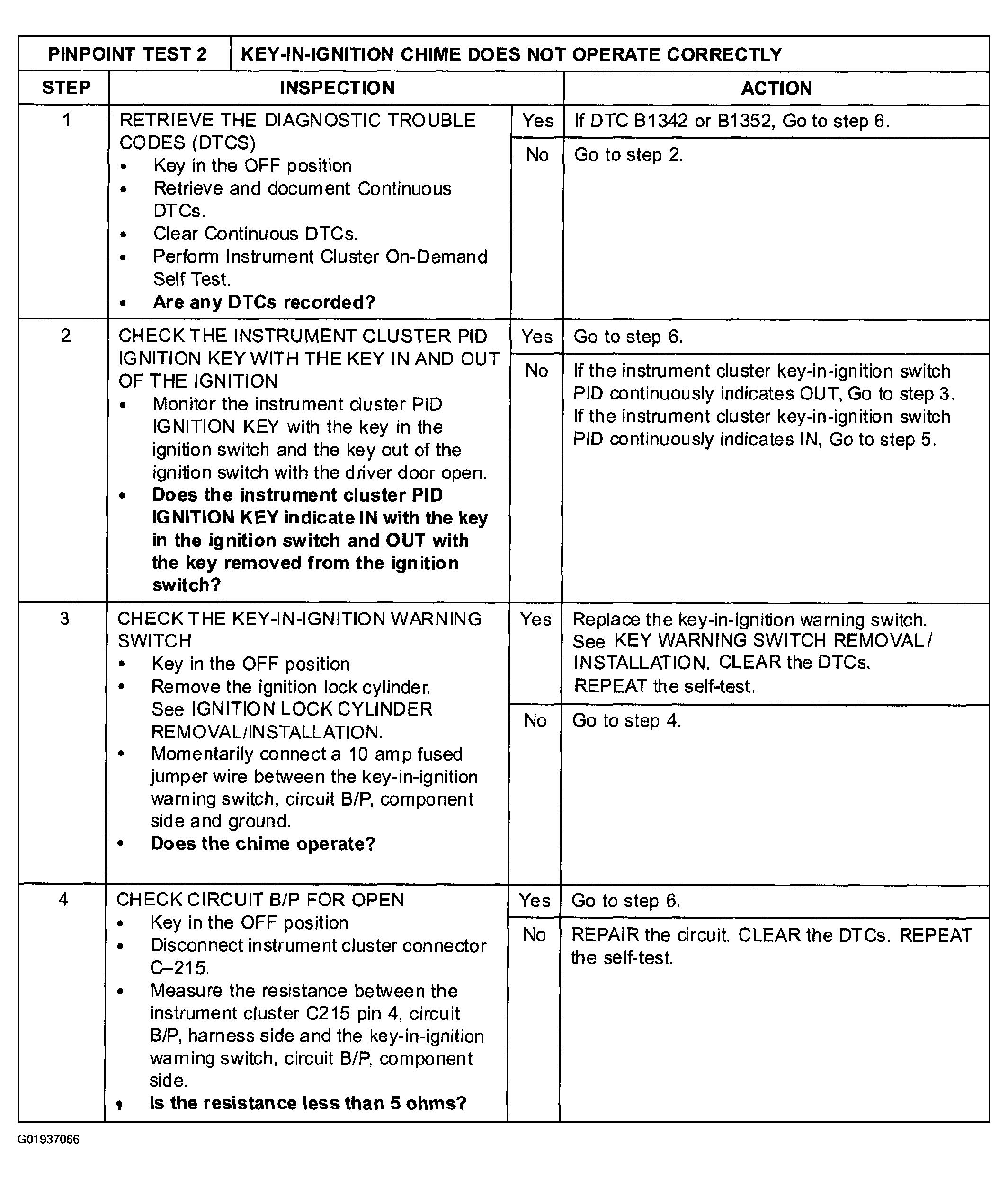

Fig 1: Pinpoint Test 2 - Key-In-Ignition Chime Does Not Operate Correctly (Steps 1-4)
G01937066Courtesy of MAZDA MOTORS CORP.

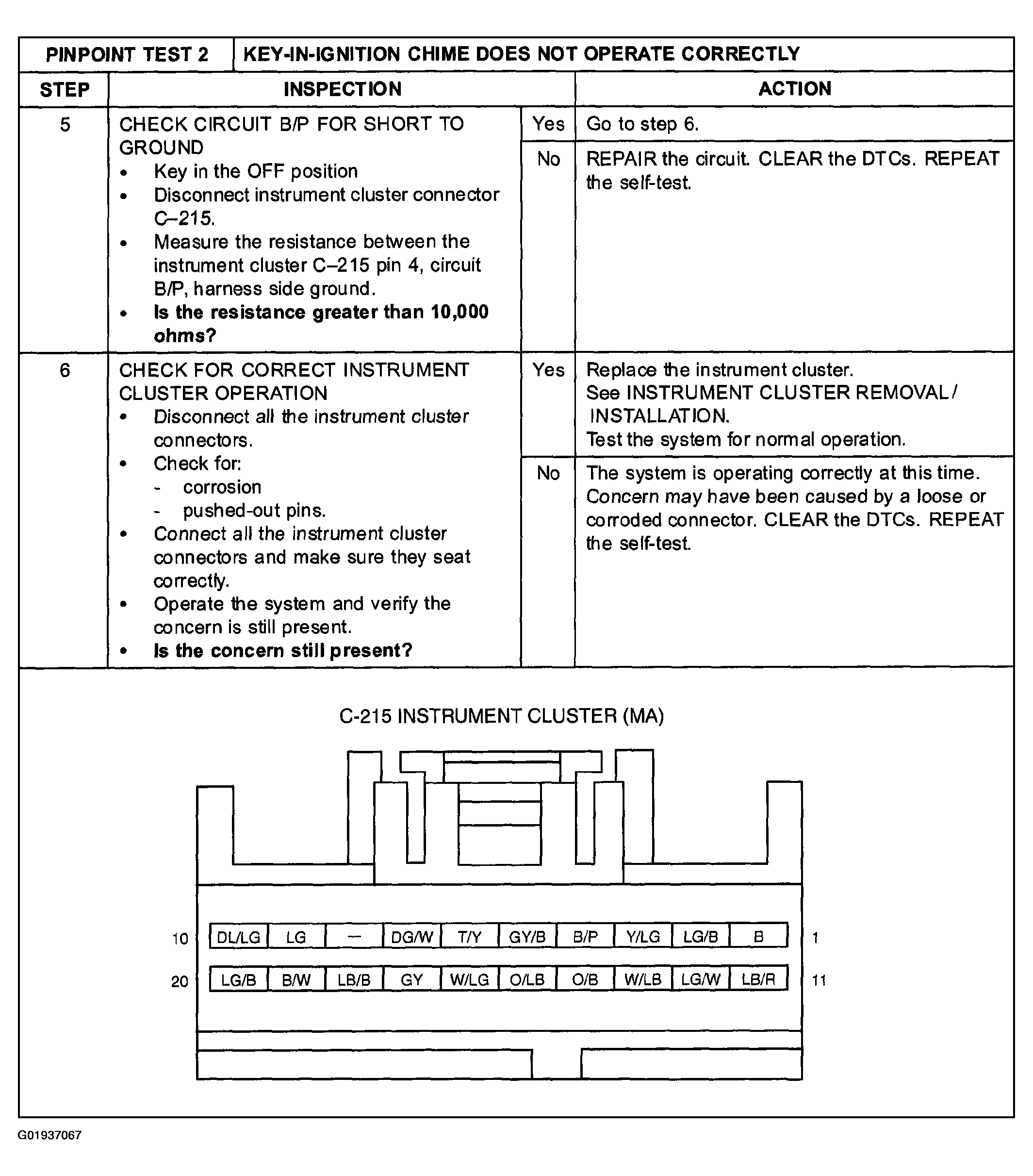

Fig 2: Pinpoint Test 2 - Key-In-Ignition Chime Does Not Operate Correctly (Steps 5-6 & C-215 Instrument Cluster Connector Terminals Wire Color)
G01937067Courtesy of MAZDA MOTORS CORP.
