Removal Note

Remove the right-hand driveaxle shaft; see DRIVE SHAFT, FRONT AXLE REMOVAL/INSTALLATION .
Remove the right-hand axle shaft.

Fig 1: Locating Axle Tube Bearing Front
Courtesy of MAZDA MOTORS CORP.
Use Impact Slide Hammer SST 49-0223-630B and Converter Seal Remover 307-309 (T94P-77001-BH) or equivalent to remove the axle seal.

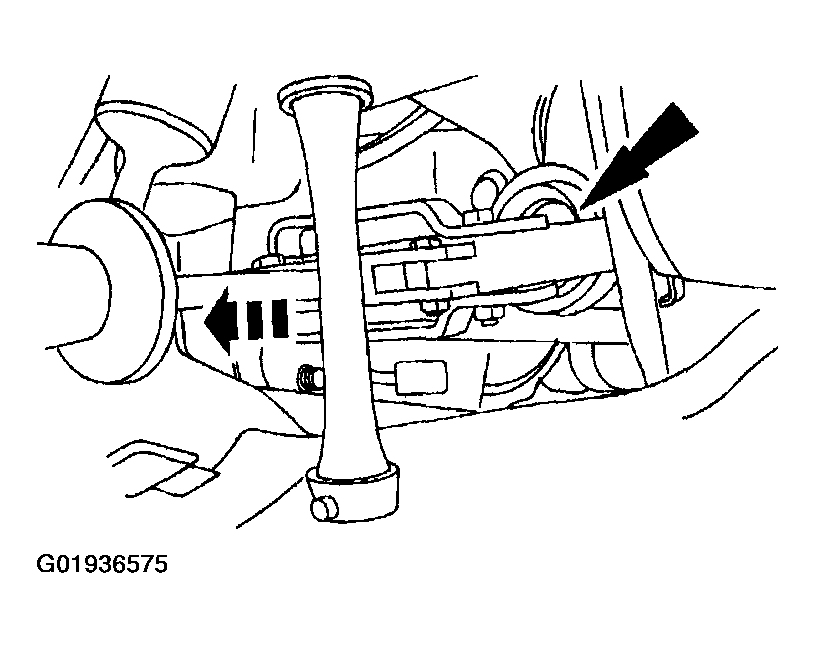

Fig 2: Locating Axle Converter Seal
Courtesy of MAZDA MOTORS CORP.
Use Axle Bearing Remover SST 49 UN01 032, Impact Slide Hammer SST 49-0223-630B and Adapter SST 49 UN11 011 to remove the axle tube bearing.

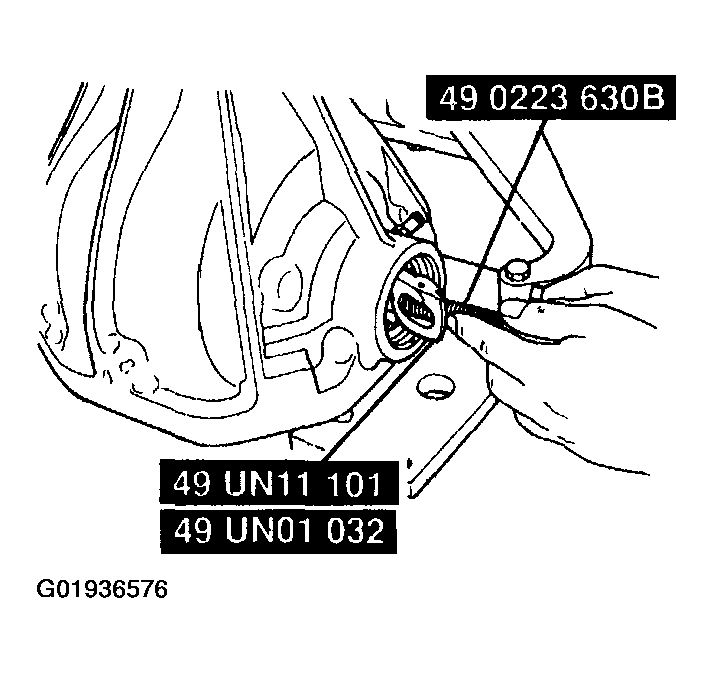

Fig 3: Removing Axle Tube Bearing
Courtesy of MAZDA MOTORS CORP.
Clean the bearing and seal surfaces of any foreign debris.
