Seat Front - 60/40 Split Bench Disassembly/Assembly: Disassembly

WARNING:
  • The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
WARNING:
  • To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
  • If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
NOTE:
  • The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE:
  • The SRS must be fully operational and free faults before releasing the vehicle to the customer.
  1. Depower the SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the affected seat. See SEAT BUCKET FRONT REMOVAL/INSTALLATION  .
  3. Remove the 60 percent armrest. See SEAT ARMREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION  .
  4. Remove the 60 percent seat backrest assembly. See SEAT BACKREST FRONT - BUCKET AND 40 PERCENT BENCH REMOVAL/INSTALLATION  .
    Fig 1: Releasing Backrest J-Clip
    G01937363Courtesy of MAZDA MOTORS CORP.
  5. Release the backrest J-clip.

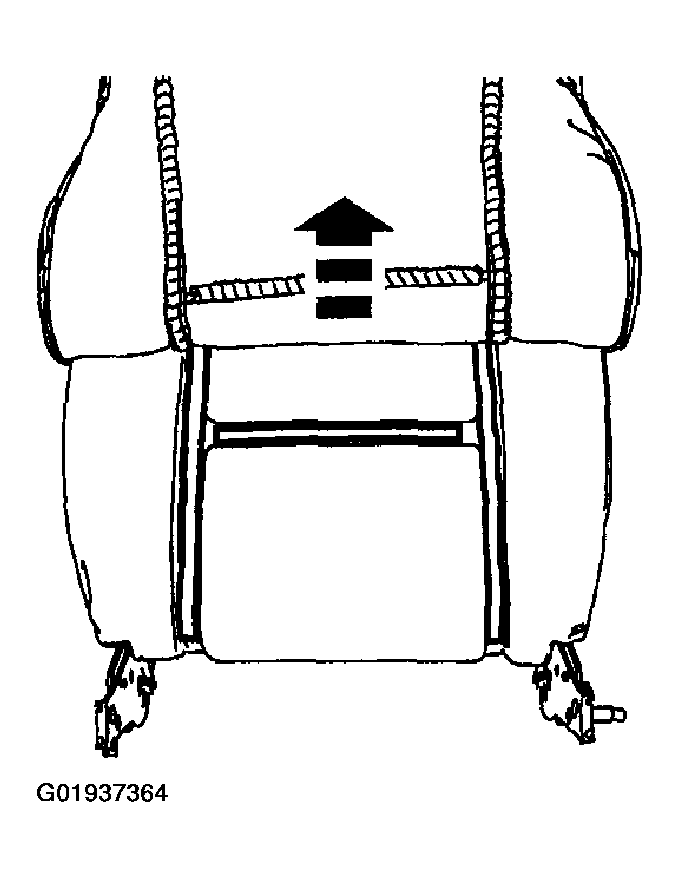

    Fig 2: Separating Seat Back Trim Cover From Hook
    G01937364Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Use care when separating the seat back trim cover from the hook and loop strips or the hook and loop strips may be torn from the seat back foam.
  6. Invert the backrest material and release the hook and loop strips.

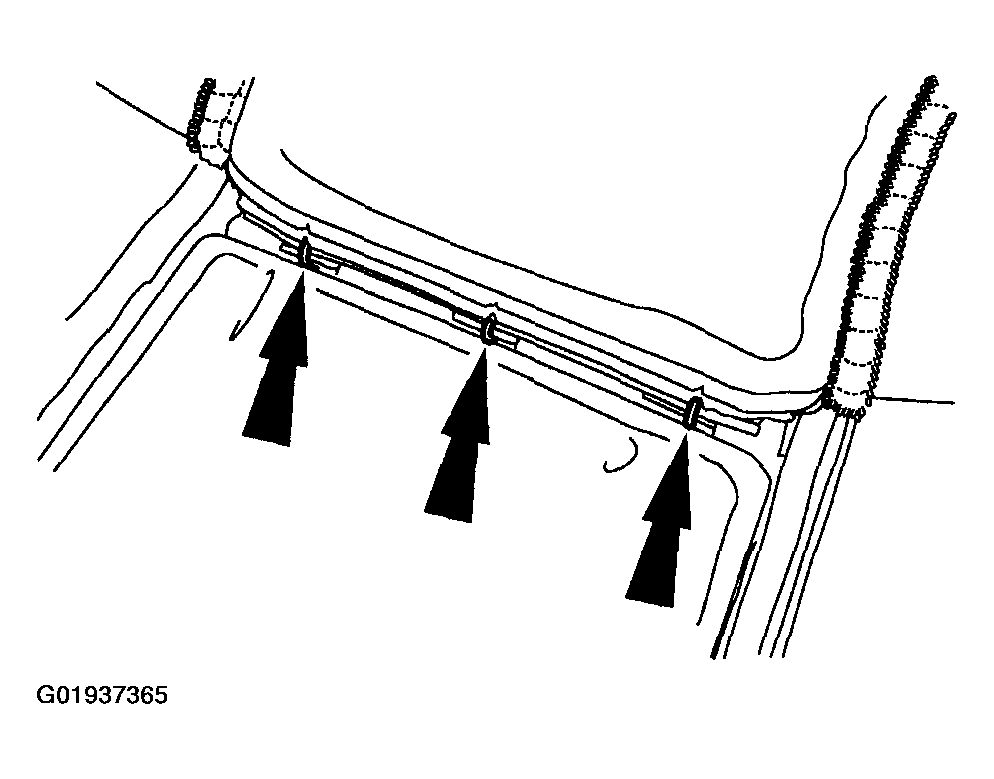

    Fig 3: Removing Backrest Trim Cover Hog Rings
    G01937365Courtesy of MAZDA MOTORS CORP.
  7. Remove all the hog rings and remove the backrest trim cover from the backrest foam pad.

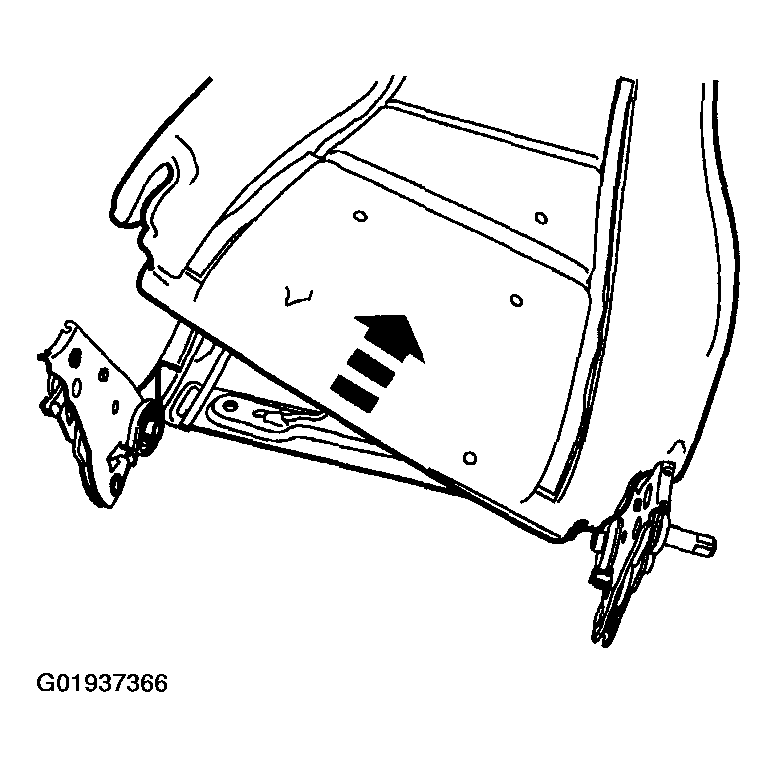

    Fig 4: Lifting Lower End Of Backrest Foam Pad Off Backrest Frame
    G01937366Courtesy of MAZDA MOTORS CORP.
  8. Lift the lower end of the backrest foam pad off the backrest frame.

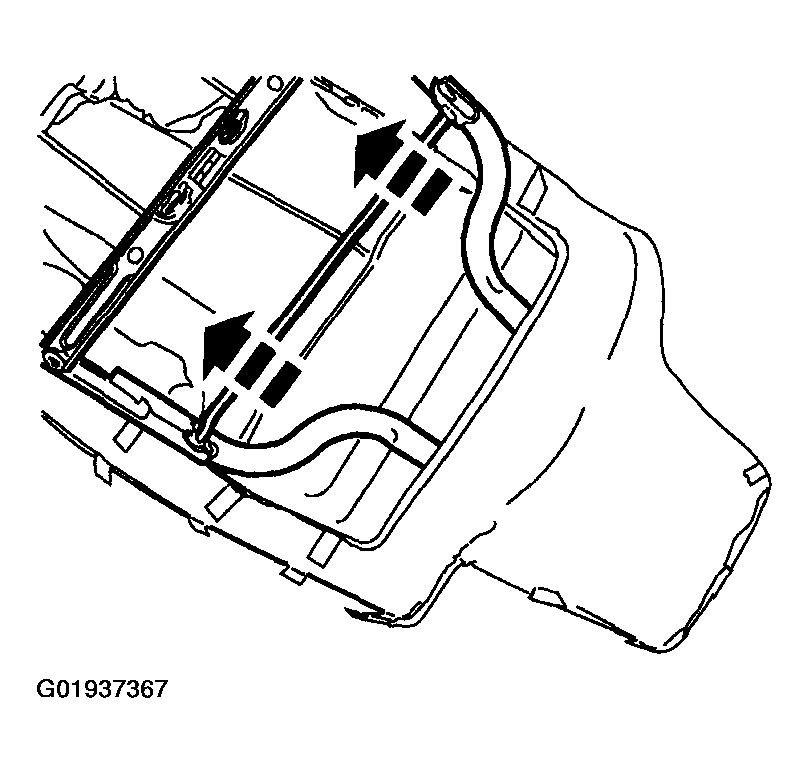

    Fig 5: Sliding Backrest Frame Down And Out Of Backrest Foam Pad Headrest Pocket
    G01937367Courtesy of MAZDA MOTORS CORP.
  9. Slide the backrest frame down and out of the backrest foam pad headrest pocket.
