Installation Note:
- Install the backrest assembly.
Courtesy of MAZDA MOTORS CORP.

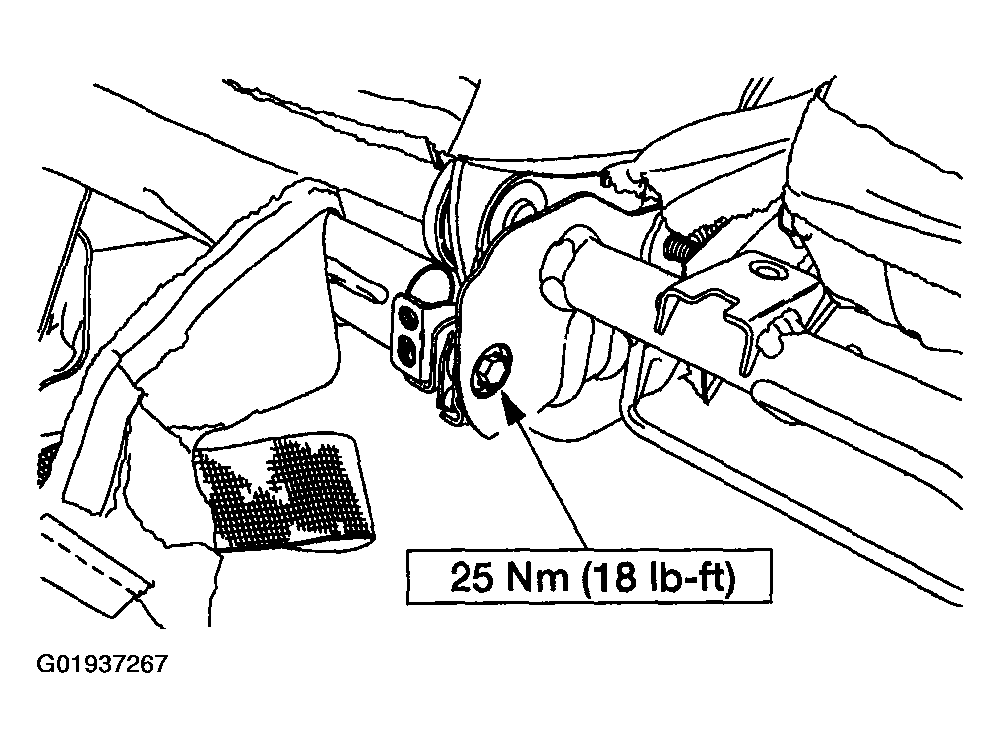

- Install inboard rear backrest recliner bolt.
Courtesy of MAZDA MOTORS CORP.
- Install the inboard rear bolt cover.
Courtesy of MAZDA MOTORS CORP.

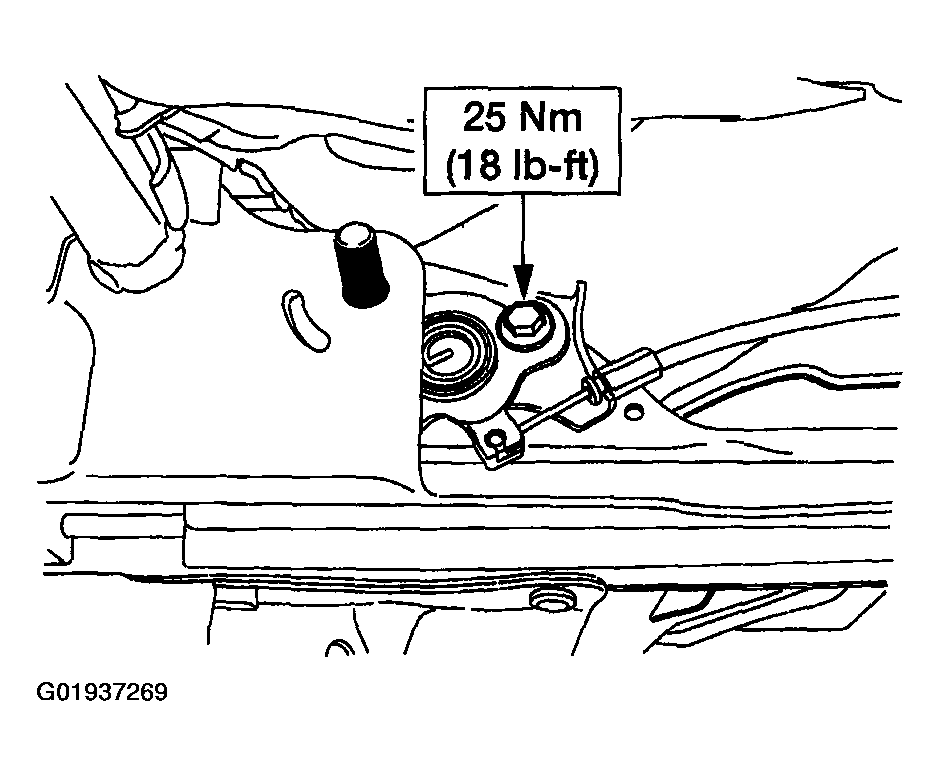

- Install the inboard front backrest recliner bolt.
Courtesy of MAZDA MOTORS CORP.

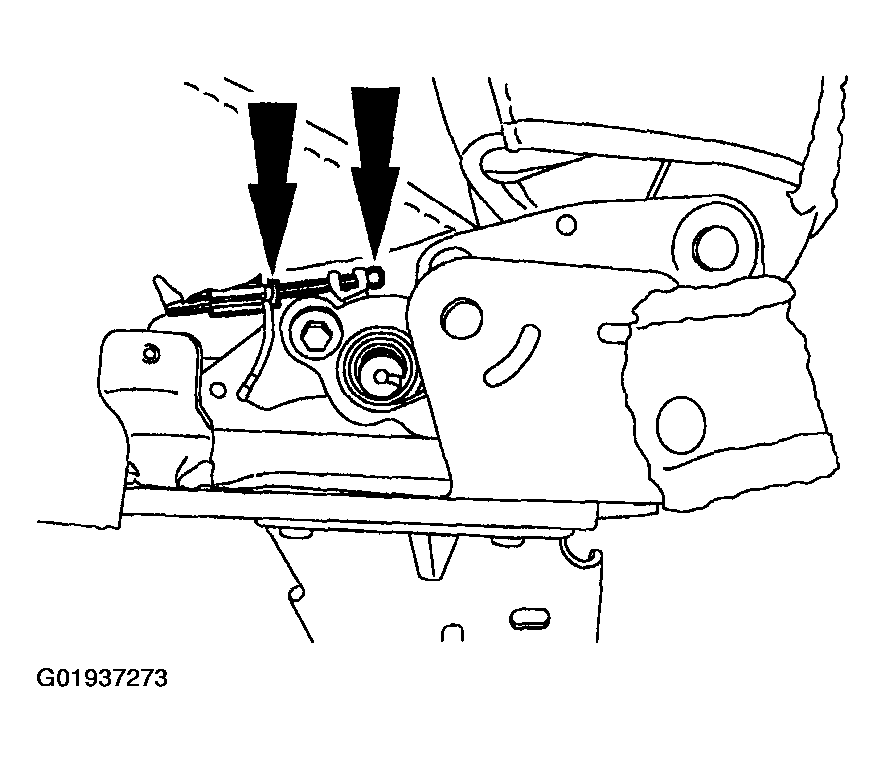

- Install the inboard recliner cable end and swivel and install the recliner cable anchor.
Courtesy of MAZDA MOTORS CORP.

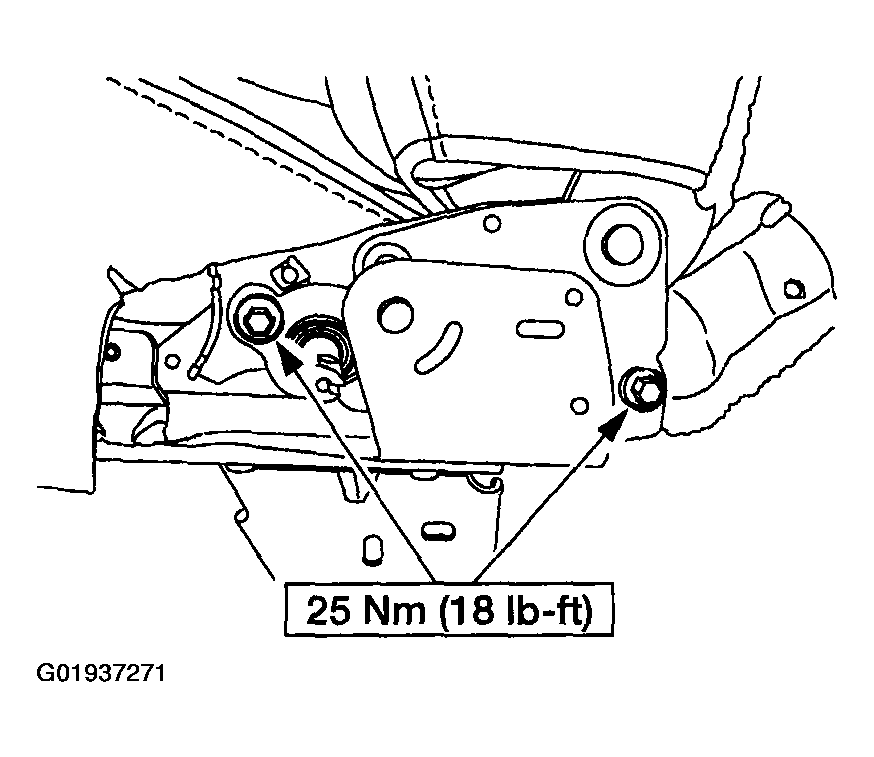

- Install the two outboard backrest recliner bolts.
Courtesy of MAZDA MOTORS CORP.

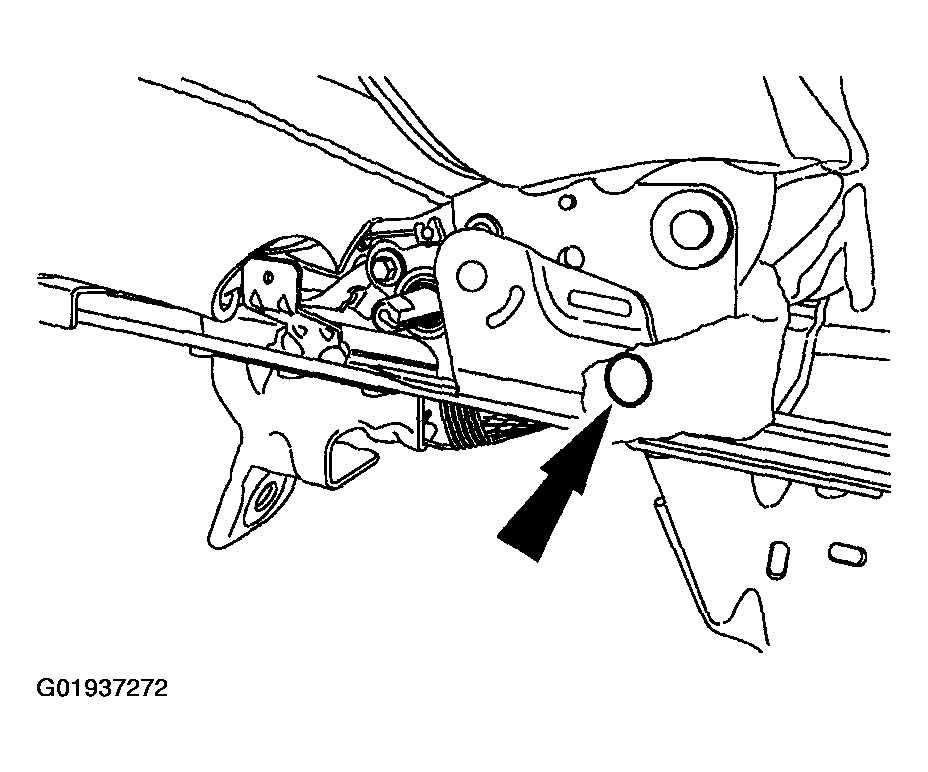

- Position material and install the outboard pin-type retainer.
Courtesy of MAZDA MOTORS CORP.

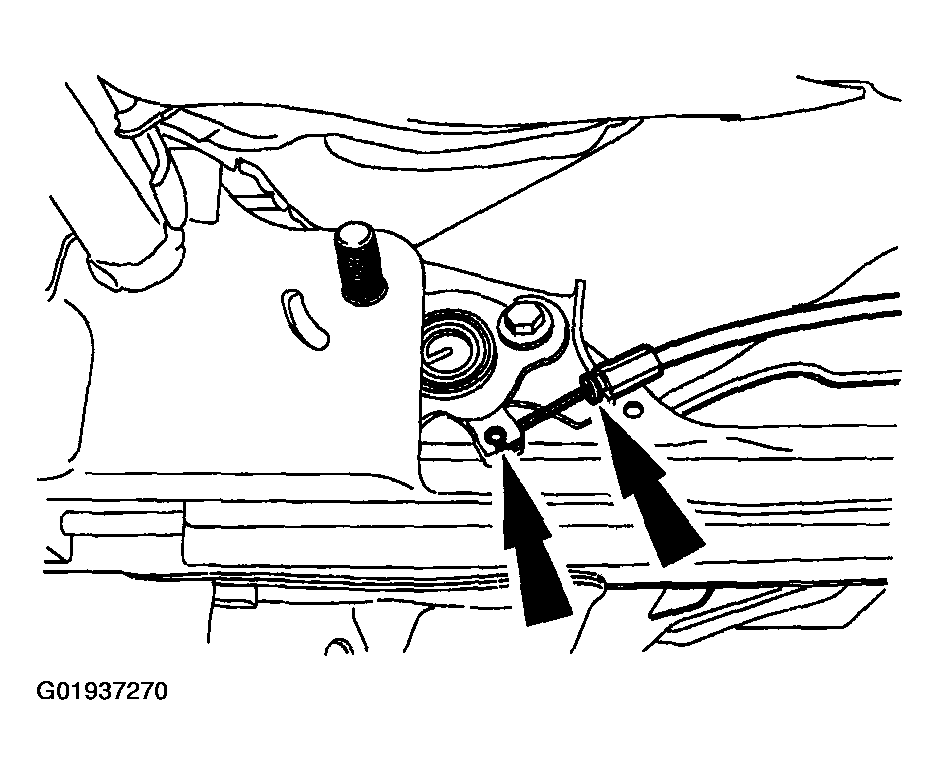

- Install the outboard recliner cable end and swivel and install the recliner cable anchor.
Courtesy of MAZDA MOTORS CORP.

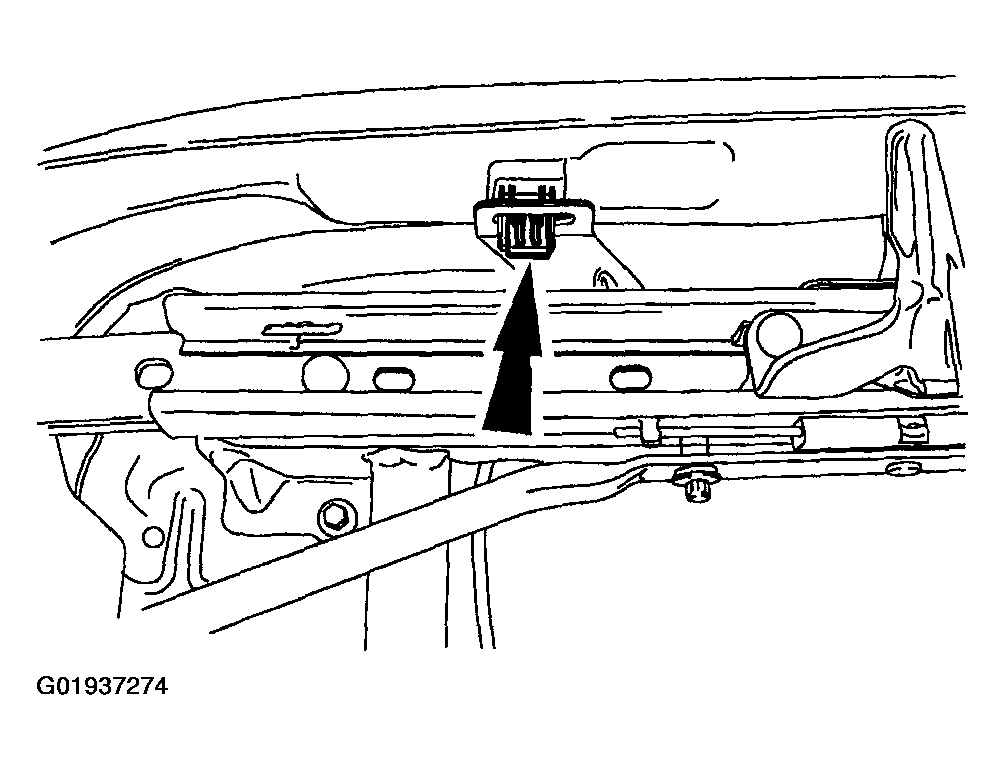

- Position the side shield and install the two clips (one shown).
Courtesy of MAZDA MOTORS CORP.
- Install the front side shield screw.
Courtesy of MAZDA MOTORS CORP.
- Install the screw on the side shield.
Courtesy of MAZDA MOTORS CORP.
- Install the recliner handle and install the screw.
- Install the 60 percent bench armrest. See SEAT ARMREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION
.
- Install the 60 percent bench seat. See SEAT BACKREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION
.
- Repower the SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM
.
