DTC B1213: Anti-Theft Number Of Programmed Enclosed Ignition Keys Below Minimum

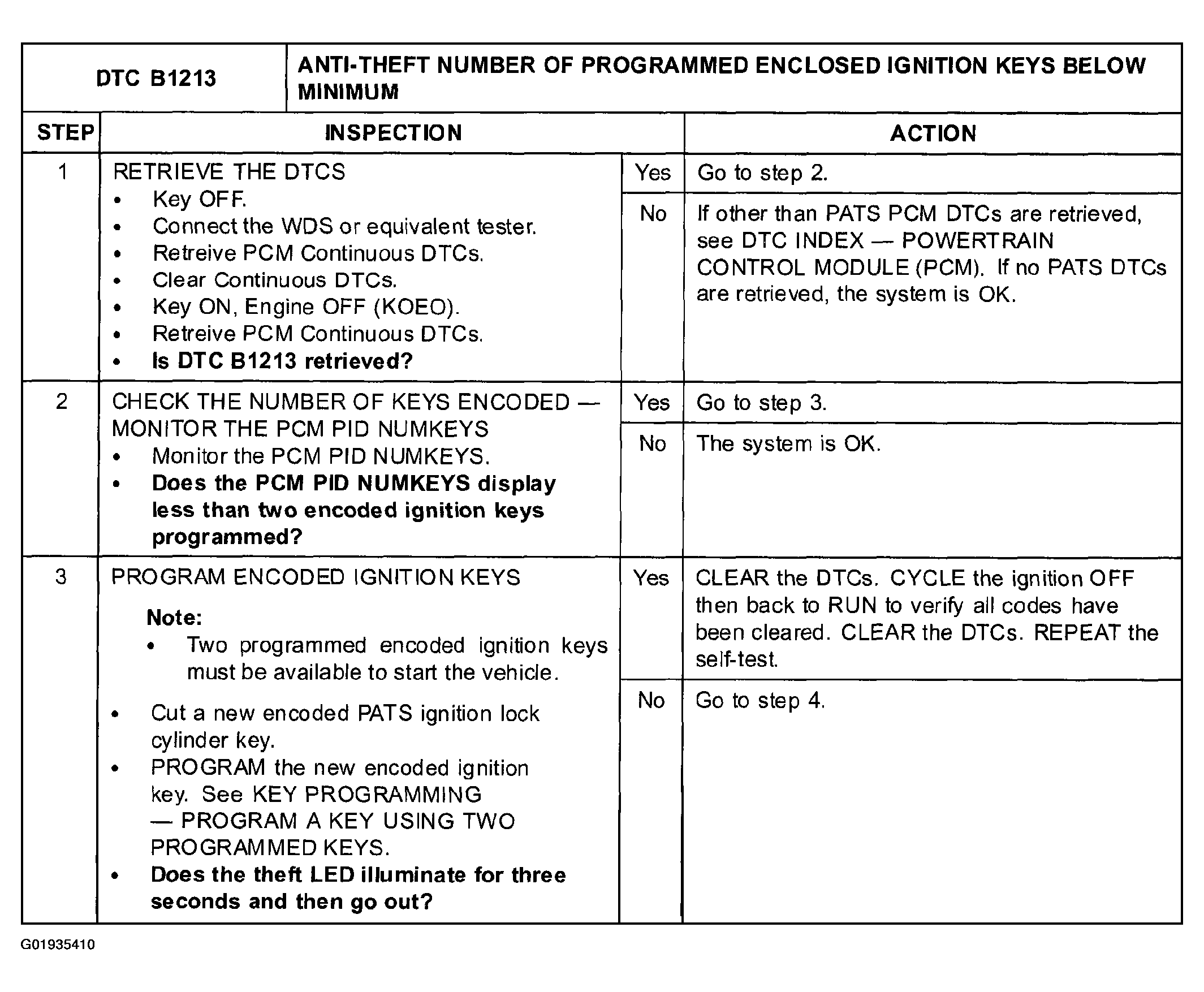

Fig 1: DTC B1213: Anti-Theft Minimum Programmed Enclosed Ignition Keys Inspection Table (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

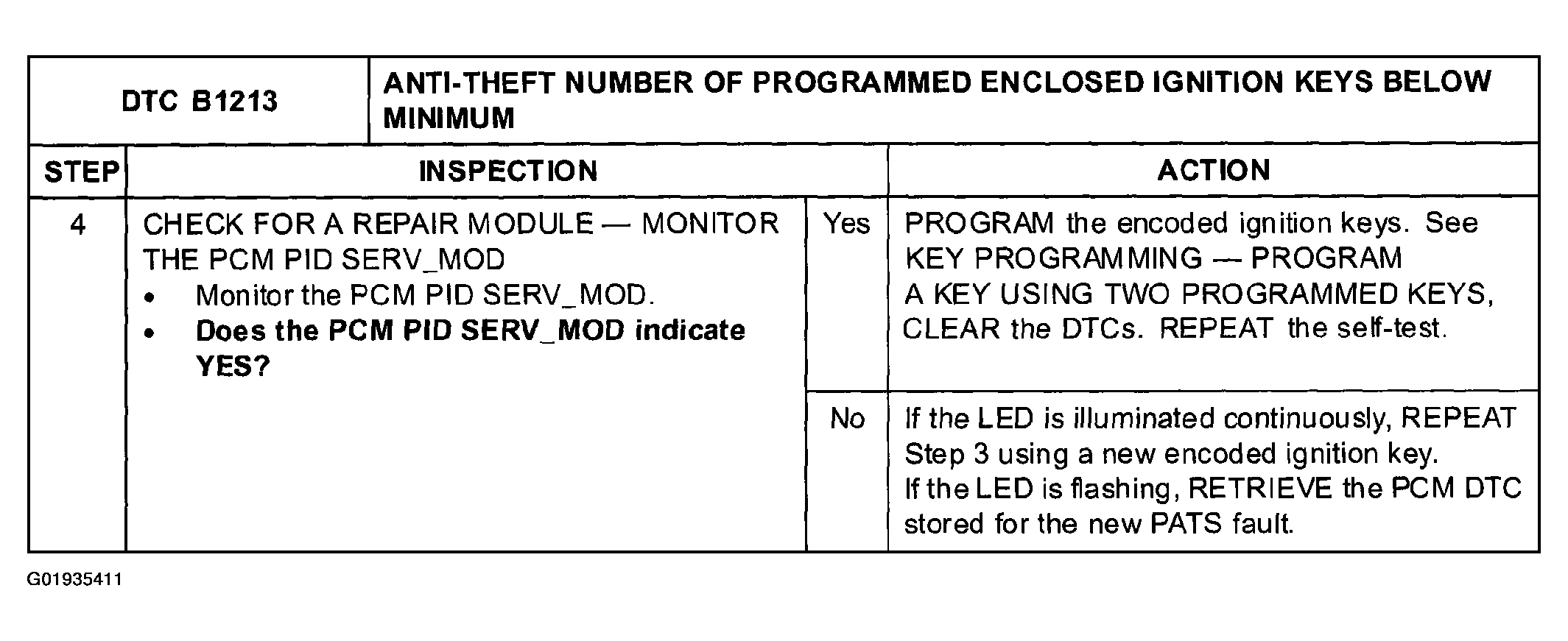

Fig 2: DTC B1213: Anti-Theft Minimum Programmed Enclosed Ignition Keys Inspection Table (Step 4)

Courtesy of MAZDA MOTORS CORP.
