Map/Dome Lamp Assembly Removal/Installation

Disconnect the negative battery cable.
Remove in order shown in figure.
1. Lens
2. Bulb(s)
3. Map /dome lamp assembly

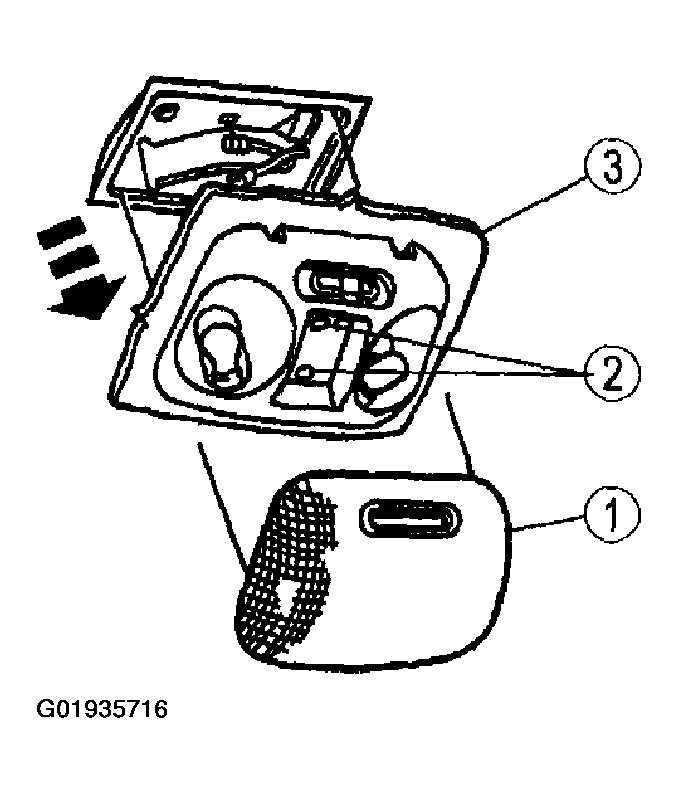

Fig 1: Removing/Installing MAP/DOME Lamp Assembly
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
1. Tightening torque
  1. 1.6 - 1.8 N.m (16.3 - 18.4 kgf.cm, 15 - 17 in-lbf)
