Headlamp Inspection: Notes

  1. Verify the customer concern by operating the headlamps.
  2. Visually inspect for obvious signs of mechanical and electrical damage.

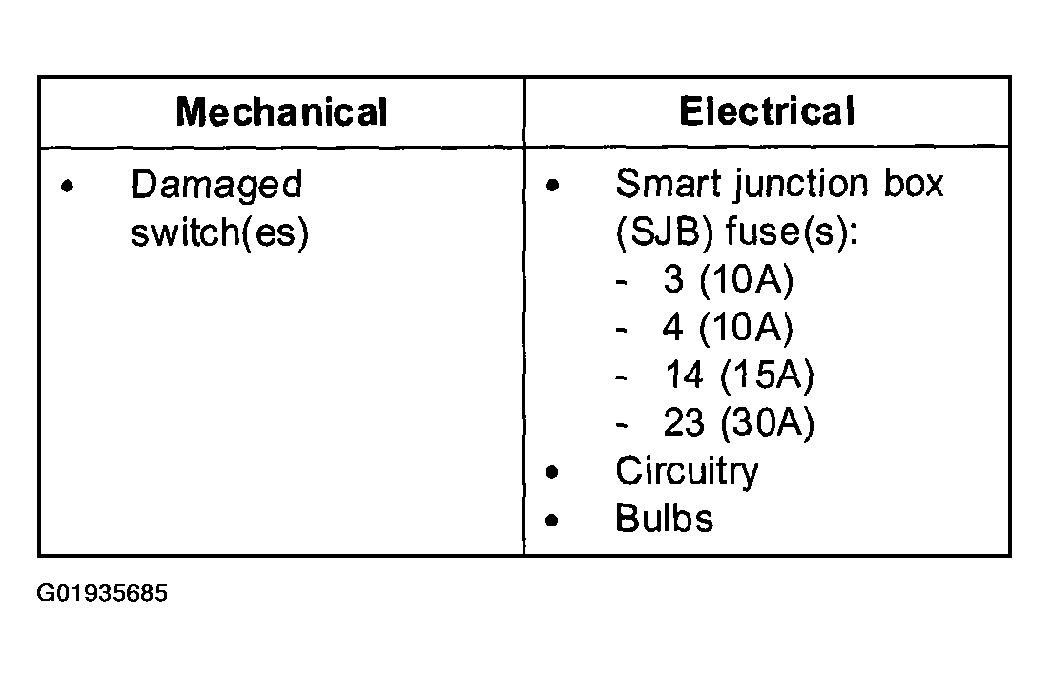

    Fig 1: Inspection Table Of Obvious Signs Of Mechanical And Electrical Damage
    G01935685Courtesy of MAZDA MOTORS CORP.
  3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
  4. If the fault is not visually evident, determine the symptom and See SYMPTOM TROUBLESHOOTING CHART - HEADLAMPS .
