Retainer Adjustment

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the weatherstrip.
  2. Loosen the retainer installation screws and adjust the retainer as necessary.
  3. Tighten the screws and reinstall the weatherstrip.

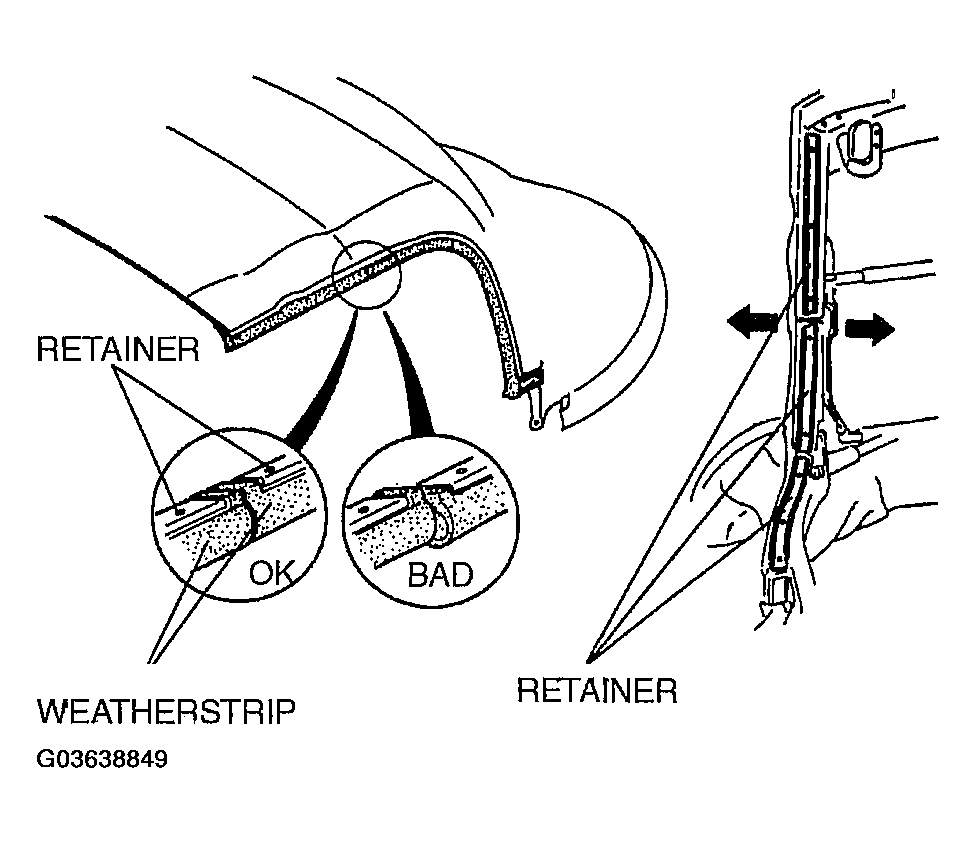

    Fig 1: Adjusting Retainer
    G03638849Courtesy of MAZDA MOTORS CORP.
