DTC P1000: OBD-II Drive Cycle Malfunction

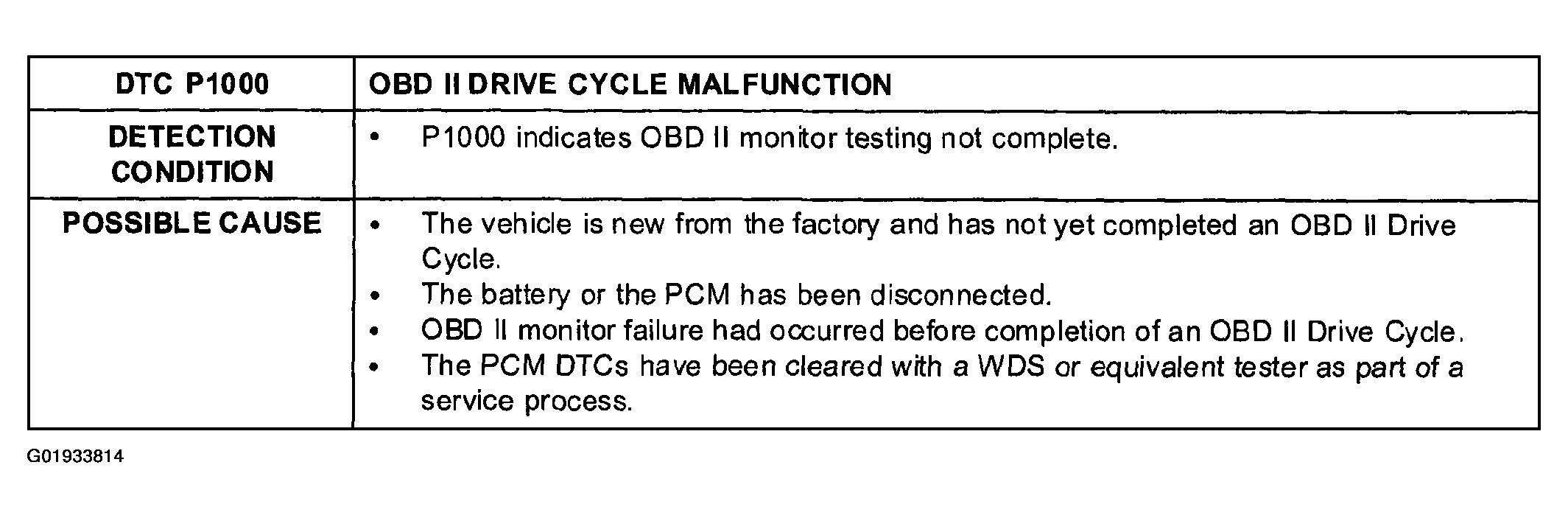

Fig 1: OBD-II Drive Cycle Malfunction Detection Condition

Courtesy of MAZDA MOTORS CORP.

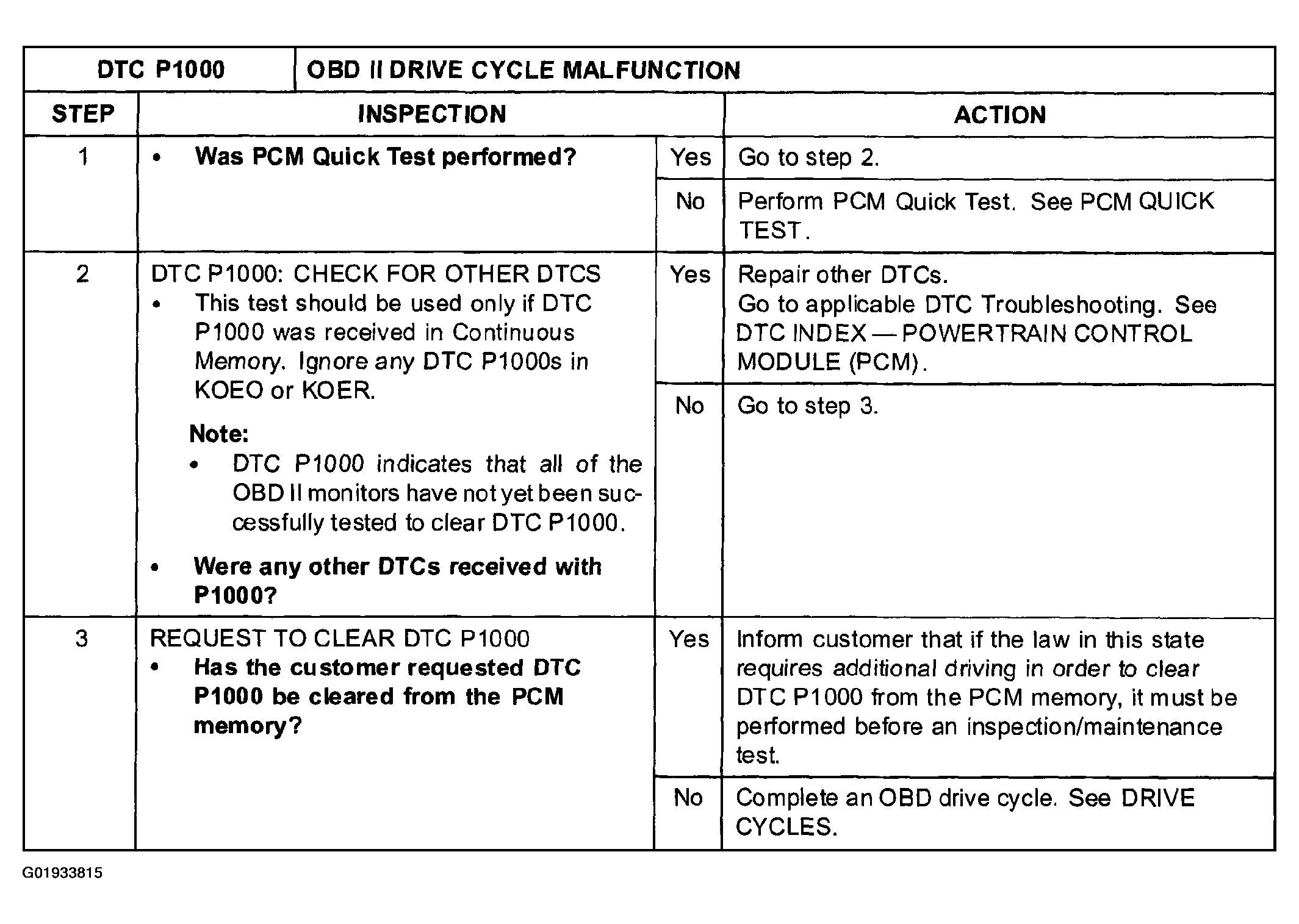

Fig 2: Diagnostic Procedure (DTC P1000) (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.
