DTC P0452: Fuel Tank Pressure (Ftp) Sensor Malfunction

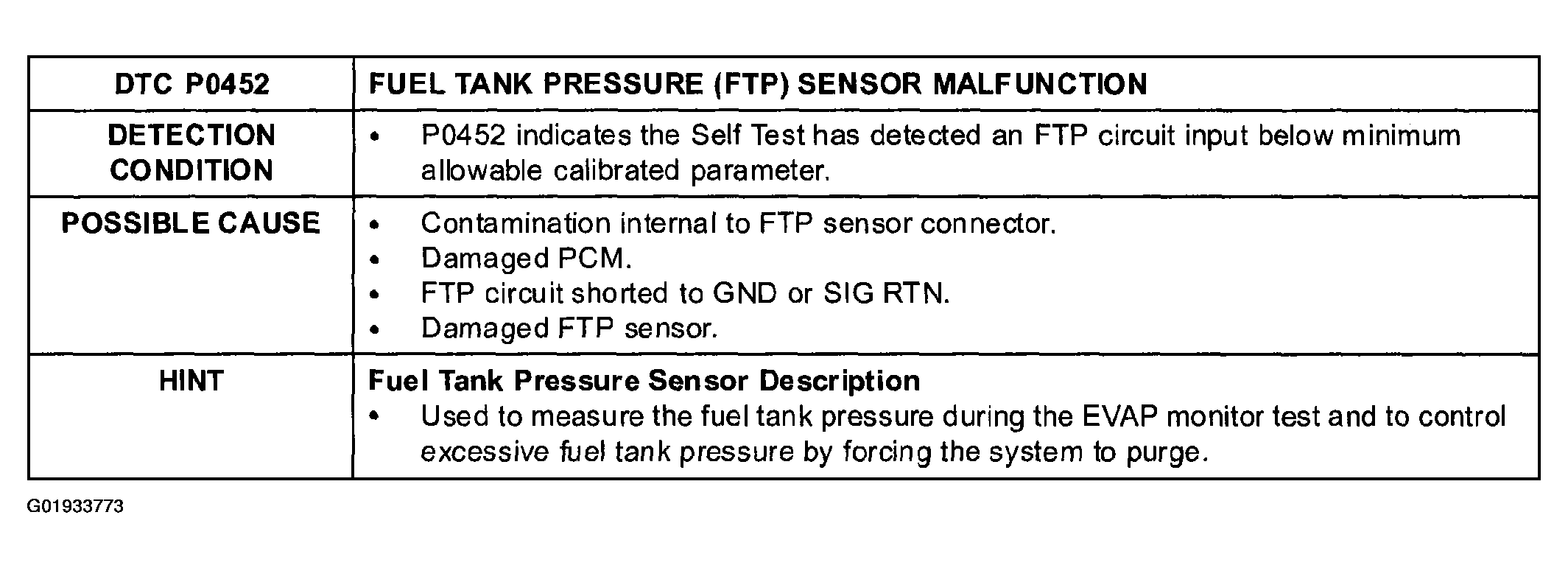

Fig 1: Fuel Tank Pressure (FTP) Sensor Malfunction Detection Condition

Courtesy of MAZDA MOTORS CORP.

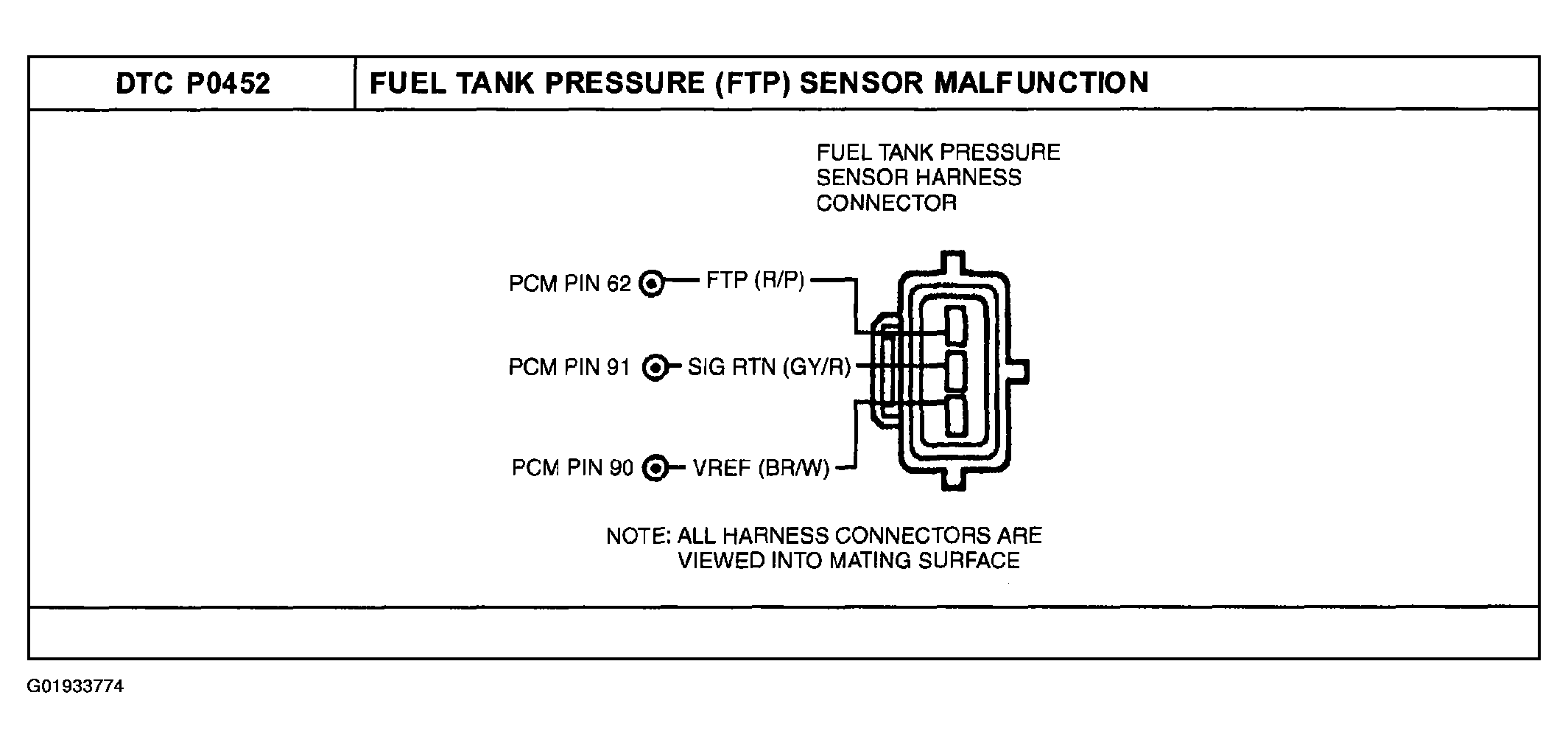

Fig 2: Identifying Fuel Tank Pressure Sensor Harness Connector

Courtesy of MAZDA MOTORS CORP.

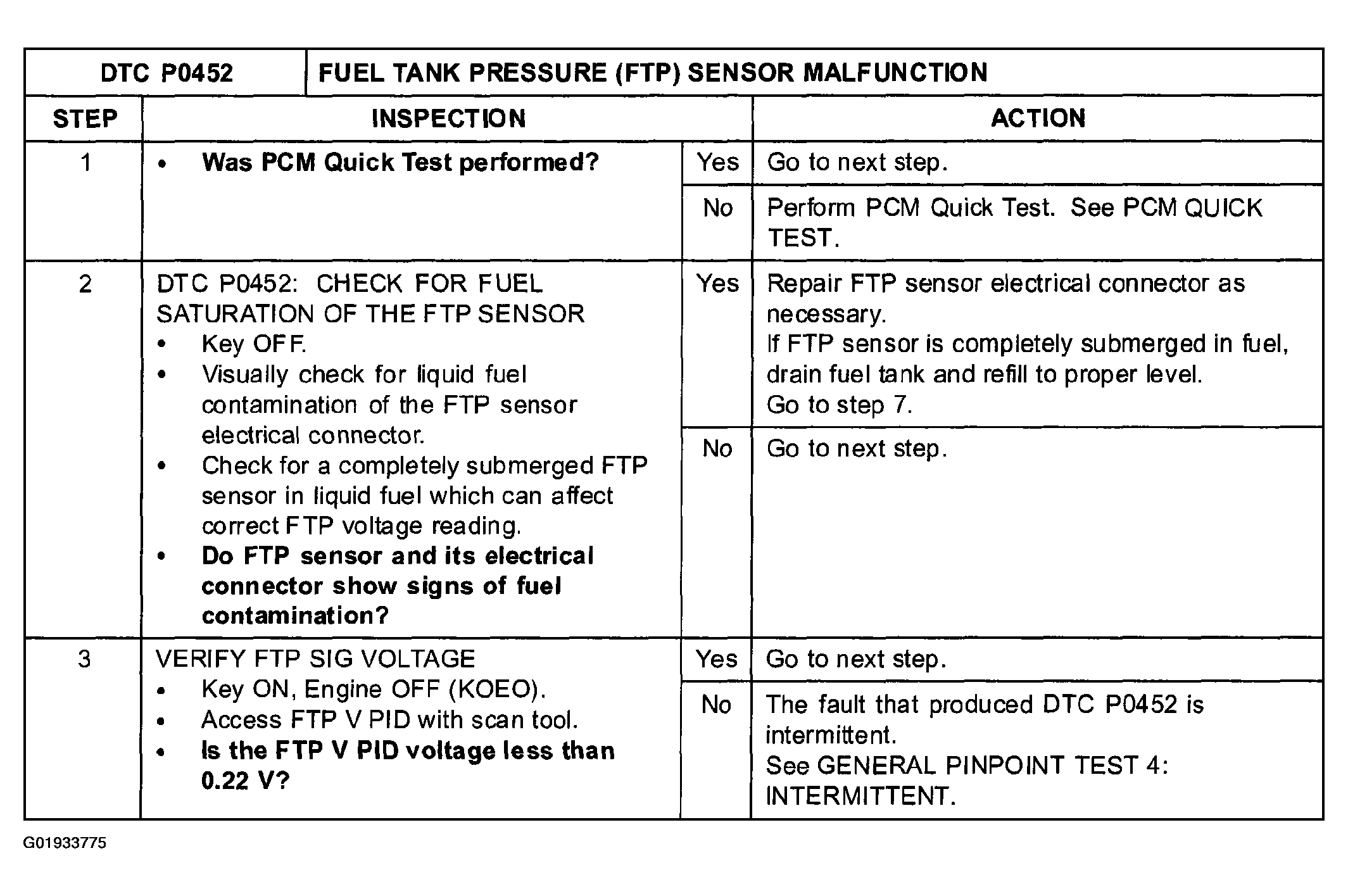

Fig 3: Diagnostic Procedure (DTC P0452) (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

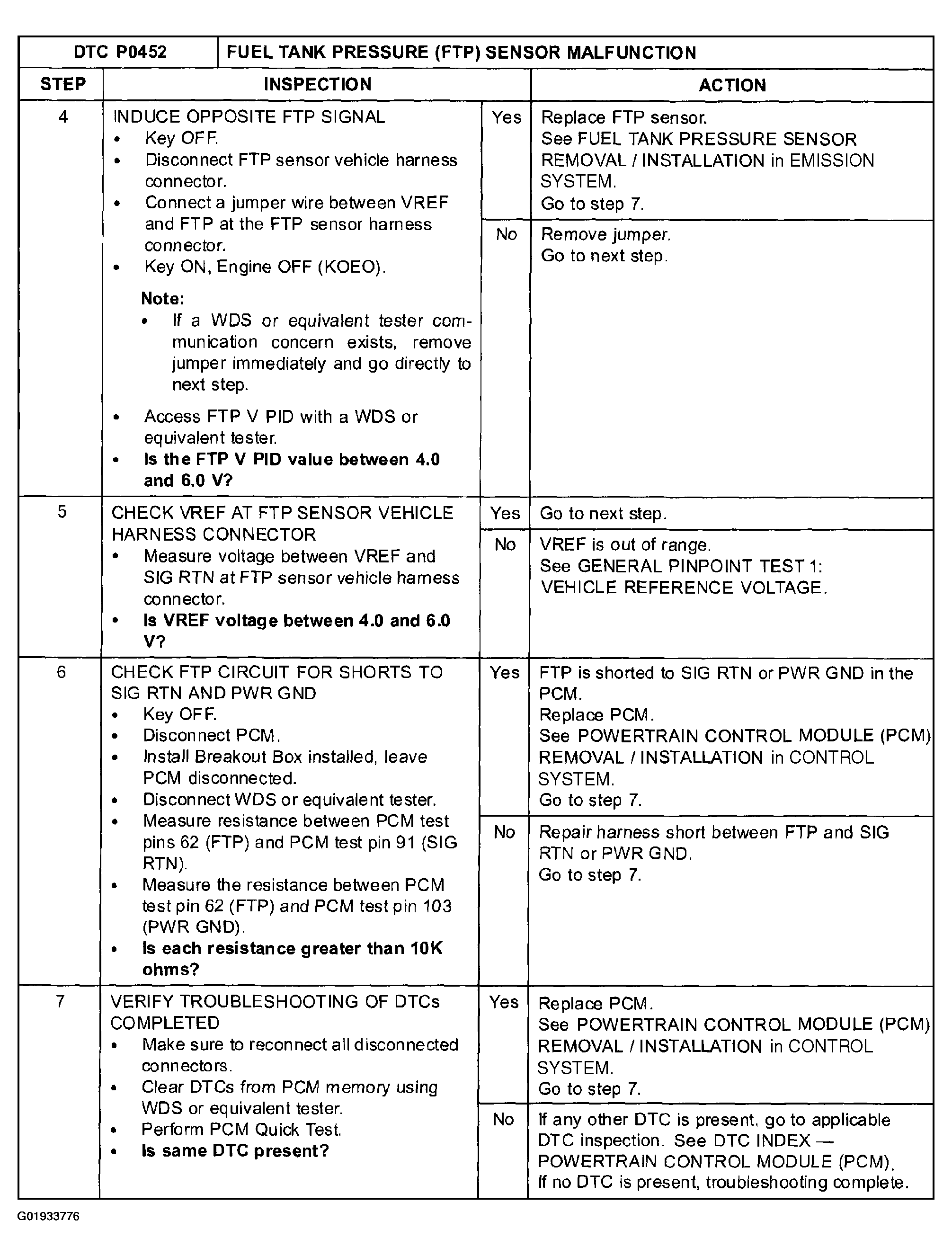

Fig 4: Diagnostic Procedure (DTC P0452) (Steps 4-7)

Courtesy of MAZDA MOTORS CORP.
