Cargo Shade Removal/Installation

  1. Remove the B-pillar trim. See B-PILLAR TRIM (REGULAR CAB) REMOVAL/INSTALLATION  or see B-PILLAR TRIM (CAB PLUS - 2-DOOR) REMOVAL/INSTALLATION  for 2-door vehicles. See B-PILLAR TRIM (4-DOOR) REMOVAL/INSTALLATION  for 4-door vehicles.
  2. Remove the screws (1) (two at each end).
  3. Remove the cargo shade (2).

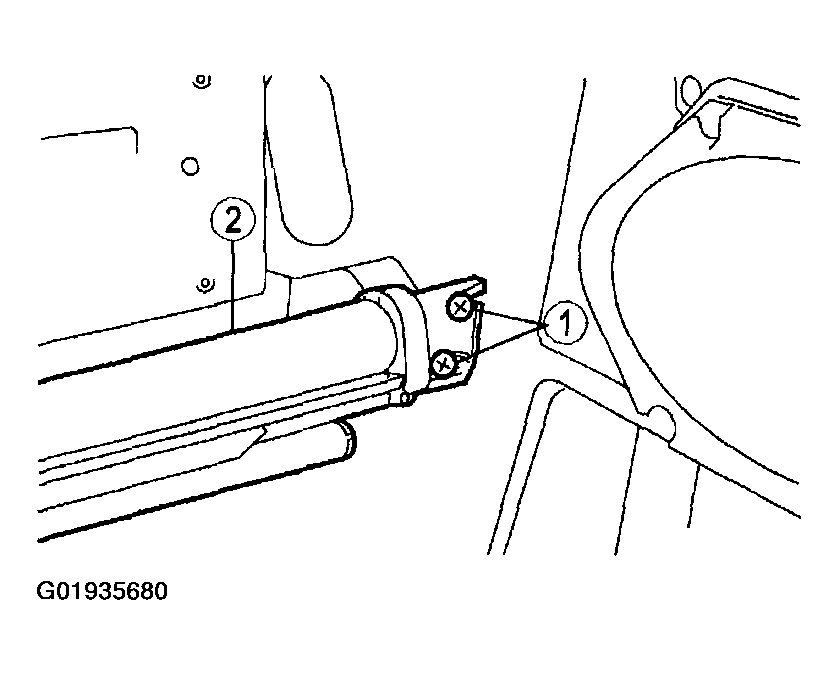

    Fig 1: Removing/Installing Cargo Shade
    G01935680Courtesy of MAZDA MOTORS CORP.
  4. Install in reverse order of removal.
