Symptom Troubleshooting Chart - Communications Network

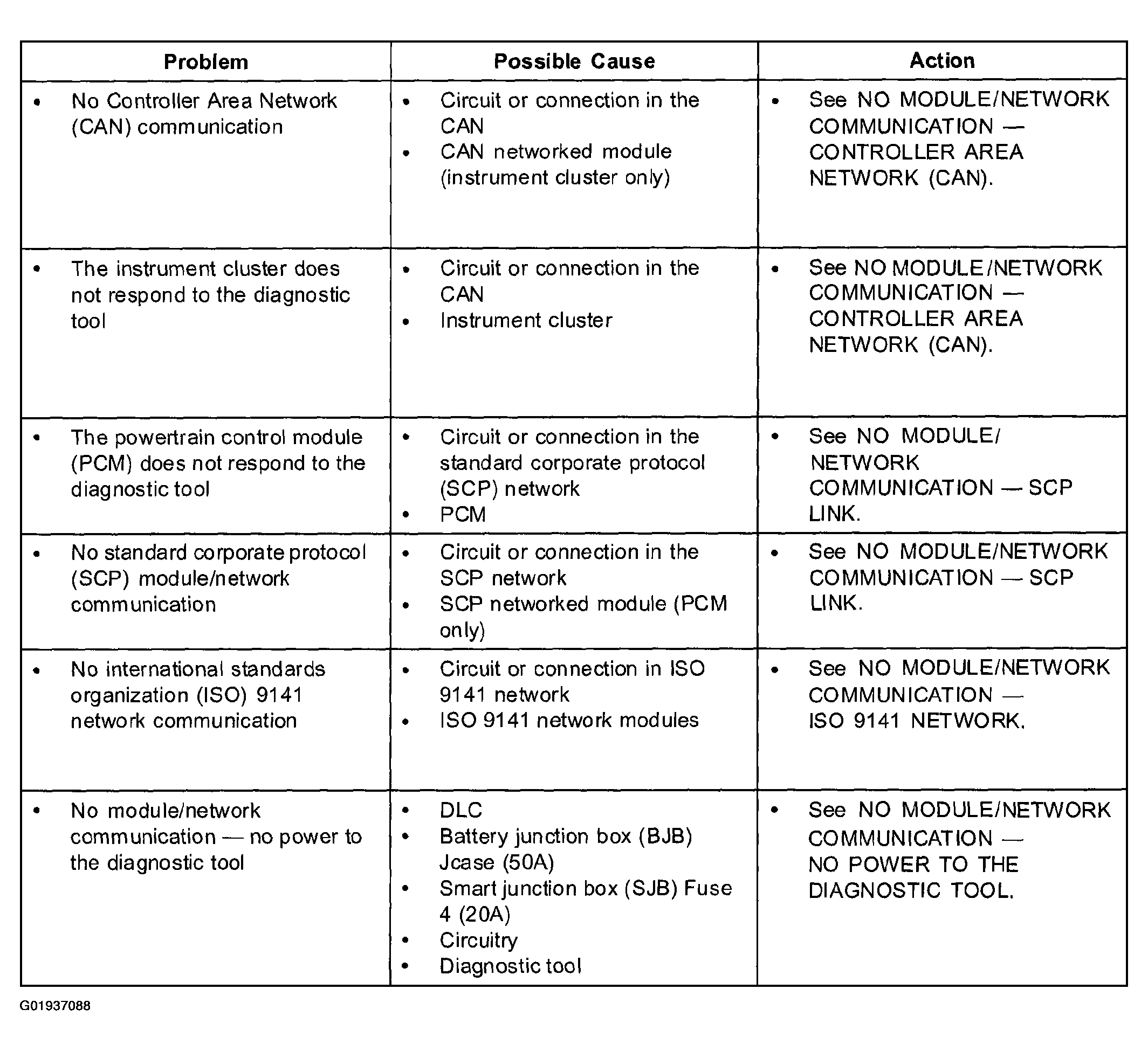

Fig 1: Symptom Troubleshooting Chart - Communications Network (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

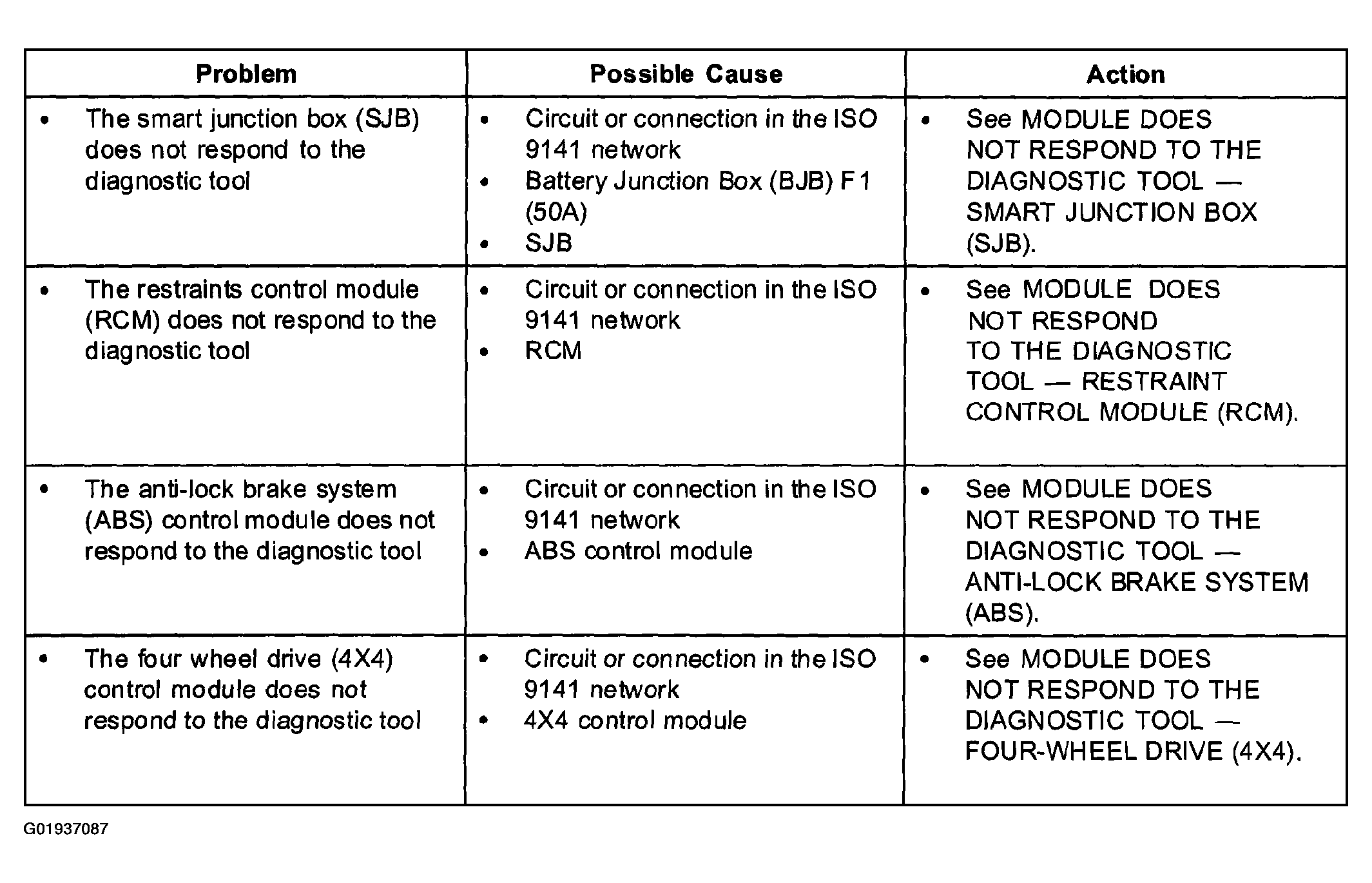

Fig 2: Symptom Troubleshooting Chart - Communications Network (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
