No Module/Network Communication - No Power To The Diagnostic Tool

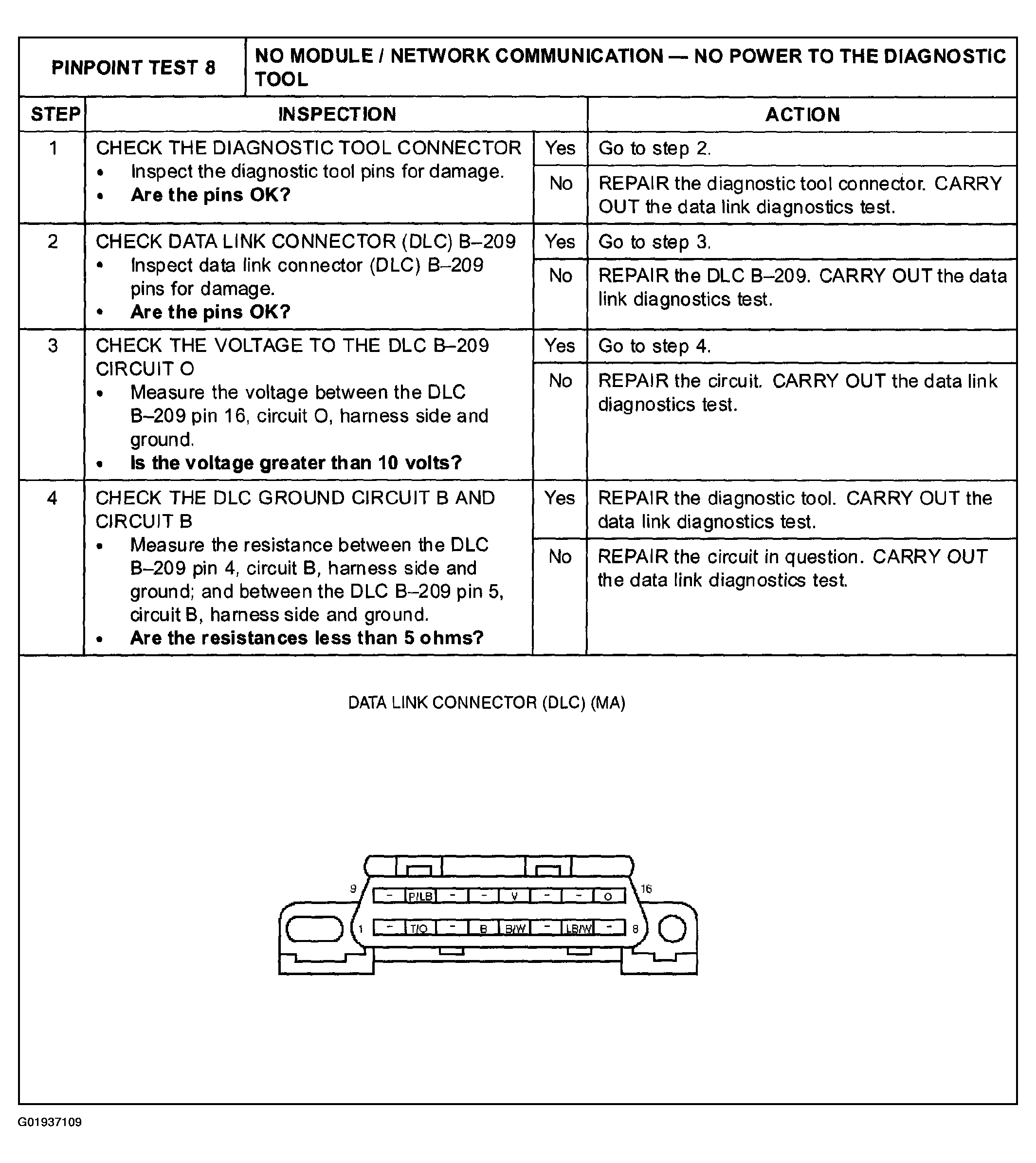

Fig 1: Pinpoint Test 8: No Module/Network Communication - No Power To Diagnostic Tool Inspection Table (Steps 1-4 & Data Link Connector Terminal Wire Color)

Courtesy of MAZDA MOTORS CORP.
