DTC Index - Smart Junction Box (SJB)

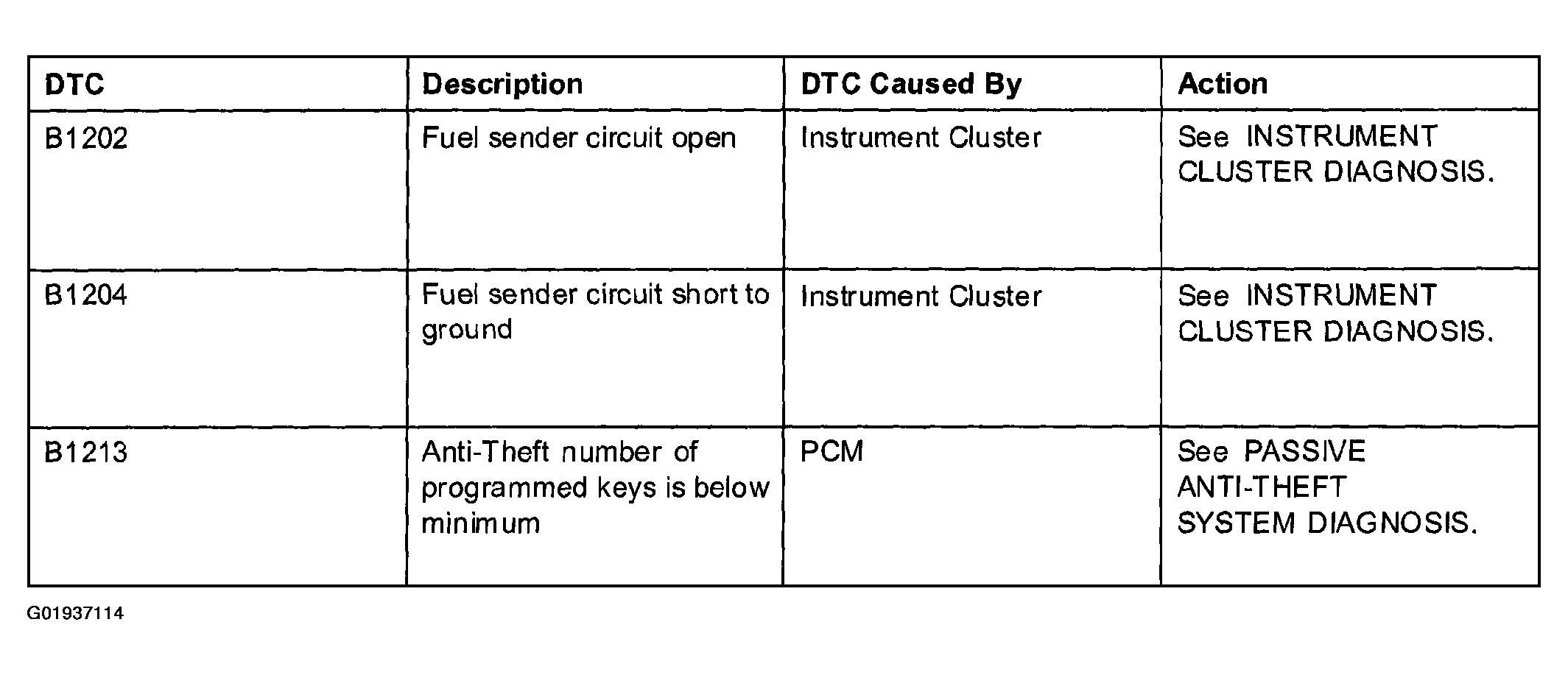

Fig 1: DTC Index - Smart Junction Box (B1202 - B1213)

Courtesy of MAZDA MOTORS CORP.

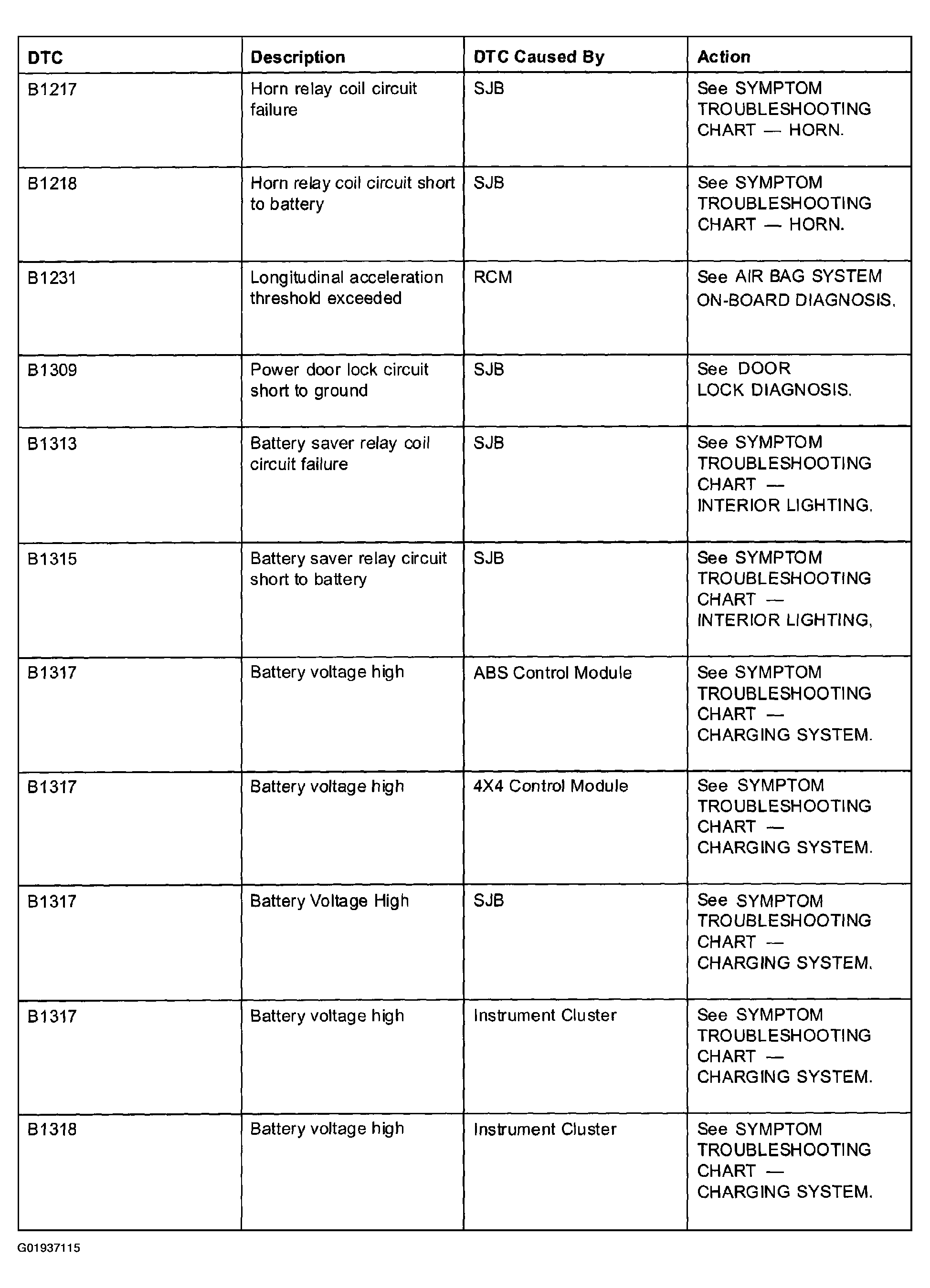

Fig 2: DTC Index - Smart Junction Box (B1217 - B1318)

Courtesy of MAZDA MOTORS CORP.

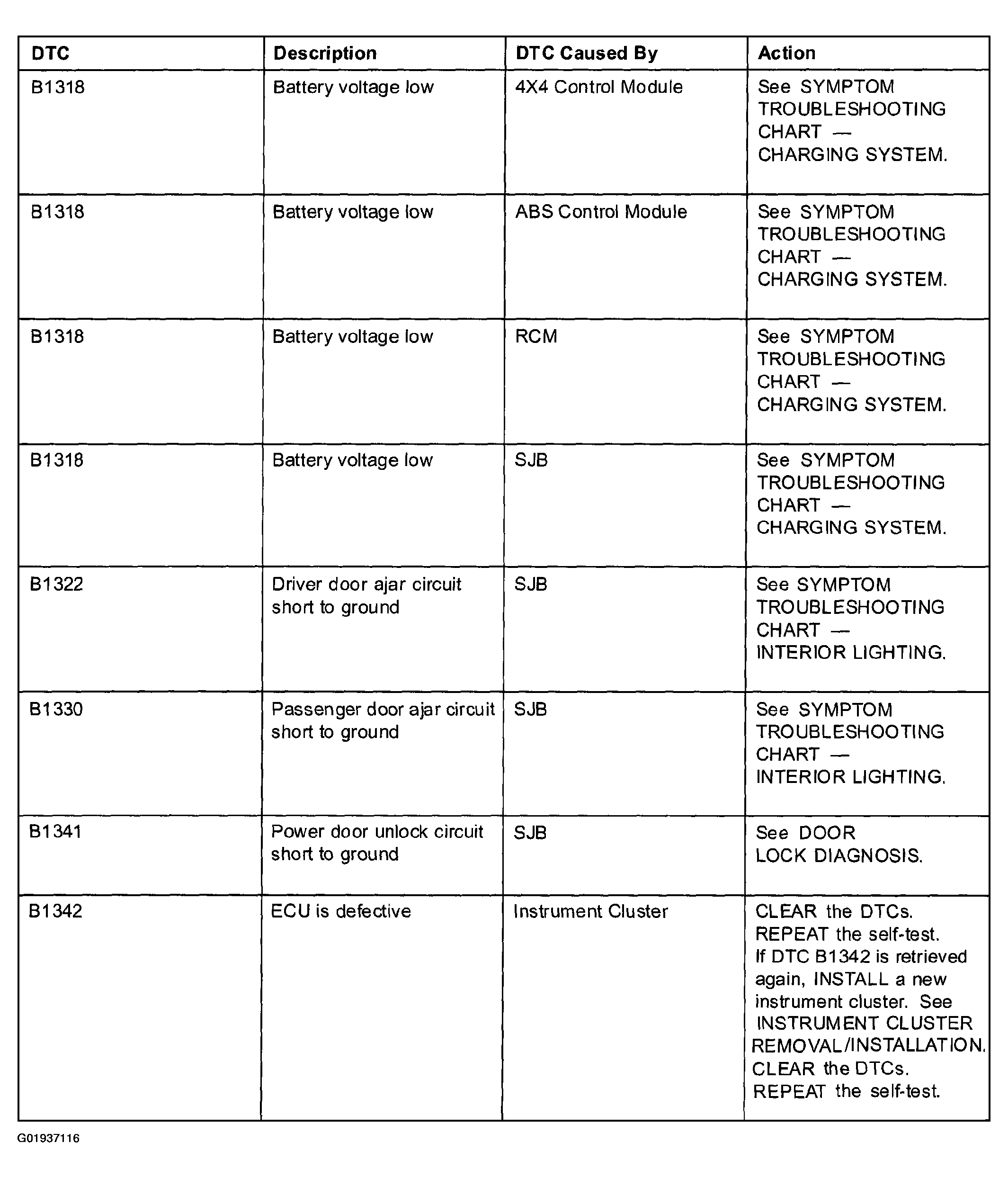

Fig 3: DTC Index - Smart Junction Box (B1318 - B1342)

Courtesy of MAZDA MOTORS CORP.

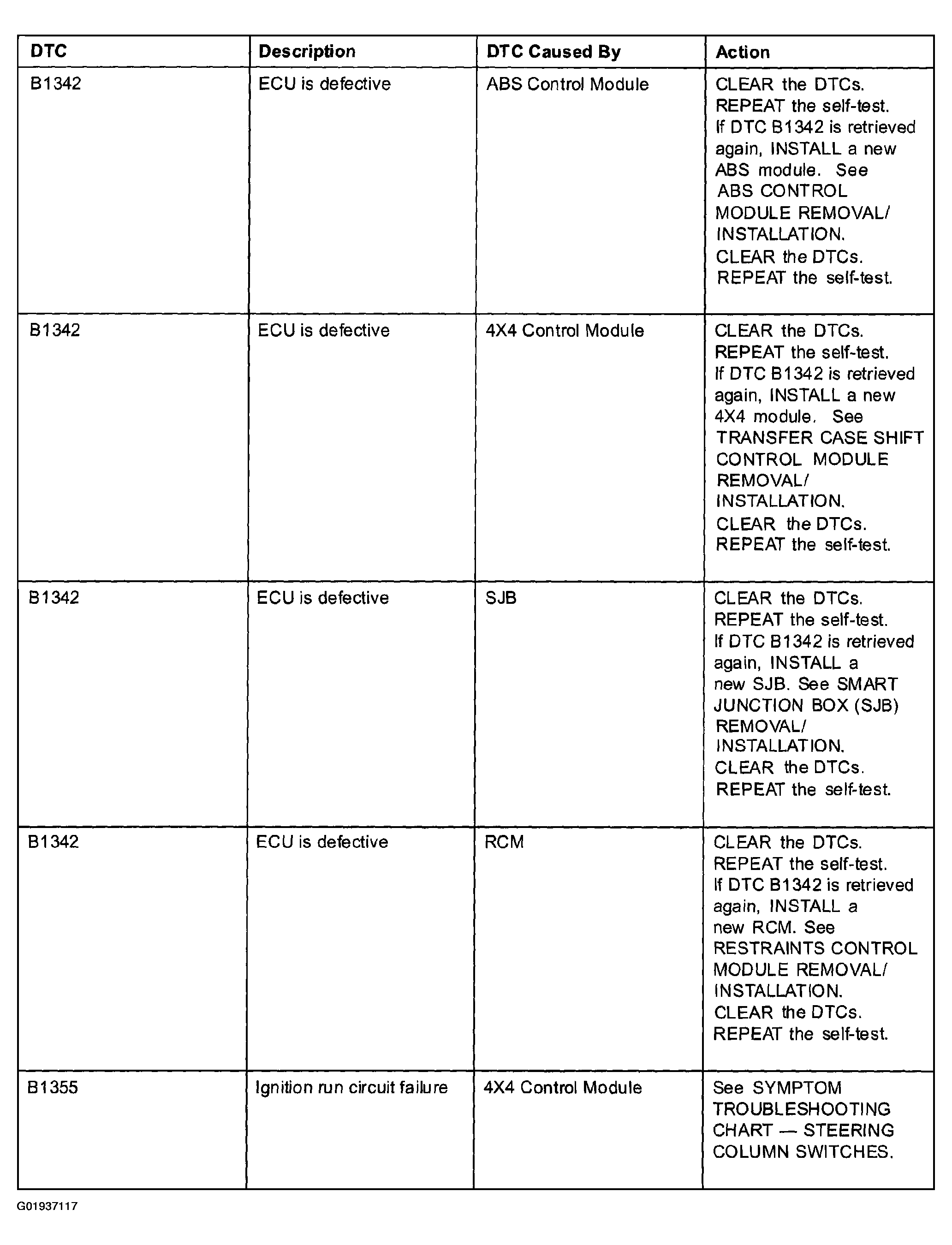

Fig 4: DTC Index - Smart Junction Box (B1342 - B1355)

Courtesy of MAZDA MOTORS CORP.

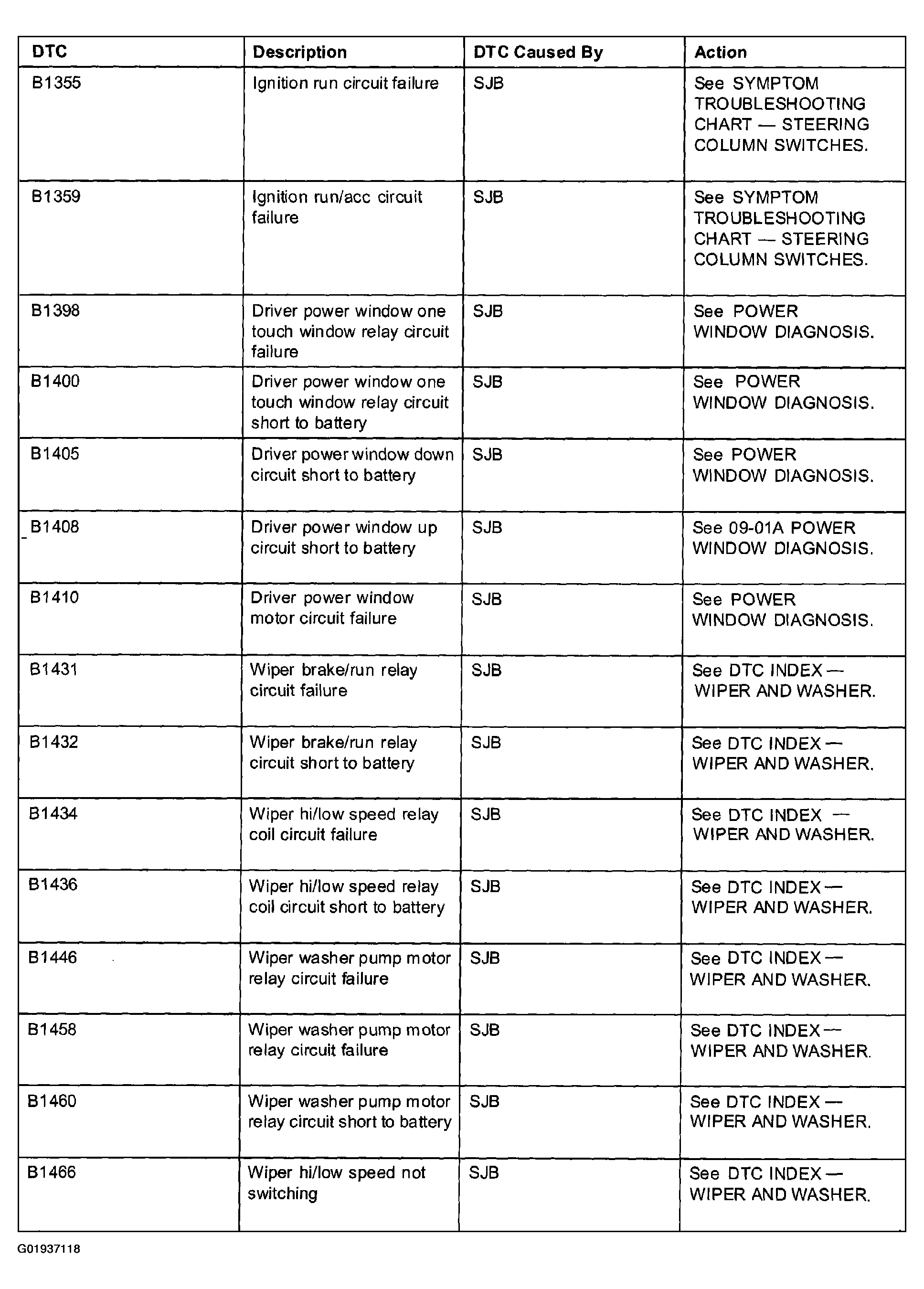

Fig 5: DTC Index - Smart Junction Box (B1355 - B1466)

Courtesy of MAZDA MOTORS CORP.

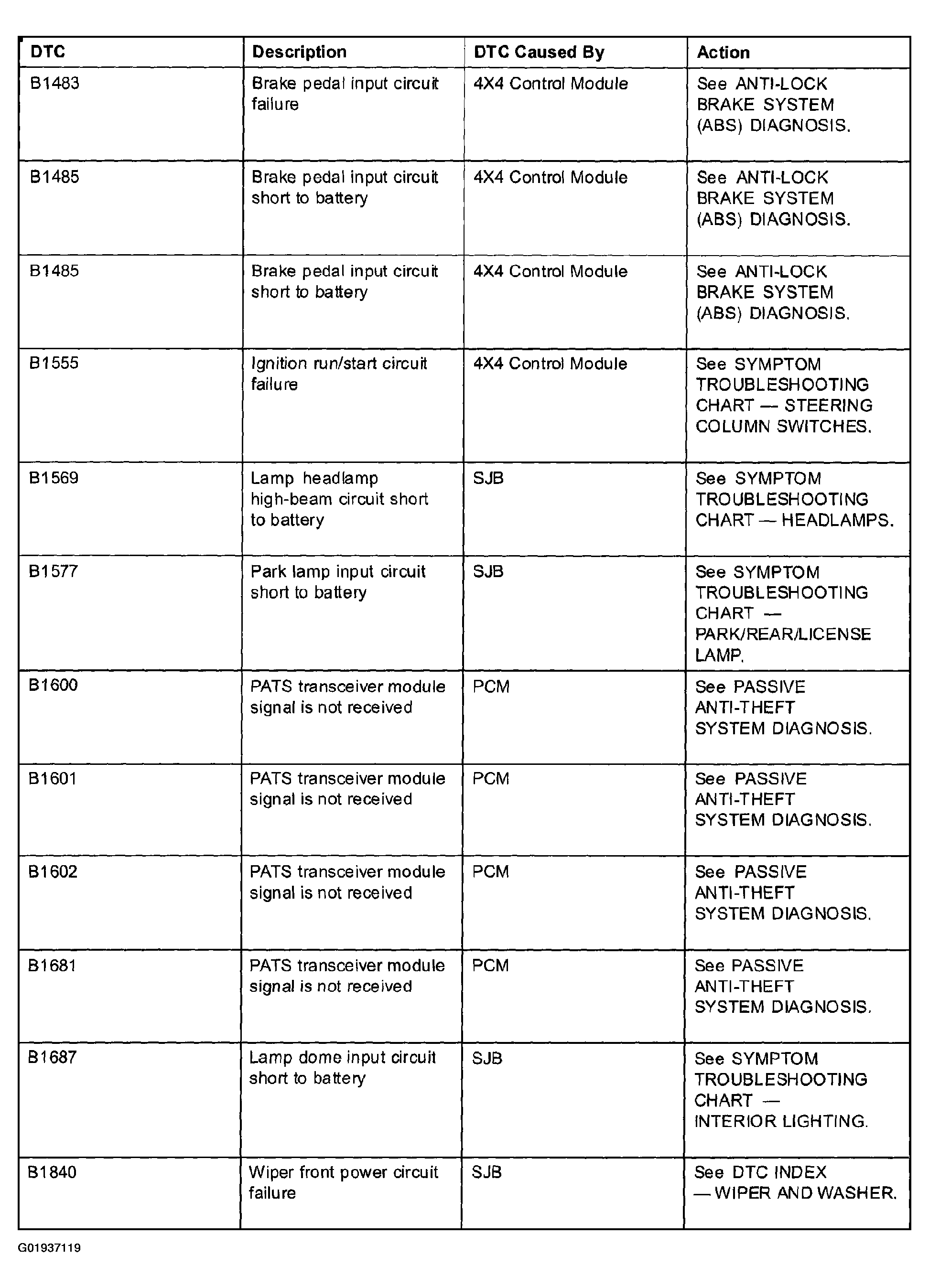

Fig 6: DTC Index - Smart Junction Box (B1483 - B1840)

Courtesy of MAZDA MOTORS CORP.

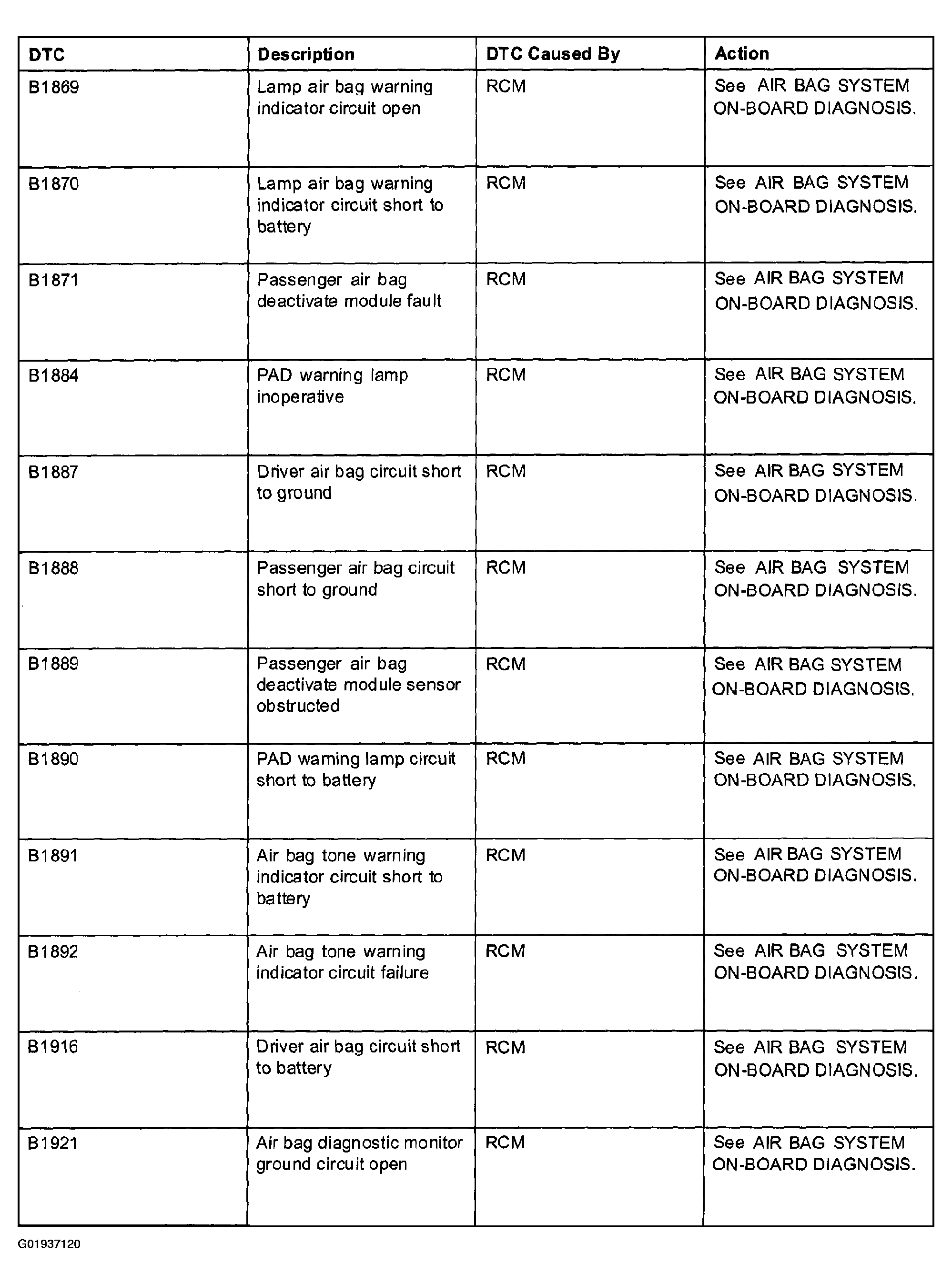

Fig 7: DTC Index - Smart Junction Box (B1869 - B1921)

Courtesy of MAZDA MOTORS CORP.

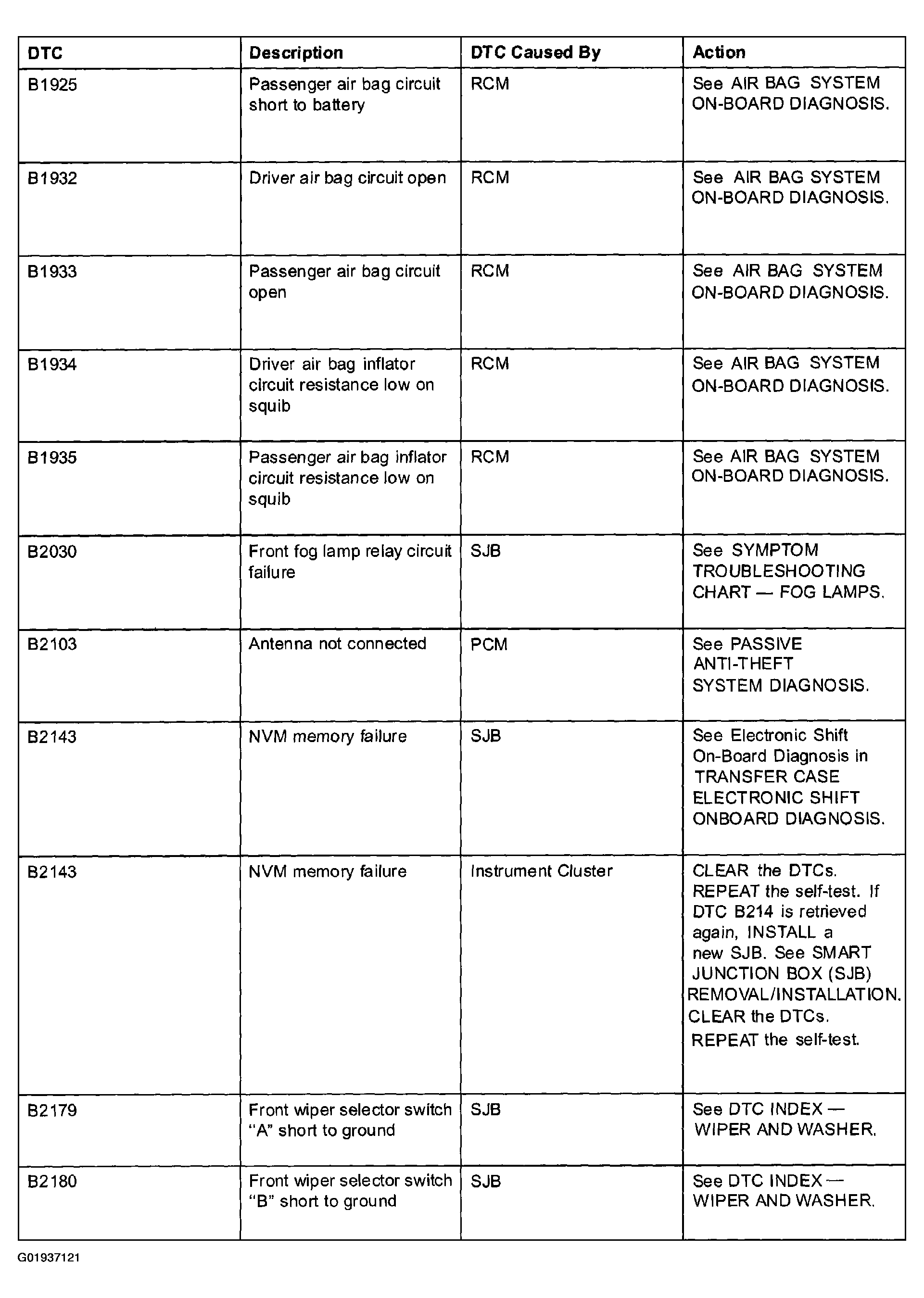

Fig 8: DTC Index - Smart Junction Box (B1925 - B2180)

Courtesy of MAZDA MOTORS CORP.

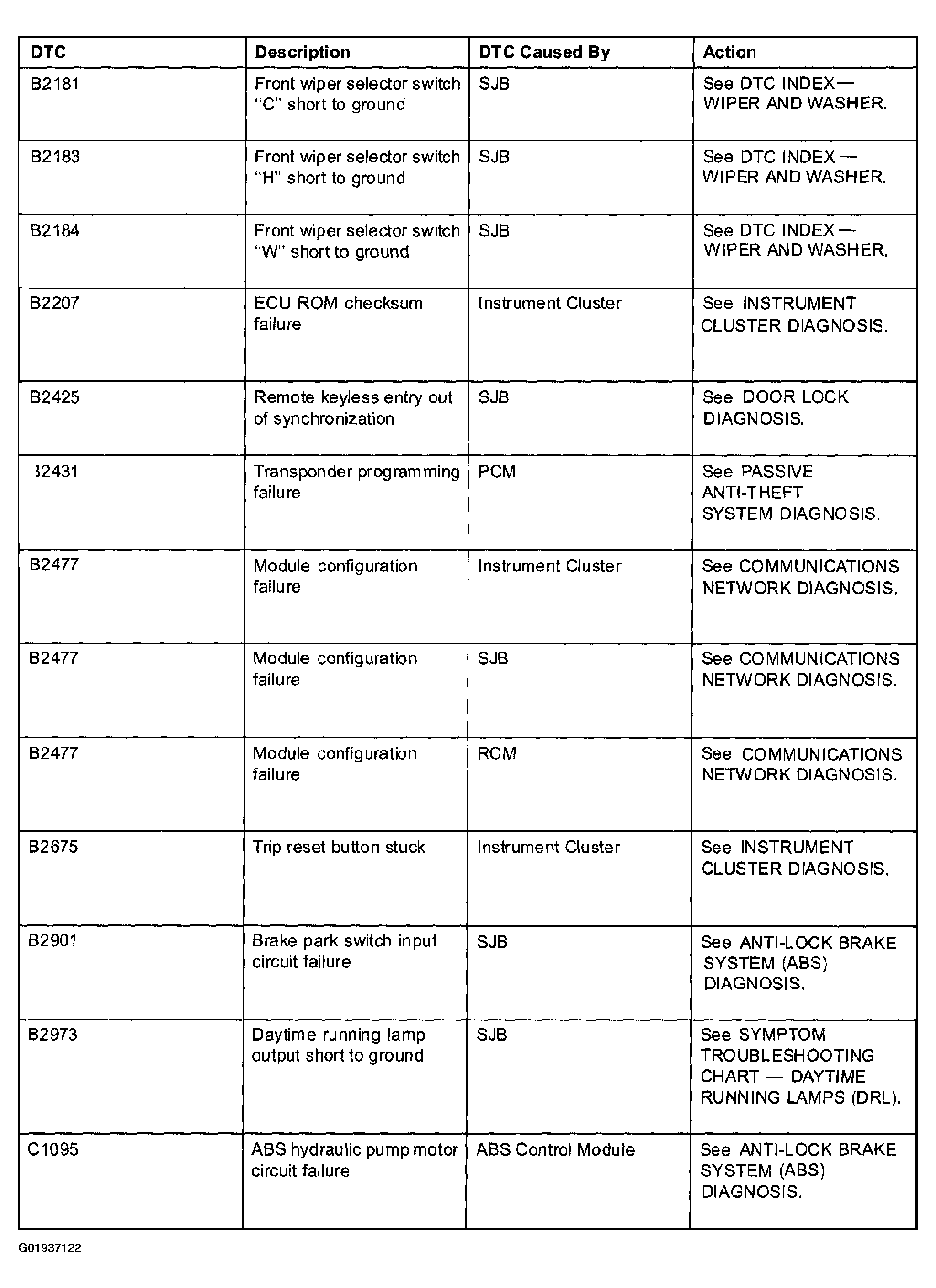

Fig 9: DTC Index - Smart Junction Box (B2181 - C1095)

Courtesy of MAZDA MOTORS CORP.

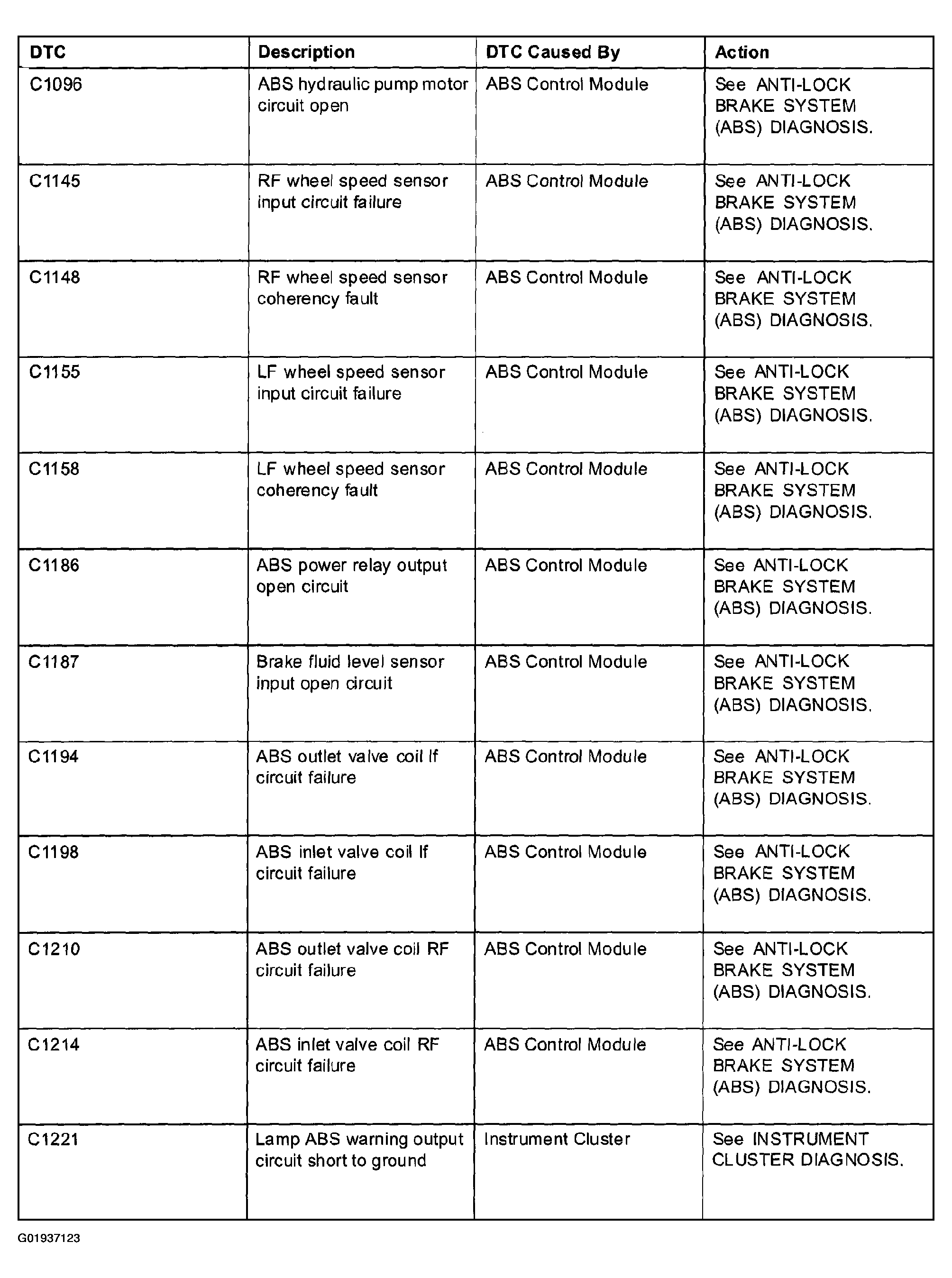

Fig 10: DTC Index - Smart Junction Box (C1096 - C1221)

Courtesy of MAZDA MOTORS CORP.

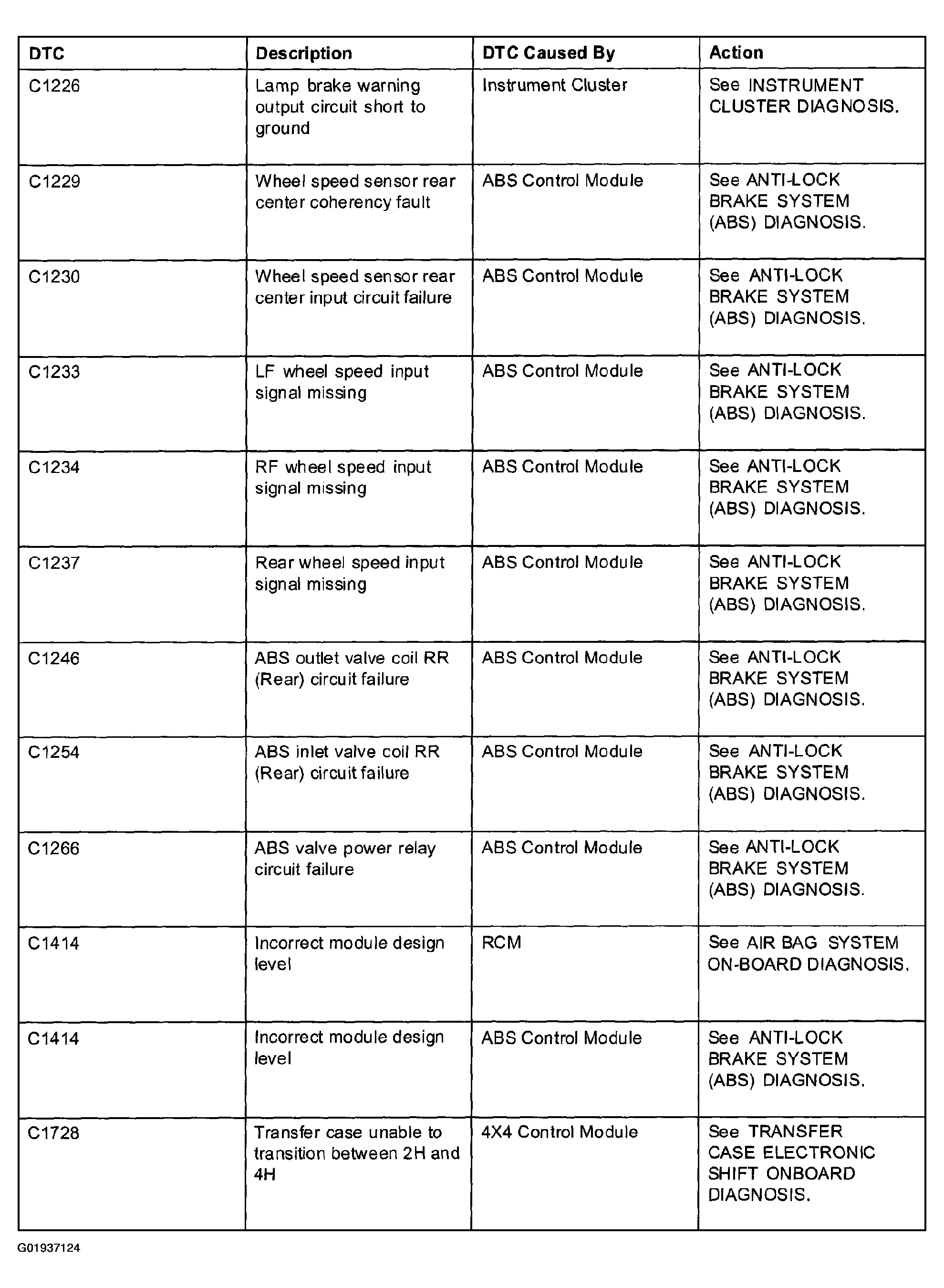

Fig 11: DTC Index - Smart Junction Box (C1226 - C1728)

Courtesy of MAZDA MOTORS CORP.

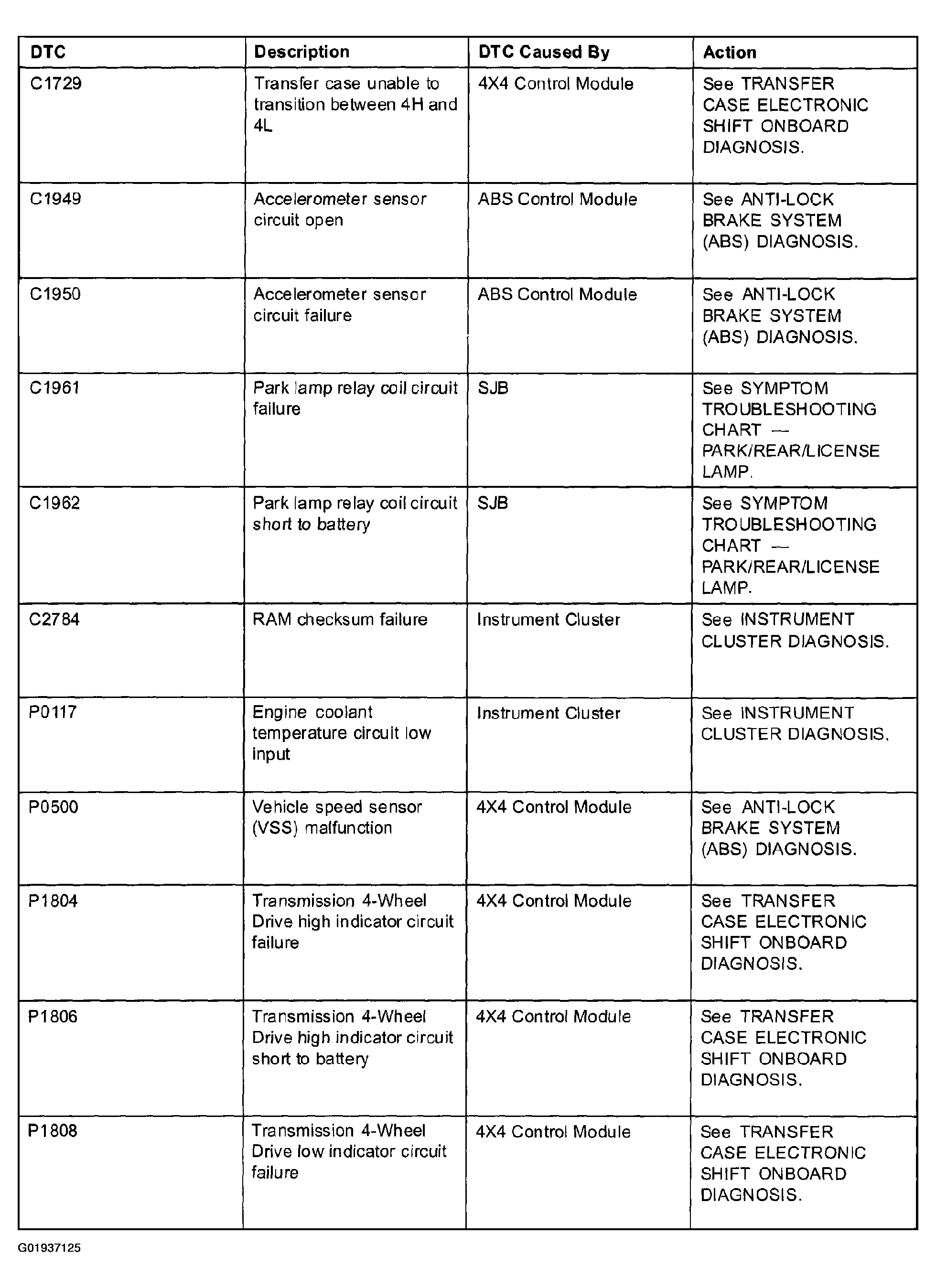

Fig 12: DTC Index - Smart Junction Box (C1729 - P1808)

Courtesy of MAZDA MOTORS CORP.

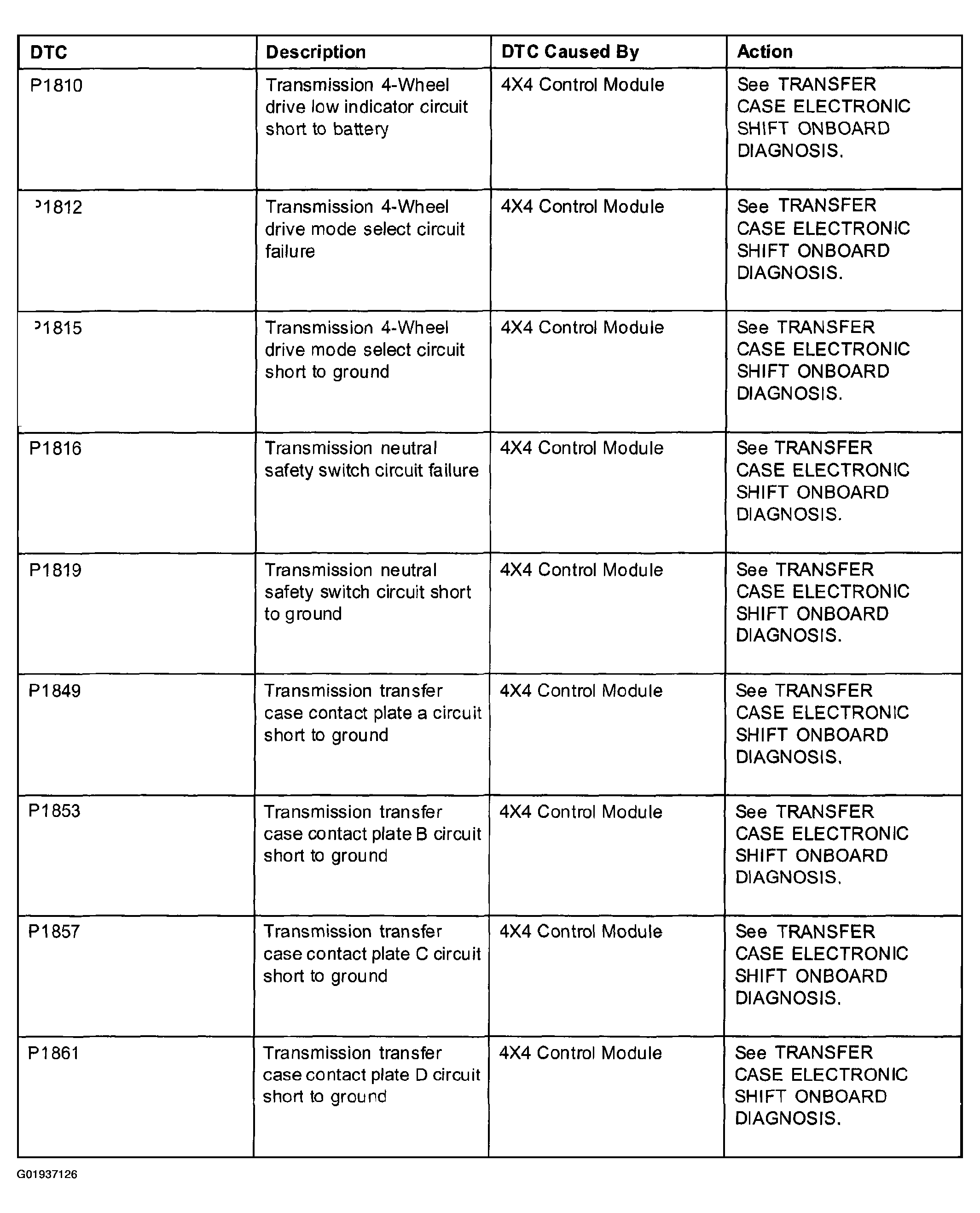

Fig 13: DTC Index - Smart Junction Box (P1810 - P1861)

Courtesy of MAZDA MOTORS CORP.

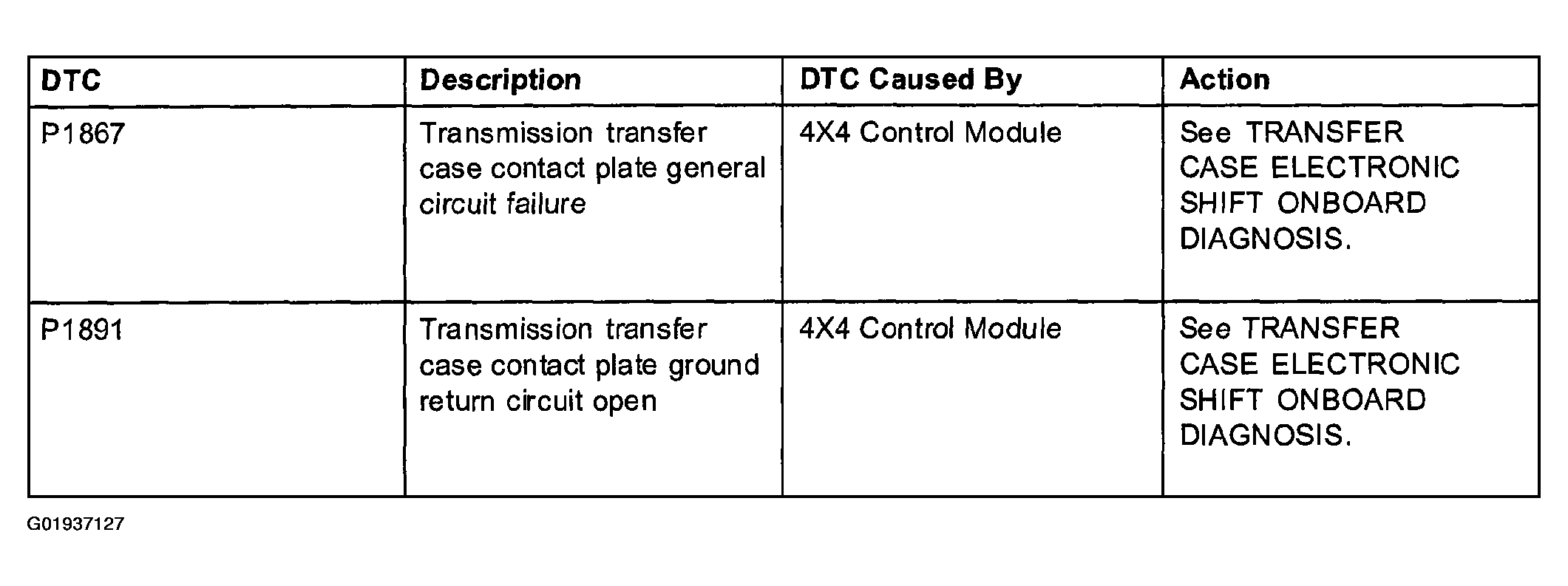

Fig 14: DTC Index - Smart Junction Box (P1867 - P1891)

Courtesy of MAZDA MOTORS CORP.

DTC TABLE

DTC	Description
B2477	Module Configuration Failure
