CII Pump Removal Note

  1. Remove the pump pulley; see POWER STEERING PUMP PULLEY REMOVAL/INSTALLATION  .
  2. Disconnect the power steering pressure hose.
    Fig 1: Locating Power Steering Pressure Hose
    G01936492Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the power steering return hose.
    Fig 2: Locating Power Steering Return Hose
    G01936493Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the power steering return line hose.
  5. Remove the bolts and the power steering pump.

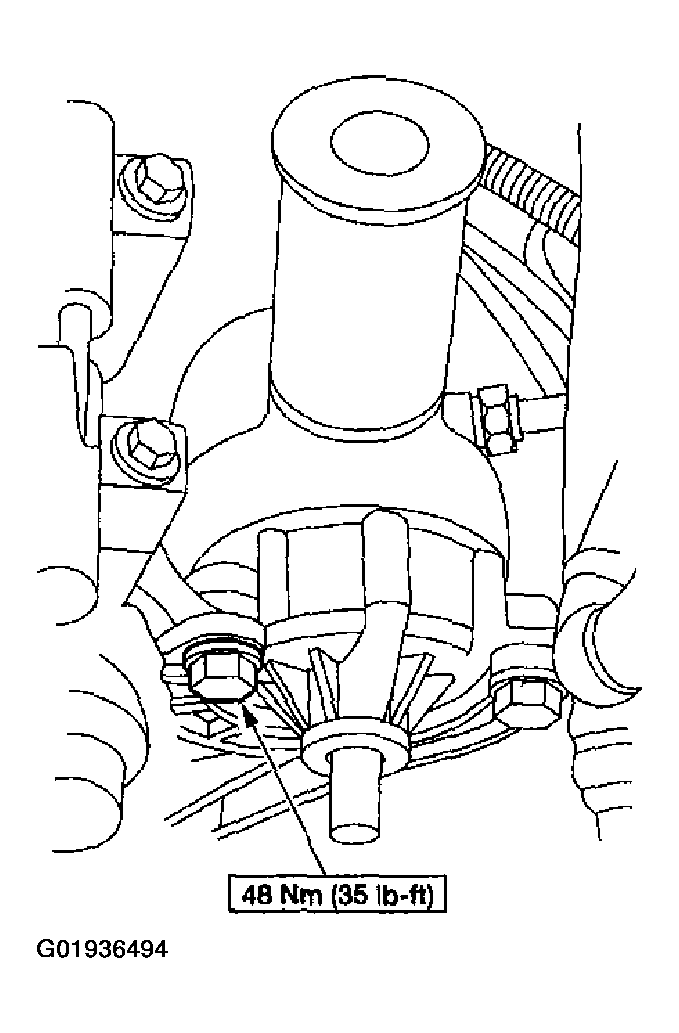

    Fig 3: Removing Bolts And Power Steering Pump
    G01936494Courtesy of MAZDA MOTORS CORP.
