Ignition Coil Pack Removal/Installation - 2.3L

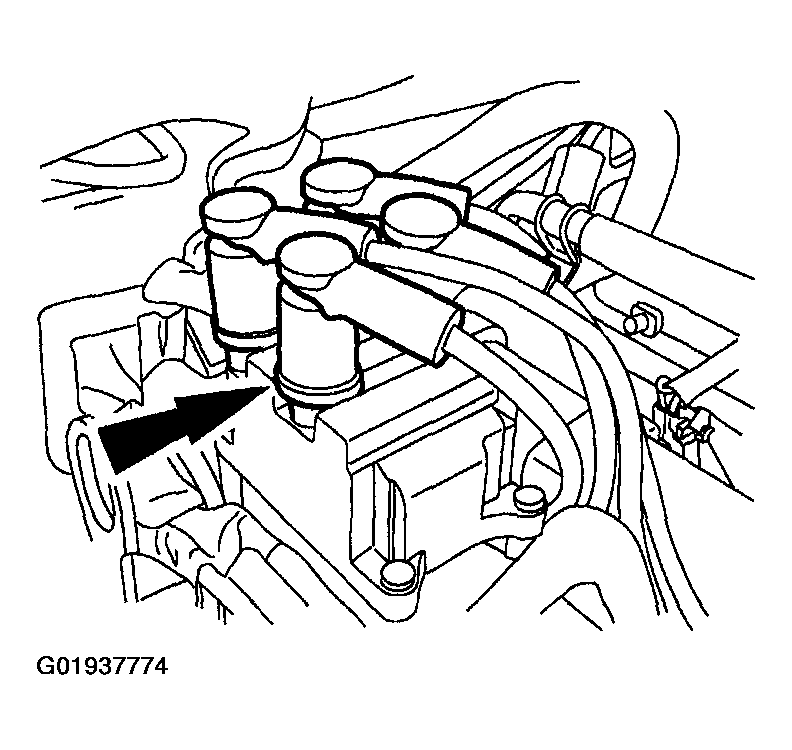

Fig 1: Removing Spark Plug Wires

Courtesy of MAZDA MOTORS CORP.

CAUTION:

• Do not pull on the spark plug wire as it may separate from the spark plug wire connector inside the spark plug wire boot.

1. Remove the spark plug wires by slightly twisting while pulling upwards.

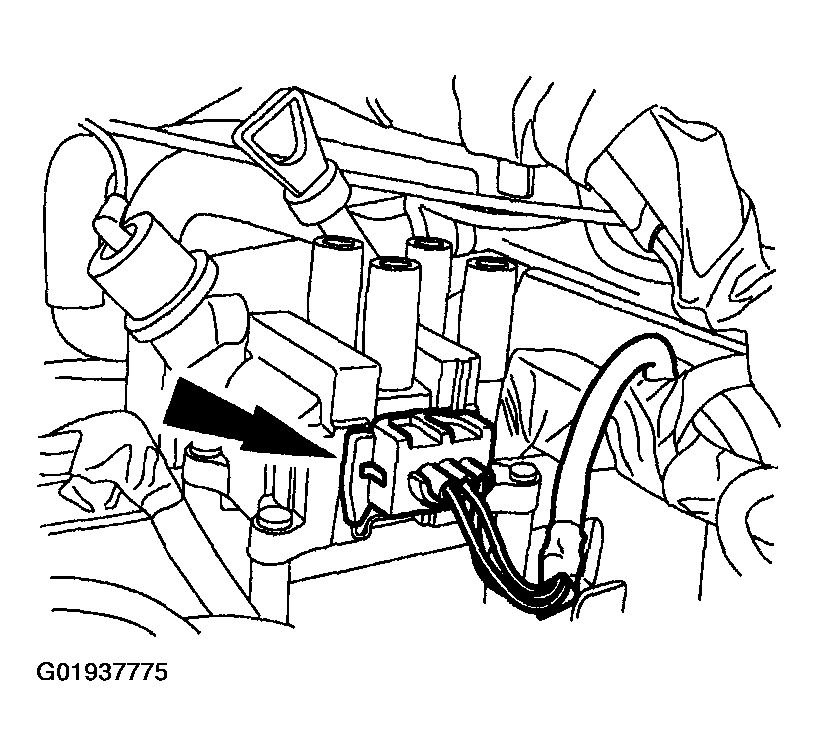

   Fig 2: Disconnecting Ignition Coil Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
2. Disconnect the ignition coil electrical connector.

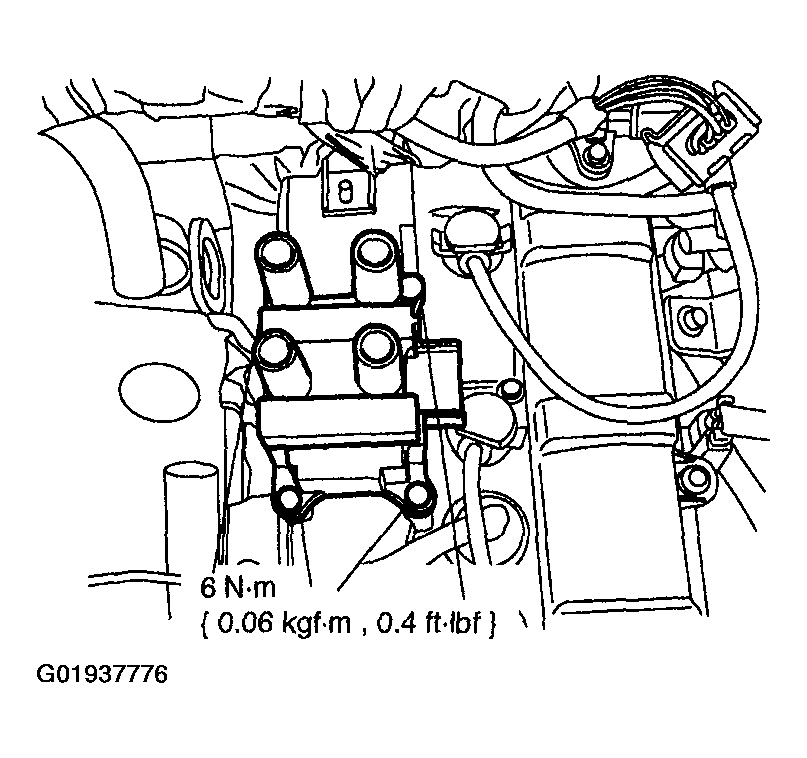

   Fig 3: Removing Ignition Coil Bolts

   Courtesy of MAZDA MOTORS CORP.
3. Remove the four bolts and the ignition coil.
   NOTE:

   • Wipe the coil towers with a clean cloth dampened with soap and water. Remove any soap film and dry with compressed air. Inspect for cracks, carbon tracking and dirt.
4. To install, reverse the removal procedure.
   • Apply silicone dielectric compound to the inside of the spark plug wire boots.
