General Pinpoint Test 2: Tachometer Output (CTO) Failure

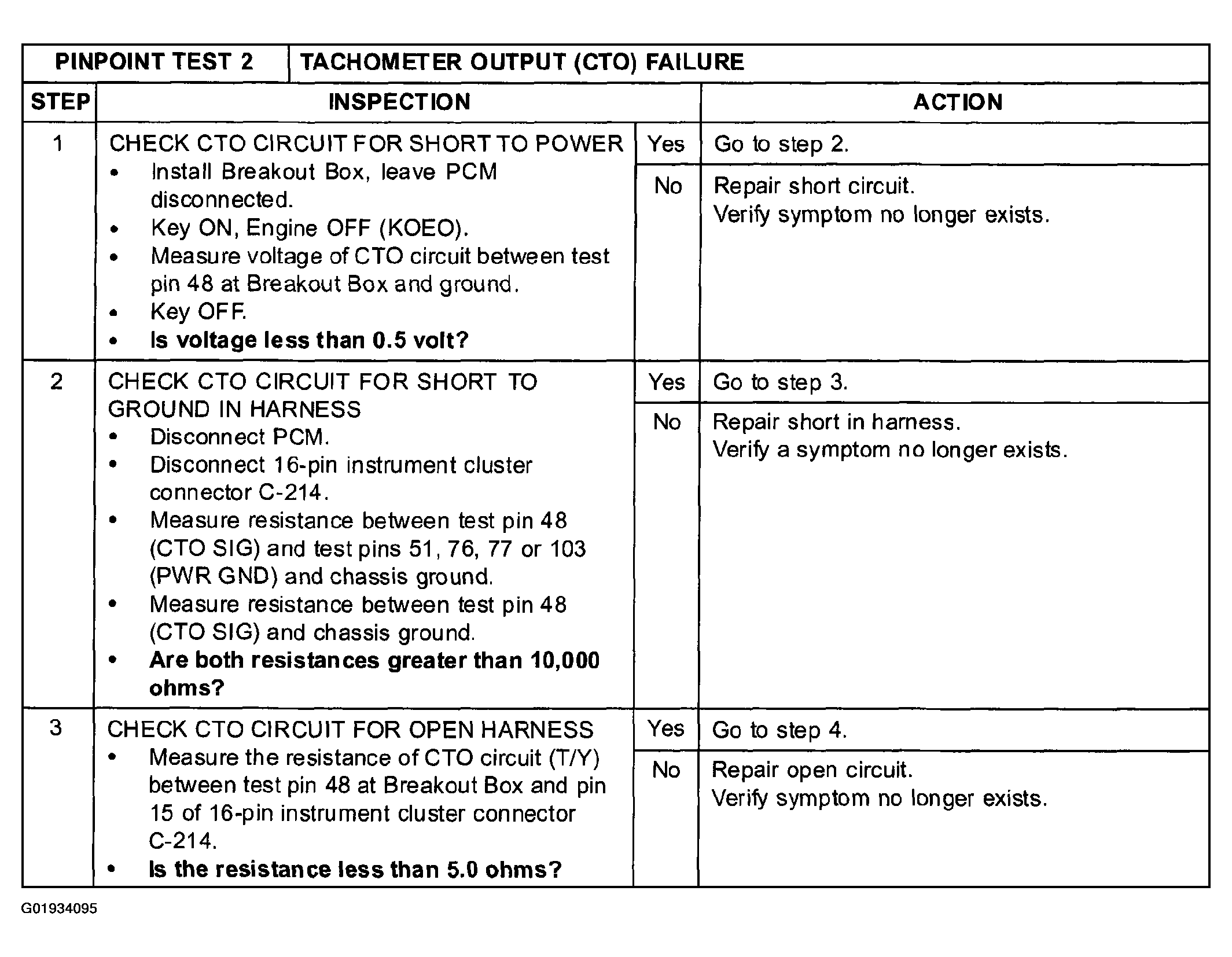

Fig 1: General Pinpoint Test 2: Tachometer Output Failure - (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

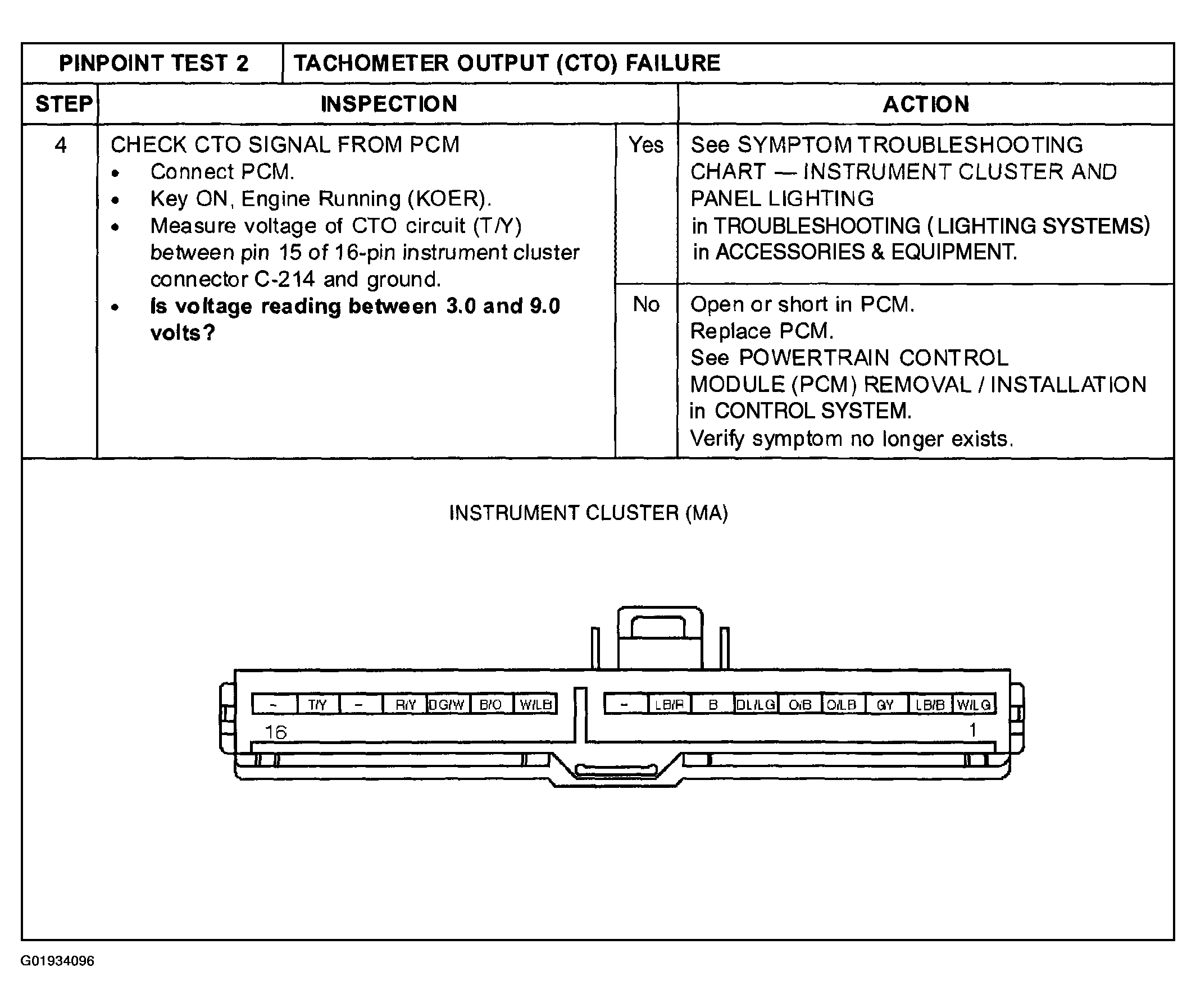

Fig 2: General Pinpoint Test 2: Tachometer Output Failure -(Step 4)

Courtesy of MAZDA MOTORS CORP.
