Wheel Speed Sensor, Right Front Connector End View (C160)

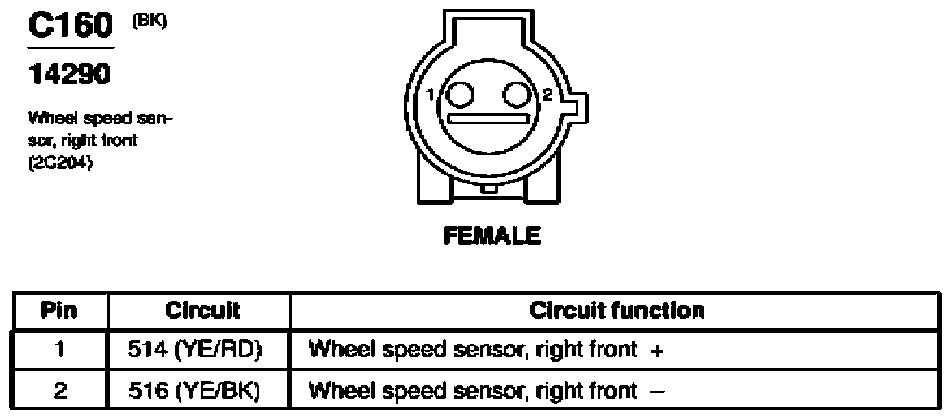

Fig 1: Wheel Speed Sensor, Right Front Connector End View (C160)

G07839306

Courtesy of FORD MOTOR CO.
