Subwoofer Connector End View (C3020)

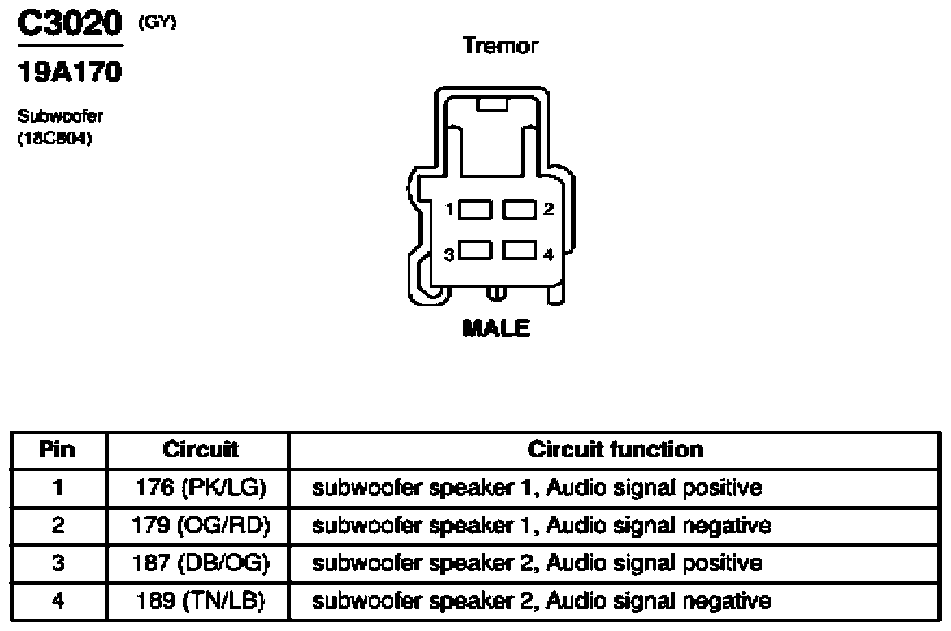

Fig 1: Subwoofer Connector End View (C3020)

G07839459

Courtesy of FORD MOTOR CO.
