Smart Junction Box (SJB) Connector End View (C2280a)

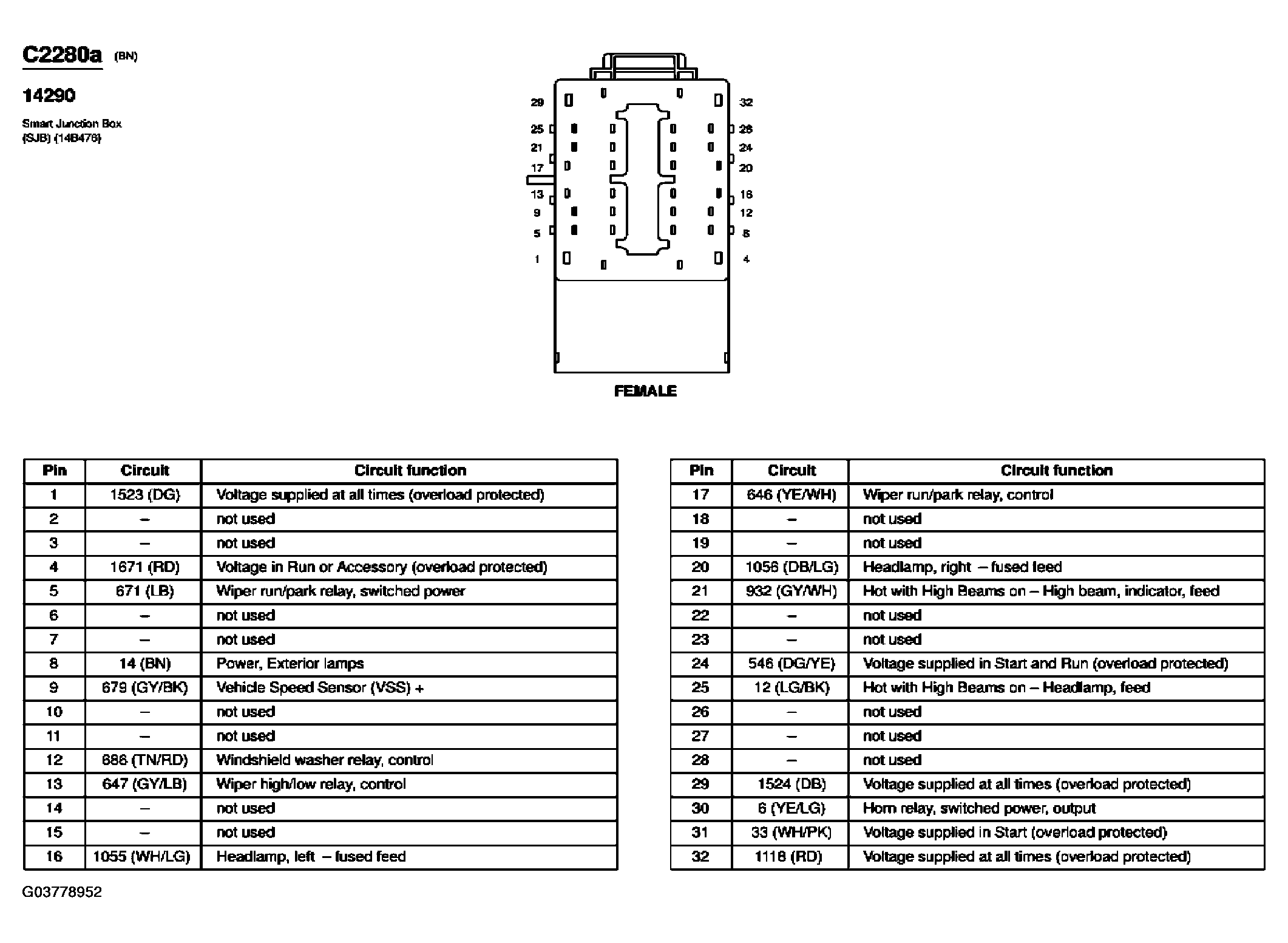

Fig 1: Smart Junction Box (SJB) Connector End View (C2280a)

G03778952

Courtesy of FORD MOTOR CO.
